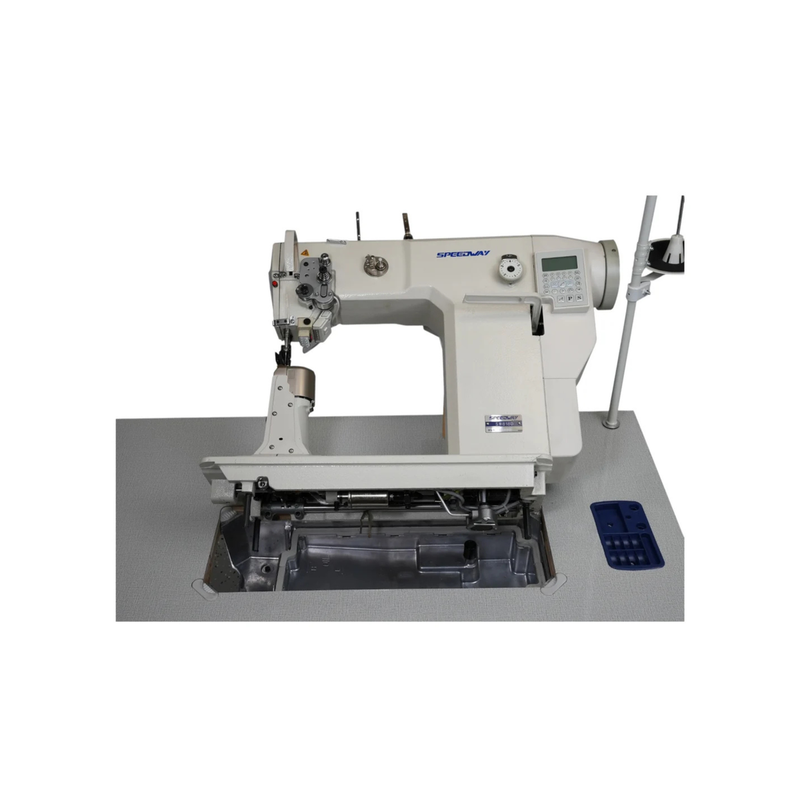

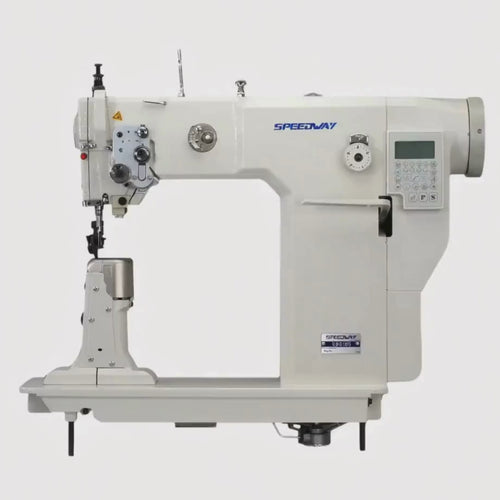

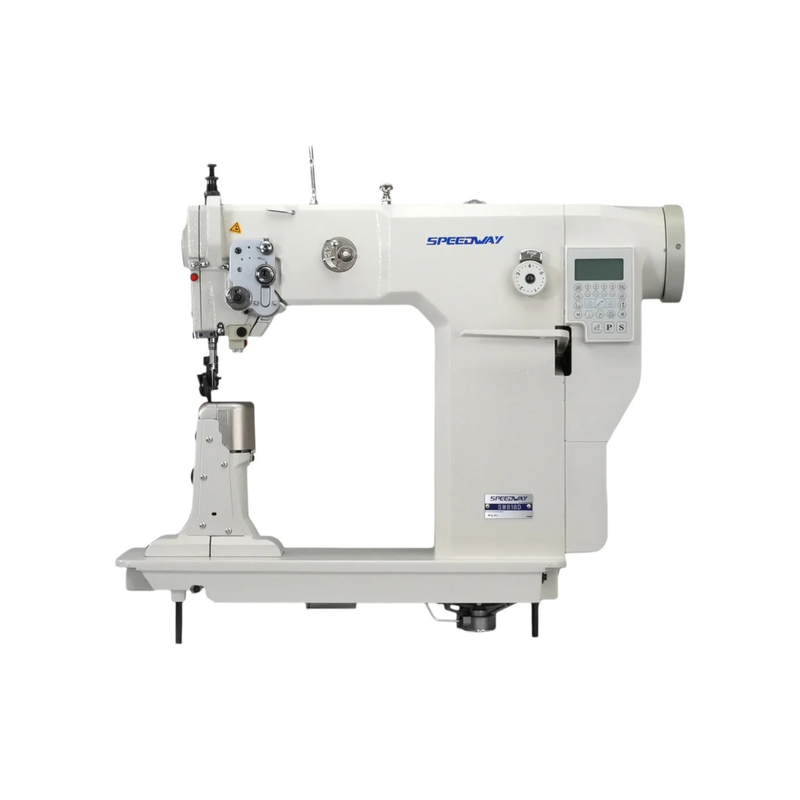

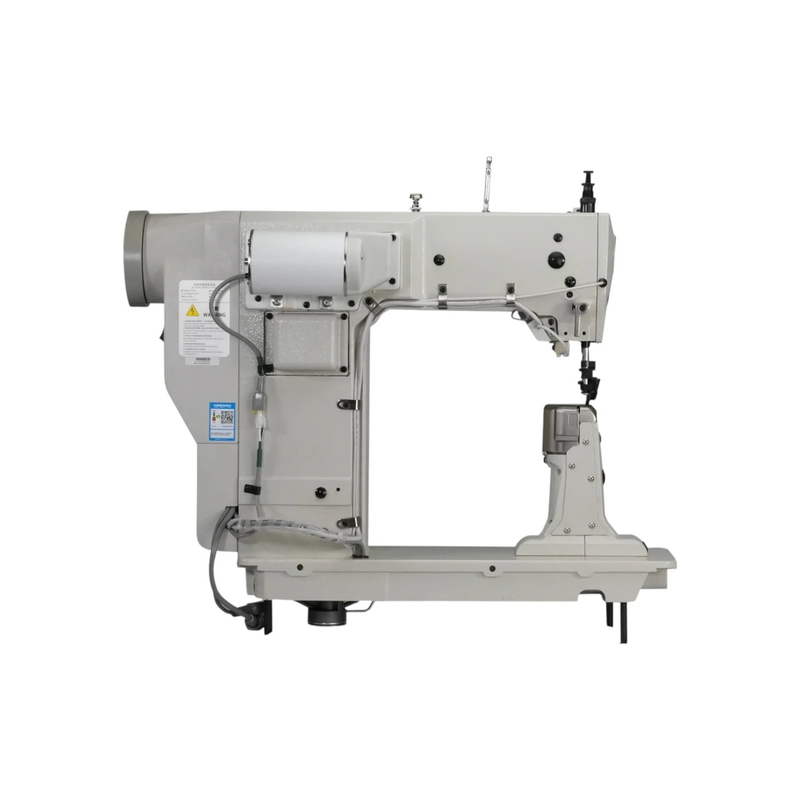

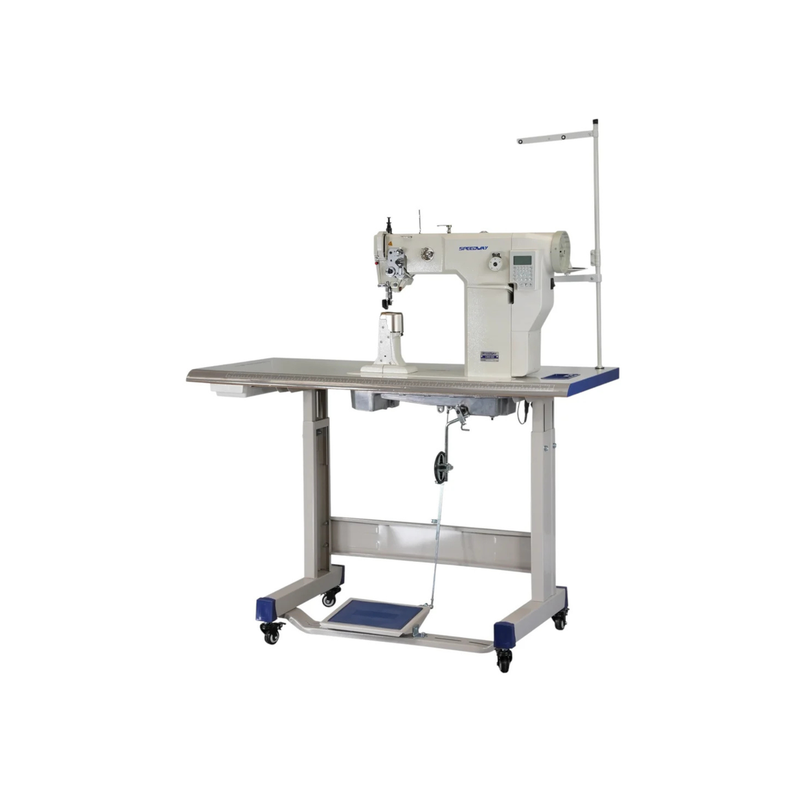

SPEEDWAY 818D Full Function Single Needle Post-Bed Industrial Sewing Machine

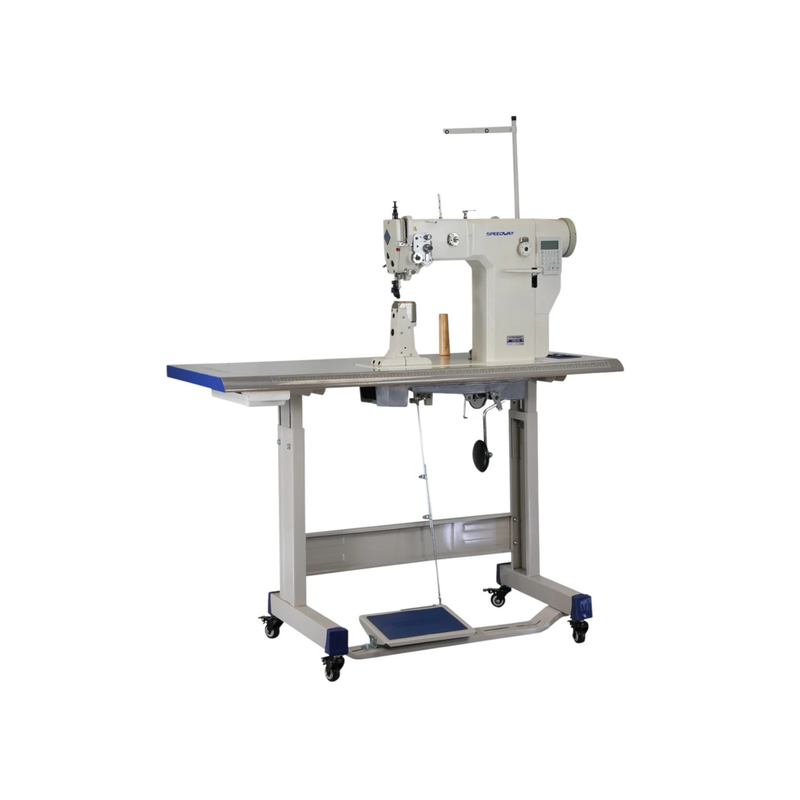

Complete Assembled with Table and Stand Included
Post Bed • Compound Feed • Full Automatic
The SPEEDWAY 818D is a fully automatic, single-needle post-bed
industrial sewing machine designed for high-precision stitching on heavy
and technical materials. With a 180 mm post height and a

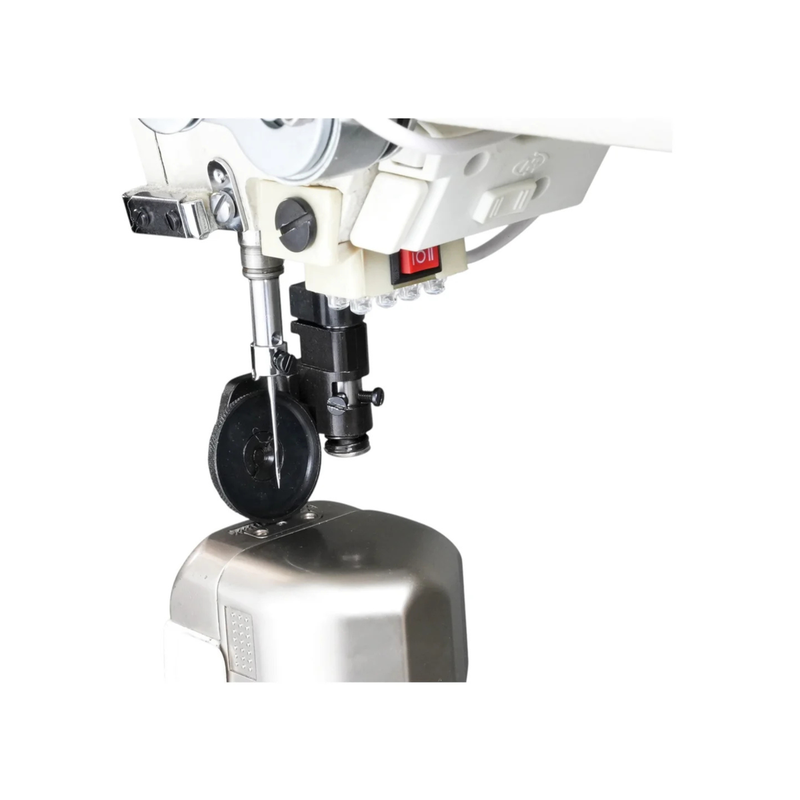

compound feed system with roller foot, it provides excellent control when sewing
curved, tubular, or hard-to-reach areas. Integrated automatic functions and a
direct drive servo motor make the SW818D a powerful, quiet, and highly efficient
solution for professional workshops and industrial production.
Key Features
-

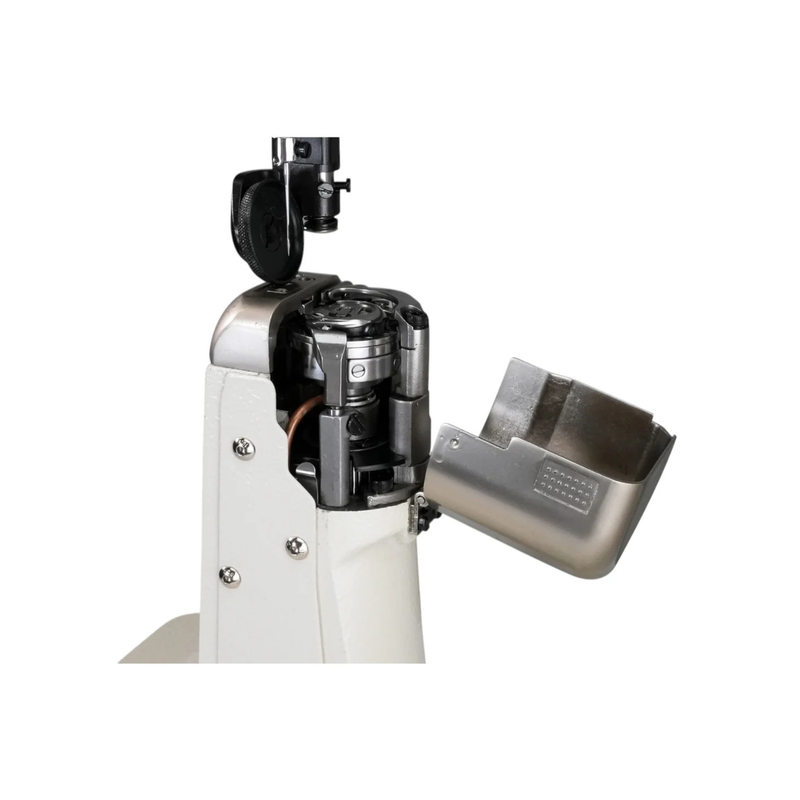

Post-bed design with 180 mm height for superior maneuverability
-
Compound feed system (top, bottom & needle feed) with roller foot
- Automatic presser foot lift
- Automatic thread trimming
- Automatic reverse stitching

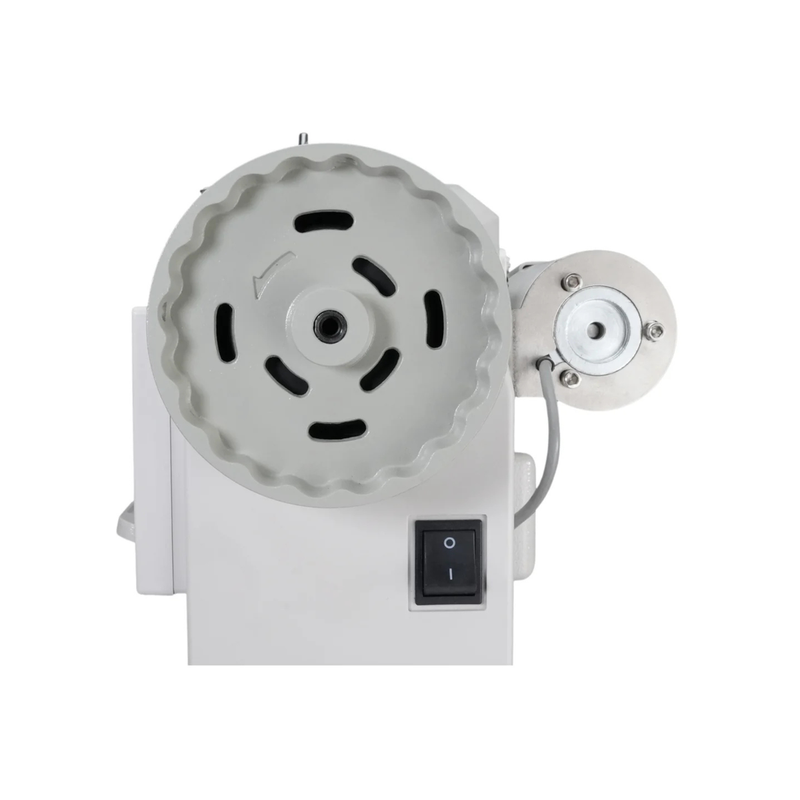

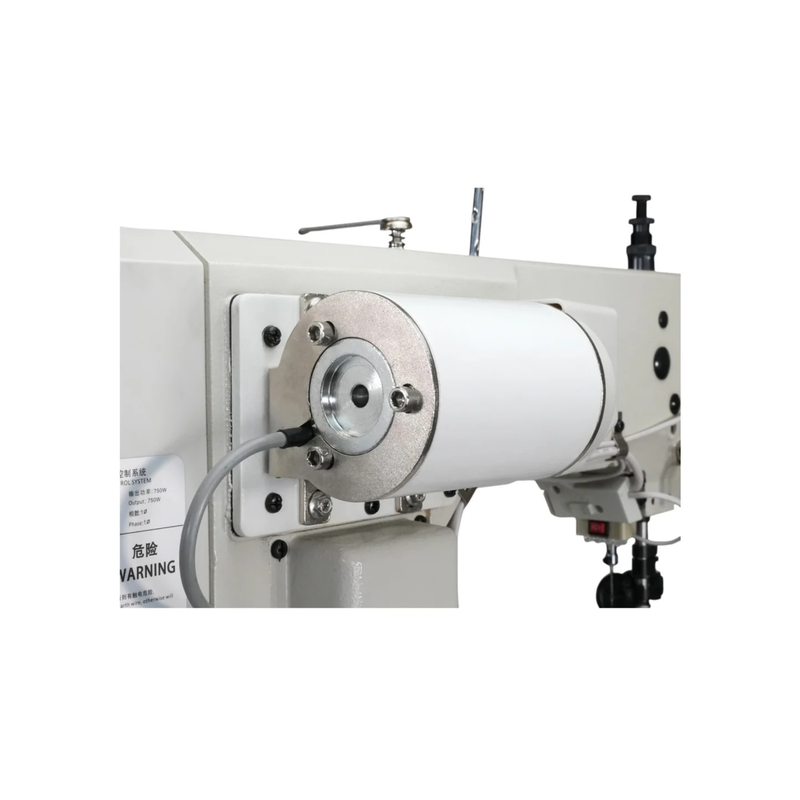

- Built-in direct drive servo motor for quiet, energy-saving operation
- Automatic lubrication system for extended machine life
- High presser foot lift for thick and multi-layer materials
Applications
The SPEEDWAY 818D is ideal for professional sewing tasks requiring precision and
control on difficult shapes and heavy materials, including:
- Leather goods (bags, wallets, accessories)
- Footwear and shoe uppers
- Hats and caps
- Upholstery and furniture components
- Automotive interiors
- Canvas, vinyl, and synthetic materials
Technical Specifications
| Model |
SPEEDWAY 818D |
| Machine Type |
Single Needle Post-Bed Lockstitch |
| Feed System |
Top, Bottom & Needle Feed (Compound Feed) |
| Post Height |
180 mm |
| Maximum Speed |
Up to 2,500 SPM |
| Maximum Stitch Length |
5 mm |
| Presser Foot Lift |

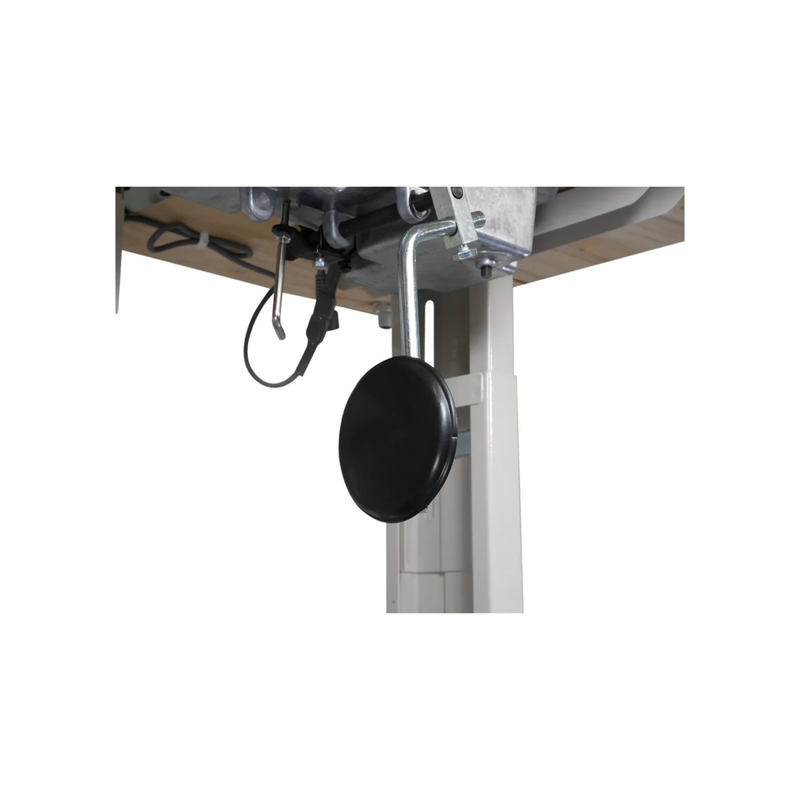

7 mm (hand) / 13 mm (knee) |
| Needle System |
DPx5 (#14 – #21) |
| Lubrication |
Automatic |
| Motor |
Built-in Direct Drive Servo Motor |
What’s Included
- SPEEDWAY 818D machine head
- Built-in direct drive servo motor

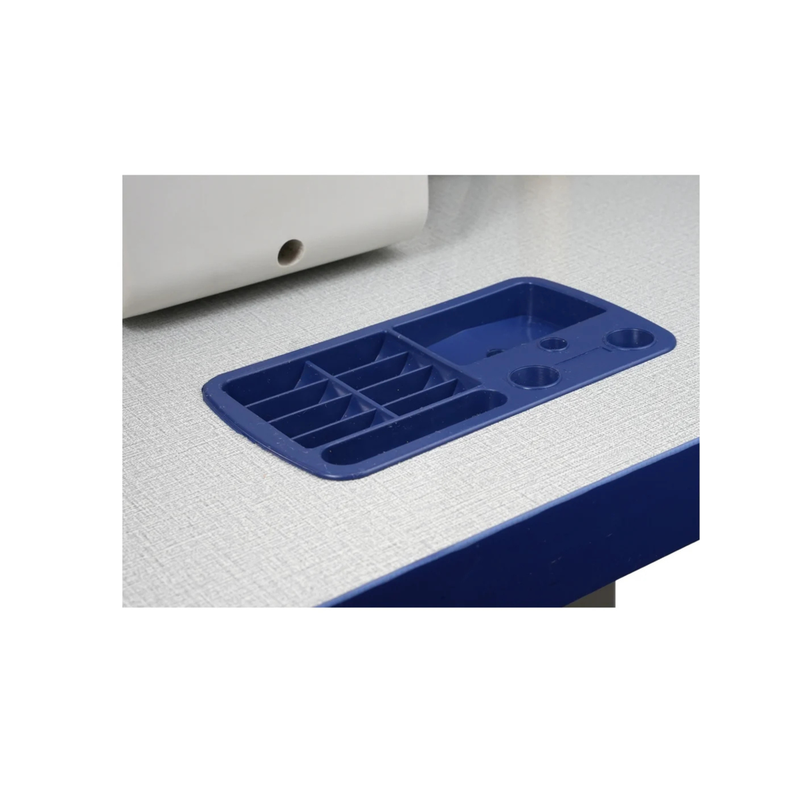

- Industrial table
- Steel stand / legs

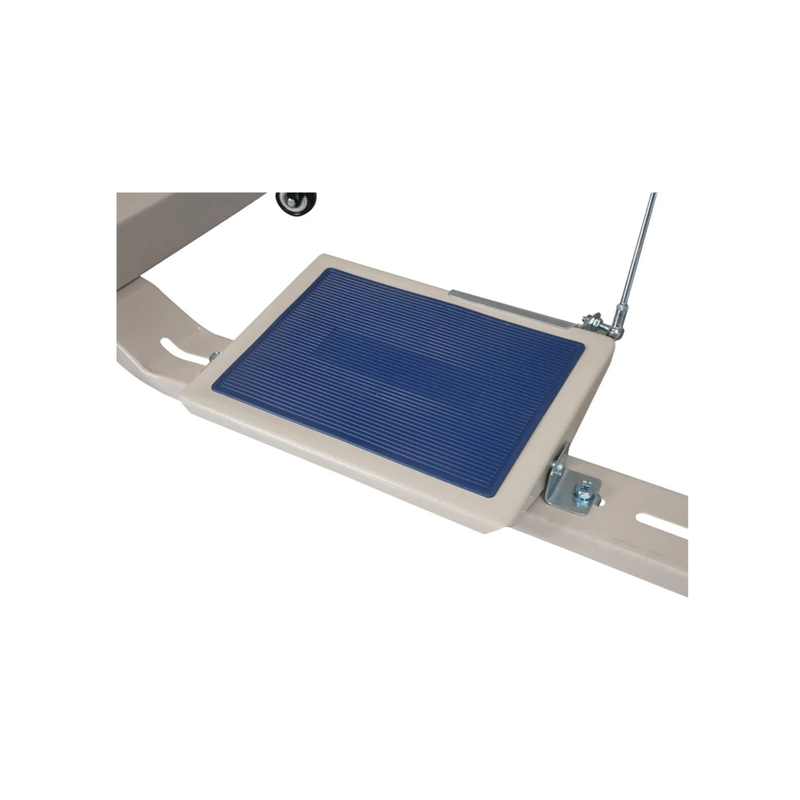

- Foot pedal and complete installation hardware
Commercial Summary:
The SPEEDWAY 818D combines automation, precision, and power in a compact post-bed
design. With automatic foot lift, thread trimming, and reverse stitching, plus a
quiet direct drive motor, it delivers professional-grade performance for leather,
upholstery, footwear, and automotive sewing applications where accuracy and
efficiency are critical.
