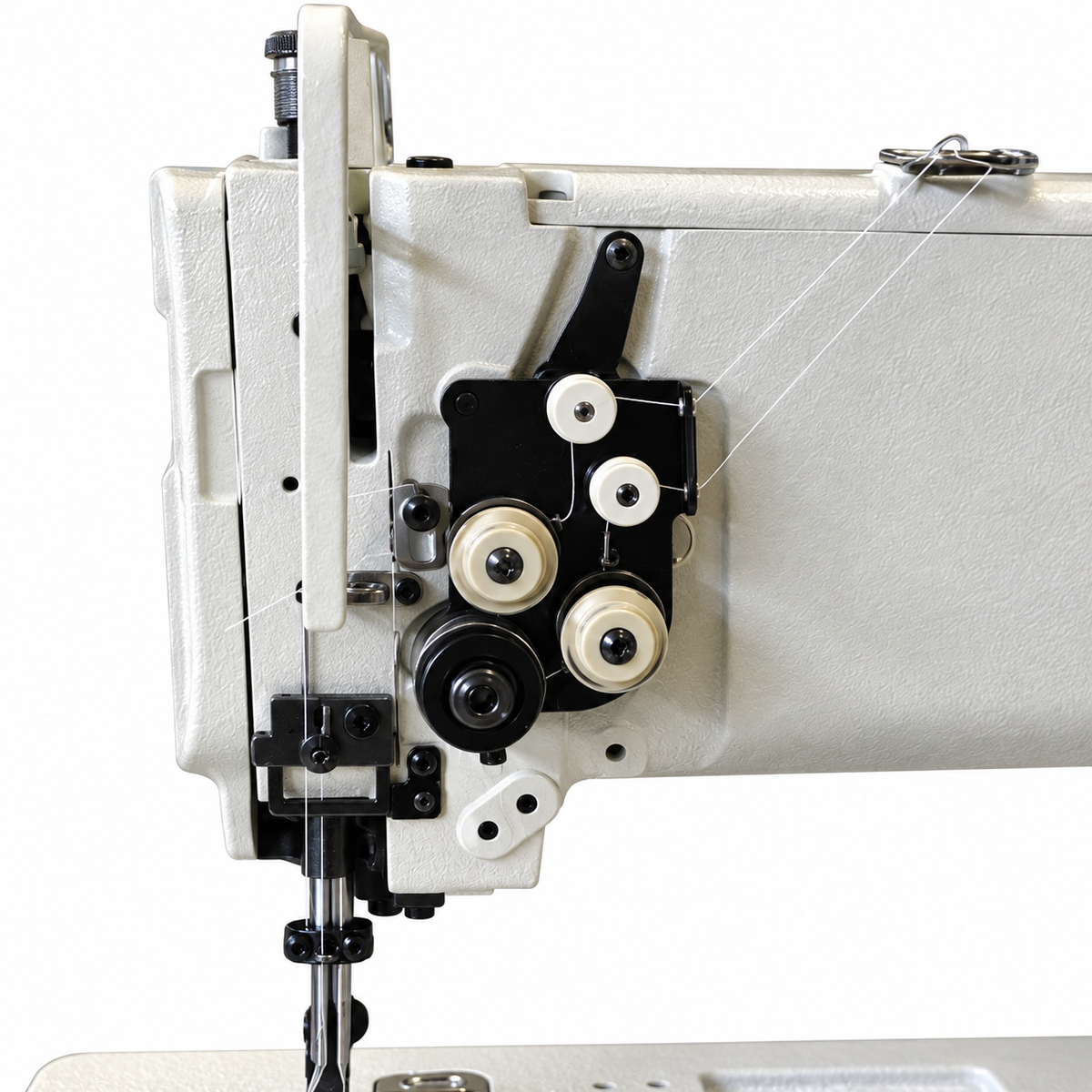

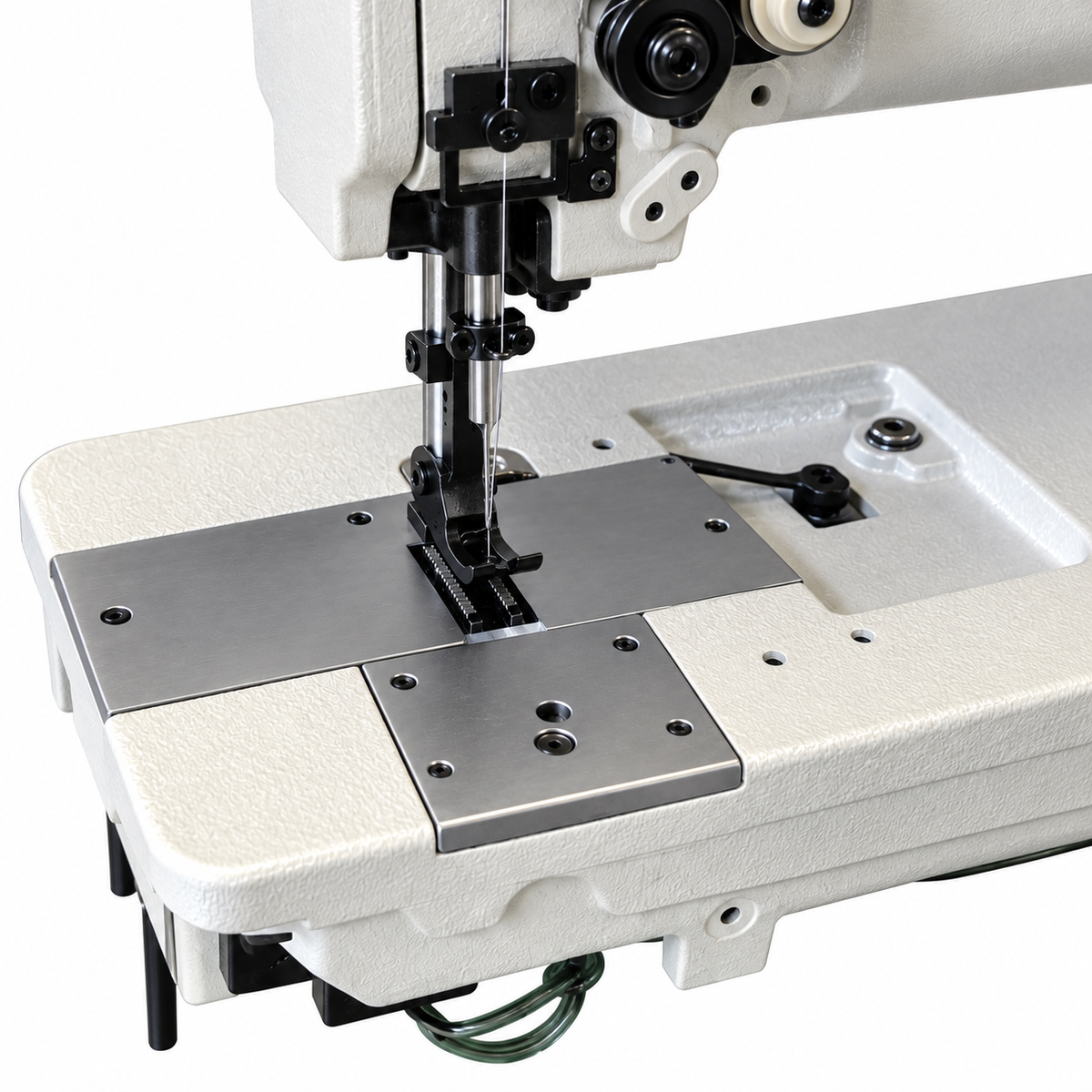

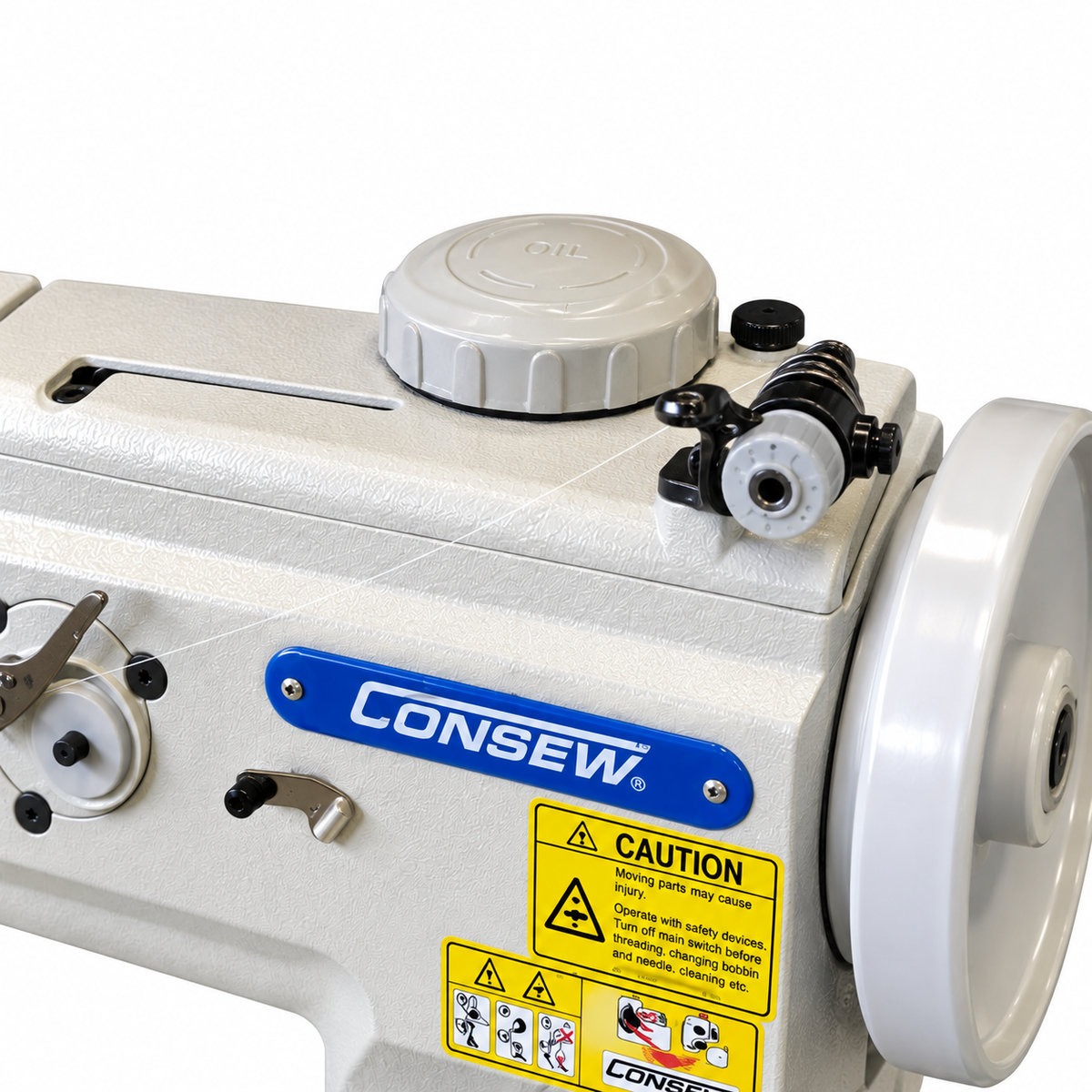

CONSEW® P1560RB-14 Double Needle Walking Foot Industrial Sewing Machine with Large Bobbins – Complete with Table & Stand
FULLY ASSEMBLED | TABLE, MOTOR & STAND INCLUDED
Prepared and inspected by JMJ Sewing Machines. Caster wheels are not included.
DOUBLE NEEDLE • WALKING FOOT • LARGE CAPACITY BOBBINS • INDUSTRIAL UPHOLSTERY
The CONSEW P1560RB-14 is a double-needle industrial lockstitch sewing machine designed for professional upholstery and compatible medium-to-heavy sewing applications.
Its two-needle configuration produces parallel rows of stitching in a single sewing operation, making it suitable for projects requiring consistent seam spacing and a professional appearance.
The walking-foot feeding mechanism assists with the movement of layered materials such as upholstery fabrics, canvas, vinyl, coated textiles, and selected leather products.
JMJ Sewing Machines supplies this machine as a complete industrial workstation with table, motor, and stand, assembled and prepared for operation.
Key Features
- Double-Needle Construction: Produces two parallel rows of straight lockstitch sewing during a single pass.
- Walking-Foot Feeding: Helps maintain controlled movement of layered and difficult-to-feed materials.
- Large-Capacity Bobbins: Designed to accommodate extended sewing operations with fewer bobbin changes compared with smaller bobbin systems.
- Top-Loading Bobbin Arrangement: Provides access to the bobbin area for routine thread replacement.
- Vertical-Axis Hook System: Industrial hook arrangement designed for double-needle lockstitch formation.
- Reverse Sewing: Allows operators to reinforce seam ends through backstitching.
- Adjustable Stitch Length: Listed maximum stitch length of up to 9 mm.
- High Presser-Foot Lift: Listed lift measurements of 9 mm by hand and up to 16 mm by knee.
- Semi-Automatic Lubrication: Lubrication system intended to support regular industrial operation. Follow the manufacturer's maintenance instructions.
- Industrial Workstation: Complete assembly with machine head, motor, table, and metal stand.
Professional Applications
The CONSEW P1560RB-14 is intended for workshops requiring parallel stitching on suitable upholstery and industrial materials.
- Automotive upholstery and interior panels.
- Marine upholstery and boat seating.
- Furniture upholstery and cushions.
- Canvas covers and selected outdoor products.
- Leather goods and compatible accessories.
- Vinyl and coated textile assemblies.
- Bags, luggage, and reinforced fabric products.
- Decorative parallel topstitching.
Material suitability depends on thickness, needle size, thread, needle spacing, and machine adjustment. Testing the actual material is recommended before production.
Technical Specifications
| Brand | CONSEW® |
| Model | P1560RB-14 |
| Machine Type | Double Needle Industrial Lockstitch |
| Feed System | Walking Foot |
| Number of Needles | 2 |
| Stitch Type | Straight Lockstitch |
| Hook Configuration | Vertical-Axis Hooks |
| Bobbin Configuration | Large-Capacity Top-Loading Bobbins |
| Needle System | 135 x 17 (DP x 17) — verify for supplied configuration |
| Needle Gauge Range | 1/4" to 1" listed in supplied product information. Confirm installed needle spacing before ordering. |
| Maximum Sewing Speed | 2,000–2,500 stitches per minute, according to supplied specifications. |
| Maximum Stitch Length | Up to 9 mm — listed specification |
| Presser Foot Lift | 9 mm by hand / up to 16 mm by knee — listed specification |
| Reverse Sewing | Yes |
| Bobbin Winder | Included |
| Lubrication | Semi-Automatic |
| Motor | Motor included. Electrical specifications depend on supplied assembly. |
| Industrial Table | Included |
| Industrial Stand | Included |
| Assembly | Fully Assembled |
| Caster Wheels | Not Included |
Technical values are based on the supplied product information. Confirm exact needle gauge, hook and bobbin specifications, motor voltage, and installed components before purchase.
What's Included
- CONSEW P1560RB-14 double-needle machine head.
- Industrial sewing table.
- Heavy-duty industrial stand.
- Motor and standard operating components.
- Bobbin winding system.
- Thread stand.
- Standard accessories supplied with the machine package.
Important: Caster wheels and specialty attachments are not included unless expressly stated in the order.
JMJ Quality Inspection & Sewing Test
Before delivery, JMJ Sewing Machines performs an equipment inspection intended to identify potential manufacturing defects, assembly issues, and visible equipment concerns.
Our technicians review accessible mechanical components, machine adjustments, lubrication requirements, motor operation, and workstation assembly.
When applicable, the machine is calibrated and tested to evaluate stitch formation, material feeding, and reverse operation.
These quality-control procedures help prepare the equipment for professional operation. Inspection does not eliminate the possibility of future mechanical or manufacturing defects.
Complimentary In-Store Operating Explanation
Customers purchasing this machine directly at the JMJ Sewing Machines store in Orlando, Florida receive a brief complimentary explanation of the machine's main controls and basic operation. This introductory explanation is not an extended training course and does not automatically apply as an in-person service to shipped orders.
Spare Parts, Repairs & Maintenance
Replacement Parts: JMJ offers compatible industrial sewing machine parts and accessories, subject to availability.
Technical Services: Our technicians provide diagnostics, adjustments, repairs, and preventive maintenance for compatible sewing equipment.
Contact our team to confirm available in-store or local on-site assistance.
Warranty & After-Sales Assistance
JMJ Sewing Machines provides a 12-month limited warranty for eligible industrial sewing machines, subject to the applicable written warranty terms.
For qualifying manufacturing defects covered by JMJ's limited warranty, necessary replacement parts and repair labor are included.
Electrical and electronic components are excluded from JMJ's limited warranty to the extent permitted by applicable law. Separate manufacturer warranties and mandatory legal protections remain applicable.
Customers may contact JMJ directly to initiate warranty inquiries and request technical assistance.
When appropriate, preliminary technical assistance may be provided through video calls. An in-person inspection or repair may still be required.
JMJ Sewing Machines Recommends
The CONSEW P1560RB-14 is a practical option for upholstery professionals seeking double-needle parallel stitching and controlled feeding of layered materials. Before purchasing, confirm the required needle spacing, material thickness, thread size, and electrical configuration with our team.
