Two-Needle • Split Needle Bar • Compound Feed (Drop + Needle + Walking Foot) • Lockstitch • Angular Stitching

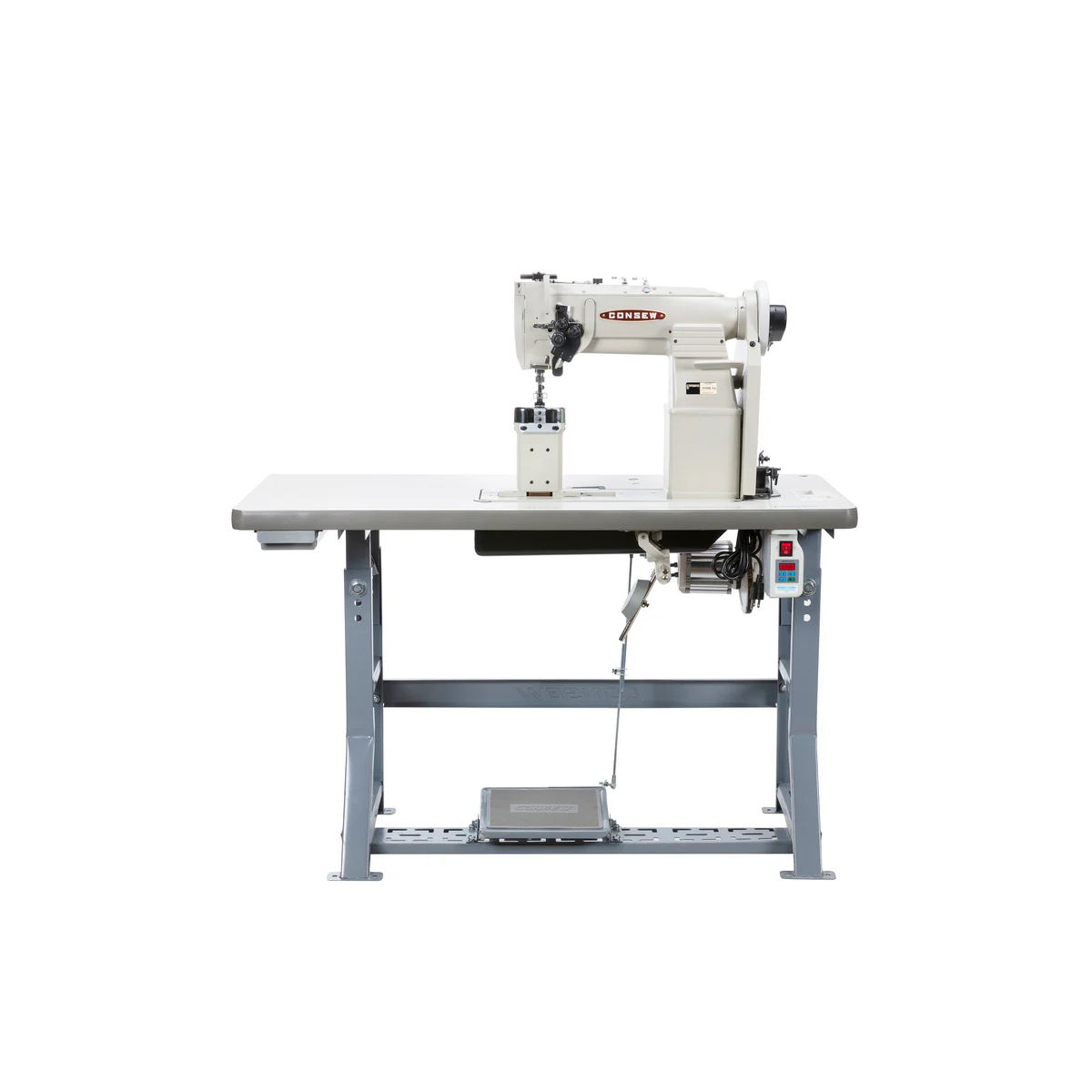

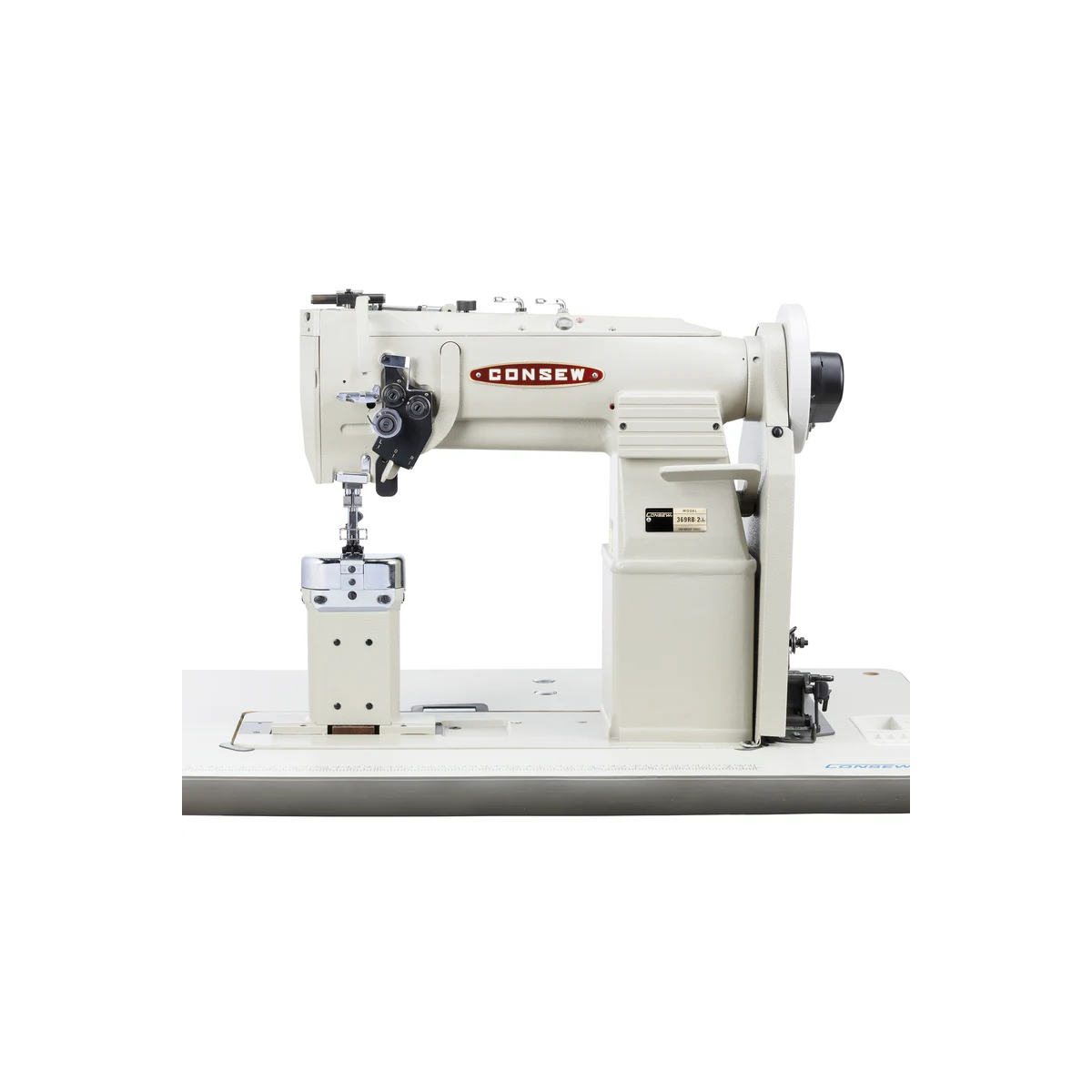

The Consew 369RB-2 is a high-speed, post-type double-needle lockstitch machine engineered for decorative and functional angular stitching on medium to heavy-weight materials such as leather, vinyl, canvas, and synthetics. Its split needle bar design allows one or both needles to disengage instantly for cornering or curved stitching — perfect for shoe uppers, upholstery, and detailed garment work.
| Model: | 369RB-2 |
| Needles: | 2 (Double, split needle bar) |
| Feed Type: | Compound feed (drop feed + needle feed + alternating walking feet) |
| Post Height: | 7″ (178 mm) |
| Max Speed: | 2,200 S.P.M. |
| Max Stitch Length: | 5 mm (5 S.P.I.) |
| Presser Foot Lift: | 11/32″ (8.5 mm) |
| Needle System: | 135×17 |
| Hook Type: | Large vertical-axis rotary hook (Hook: 14005) |
| Bed Size: | 7″ × 20 3/8″ (177 × 518 mm) |
| Work Surface: | 2 1/8″ × 4″ (54 × 101 mm) |
| Stitch Type: | 301 (lockstitch) |
| Machine Weight: | 196 lbs (89 kg) |
| Lubrication: | Centra-Lube® semi-automatic with oil-fed take-up |
| Reverse Stitching: | Yes |
The Consew 369RB-2 combines post-bed accessibility, split-needle versatility, and industrial reliability — the ideal solution for angular, curved, or decorative stitching on leather, canvas, and upholstery applications.
