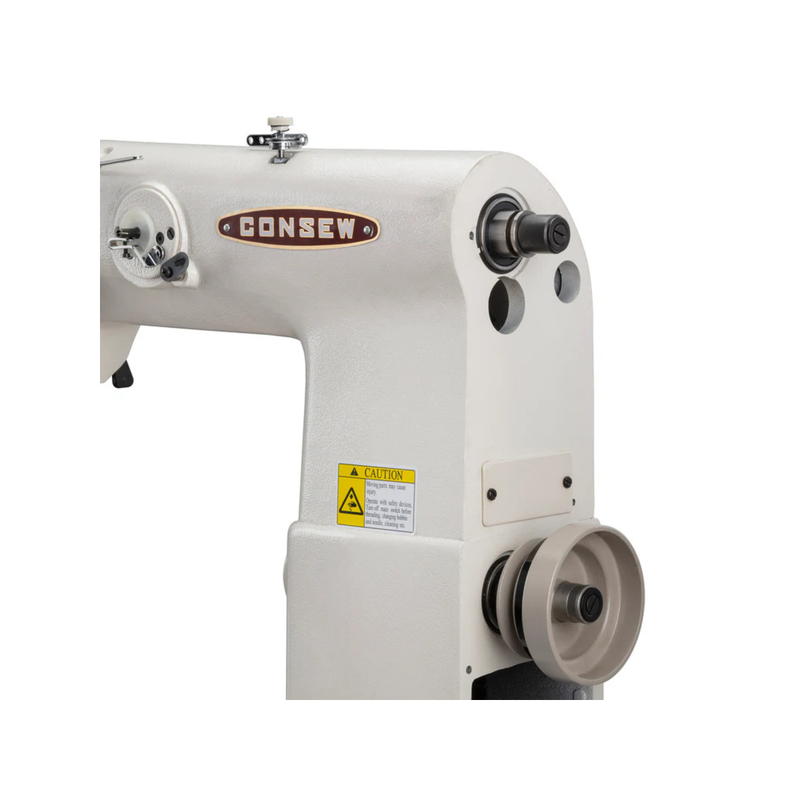

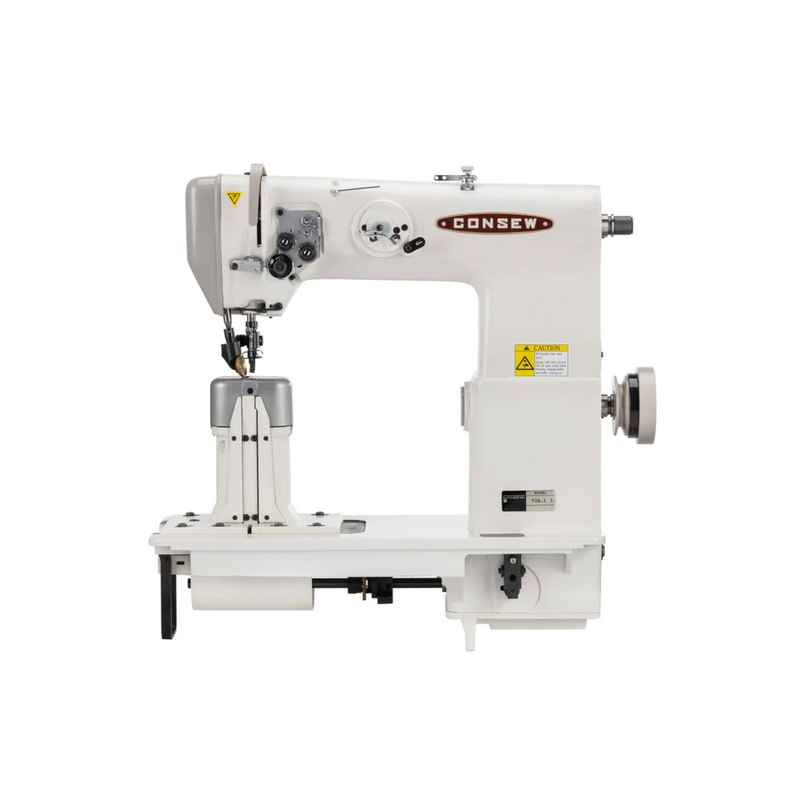

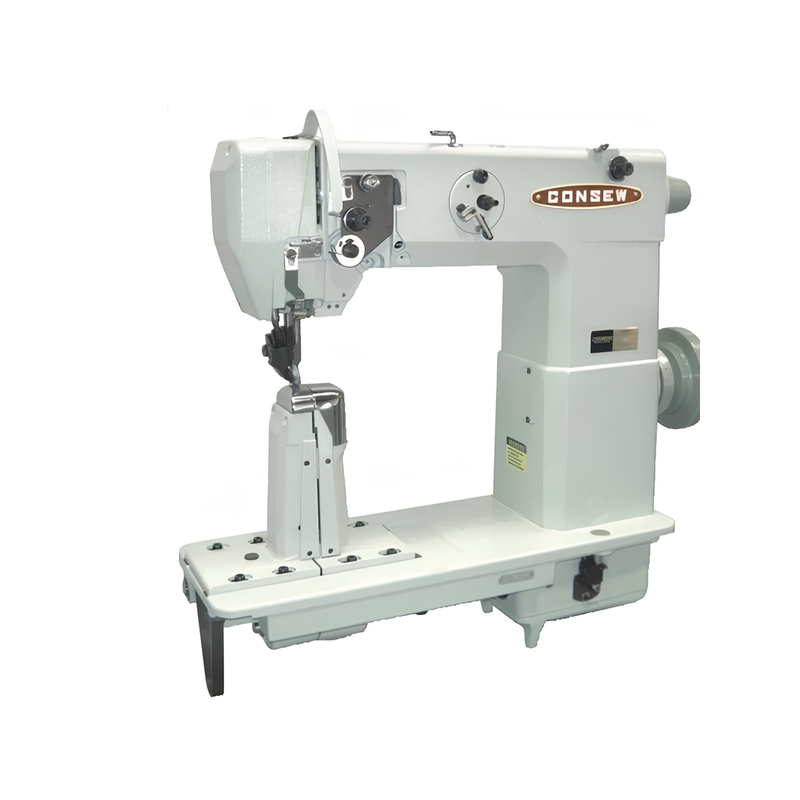

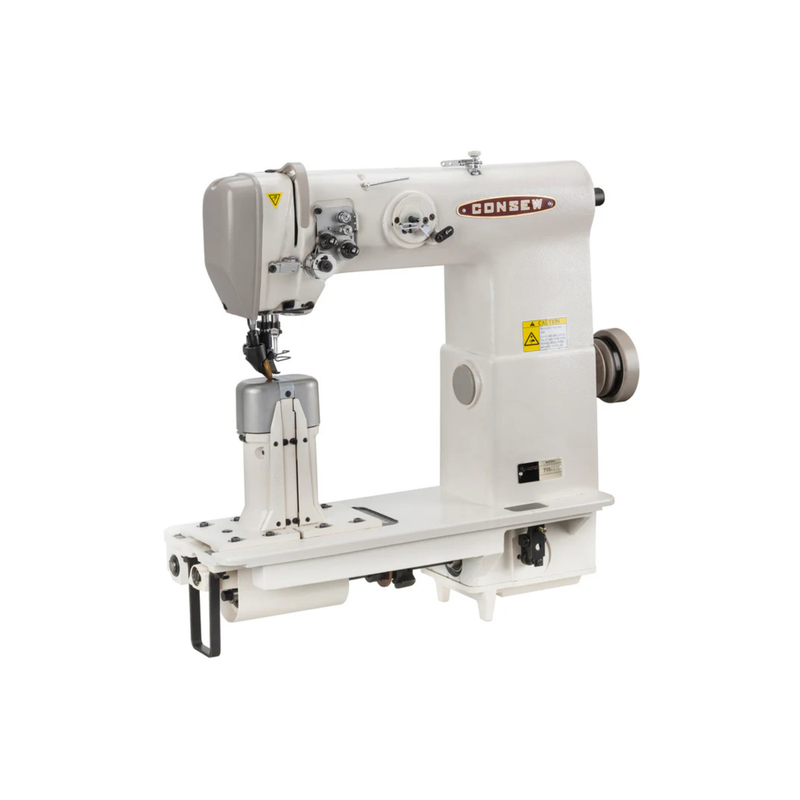

Consew 702-1 — Double Needle Post Bed Roller Feed Lockstitch Machine

Complete Assembled with Table and Stand Included

High Speed • Roller Feed • Precision Stitching

The Consew 702-1 is a high-speed, double-needle, post-bed lockstitch machine engineered for precision sewing on difficult-to-feed materials. Featuring a top and bottom driven roller feed combined with needle feed, this machine delivers powerful, consistent fabric transport while maintaining constant stitch length—even on slippery, coated, laminated, or curved materials.

Key Features

• Double Needle Configuration: Ideal for parallel seams and decorative stitching with consistent spacing.

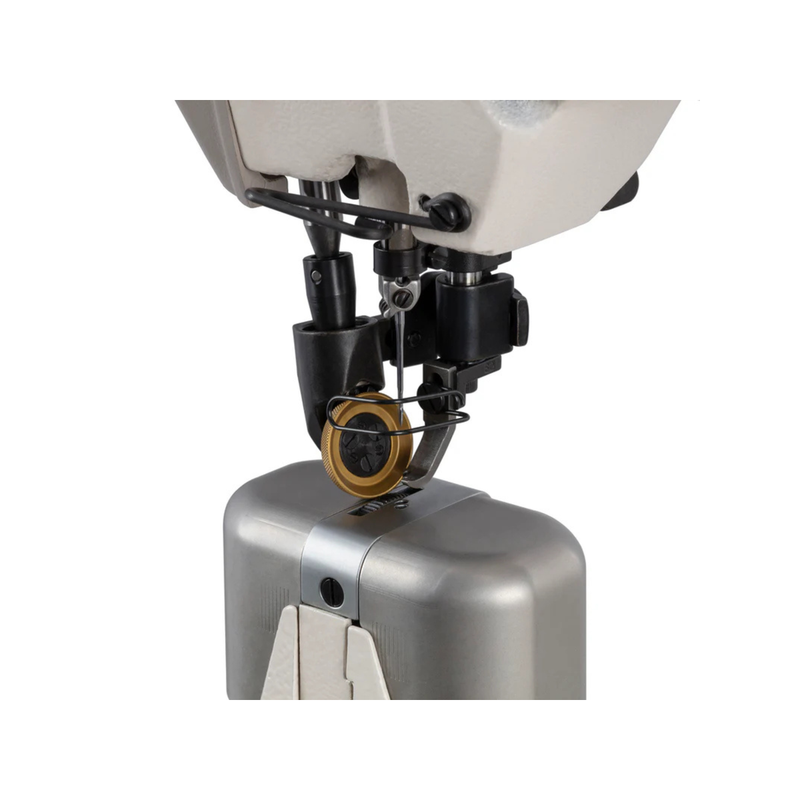

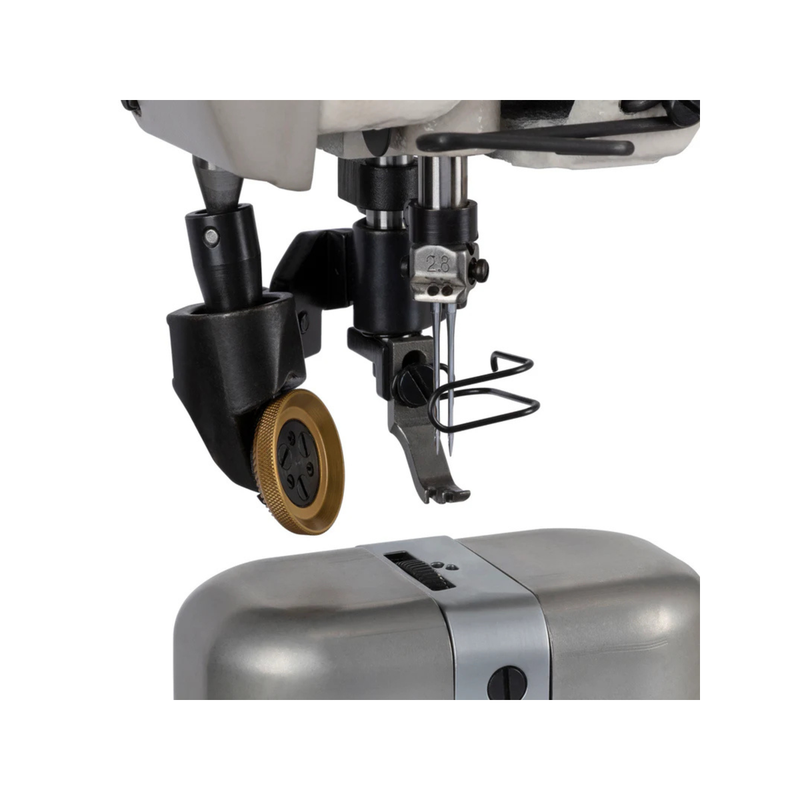

• Roller Feed with Needle Feed: Positively driven upper and lower rollers ensure smooth transport of difficult materials.

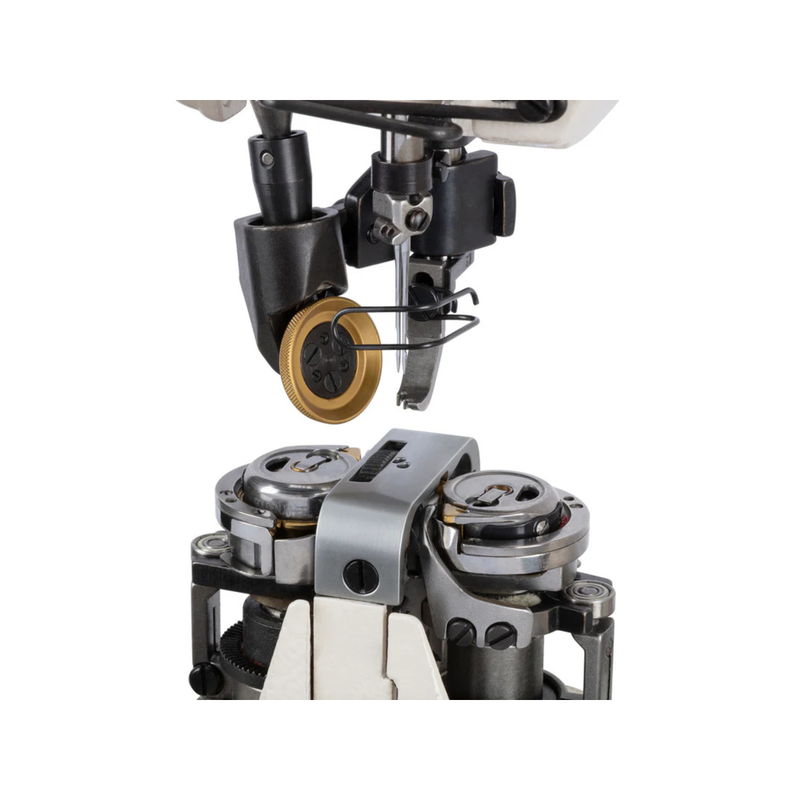

• Vertical Axis Rotary Hooks: Provide reliable stitch formation at high sewing speeds.
• Post Bed Design: Excellent control for tubular, hollow, curved, and pre-assembled articles.
• High-Speed Performance: Operates up to 3,500 stitches per minute for production efficiency.
• Anti-Friction Bearings: Up to 29 ball and needle roller bearings (model dependent) for reduced wear and easy maintenance.
• Semi-Automatic Lubrication: Continuous lubrication from a large oil reservoir ensures long service life.
• Built-In Bobbin Winder: Convenient on-machine bobbin winding.
• Optional Automation: Model 702ATCL available with automatic thread trimming and presser foot lift.

Applications

• Leather, vinyl, oil cloth, and coated or laminated fabrics.
• Polyethylene plastics and slippery technical materials.
• Tubular, hollow, and curved articles.
• Operations requiring climbing over thick sections while maintaining stitch consistency.

Technical Specifications

Advantages

• Exceptional control on slippery and coated materials.
• Maintains constant stitch length over curves and thick sections.
• High-speed performance with industrial durability.
• Post-bed design ideal for complex and tubular sewing operations.

The Consew 702-1 is a proven industrial solution for manufacturers who require precision, speed, and reliable feeding on challenging materials—making it ideal for leather goods, technical textiles, and curved or tubular sewing applications.
