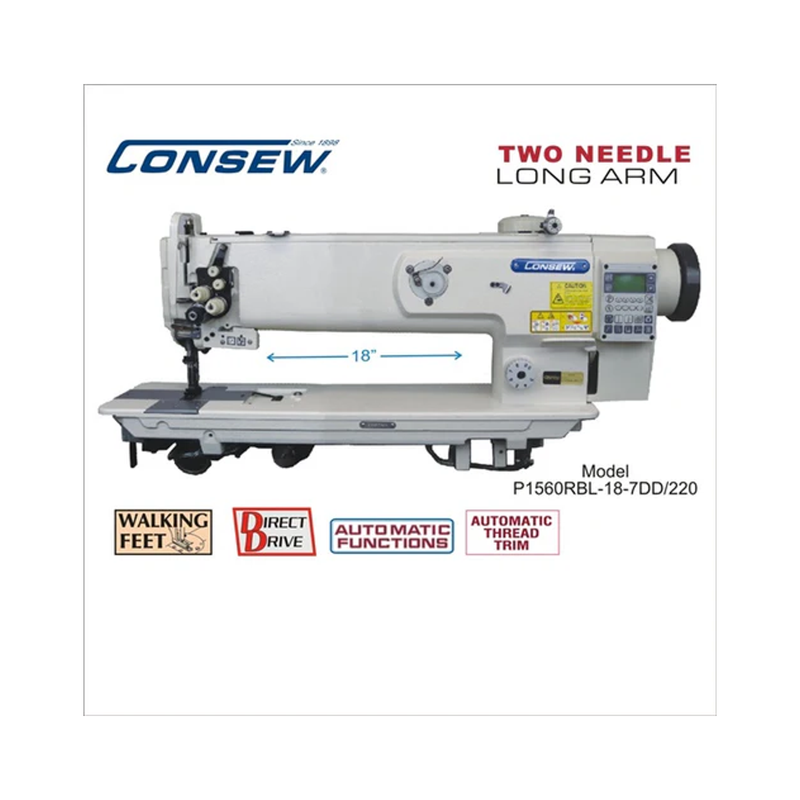

Consew P1560RBL-18-7DD — Two Needle, Long Arm, Walking Foot, Lockstitch Machine
Complete Assembled with Table and Stand Included
High Speed • 18" Long Arm • Dual Needle • Full Automatic (-7DD)
The Consew P1560RBL-18-7DD/220 is a heavy-duty, two-needle, direct-drive lockstitch machine engineered for industrial applications that demand precision and productivity. Featuring an 18″ long arm, full automatic functions (-7DD), and a Direct Drive servo motor, it provides smooth, powerful performance for automotive, marine, leather, and upholstery production. Perfect for stitching large or multi-layered materials, this model ensures reliability and consistency in every seam.
Key Features
- Two Needle System: Parallel lockstitch operation ideal for decorative, structural, and reinforcement seams.
- 18″ Long Arm: Extended workspace (457 mm) for large panels, upholstery, and industrial sewing projects.
- Direct Drive Servo Motor (220V): Integrated motor provides quiet, energy-efficient, and vibration-free operation.

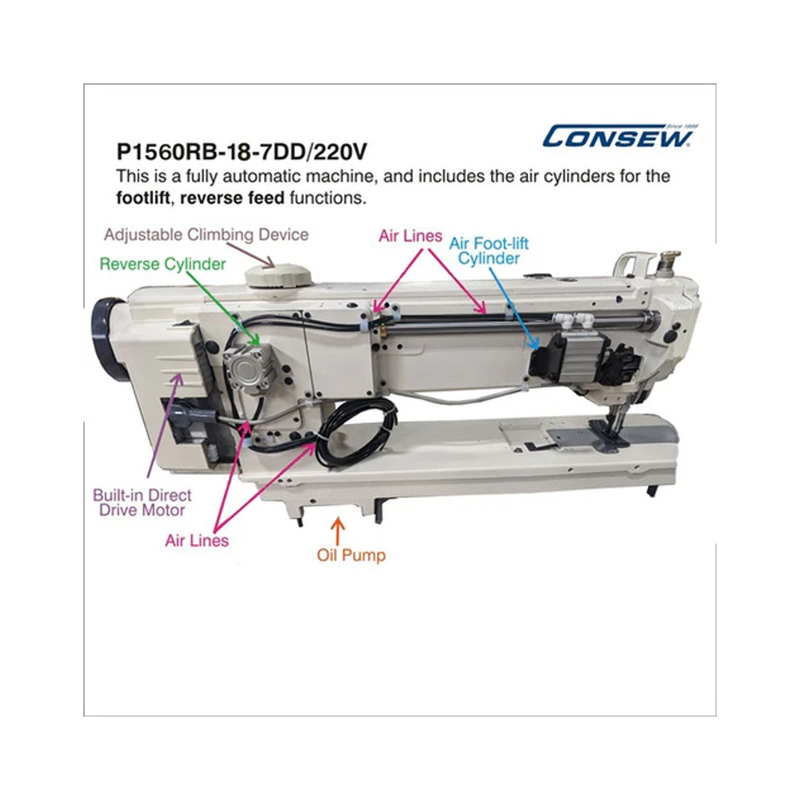

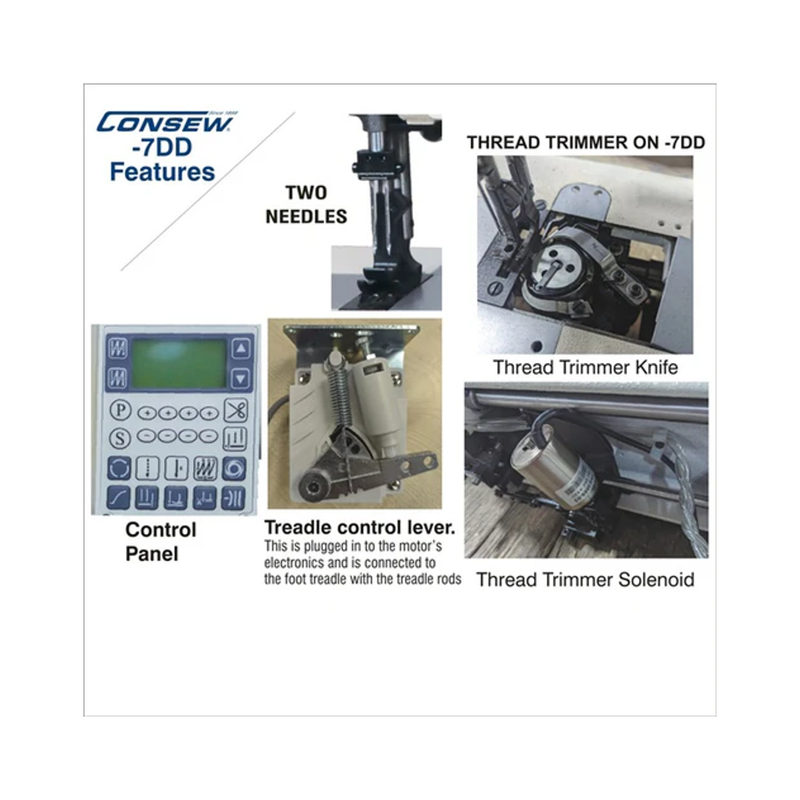

- Full Automatic (-7DD): Includes automatic thread trimming, reverse stitching, and presser foot lift for seamless workflow.
- Walking Foot Compound Feed: Perfect synchronization of needle, feed dog, and presser foot ensures consistent feeding across multiple layers.
- Roll-In Thread Control: Automatically tucks upper thread under fabric at the start to prevent thread tangling.
- Climbing Device: Smoothly handles transitions across thick or uneven sections of material.
- Large Top-Load Bobbins: Allows extended operation without frequent bobbin changes.
- Semi-Automatic Lubrication: Maintains smooth operation and extends component life with consistent oiling.
Applications
- Automotive, marine, and furniture upholstery
- Leather goods, handbags, and travelware
- Canvas, vinyl, and synthetic materials
- Tarpaulins, tents, awnings, and covers
- Footwear, outerwear, and orthopedic applications
Technical Specifications
| Model: | P1560RBL-18-7DD/220 |
| Needles: | 2 (Double) |
| Feeding Mechanism: | Walking Foot (Compound Feed) |
| Workspace (Throat): | 18″ (457 mm) |
| Stitch Length (Max): | 9 mm (adjustable by dial) |
| Speed (Max): | 2,000–2,500 stitches per minute* |
| Presser Foot Lift: | Hand: 9 mm • Knee: 16 mm |
| Clearance Under Foot: | 9/16" (14 mm) |
| Needle System: | 135 × 17 (DPx17) |
| Needle Gauges: | 1/4" to 1" (custom gauges available) |
| Bobbin Type: | U or S |
| Lubrication: | Semi-Automatic |
| Motor Type: | Direct Drive Internal Servo |
| Power: | 220 VAC |
Advantages
- Dual-needle operation for perfect parallel seams and reinforced stitching.
- Long-arm configuration supports large panels and upholstery projects.
- Automatic thread trimming and foot lift increase efficiency (-7DD).
- Direct drive system offers quiet, energy-efficient performance.
- Exceptional durability for high-volume industrial sewing environments.
The Consew P1560RBL-18-7DD/220 merges long-arm reach, twin-needle precision, and direct-drive technology — the ultimate choice for automotive upholstery, leatherwork, and heavy-duty textile manufacturing.
*Speed depends on thread, material, and operation.
