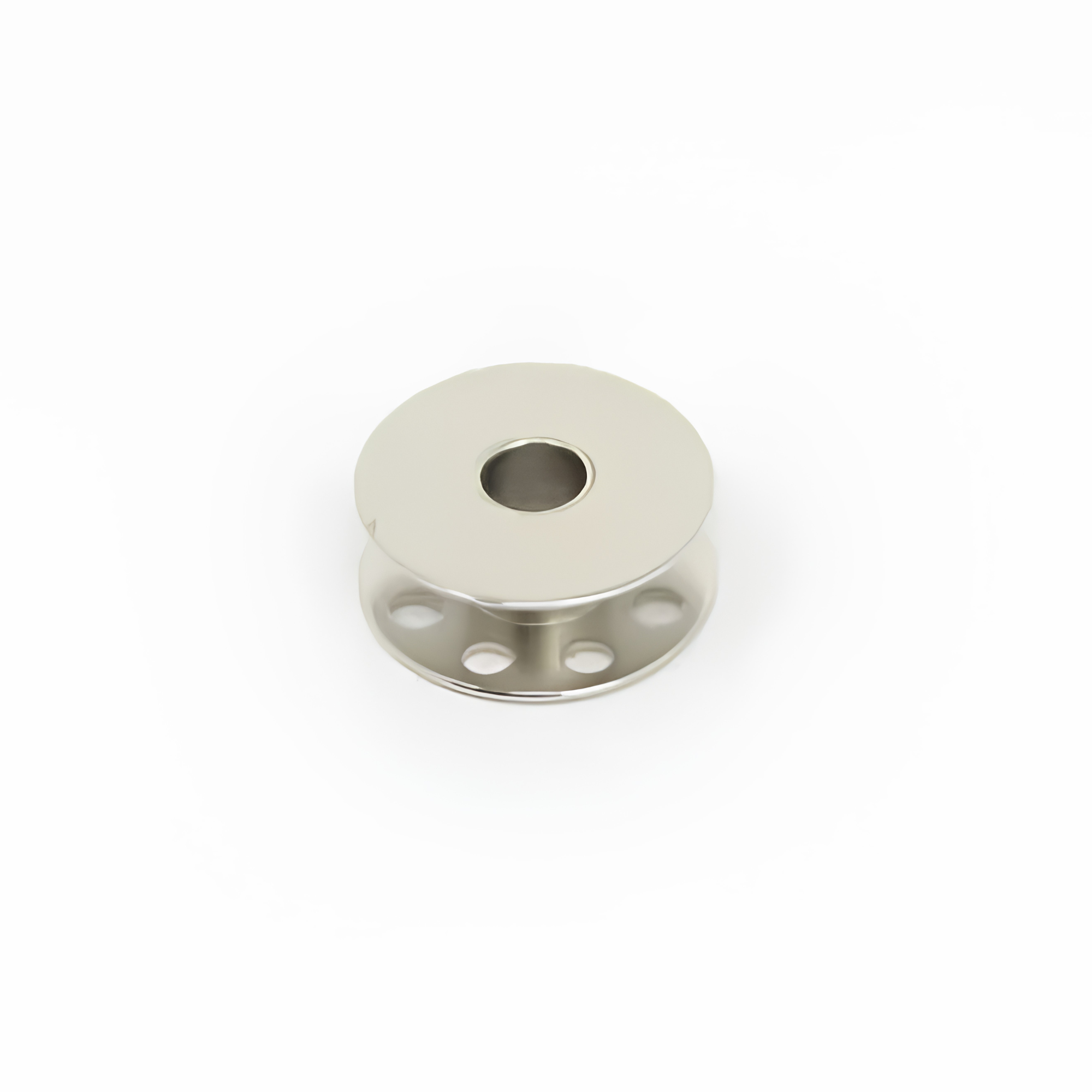

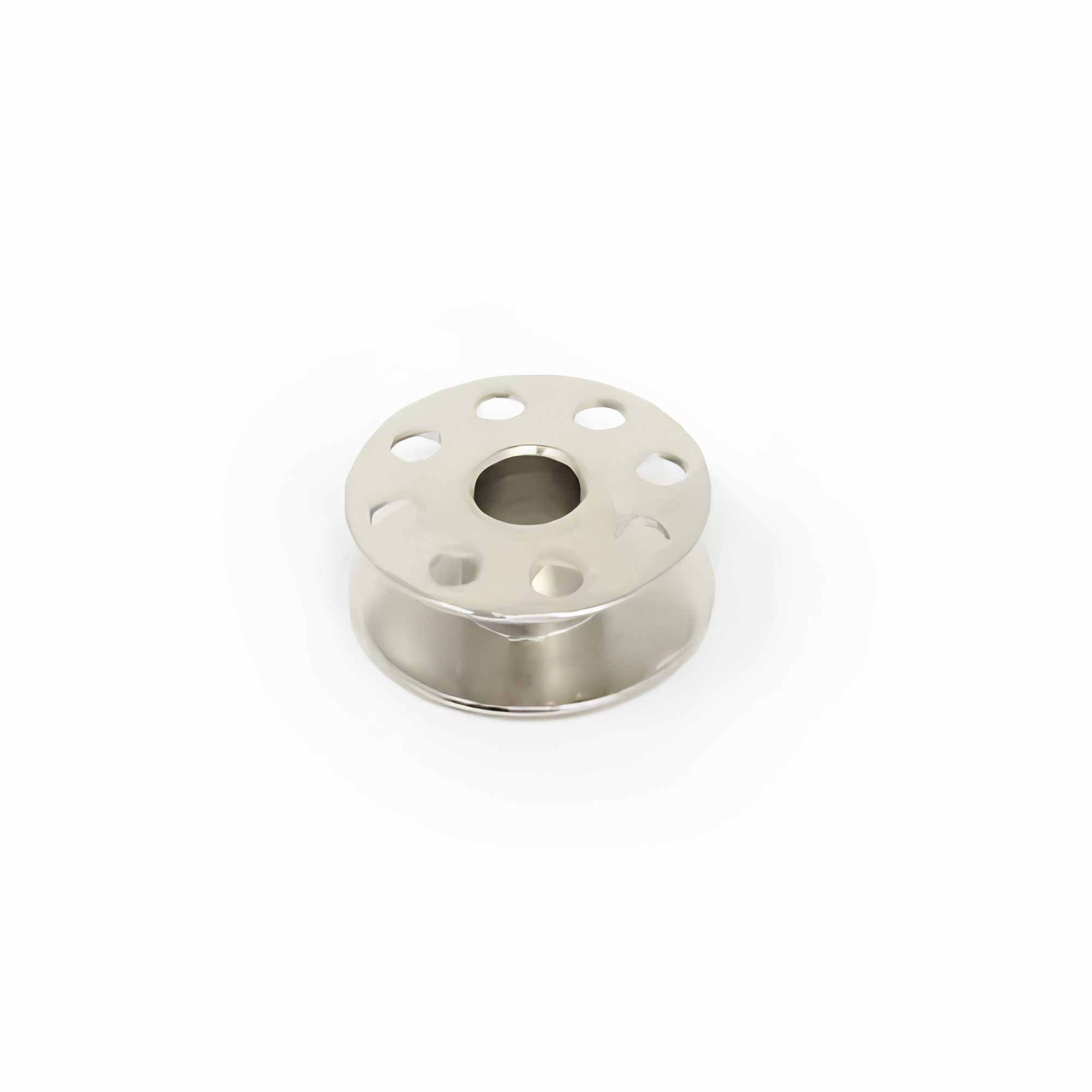

40264NS Metal Bobbins for Industrial Single-Needle Sewing Machines – 10 PCS
10 Metal Bobbins • One Perforated Side • Industrial Lockstitch Applications
Keep spare bobbins available at your sewing station with this 10-piece set of 40264NS metal bobbins. Intended for compatible industrial single-needle lockstitch machines, these reusable bobbins can be wound with different thread colors for garment assembly, alterations, and production sewing.
Each bobbin features openings on one flange and a solid opposite flange. Before ordering, match the part number and physical dimensions to the bobbin required by your machine; similar-looking bobbins are not always interchangeable.
Key Features
- 10-Piece Pack: Convenient quantity for keeping replacement bobbins on hand.
- Metal Construction: Reusable bobbins for compatible industrial sewing equipment.
- Distinctive Flanges: Holes on one side and a solid surface on the other.
- Thread Organization: Prepare additional bobbins for frequently used thread colors.
- Industrial Lockstitch Use: Designed for machines that specify the 40264NS bobbin style.
Applications
- Industrial straight-stitch garment production.
- Tailoring and alteration workshops.
- Single-needle lockstitch sewing stations.
- Replacement or additional bobbins for compatible machines.
Technical Specifications
| Part Number | 40264NS |
| Product Type | Industrial Sewing Machine Bobbin |
| Material | Metal |
| Design | One Perforated Flange / One Solid Flange |
| Approximate Diameter | 21 mm (reference dimension; verify against supplied bobbin) |
| Approximate Height | 8.5 mm (reference dimension; verify against supplied bobbin) |
| Machine Application | Compatible Single-Needle Industrial Lockstitch Machines |
| Package Quantity | 10 Bobbins |
| Condition | New |
Compatibility Guidance
The 40264NS bobbin is listed by parts suppliers for selected JUKI® DDL-8700 and DDL-9000 machines and CONSEW® 7360R-1 configurations. Other models, including certain JACK® machines, may use similar bobbins; compatibility must be confirmed by the machine parts list or by matching the original bobbin. A drop-feed mechanism alone does not determine bobbin compatibility.
JMJ Sewing Machines Recommends
JMJ Sewing Machines recommends checking the machine model, bobbin-case specifications, and the diameter and height of the existing bobbin before purchasing. Use a correctly fitted bobbin and wind thread evenly for dependable operation.
IMPORTANT — VERIFY BOBBIN COMPATIBILITY
Confirm that your sewing machine requires part 40264NS or a verified equivalent. Do not rely solely on the machine brand, feed type, or visual appearance. Dimensions are reference values and should be checked against the product received and the original bobbin.
The 40264NS Metal Bobbins – 10 PCS provide a practical supply of replacement bobbins for compatible industrial single-needle sewing machines.
