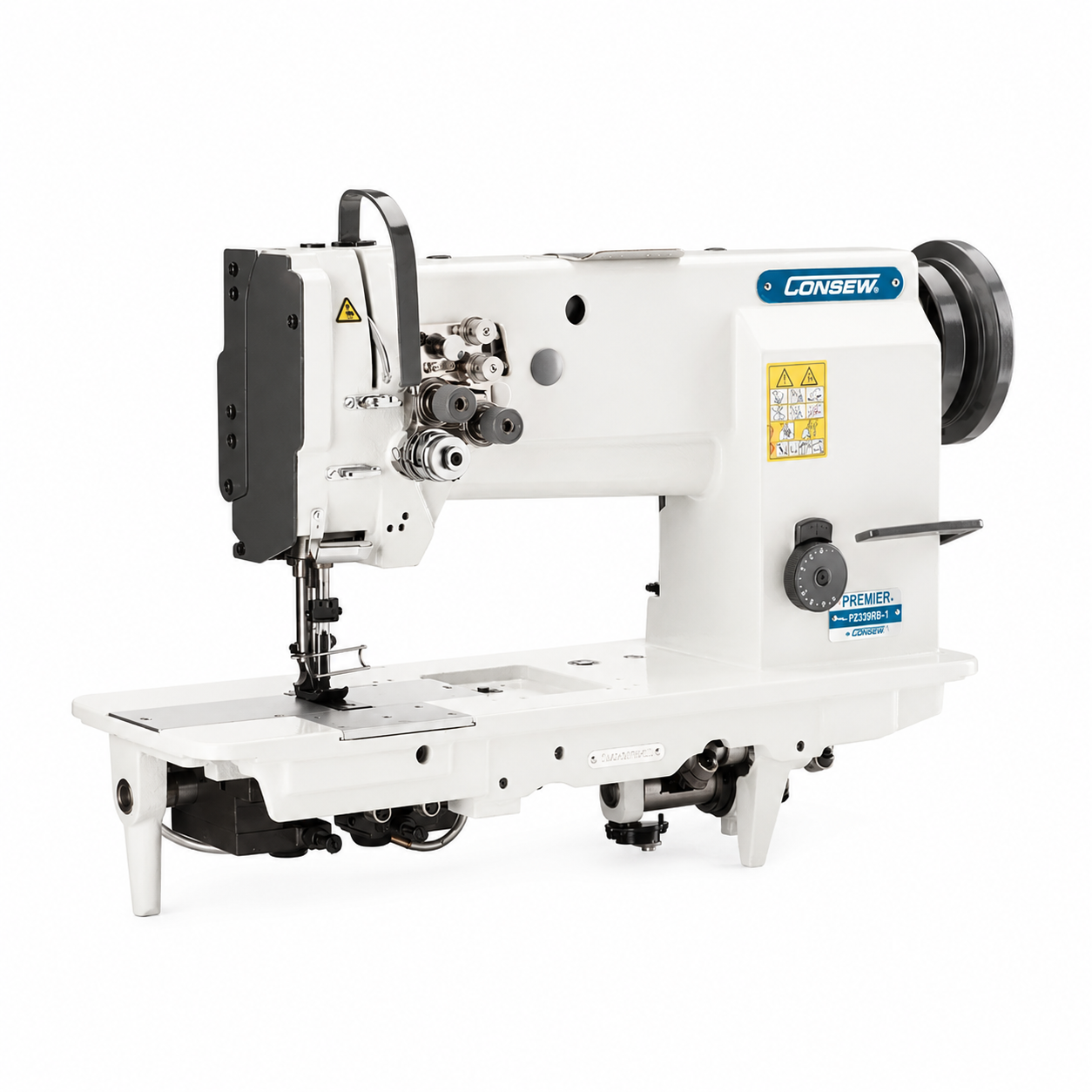

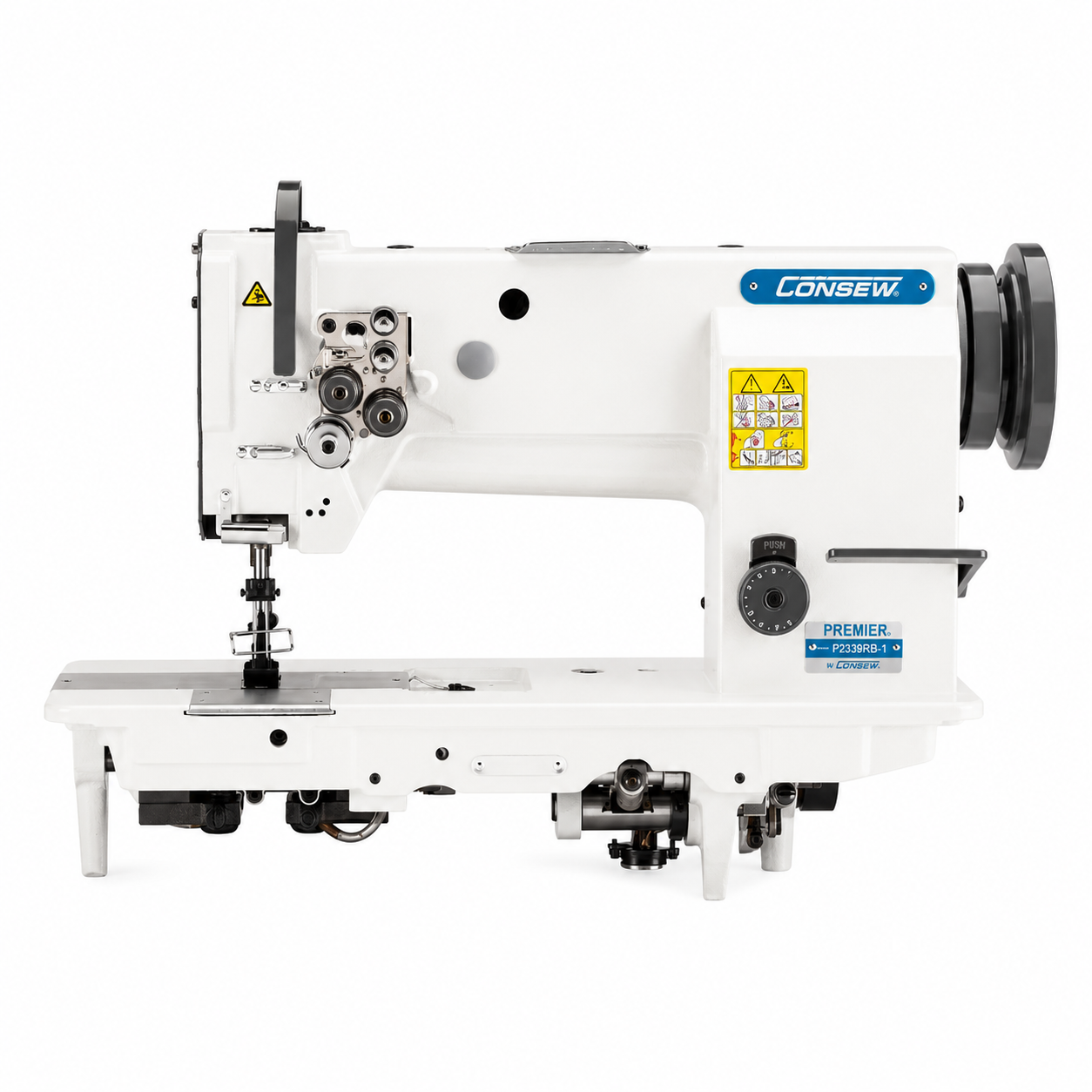

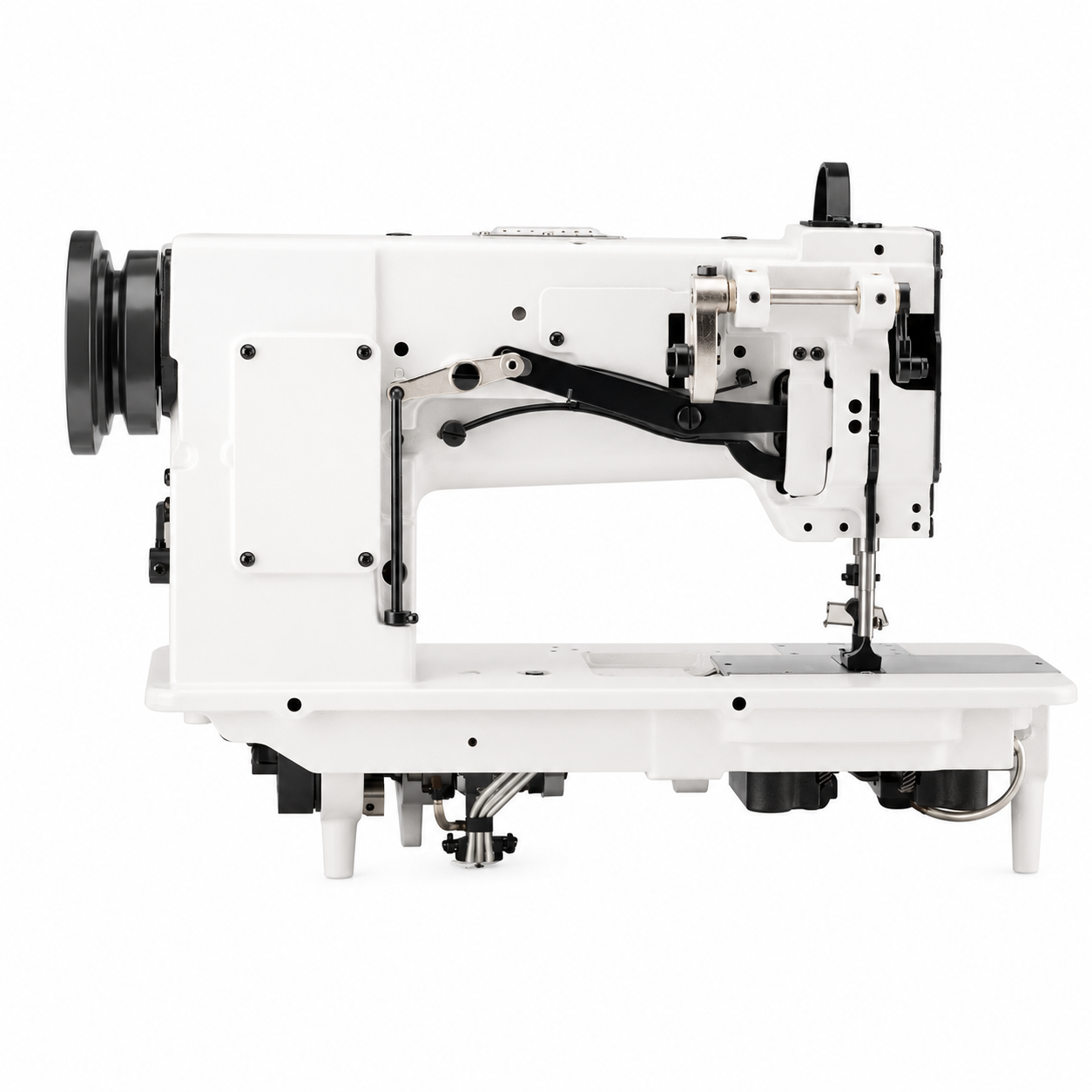

CONSEW® P2339RB-1 — Double Needle Walking Foot Lockstitch Machine

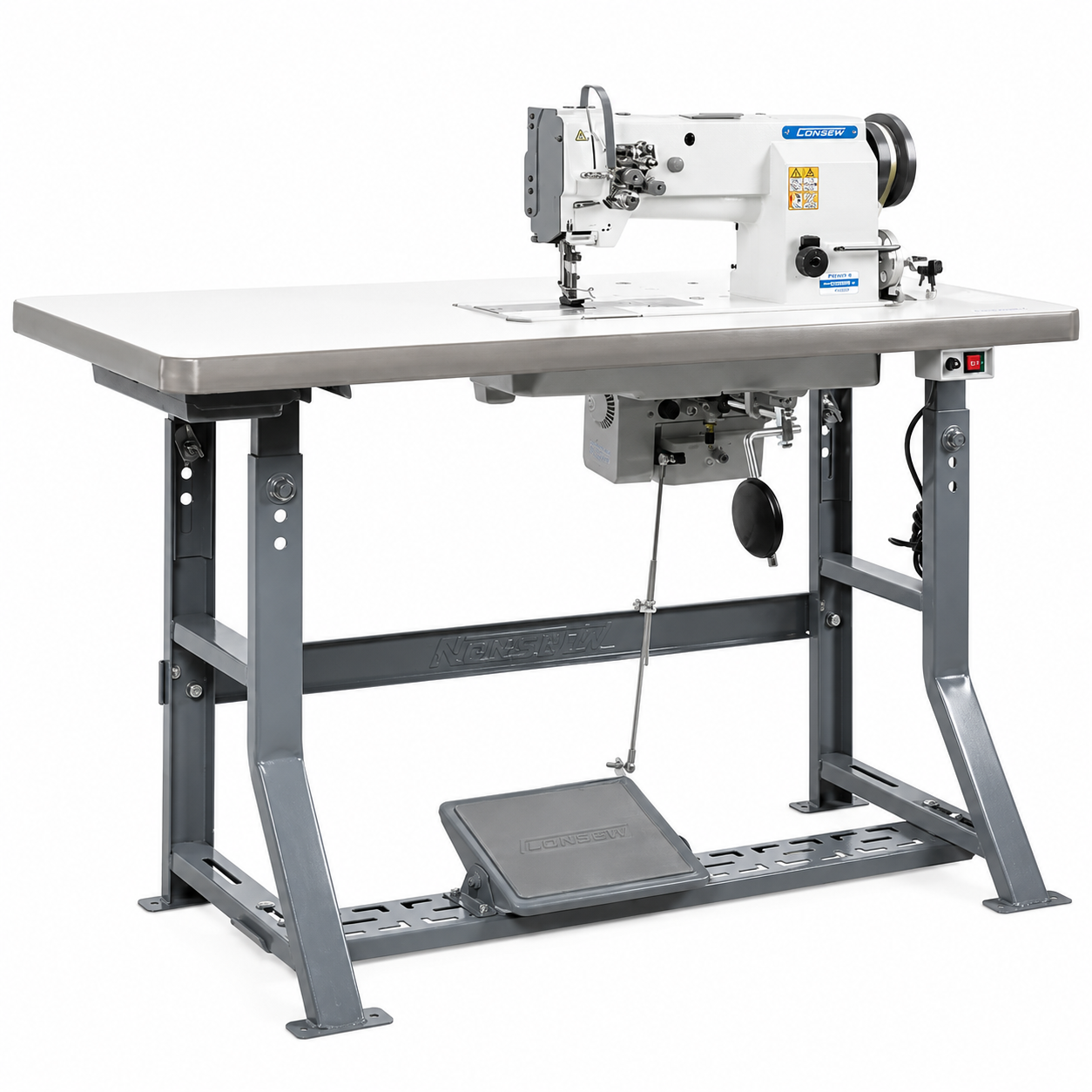

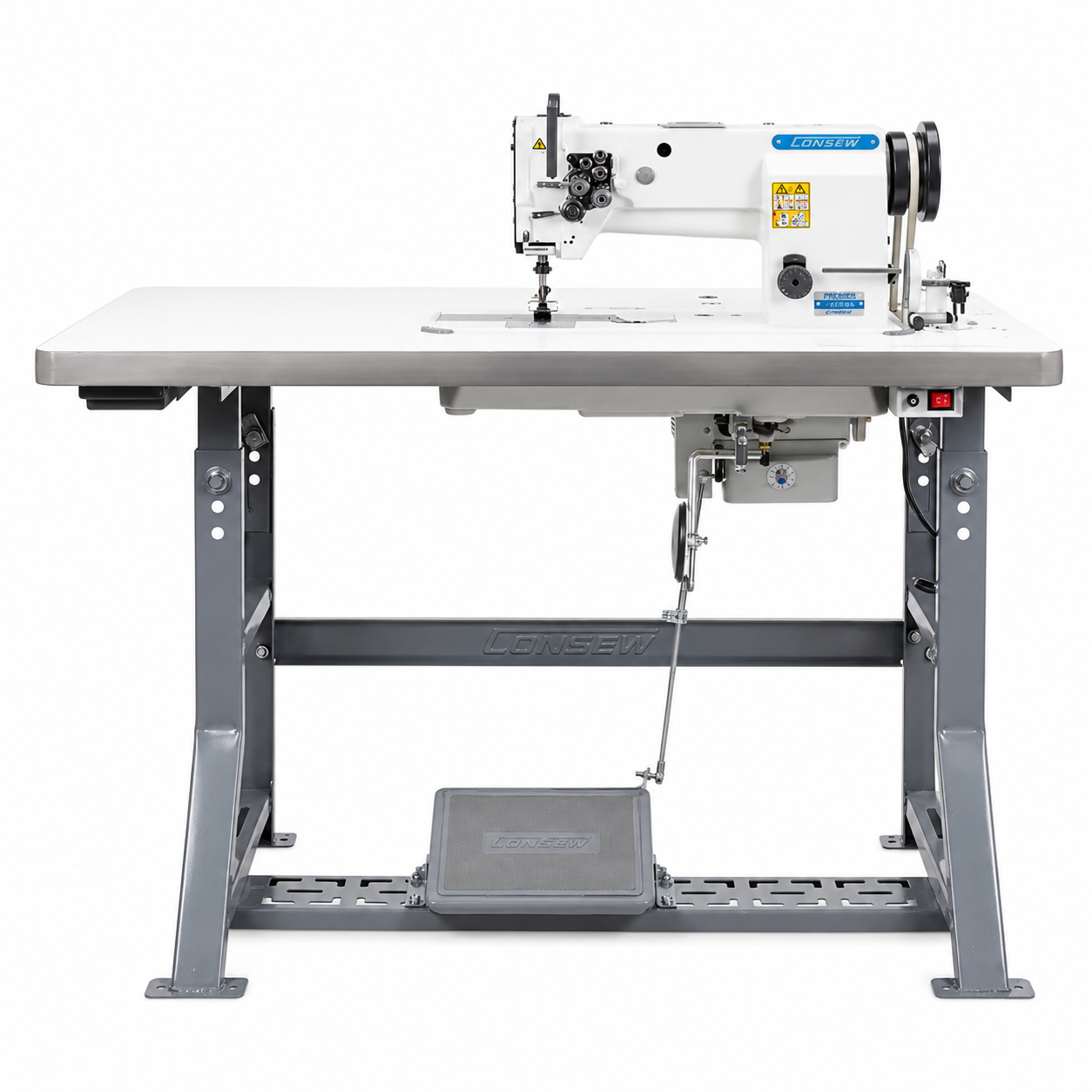

✔ COMPLETE ASSEMBLED WITH TABLE AND STAND INCLUDED
Ready to sew. No setup needed. Professional installation included.
Double Needle • Walking Foot • Heavy-Duty Industrial Sewing
The CONSEW® P2339RB-1 is a heavy-duty double needle walking foot lockstitch machine designed for professional industrial sewing applications. Engineered for durability and precision, this machine provides smooth feeding, strong seam quality, and reliable operation on demanding materials.
Featuring large vertical axis automatically oiled hooks, a walking foot feeding system, and large top-loaded bobbins, the P2339RB-1 is ideal for upholstery, leather, canvas, and heavy-duty sewing operations requiring consistent double-needle stitching.
Key Features
- Double needle lockstitch configuration.
- Walking foot feeding mechanism for even material handling.

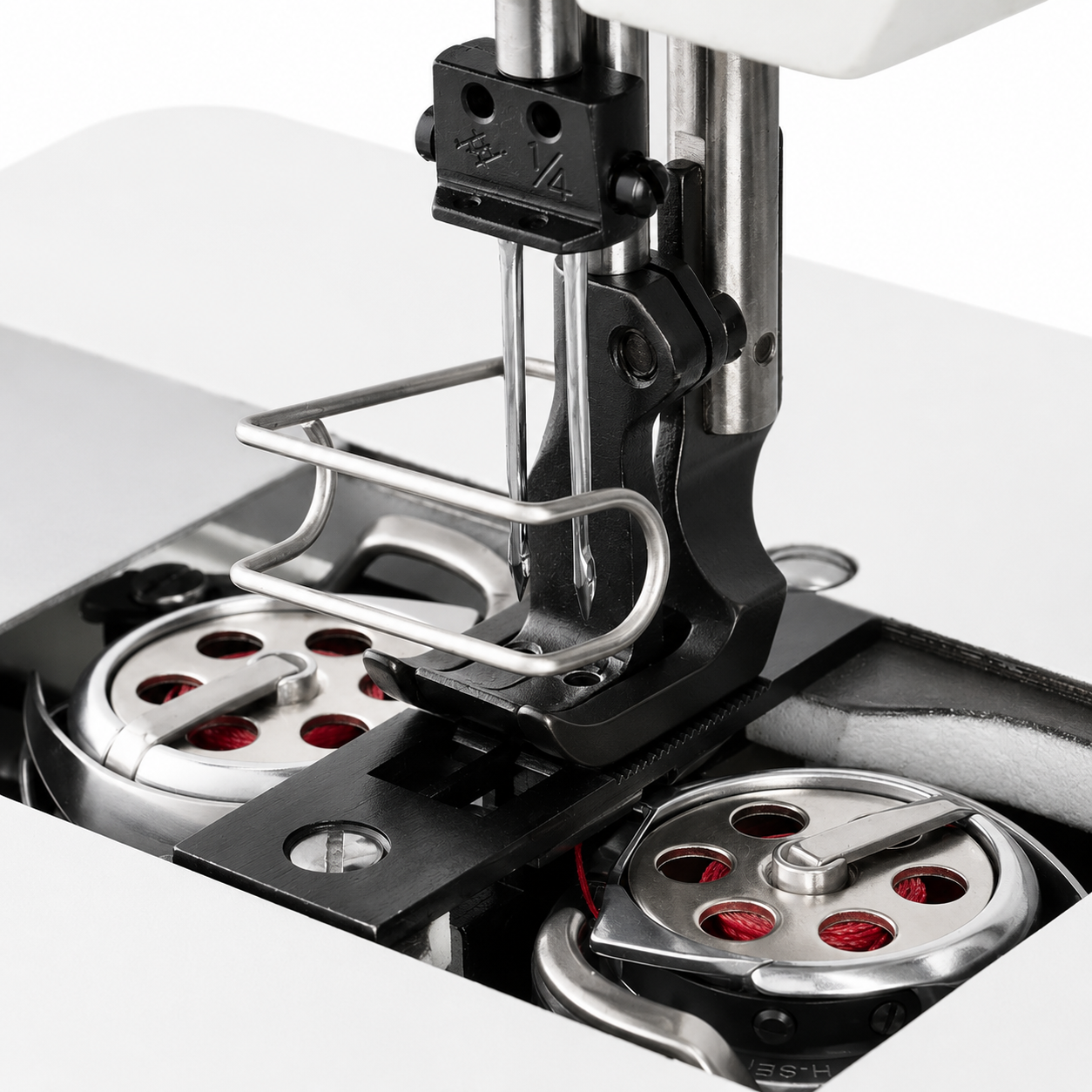

- Large vertical axis hooks with automatic oiling.
- Oil pump system with adjustable oil flow.
- Upper oil glass sight for easy monitoring.

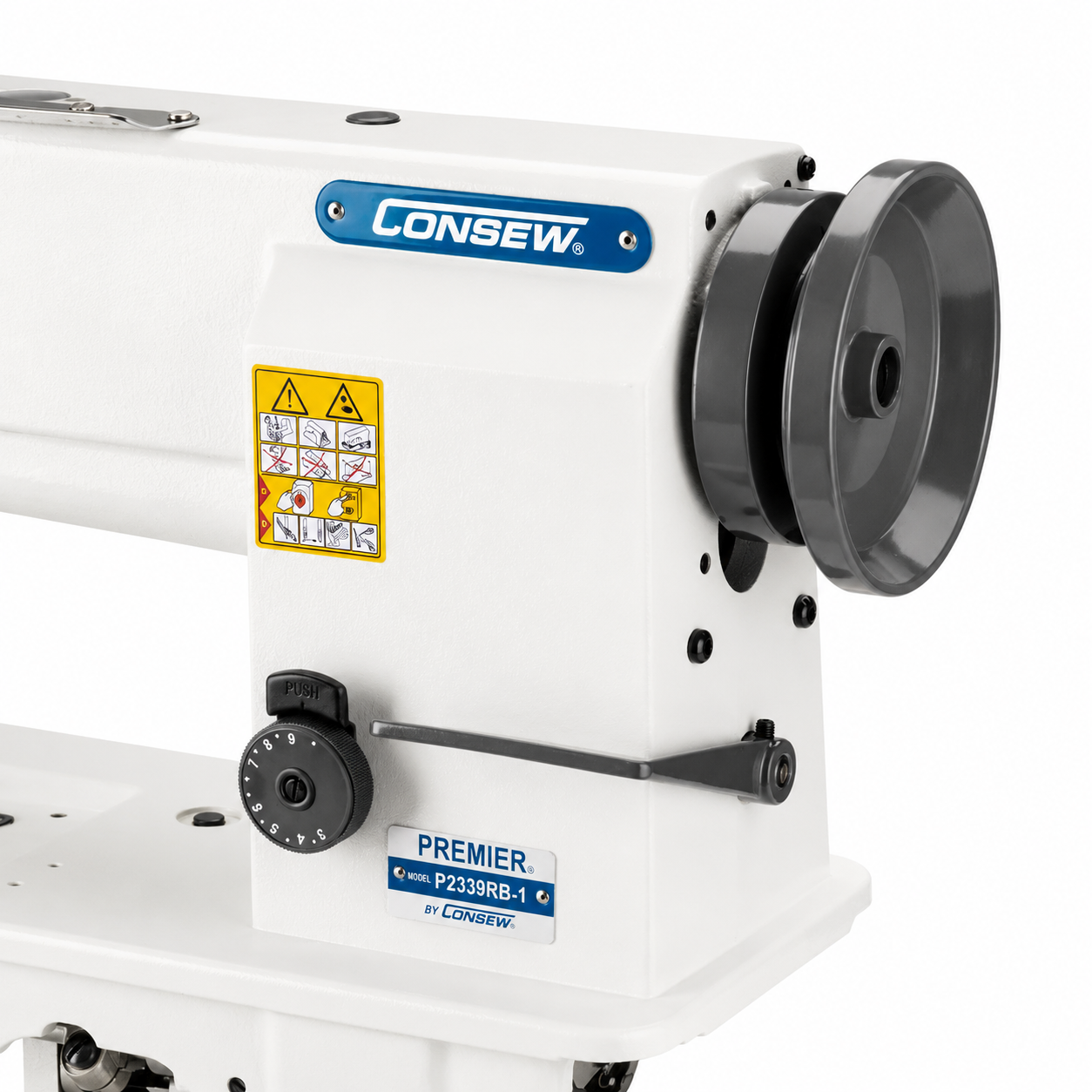

- Barrel-type locking stitch regulator.
- Reverse stitching capability.
- Large top-loaded bobbins for extended sewing time.
- Safety clutch protection system.
- Locking slide plate for quick bobbin access.
- Adjustable take-up thread guide for accurate timing.
- Quick tension release system.
Applications
- Automotive and furniture upholstery.
- Leather and canvas products.
- Heavy-duty industrial sewing applications.
- Bags, covers, and technical textile products.
- Decorative double-needle stitching.
Technical Specifications
| Model |
CONSEW® P2339RB-1 |
| Number of Needles |
2 (Double) |
| Feeding Mechanism |
Walking Foot |
| Stitch Type |
301 |
| Max Speed |
2600 SPM* |
| Max Stitch Length |
2.8 s.p.i. (9 mm) |
| Presser Foot Lift (Hand) |
5/16" (8 mm) |
| Presser Foot Lift (Knee) |
33/64" (13 mm) |
| Needle Bar Stroke |
1-27/64" (36 mm) |
| Needle System |
135 x 17 (x2) |
| Bobbin Type |
Pre-wound U or S |
| Workspace |
9-7/8” x 3-15/16" (250 x 100 mm) |
The CONSEW® P2339RB-1 combines double-needle precision, walking foot feeding, and industrial durability for demanding sewing applications. Built for professionals who require strong seams and reliable performance on heavy materials.
