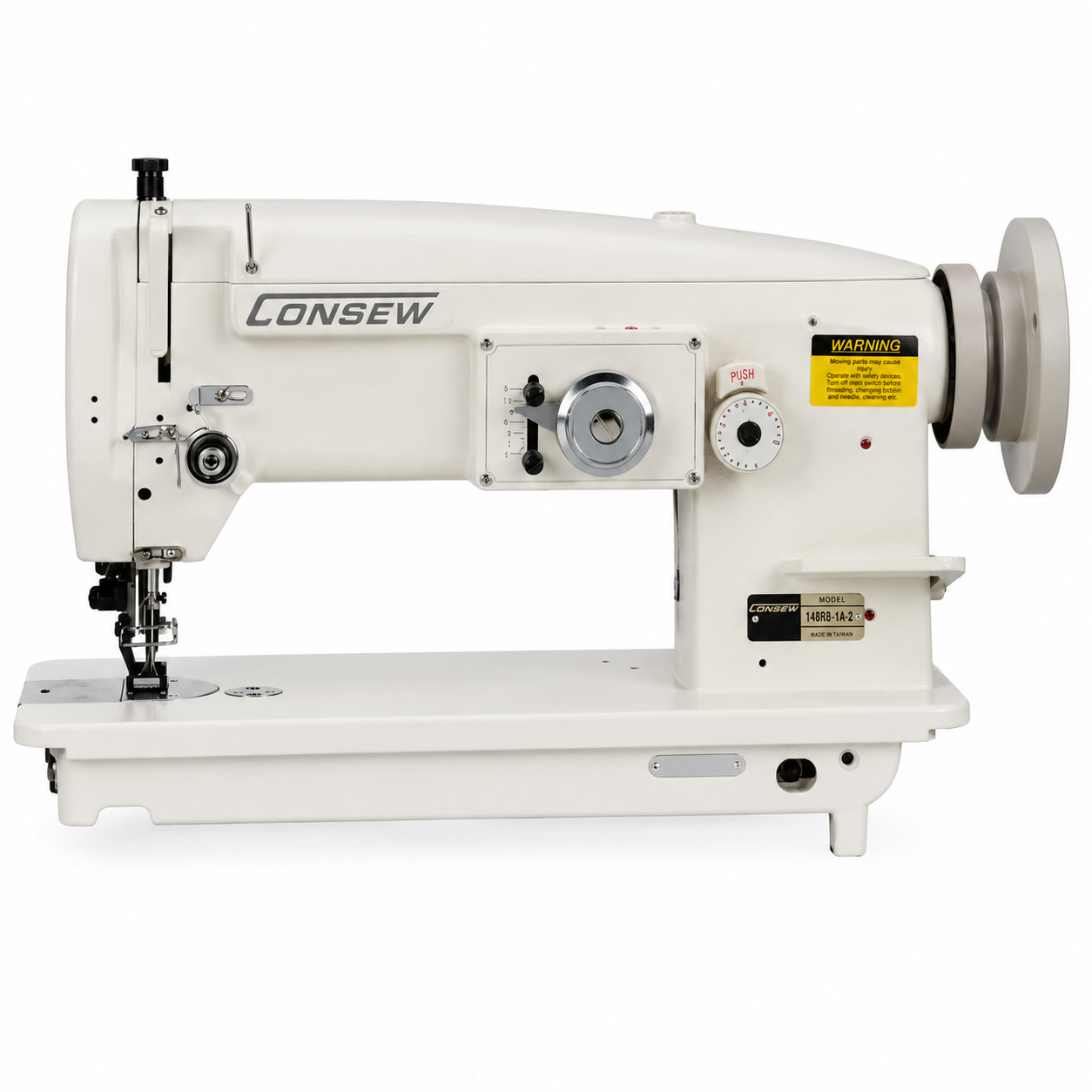

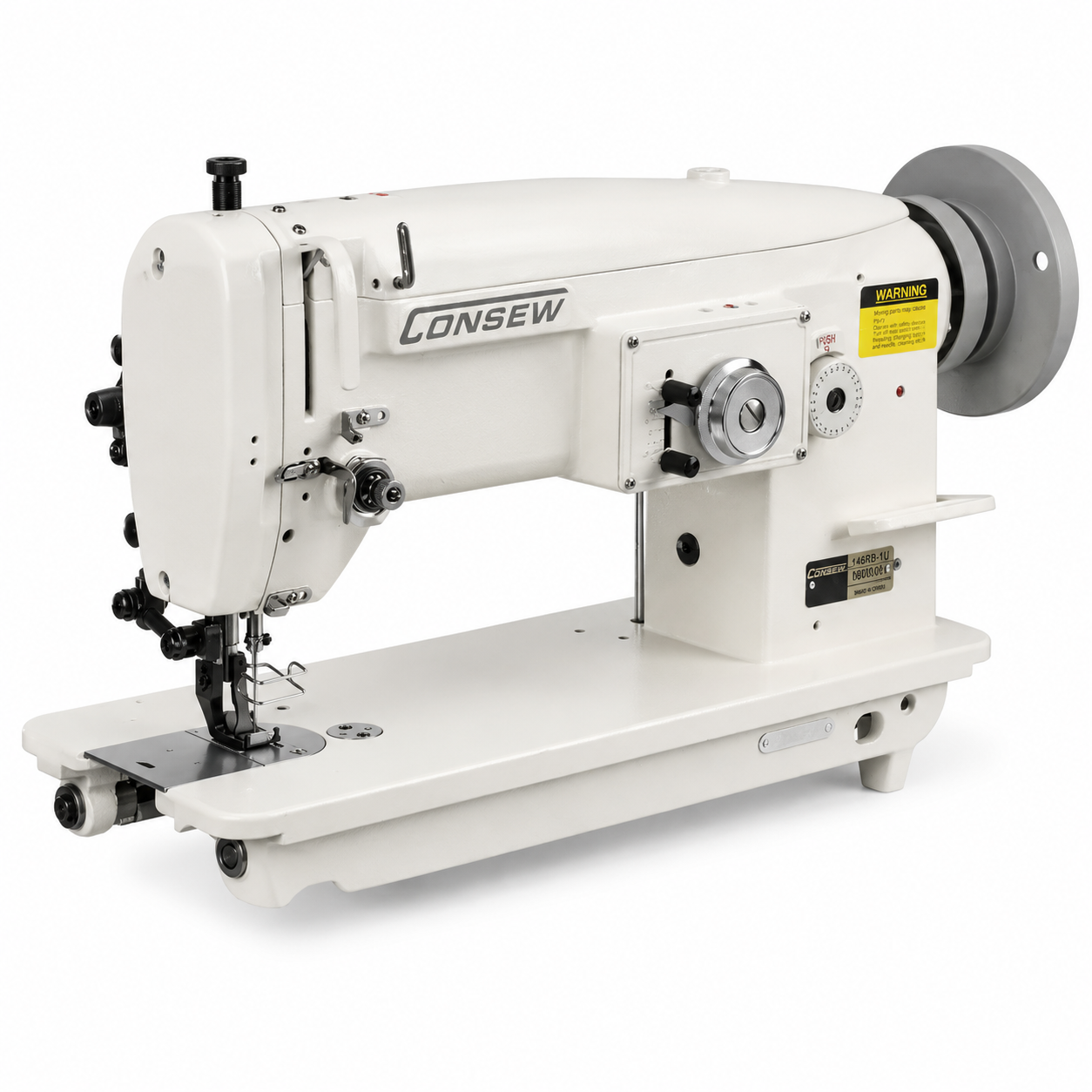

Consew 146RB-1A-2

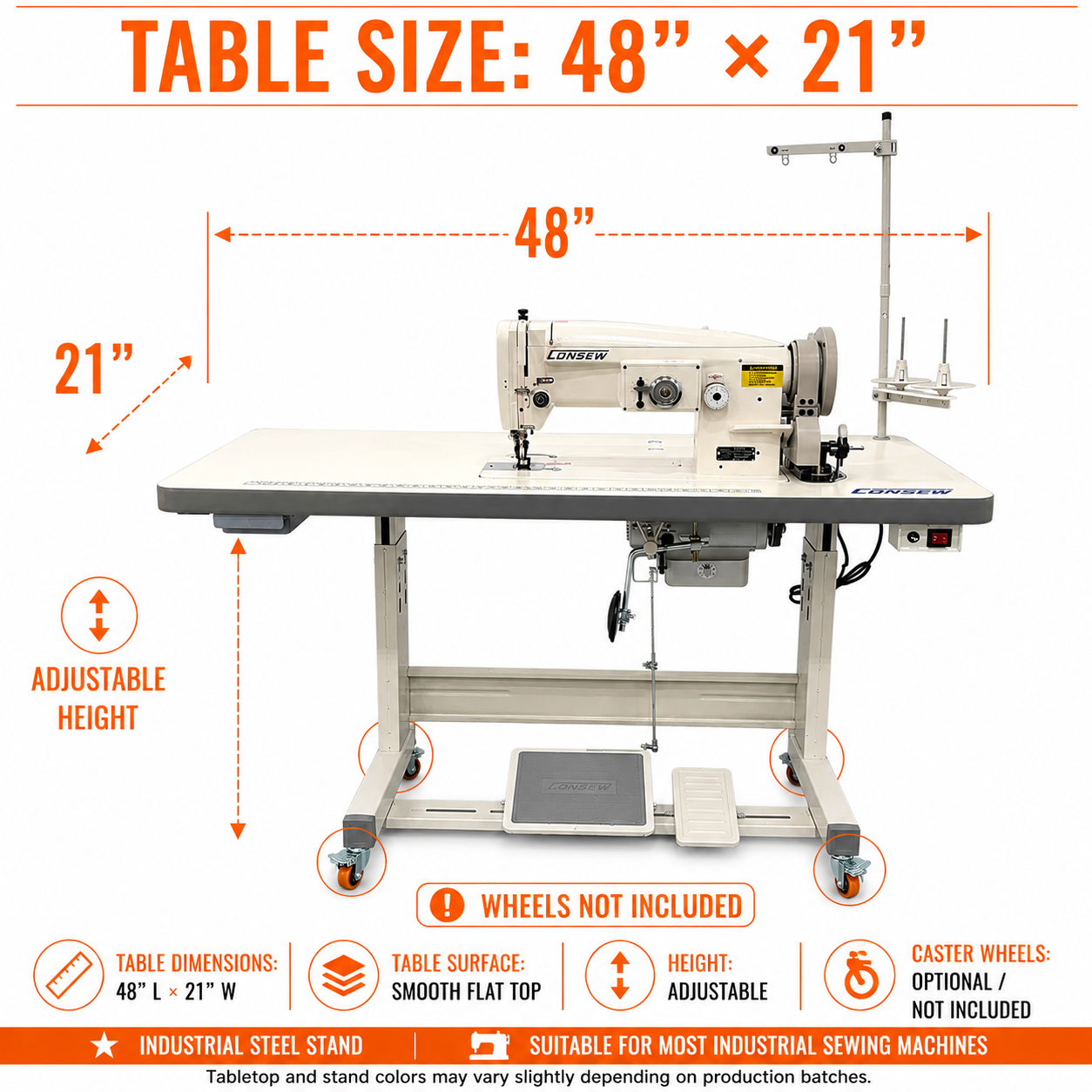

✔ COMPLETE ASSEMBLED WITH TABLE AND STAND INCLUDED
Ready to sew. No setup needed. Professional installation included.
Single Needle • Walking Foot • Zig-Zag Lockstitch • Heavy-Duty Industrial Sewing Machine
The Consew 146RB-1A-2 is a heavy-duty, single-needle walking foot zig-zag lockstitch machine engineered for sewing medium to heavyweight materials that are difficult to feed. Its powerful walking foot mechanism, horizontal-axis transverse rotary hook, and large-capacity bobbin provide exceptional feeding performance, making it ideal for demanding industrial sewing applications.
Designed for precision and durability, this machine features a wide zig-zag stitch, reverse stitching, and an upper walking foot that minimizes material slippage when sewing leather, vinyl, canvas, tarpaulins, footwear, and technical fabrics. With a maximum speed of 2,500 stitches per minute, the 146RB-1A-2 combines productivity with outstanding stitch quality.
Key Features
- Heavy-duty single-needle industrial sewing machine.

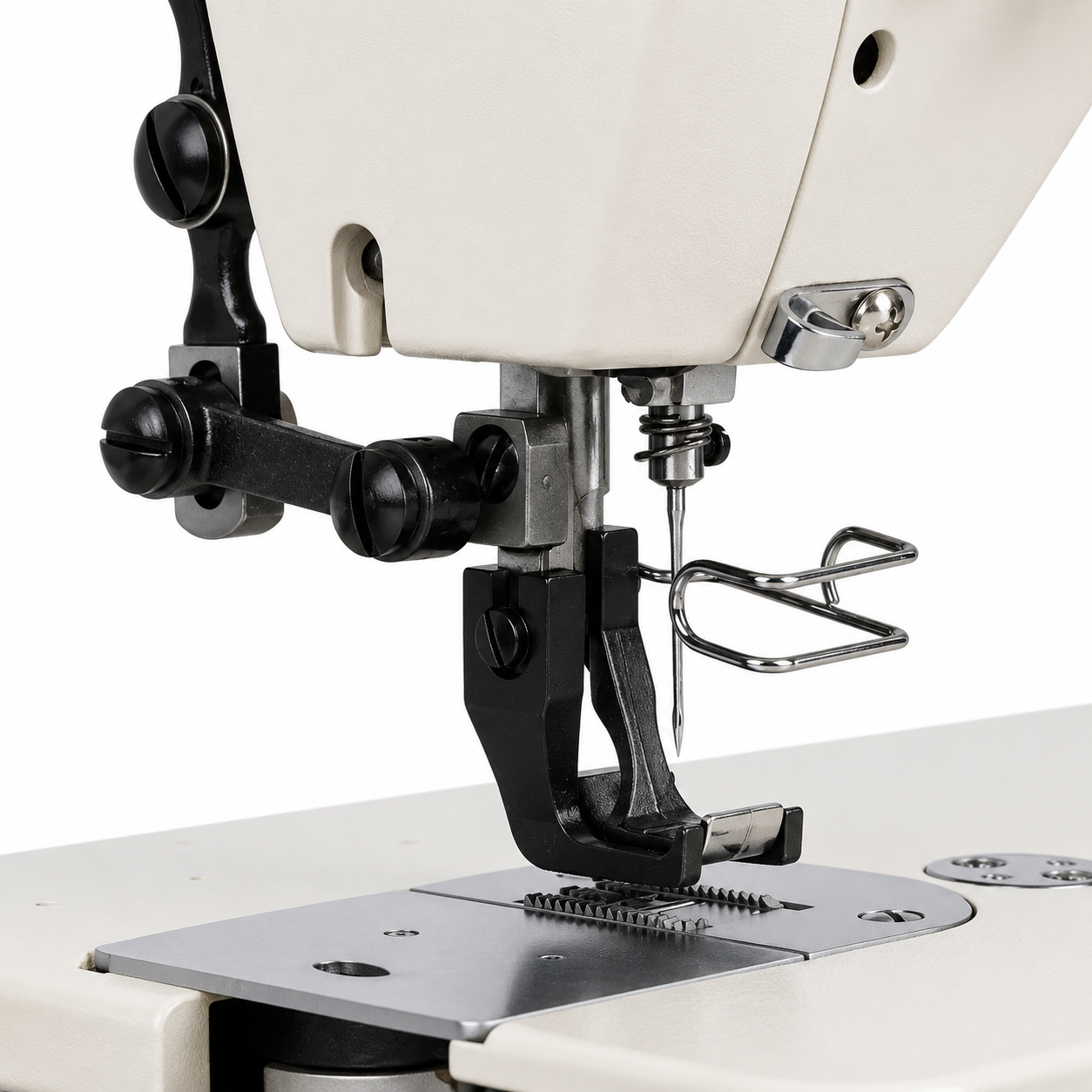

- Walking foot feeding system for difficult materials.

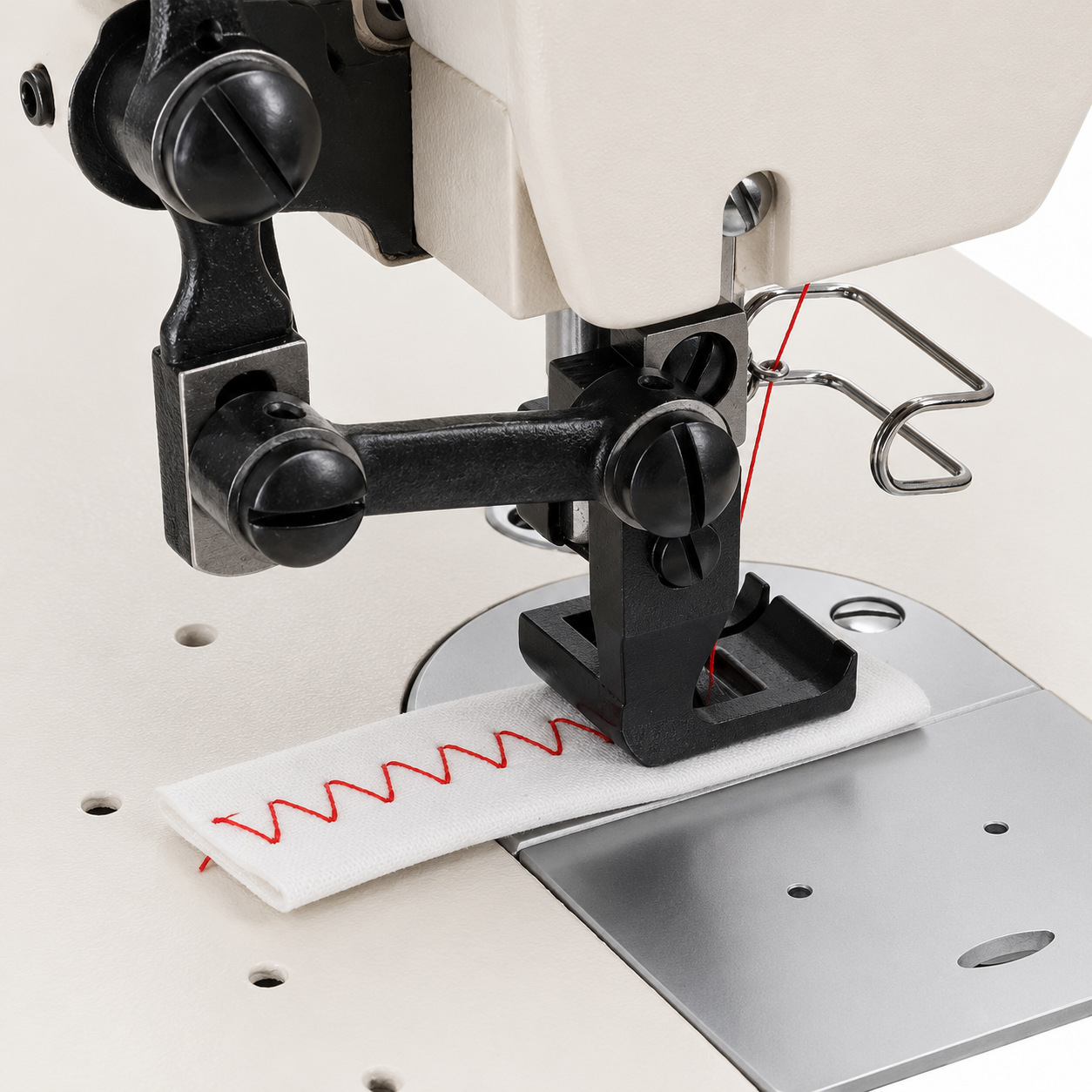

- Wide zig-zag lockstitch capability.

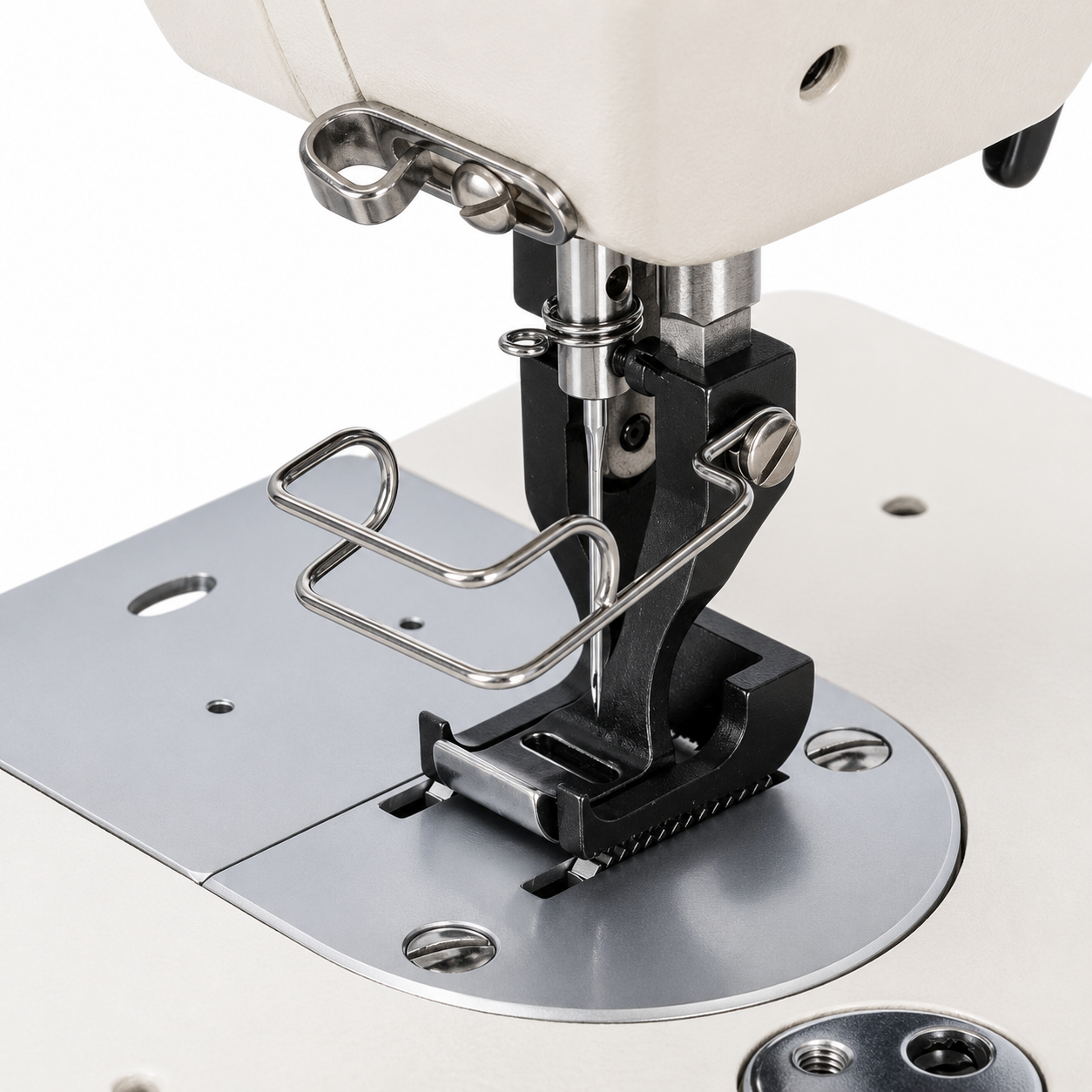

- Drop feed with upper walking foot.
- Reverse stitching for reinforced seams.
- Large-capacity bobbin for longer sewing cycles.
- Horizontal-axis transverse rotary hook.
- Excellent feeding on slippery, thick, and layered materials.
- Smooth, consistent stitch formation.
- Designed for continuous industrial production.
- Heavy-duty construction for long service life.
Applications
- Leather goods.
- Shoes and boots.
- Wetsuits.
- Tarpaulins.
- Canvas products.
- Vinyl materials.
- Marine products.
- Outdoor equipment.
- Sporting goods.
- Protective gear.
- Medium to heavyweight fabrics.
- Industrial sewing applications.
Technical Specifications
| Model | Consew 146RB-1A-2 |
| Machine Type | Walking Foot Zig-Zag Lockstitch Machine |
| Number of Needles | 1 |
| Feeding Mechanism | Walking Foot with Drop Feed |
| Maximum Sewing Speed | 2,500 SPM |
| Maximum Stitch Length | 5 mm (5 S.P.I.) |
| Maximum Zig-Zag Width | 9.5 mm (3/8") |
| Presser Foot Clearance | 10 mm (25/64") |
| Workspace | 255 mm (10") |
| Bed Size | 178 × 480 mm (7" × 18-7/8") |
| Needle System | 135 × 17 |
| Needle Bar Stroke | 34 mm (1-11/32") |
| Hook | Horizontal Axis Transverse Rotary Hook (#712) |
| Bobbin | Large Capacity #713 (Pre-Wound M) |
| Functions | Forward, Reverse & Wide Zig-Zag Stitching |
The Consew 146RB-1A-2 is a reliable heavy-duty walking foot zig-zag sewing machine built for professionals working with leather, canvas, vinyl, tarpaulins, footwear, and other difficult materials. Its superior feeding system, wide zig-zag capability, and rugged construction make it an excellent choice for industrial applications requiring precision, durability, and consistent sewing performance.
