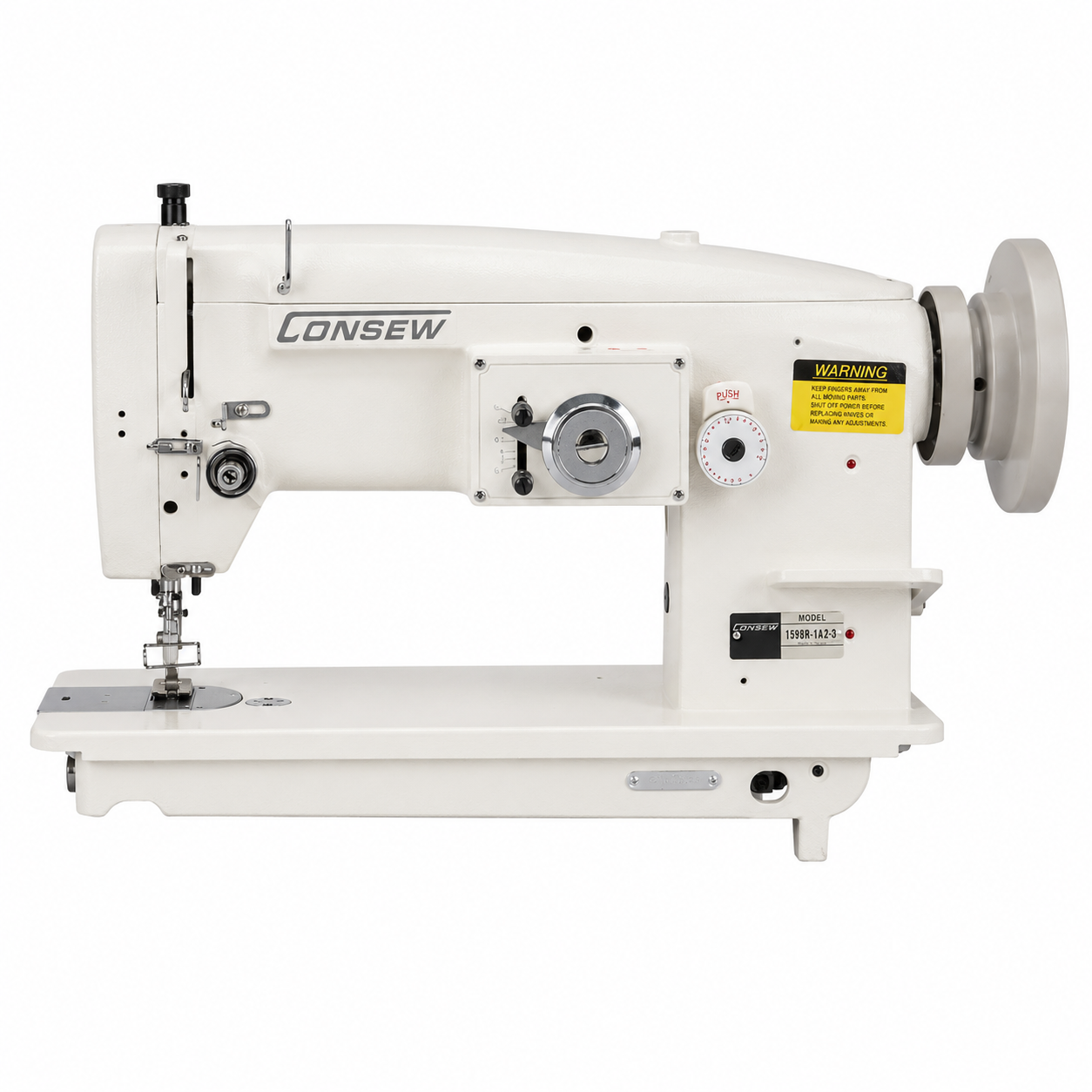

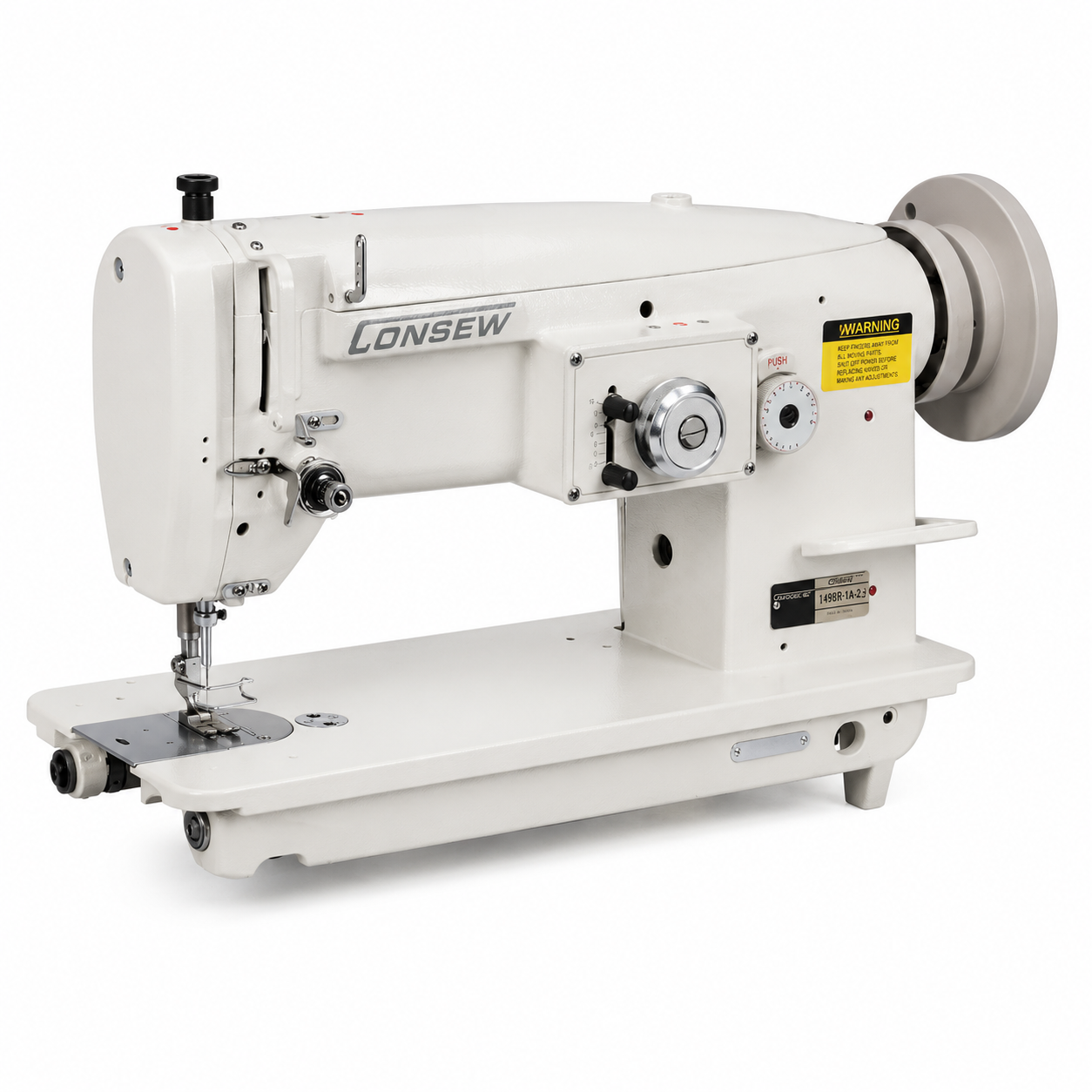

Consew 199RB-1A-2

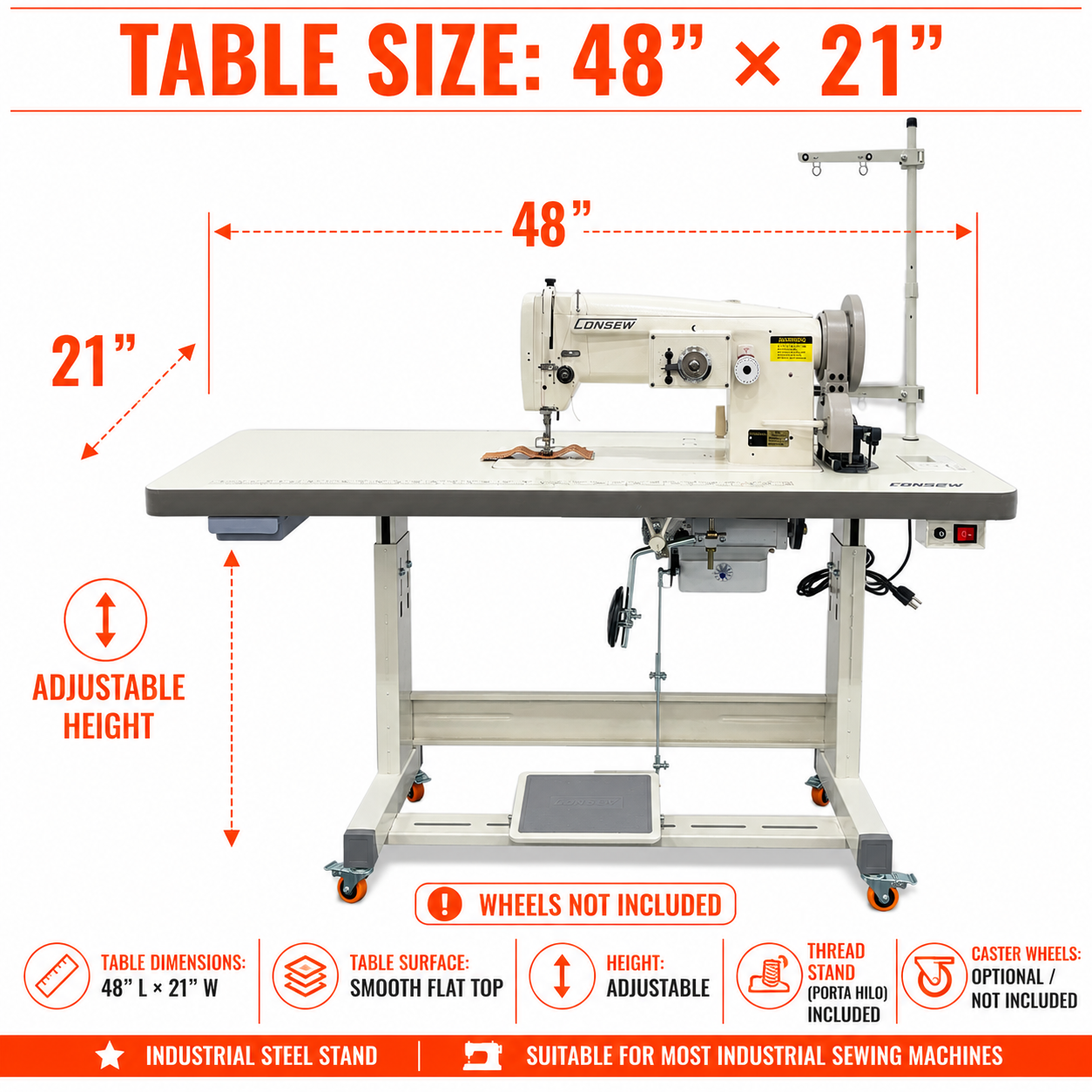

✔ COMPLETE ASSEMBLED WITH TABLE AND STAND INCLUDED
Ready to sew. No setup needed. Professional installation included.
Single Needle • Needle Feed • Zig-Zag & Straight Stitch • Heavy-Duty Industrial Sewing Machine
The Consew 199RB-1A-2 is a versatile single-needle industrial zig-zag lockstitch machine designed for precision sewing on leather, canvas, vinyl, cloth, lace, and other medium to heavyweight materials. Combining zig-zag and straight stitch capabilities in one machine, it delivers exceptional flexibility for decorative sewing, binding, patchwork, edge sewing, and general industrial applications.
Built with a horizontal-axis transverse rotary hook, large-capacity bobbin, reverse stitching, and a generous 10-inch workspace, the 199RB-1A-2 offers smooth material handling and dependable performance for professional sewing environments. The locking zig-zag width regulator allows precise stitch control while the needle feed mechanism improves stitch consistency on demanding materials.
Key Features
- Heavy-duty single-needle industrial sewing machine.
- Needle feed mechanism for improved material control.
- Zig-zag and straight stitch capability.
- Federal Stitch Type 304.
- Maximum zig-zag width of 9.5 mm (3/8").
- Straight stitching when zig-zag width is set to zero.
- Horizontal-axis transverse rotary hook.
- Large-capacity metal bobbin.
- Reverse stitching for reinforced seams.

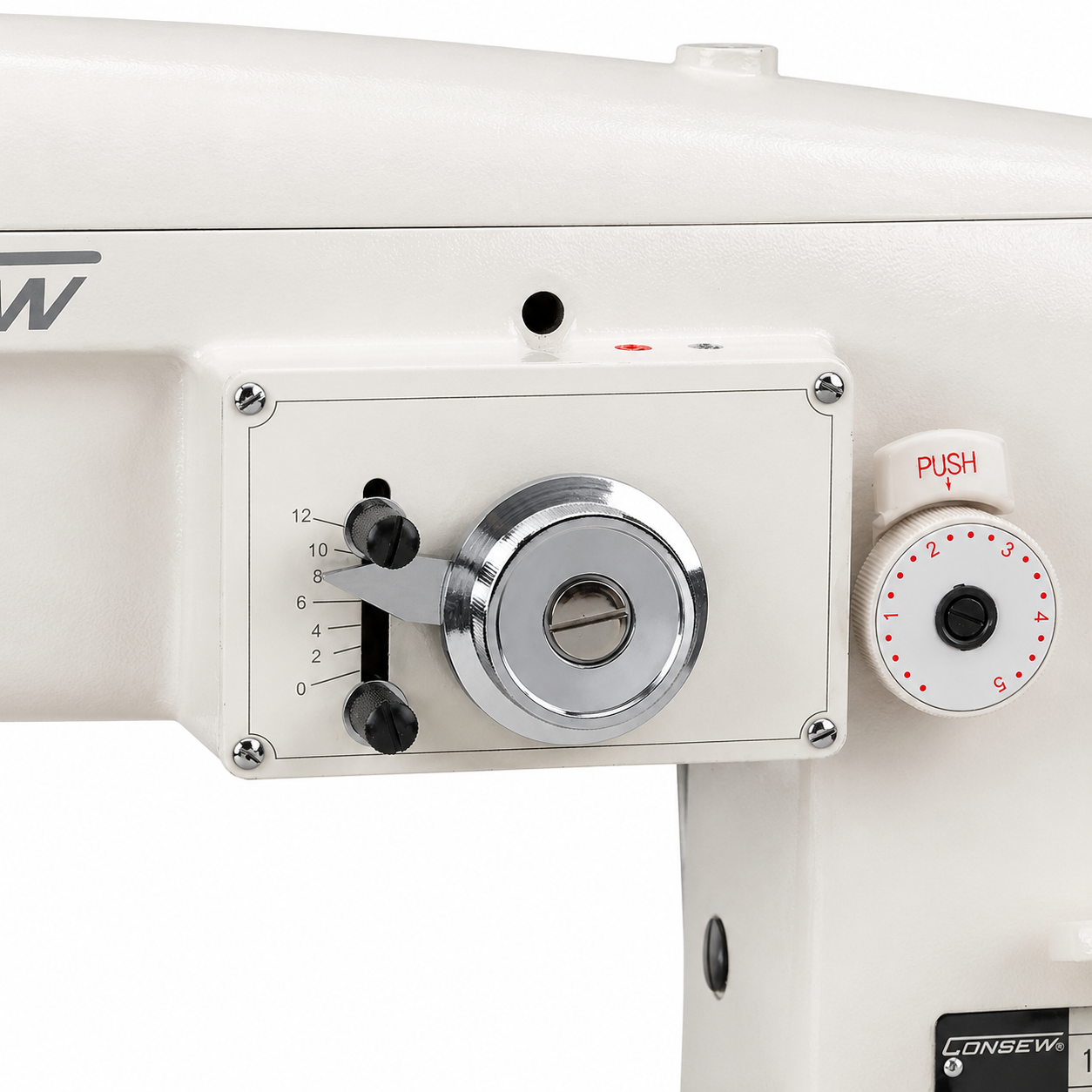

- Locking zig-zag width regulator.
- Long-arm design with 10-inch workspace.
- Optional conversion to 2-step or 3-step zig-zag configurations.
Applications
- Edge sewing.
- Patch sewing.
- Appliqué work.
- Binding operations.
- Joining and attaching materials.
- Leather goods.
- Canvas products.
- Vinyl materials.
- Cloth and woven fabrics.
- Lace sewing.
- Decorative zig-zag stitching.
- General industrial sewing.
Technical Specifications
| Model | Consew 199RB-1A-2 |
| Machine Type | Industrial Zig-Zag Lockstitch Machine |
| Number of Needles | 1 |
| Feeding Mechanism | Needle Feed |
| Stitch Type | Federal Stitch 304 (1-Step Zig-Zag) |
| Maximum Sewing Speed | 2,000 SPM (Straight & Zig-Zag) |
| Maximum Stitch Length | 5 mm (5 S.P.I.) |
| Maximum Zig-Zag Width | 9.5 mm (3/8") |
| Presser Foot Clearance | 6 mm (15/64") |
| Workspace | 258 mm (10") |
| Bed Size | 178 × 480 mm (7" × 18-7/8") |
| Needle System | 135 × 17 |
| Needle Bar Stroke | 34 mm (1-11/32") |
| Hook | Horizontal Axis Transverse Rotary Hook (CS712) |
| Bobbin | Metal CS713 / Pre-Wound M |
| Weight | 78 lbs |
| Optional Stitch Configurations | 2-Step Zig-Zag (308) and 3-Step Zig-Zag with Optional Parts |
The Consew 199RB-1A-2 is a highly versatile industrial zig-zag sewing machine that combines straight stitching, wide zig-zag capability, and dependable needle feed technology. Its spacious long-arm design, large-capacity bobbin, and durable construction make it an excellent choice for leatherwork, canvas products, vinyl applications, upholstery, binding, appliqué, and countless industrial sewing operations requiring precision and reliability.
