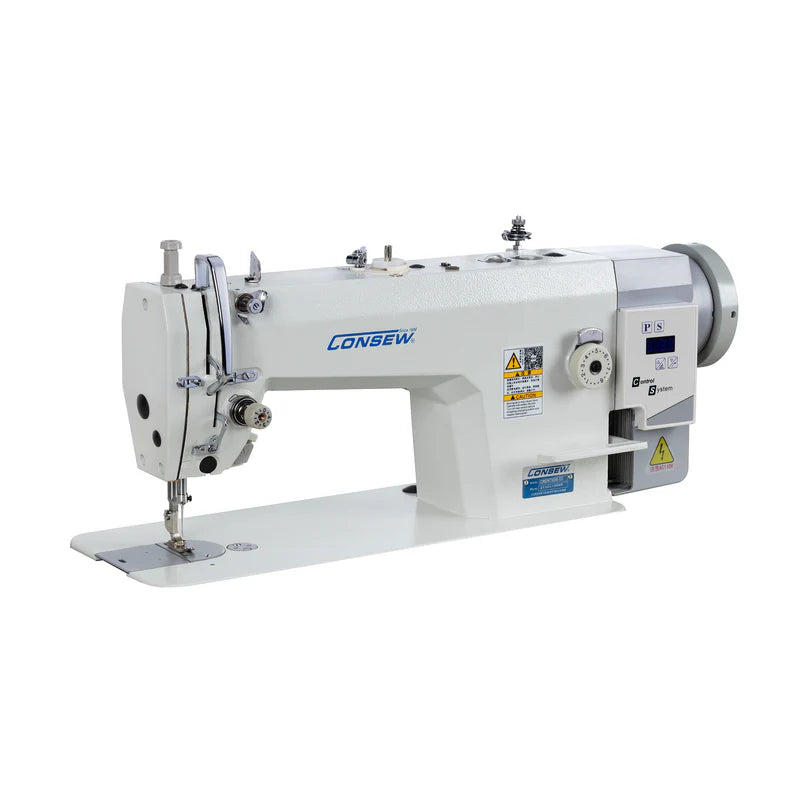

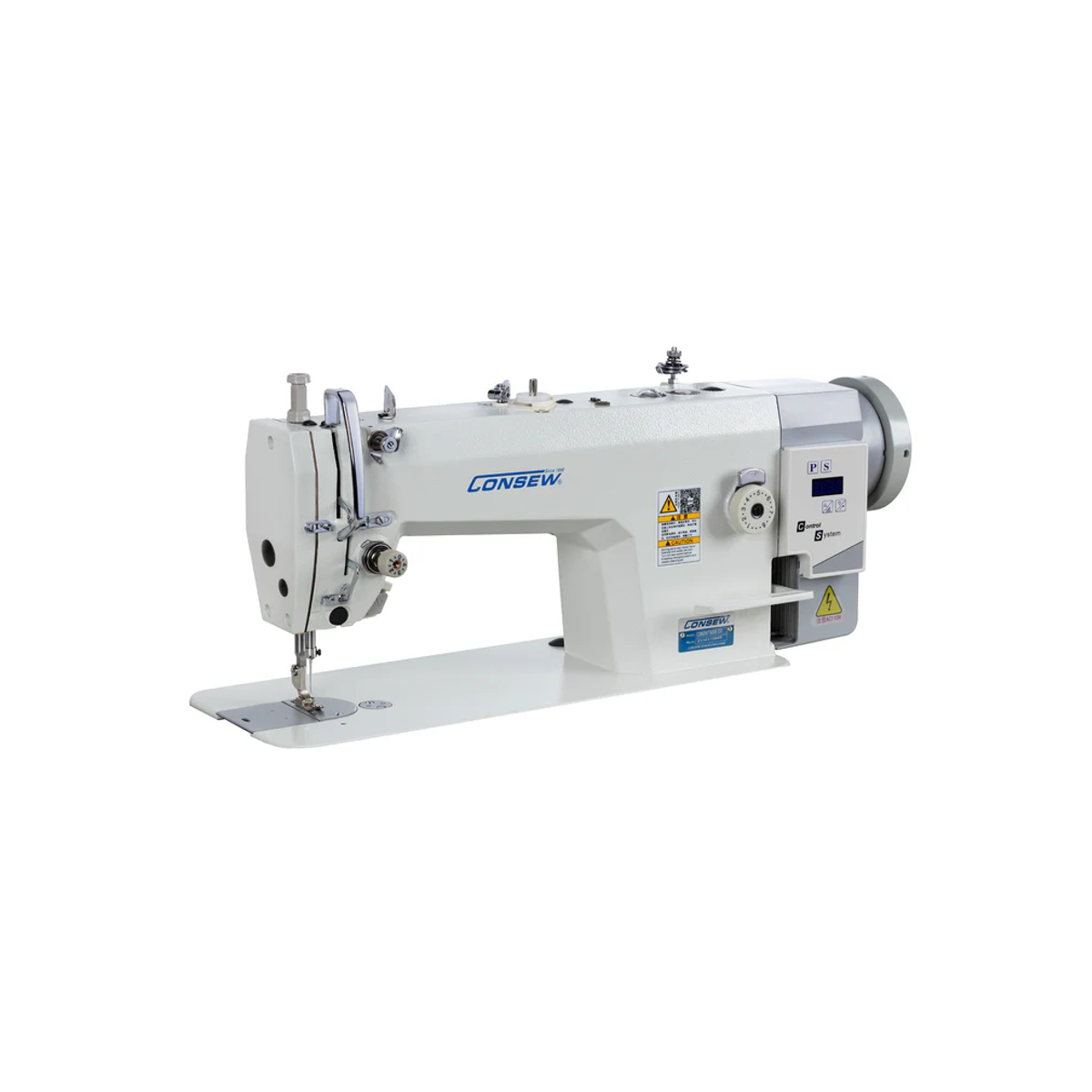

Consew 7360RB-3DD — Single Needle Direct Drive High-Speed Lockstitch Sewing Machine

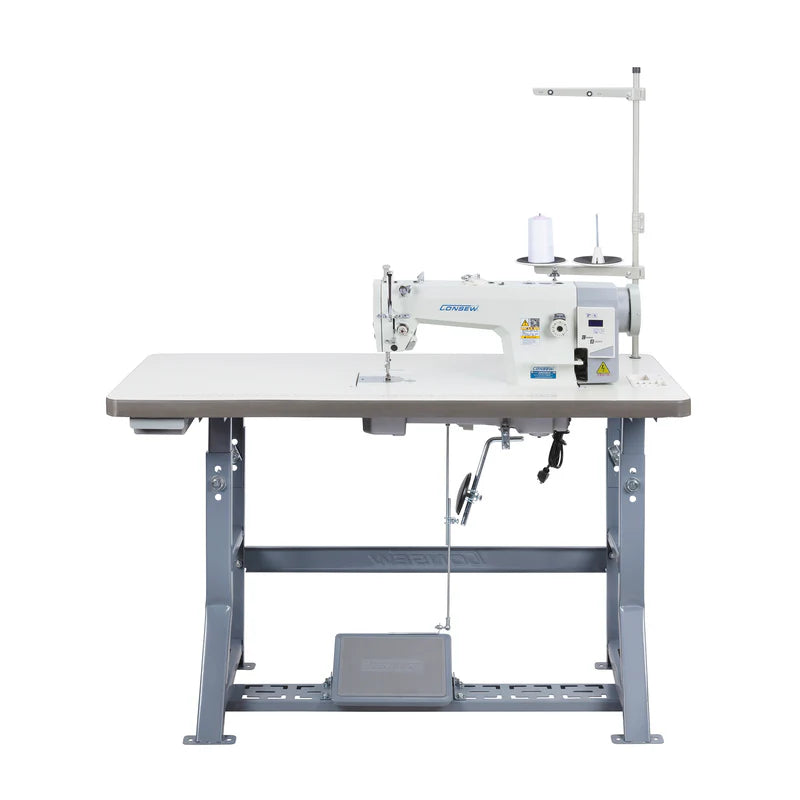

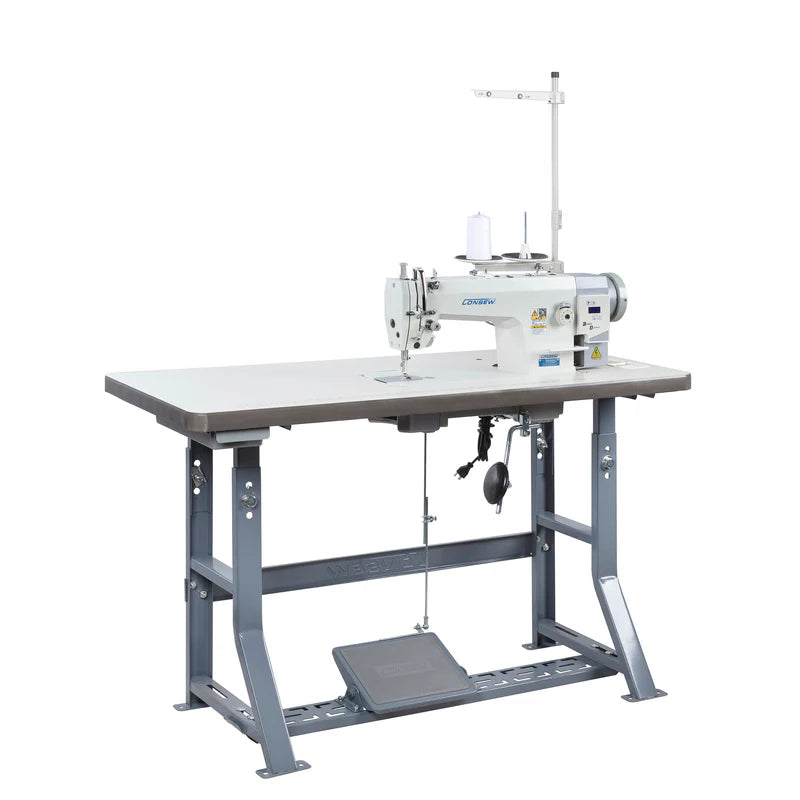

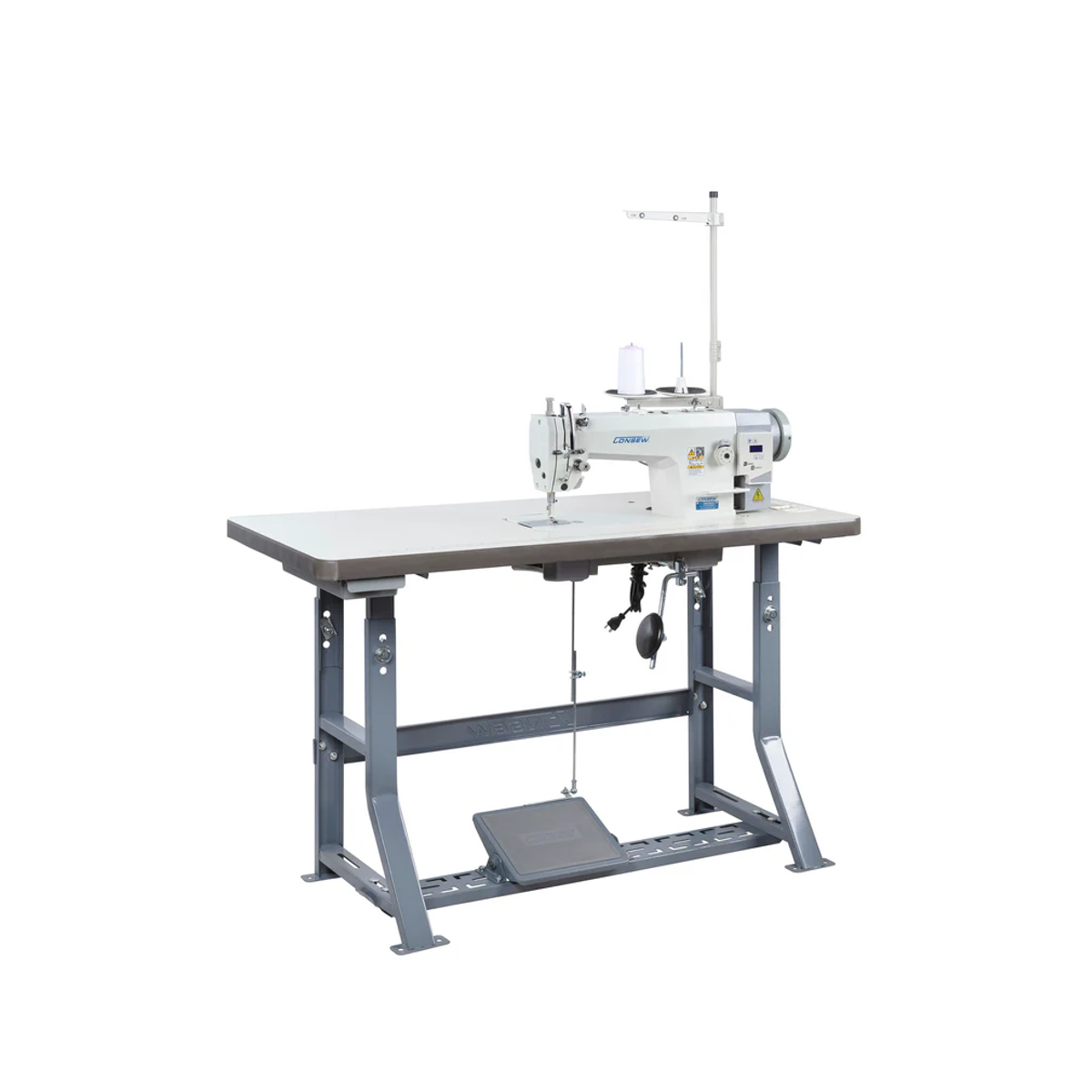

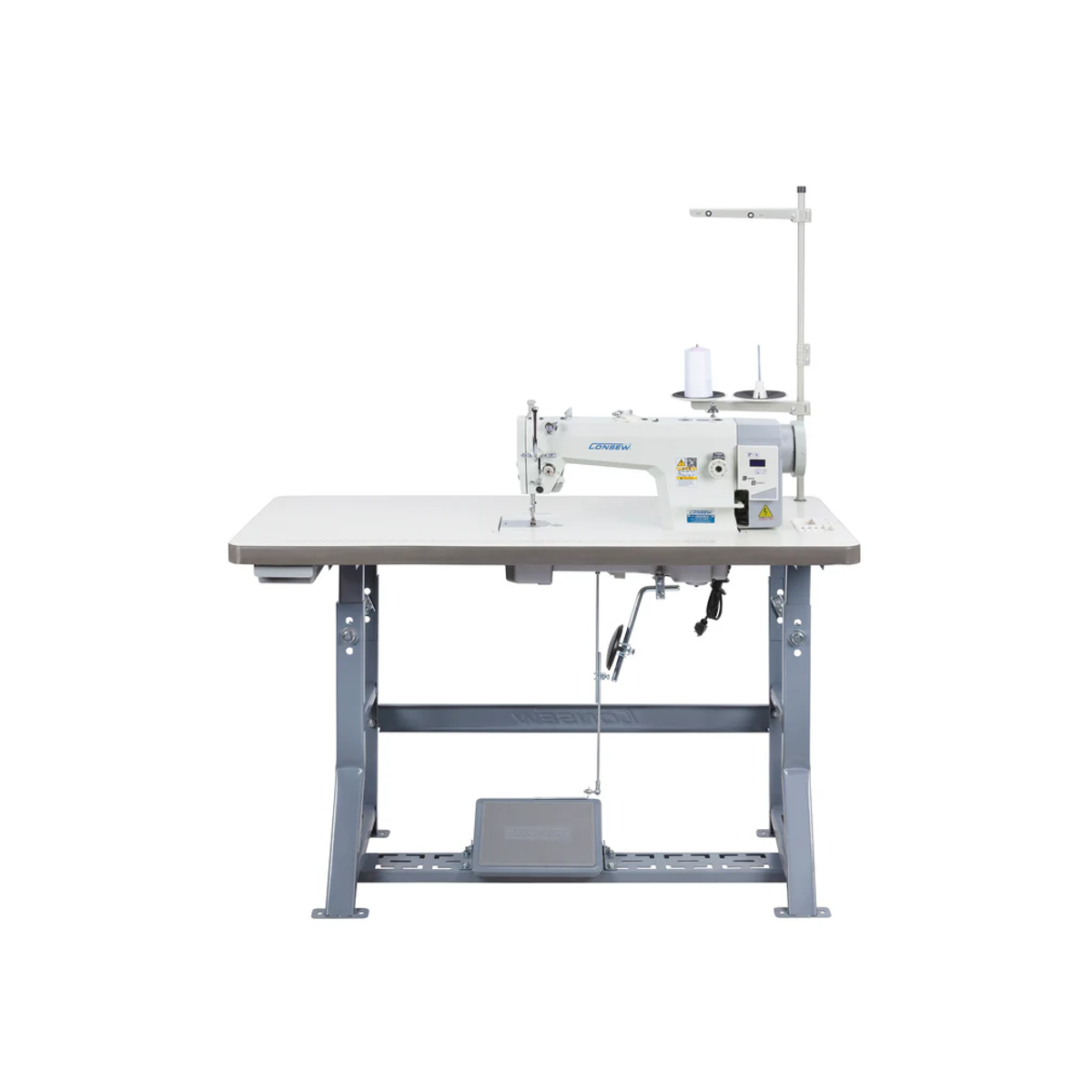

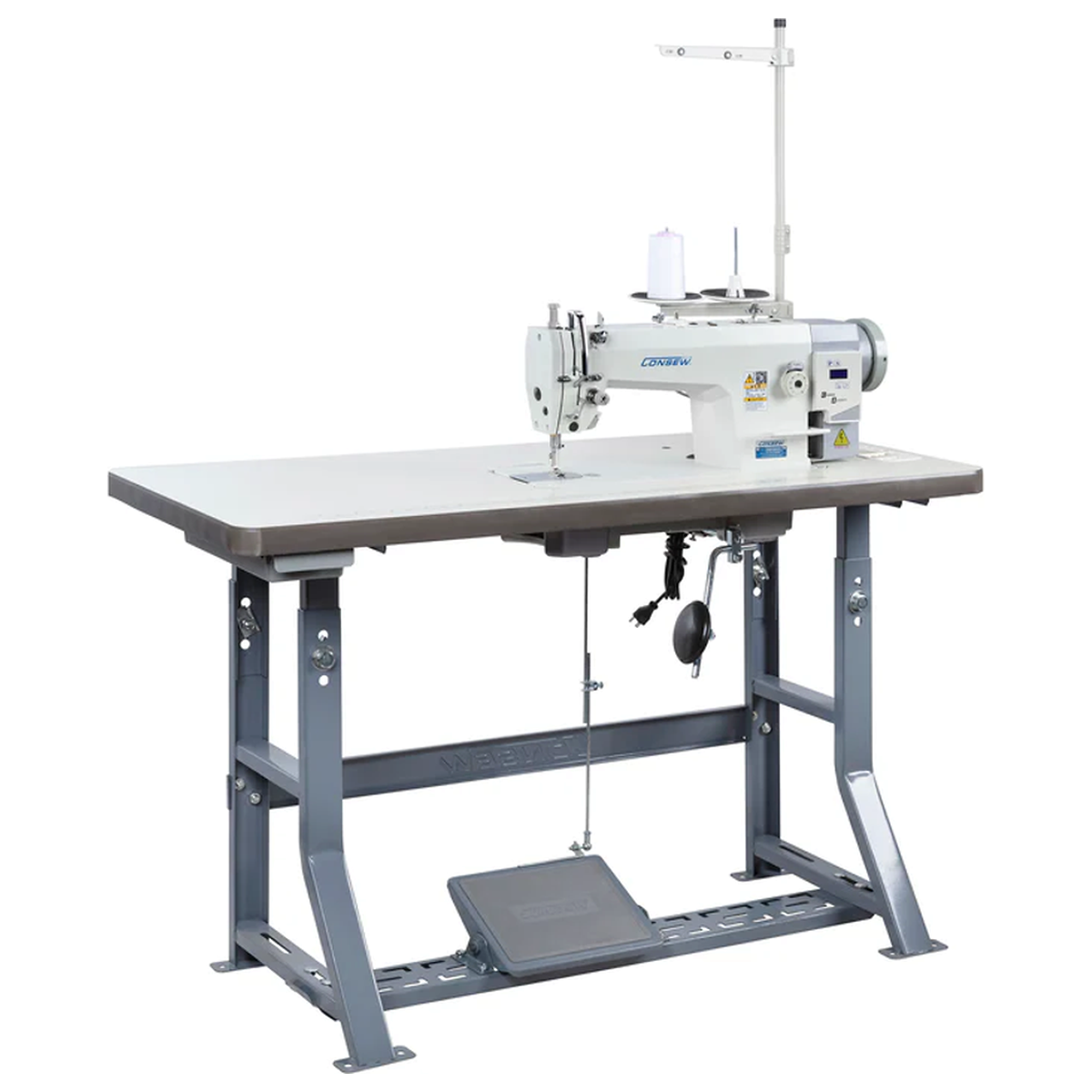

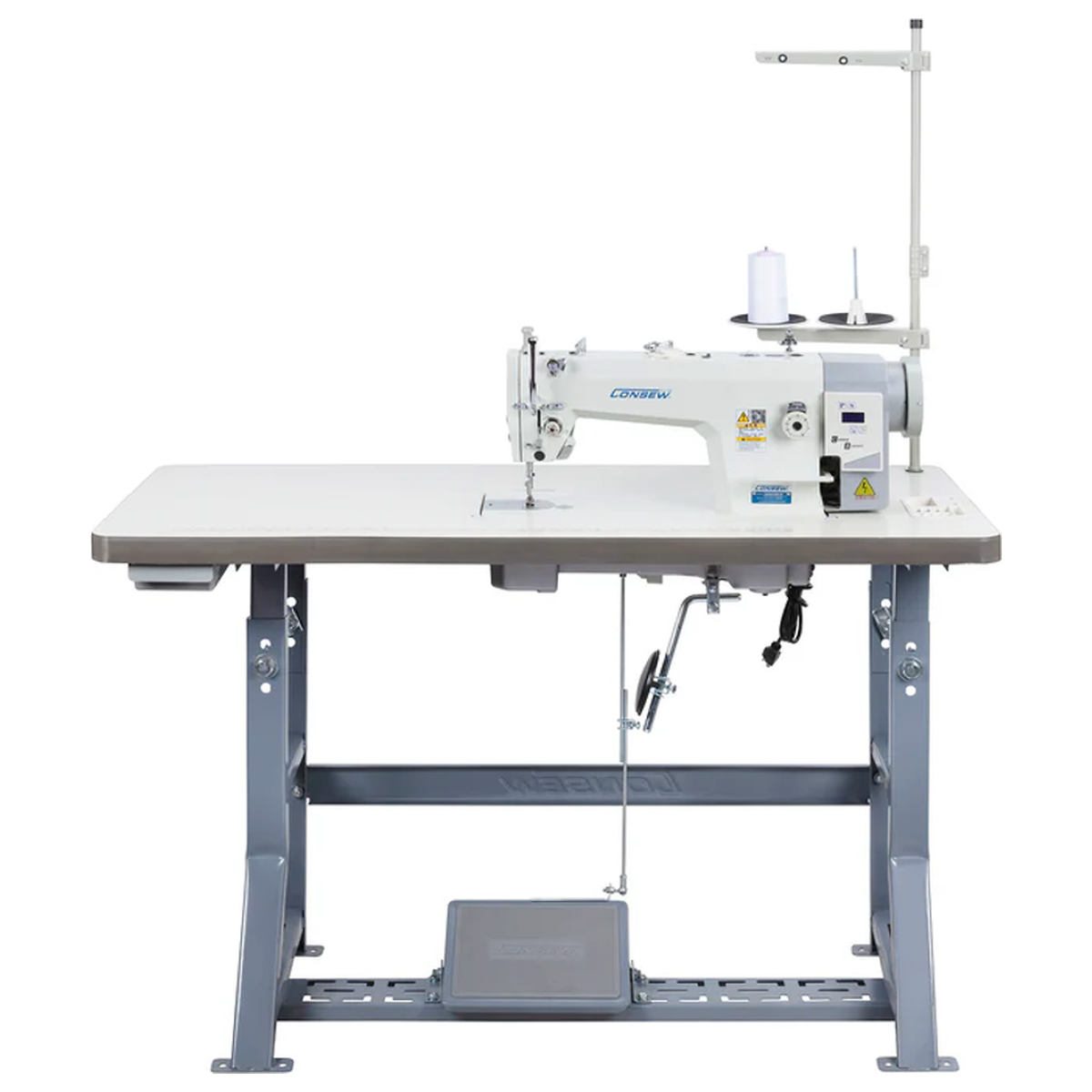

Complete Assembled with Table and Stand Included
Complete Assembled with Table and Stand Included
Precision Stitching • High Speed • Energy Efficient

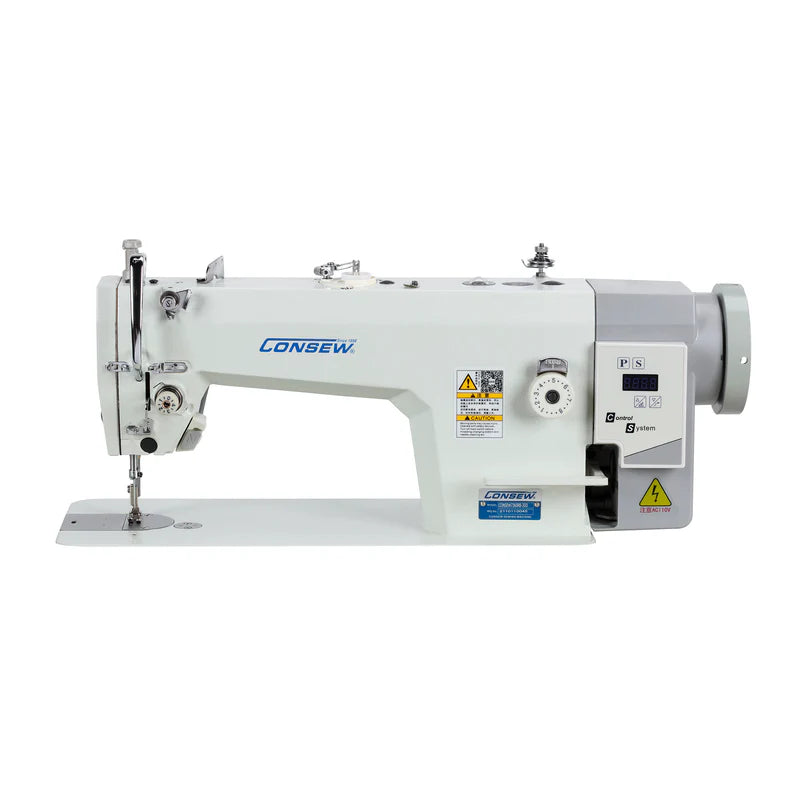

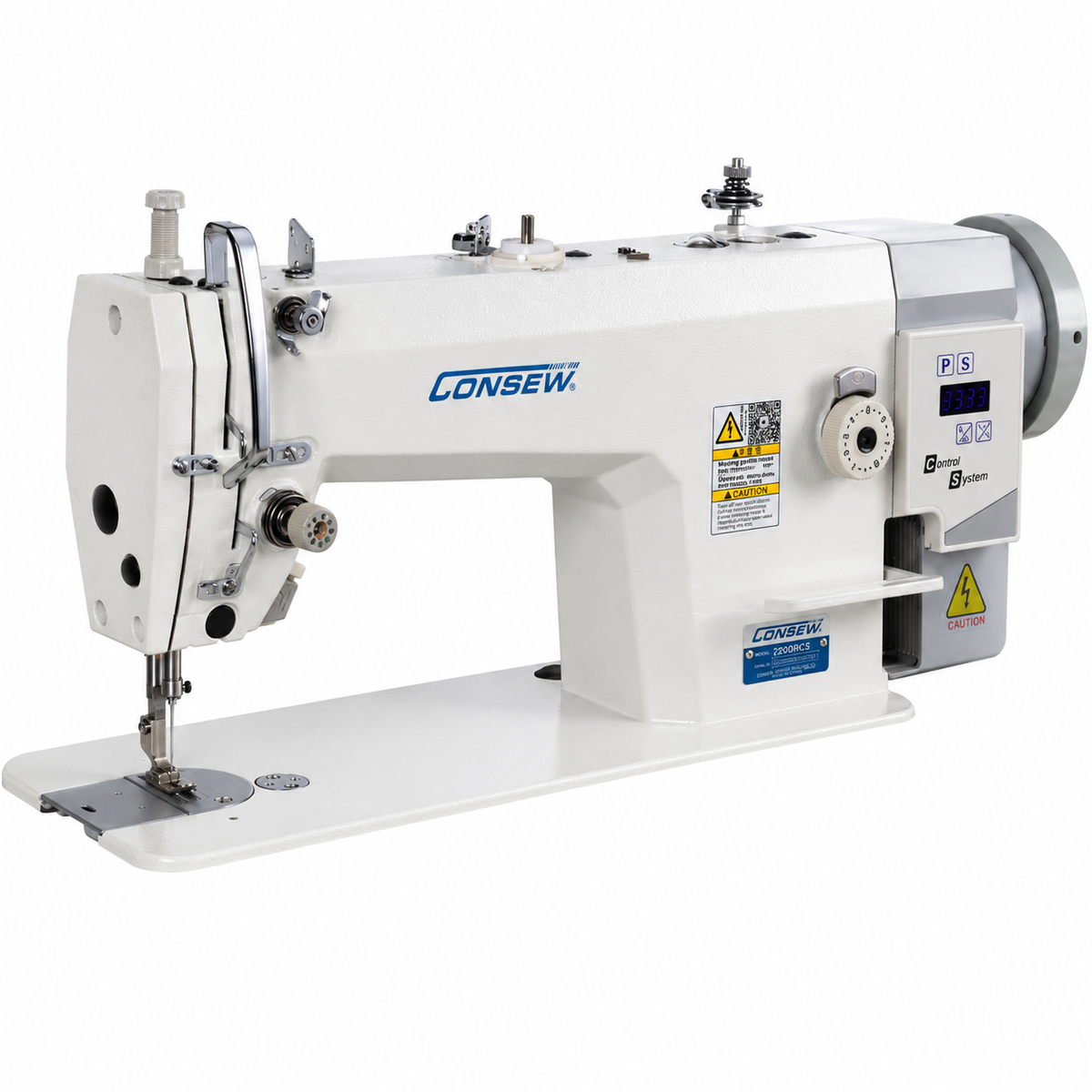

The Consew 7360RB-3DD is a high-speed single-needle lockstitch sewing machine equipped with a direct drive servo motor and needle positioning system. Designed for light to medium-weight materials, it offers smooth, efficient operation with low vibration and energy-saving performance—ideal for shirts, jeans, sportswear, uniforms, and light leather.
Key Features

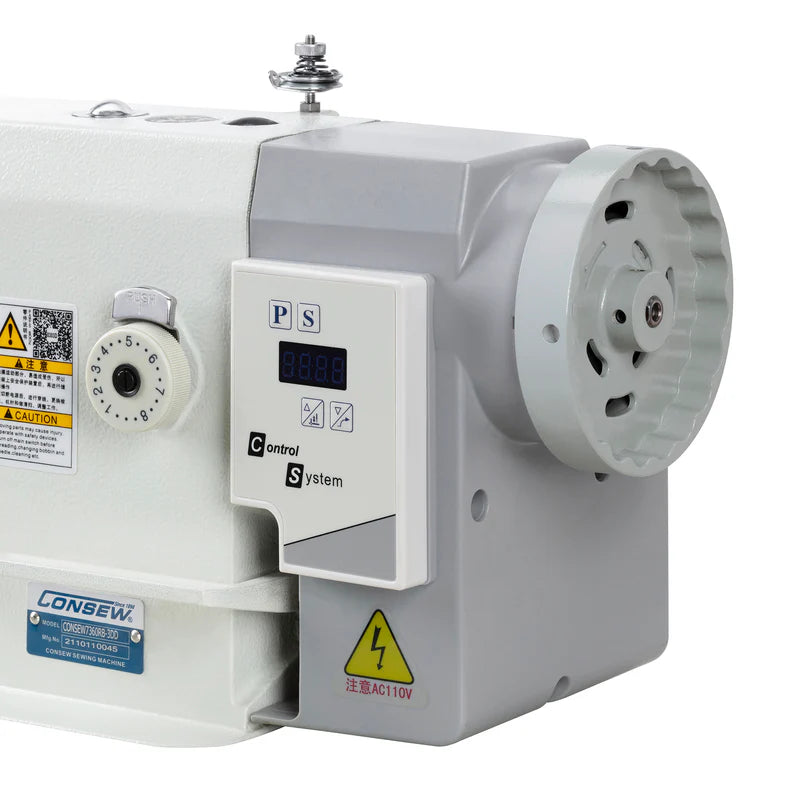

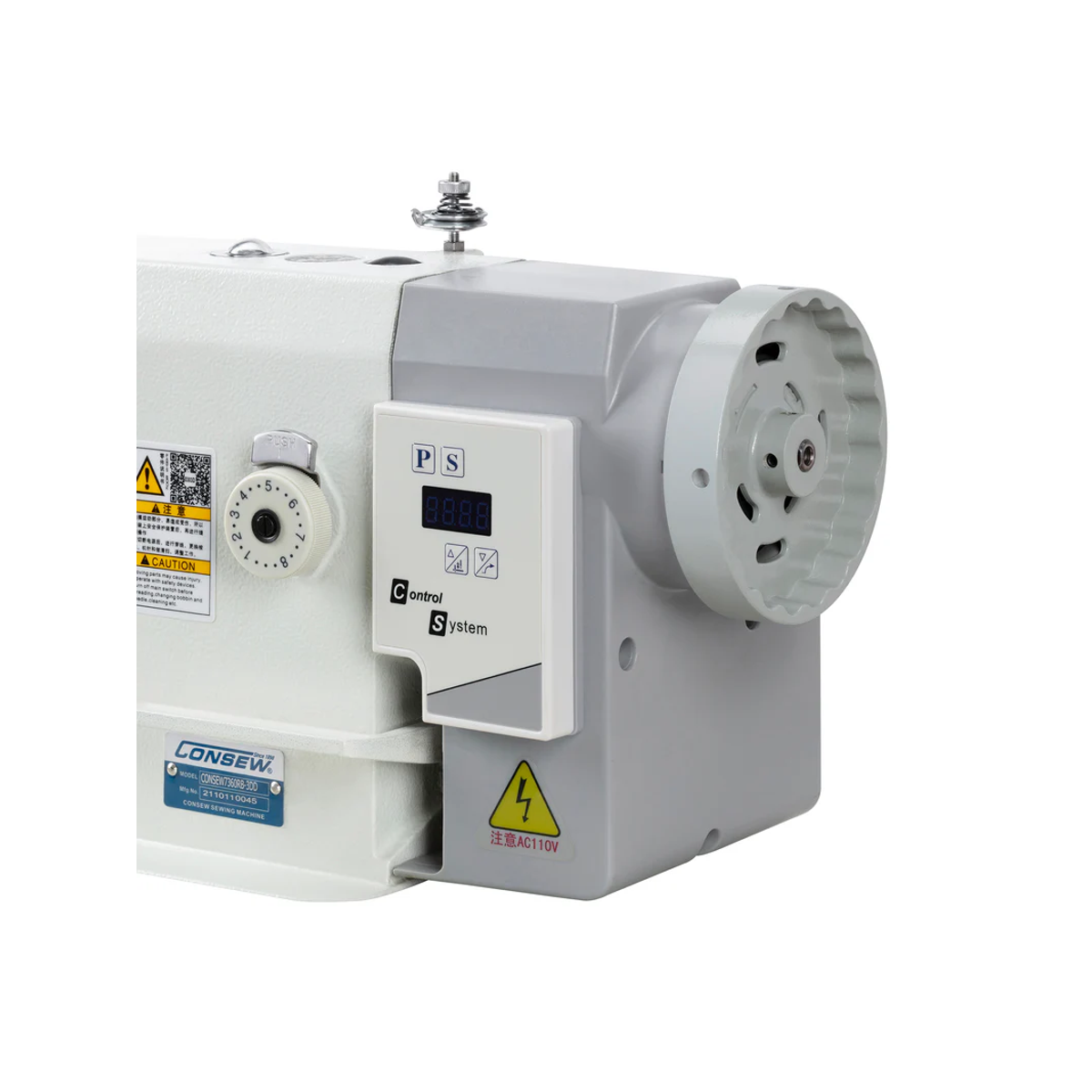

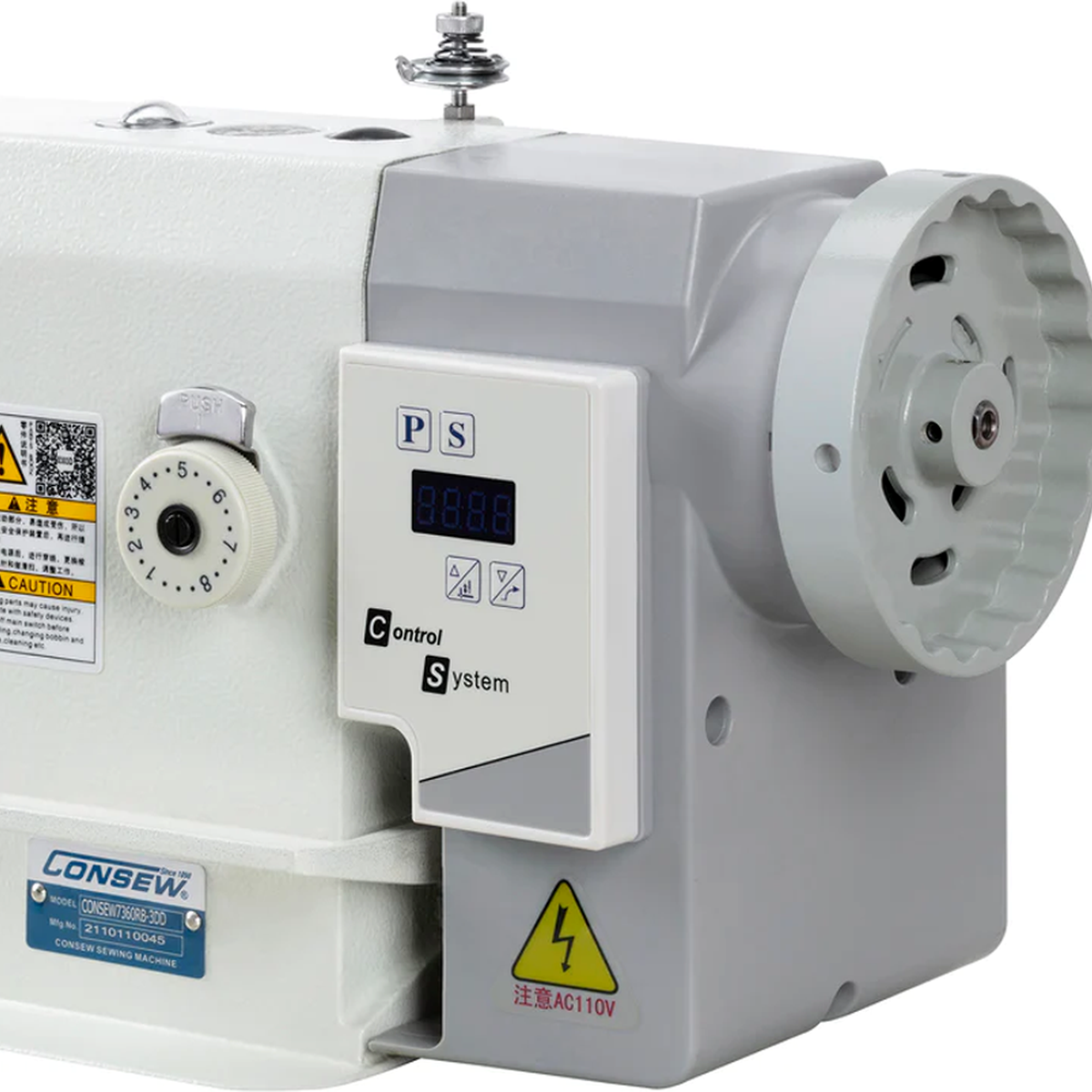

- Direct Drive Motor: Energy-efficient motor eliminates belts, reducing vibration and noise for smoother operation.
- Needle Positioning System: Up/down button control for precise stitch placement and higher productivity.
- Large Hook & Bobbin: Increases capacity, reducing bobbin changes for improved efficiency.
- Side-Load Bobbin Access: Simplifies maintenance and reloading without disturbing fabric or attachments.

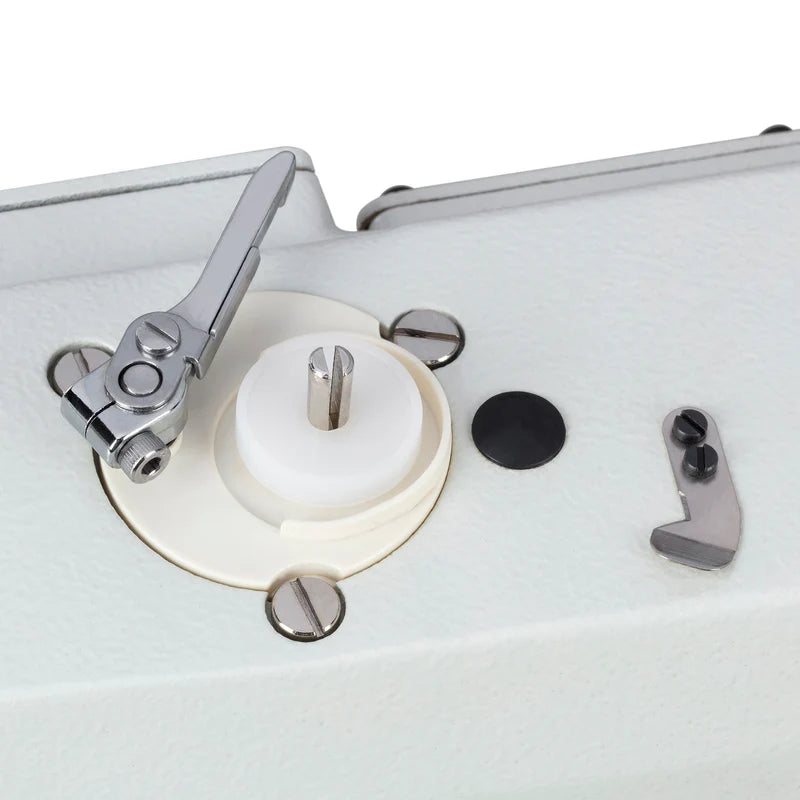

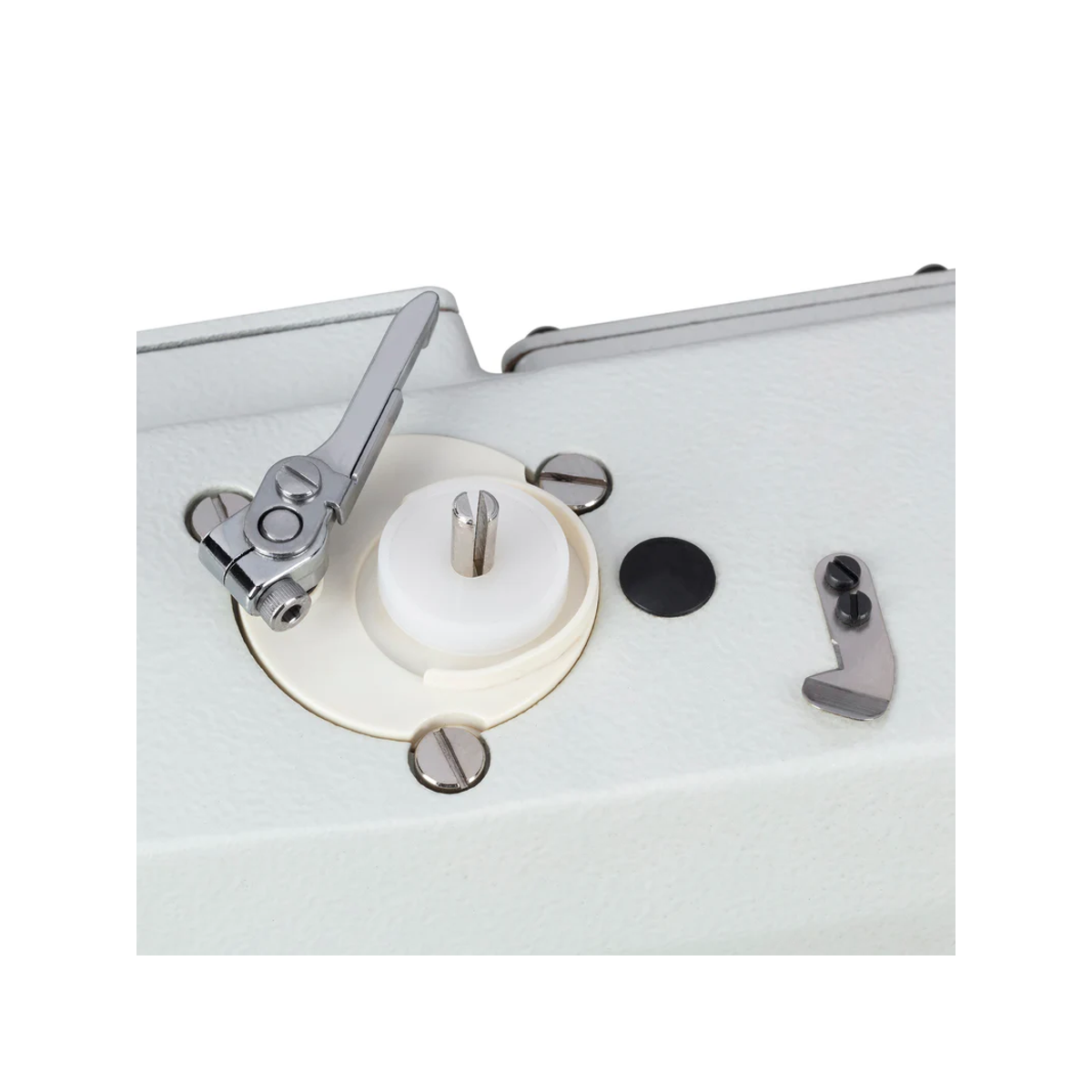

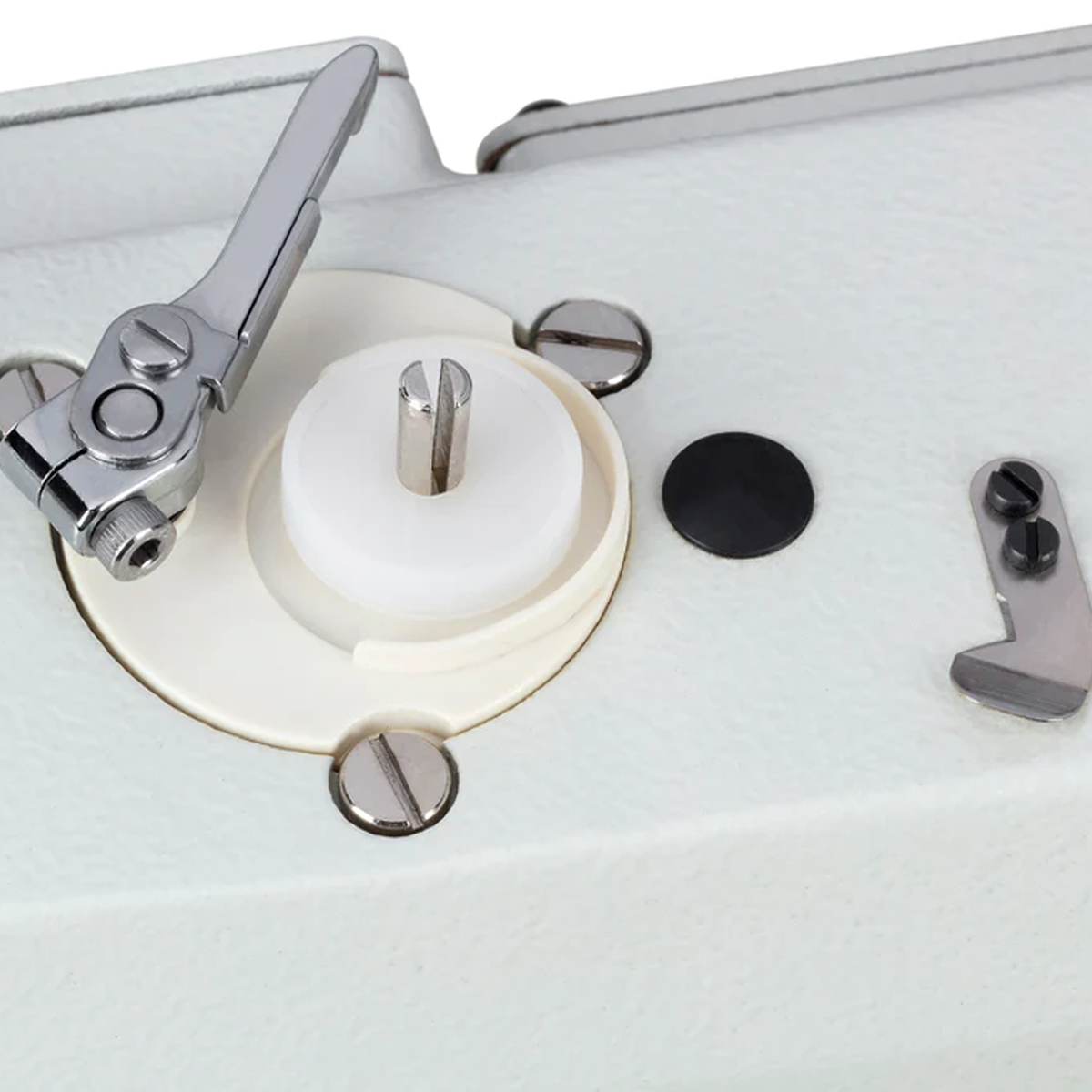

- Built-in Bobbin Winder: Convenient and efficient winding located on the machine head.
- Stopper Pin with Lock: Prevents unequal stitches caused by vibration in the feed regulator.
- Advanced Oiling System: Semi-dry lubrication ensures smooth operation while minimizing oil stains on fabric.
- Safety Tilt Switch: Automatically disables operation when the machine is tilted or not upright.
- Variable Speed Control: Adjustable speed range for precise control across various materials.
- Low Vibration Gear Transmission: Enhances stability and stitch accuracy at high speeds.
Applications
- Light to medium-weight fabrics — cotton, polyester, blends
- Garments — shirts, jeans, uniforms, sportswear
- Light leather and general apparel production
Technical Specifications
| Model: | 7360RB-3DD |
| Machine Type: | Single-needle lockstitch (drop feed) |
| Maximum Speed: | 5,000 stitches per minute* |
| Maximum Stitch Length: | 4 mm (6 SPI) |

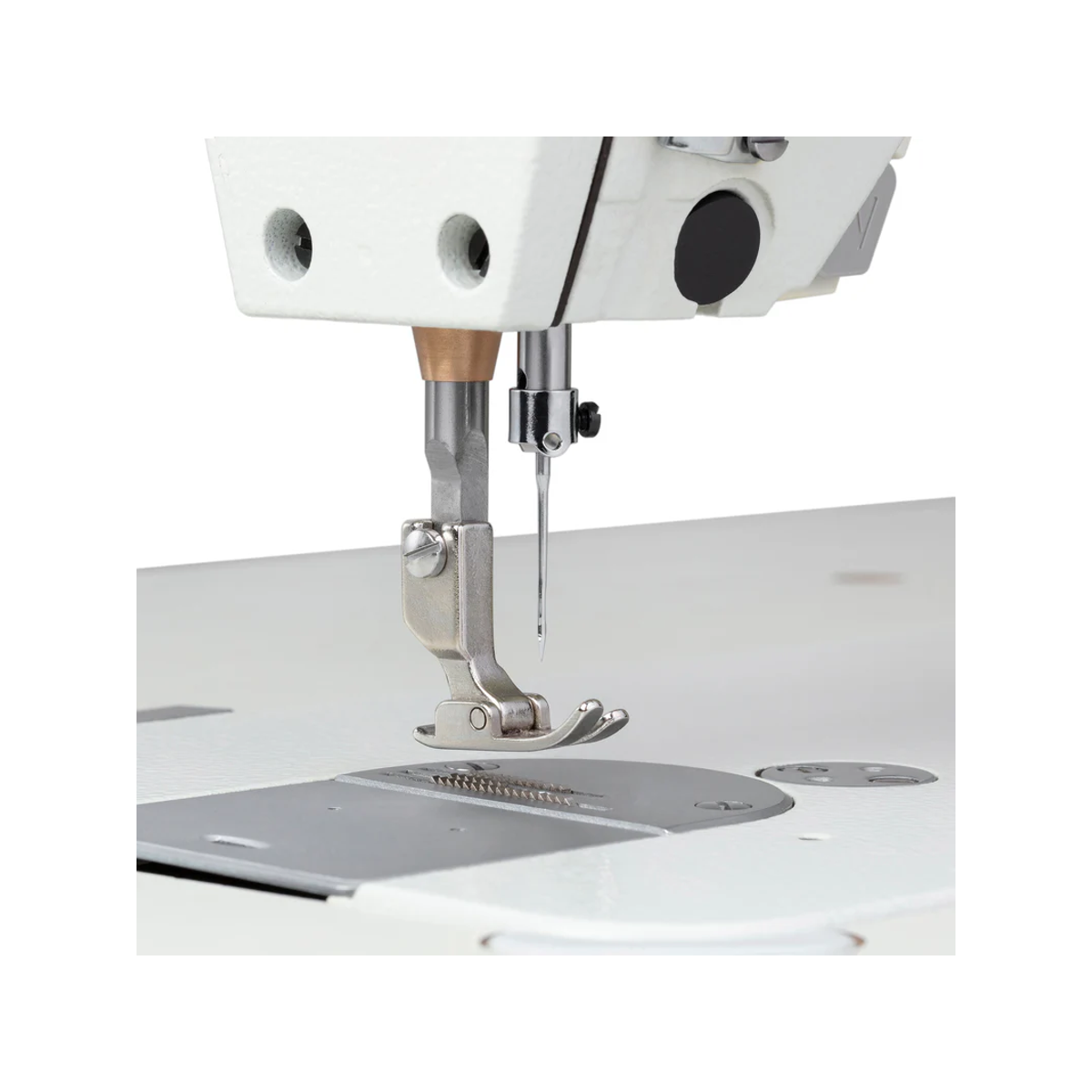

| Clearance Under Presser Foot: | 6 mm (¼") |
| Needle Bar Stroke: | 31 mm (1-7/32") |
| Needle System: | 16 × 257 |
| Stitch Type: | 301 (Lockstitch) |
| Power Supply: | 110V Single Phase (optional voltages available) |
| Lubrication: | Advanced Semi-Dry Oiling System |
Advantages
- High-speed, energy-saving operation for continuous industrial use.
- Precision needle positioning improves stitch control and efficiency.
- Low vibration and noise ensure operator comfort during long runs.
- Reliable performance with minimal maintenance requirements.
- Compact and durable design built for professional garment production.
The Consew 7360RB-3DD delivers speed, precision, and dependability — a top choice for workshops and factories seeking smooth, efficient, and professional lockstitch performance.
*Speed may vary depending on thread type, material, and operation.
