Consew CN2053R-DD — Single Needle, Drop Feed, Zig-Zag, Lockstitch Machine

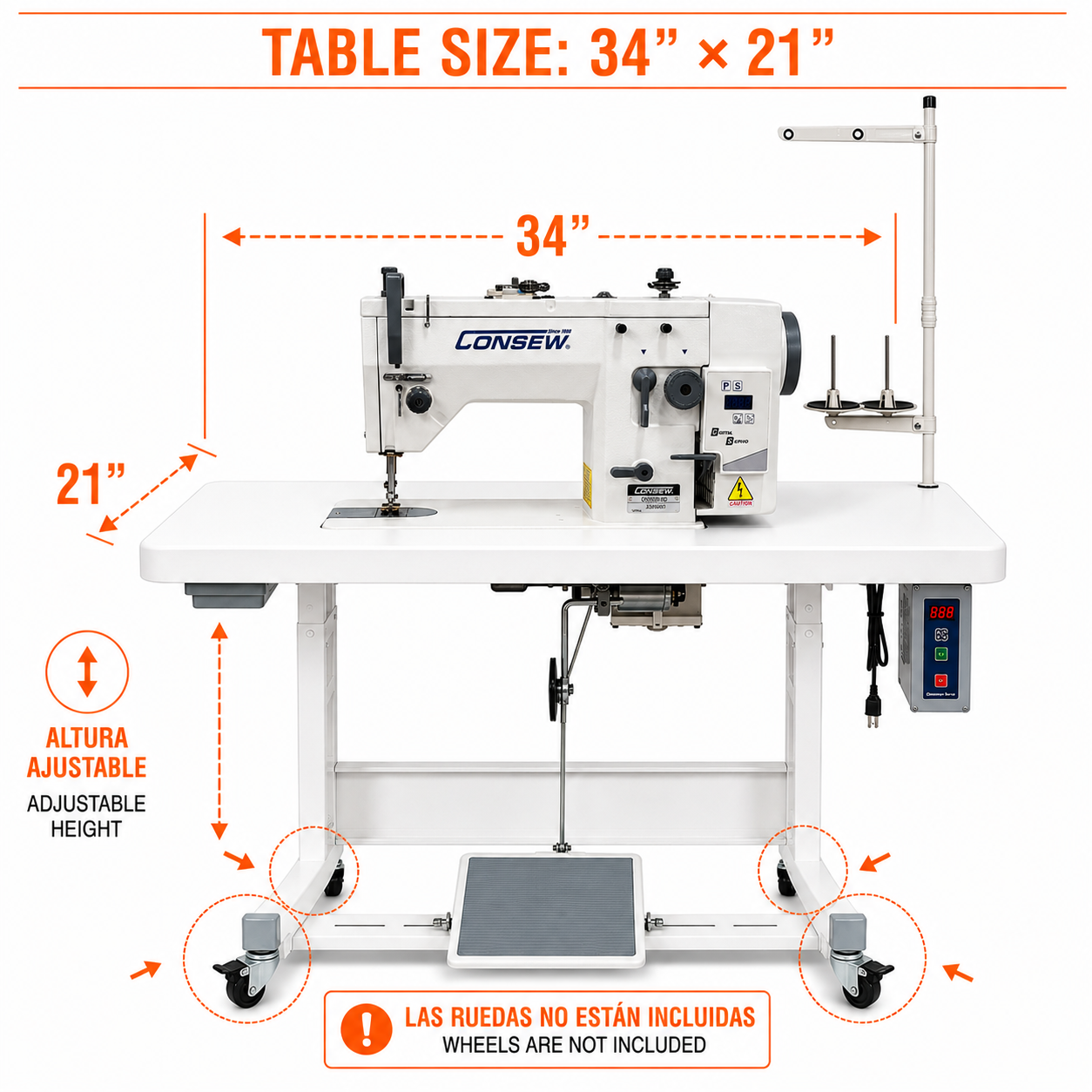

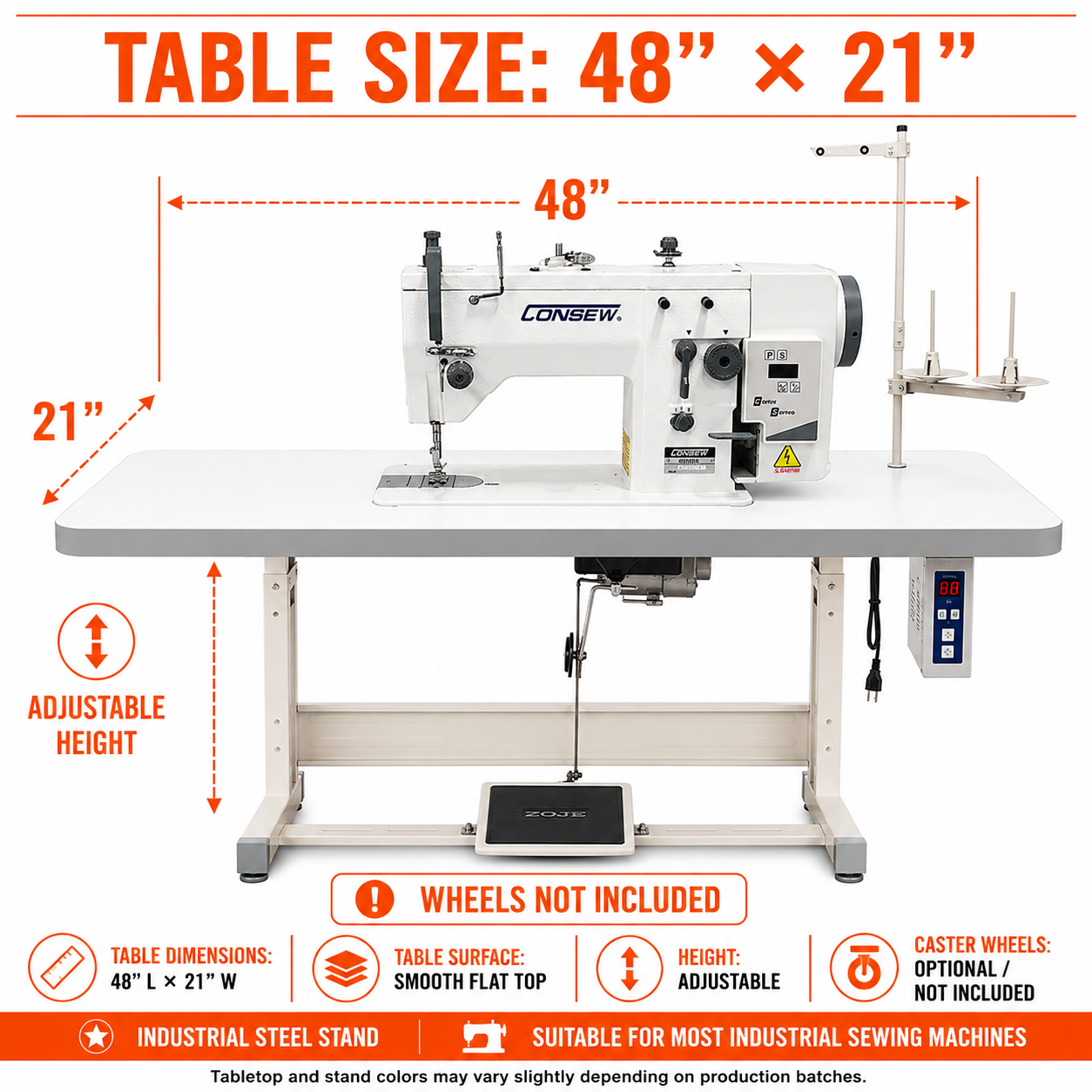

Complete Assembled with Table and Stand Included
Complete Assembled with Table and Stand Included
Precision • Versatility • Direct Drive Performance
The Consew CN2053R-DD is a single-needle, drop-feed, zig-zag lockstitch machine built for light to medium-heavy materials. Equipped with a Direct Drive servo motor, automatic presser foot lift, and precision stitch controls, it delivers smooth, quiet, and consistent performance for a wide range of sewing operations — including lace attachment, applique, elastic insertion, hemming, and decorative stitching.

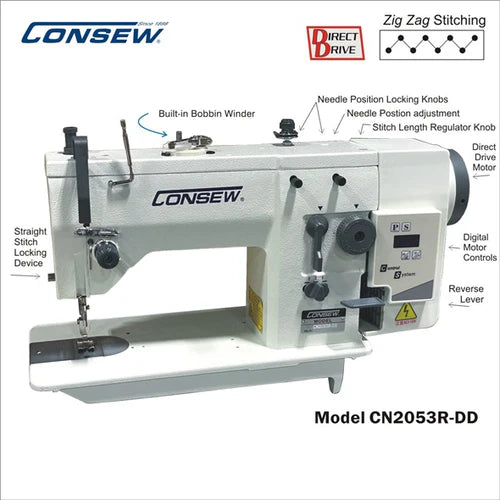

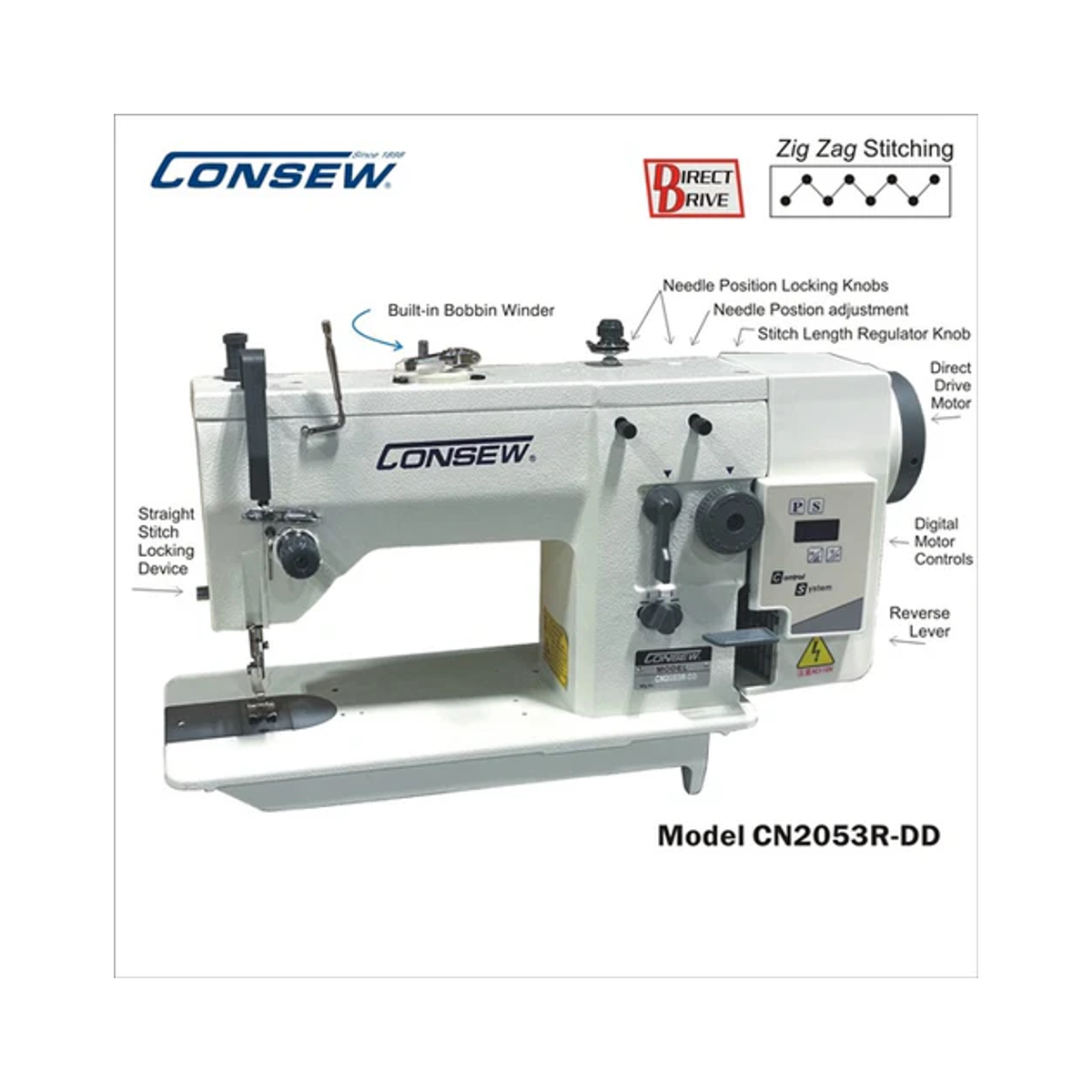

Key Features
- Direct Drive Built-In Servo Motor: Energy-efficient, quiet, and powerful operation with automatic presser foot lift.
- Horizontal Axis Rotary Hook: Smooth thread handling with front-loading access for easy bobbin changes.
- Zig-Zag & Straight Stitch Capability: Locking width regulator allows quick switch from zig-zag to straight stitch when set to “0”.
- Digital Control Panel: Push-button control for needle position (up/down) and variable speed adjustment.
- Built-In Monogramming Lever: Enables free-hand embroidery, decorative stitching, and name marking.
- Metal Gear Transmission: Hardened steel gears for extended durability and mechanical reliability.
- Reverse Stitching: Convenient lever for back-tacking and seam reinforcement.
- Needle Position Adjustment: Select right, center, or left needle position for precision stitching.
Applications
- Light to medium-weight fabrics: garments, shoes, caps, leather articles, and bags.
- Lace and elastic band attachment.
- Bottom hemming, edge stitching, and applique work.
- Decorative stitching, butted seaming, and monogramming.
Technical Specifications
| Model: | CN2053R-DD |
| Needles: | 1 (Single) |
| Feeding Mechanism: | Drop Feed |
| Stitch Type: | 304 / 301 (Zig-Zag / Lockstitch) |
| Max Speed: | 1,800 stitches per minute* |
| Stitch Length (Max): | 5 mm (5 s.p.i.) |
| Stitch Width (Max): | 9 mm (11/32") |
| Presser Foot Lift: | Hand: 6 mm (15/64") • Foot: 10 mm (25/64") |
| Work Space: | 8-5/16" (211 mm) |
| Needle System: | 135 × 5 |
| Needle Bar Stroke: | 31.5 mm (1-6/25") |
| Bed Size: | 7" × 15-11/16" (178 mm × 398.5 mm) |
| Motor Type: | Direct Drive Internal Servo |
Advantages
- Smooth, stable operation with minimal vibration.
- Versatile zig-zag and straight-stitch functionality in one machine.
- Durable all-metal internal gearing for industrial longevity.
- Easy digital control with built-in automation features.
The Consew CN2053R-DD combines precision engineering and robust performance — a dependable choice for decorative stitching, garment assembly, and medium-weight material sewing.
