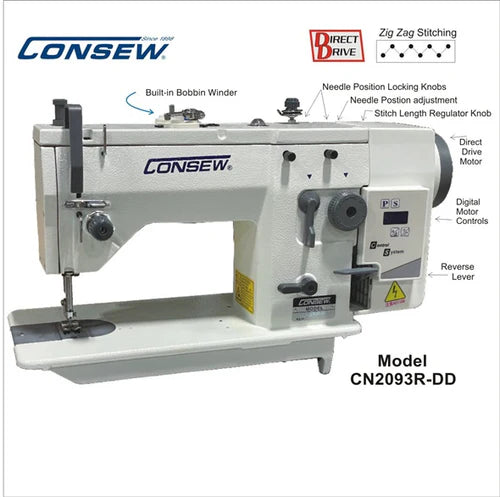

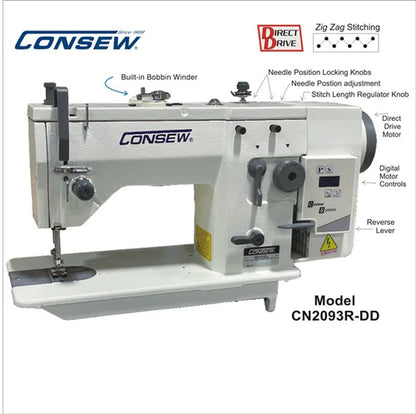

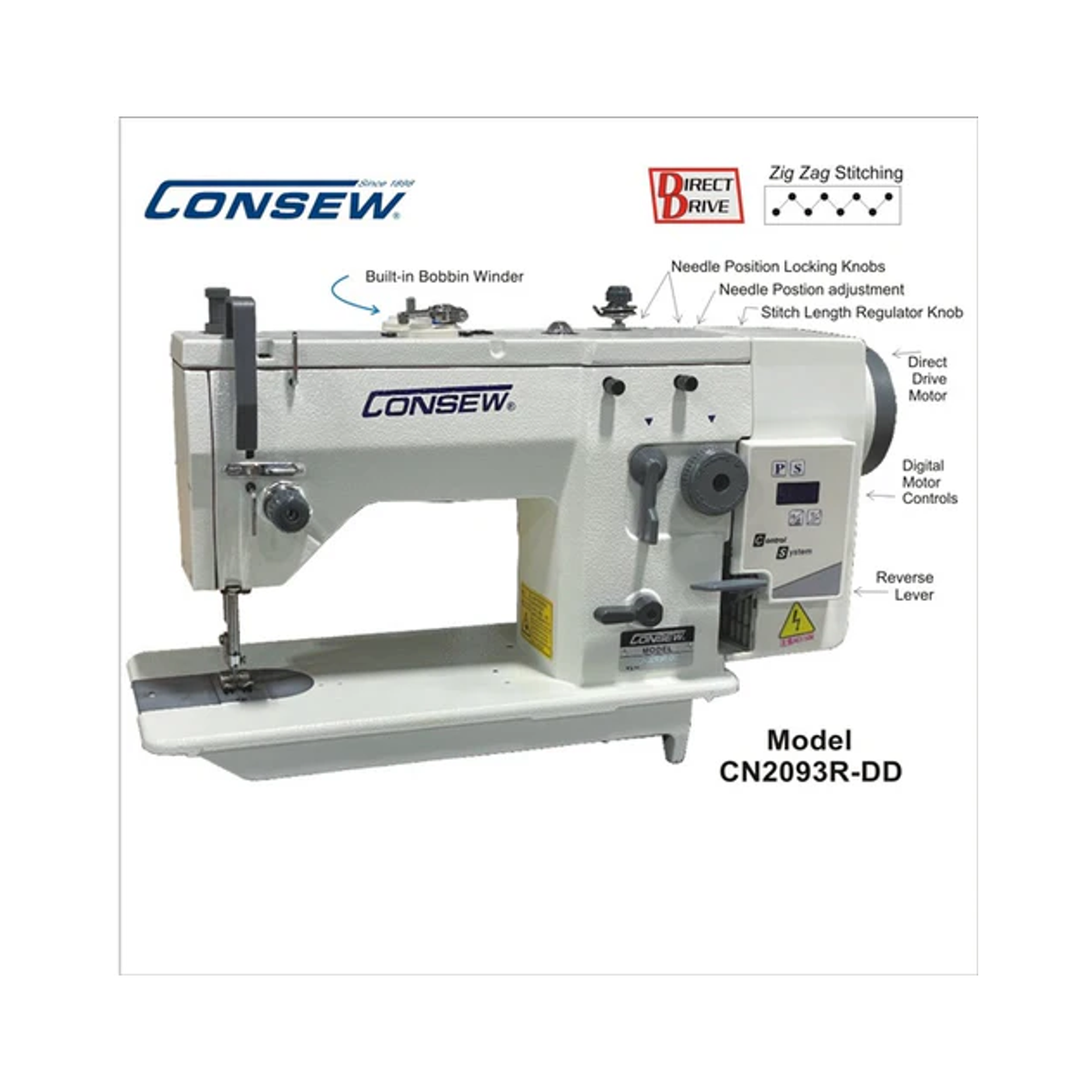

Consew CN2093R-DD — Single Needle Zig-Zag & Straight Stitch Lockstitch Machine (Direct Drive)

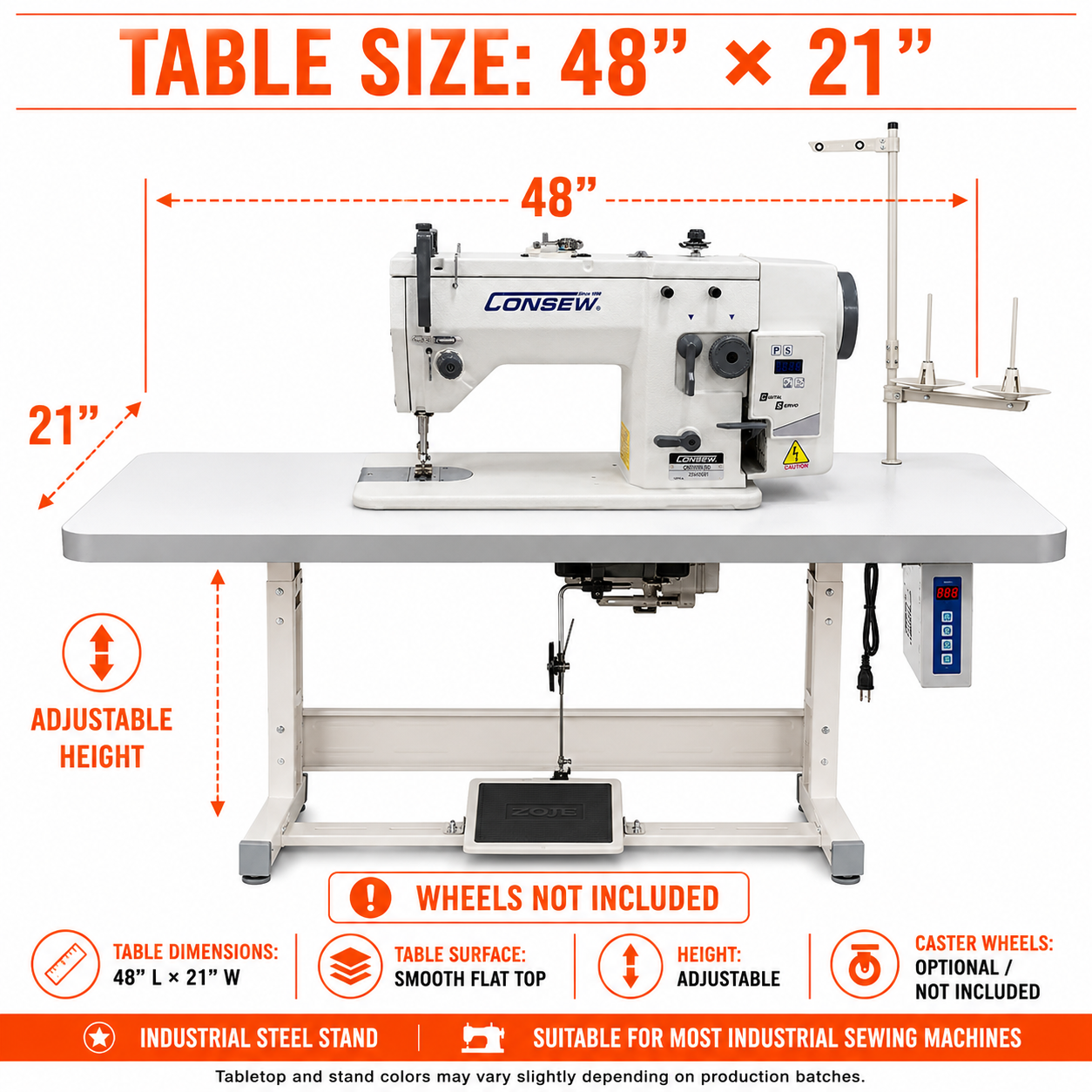

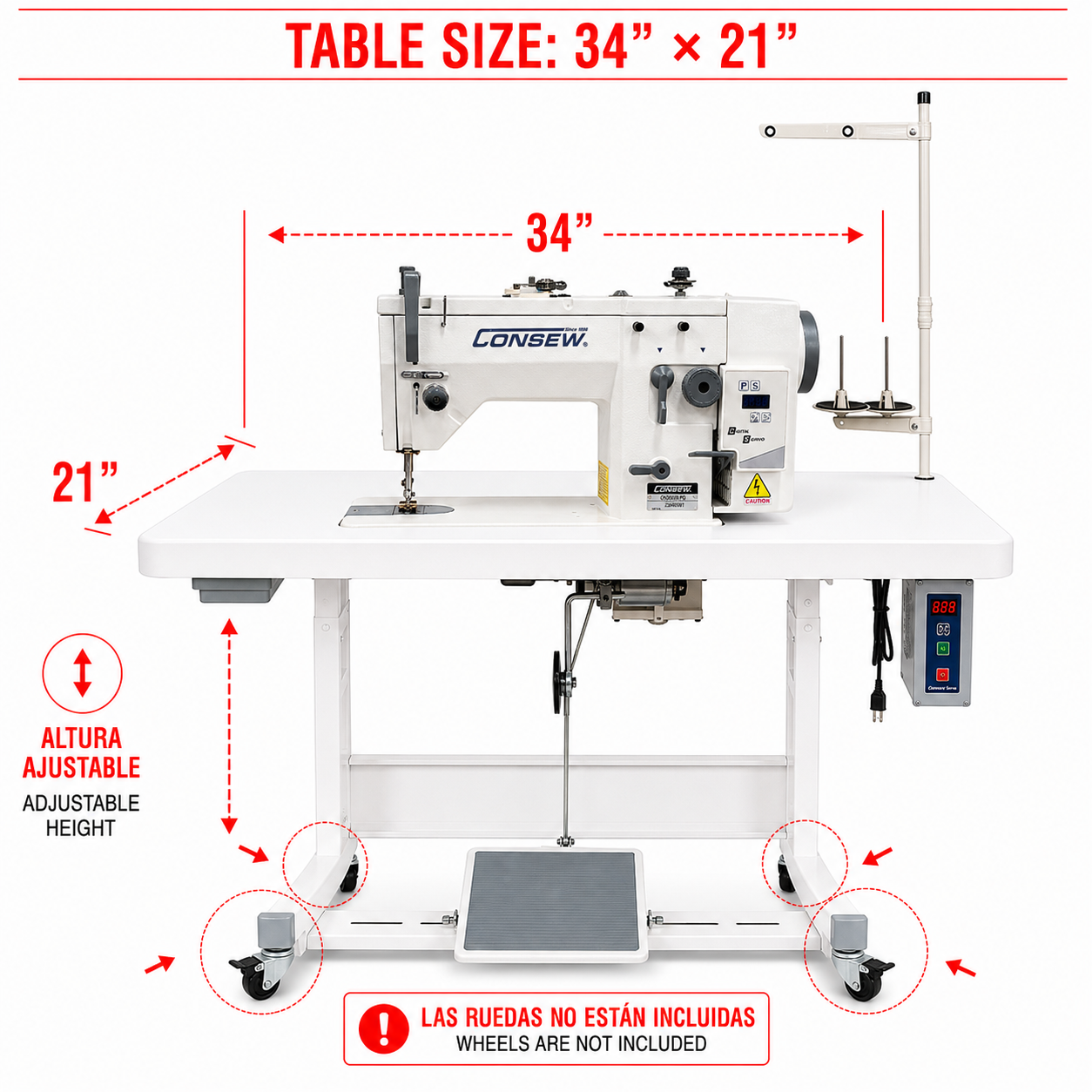

Complete Assembled with Table and Stand Included
Complete Assembled with Table and Stand Included
Professional Zig-Zag and Straight Stitch Lockstitch Machine • Direct Drive Servo Motor • Automatic Lubrication
The Consew CN2093R-DD is a high-performance, single-needle zig-zag and straight-stitch lockstitch machine designed for light to medium-heavy fabrics. Equipped with a direct drive servo motor, digital controls, and automatic lubrication, this machine ensures smooth, quiet, and energy-efficient operation ideal for apparel, leatherwork, and general sewing applications.
Key Features
- Combination Zig-Zag & Straight Stitch: Offers versatility for apparel, leather, and decorative stitching.
- Direct Drive Servo Motor: Integrated system provides quiet operation, instant start-up, and energy efficiency.
- Automatic Lubrication: Ensures smooth, continuous operation and extended machine life.
- Variable Speed Control: Adjustable for precision on a variety of materials.
- Digital Controls: Easy-to-use interface for stitch adjustments and needle positioning.
- Reverse Stitching: Reinforces seams for added durability.
- Horizontal Axis Rotary Hook: Front-load design for stable thread handling and consistent tension.

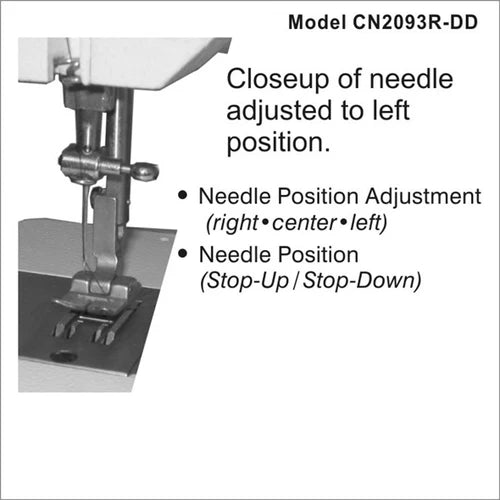

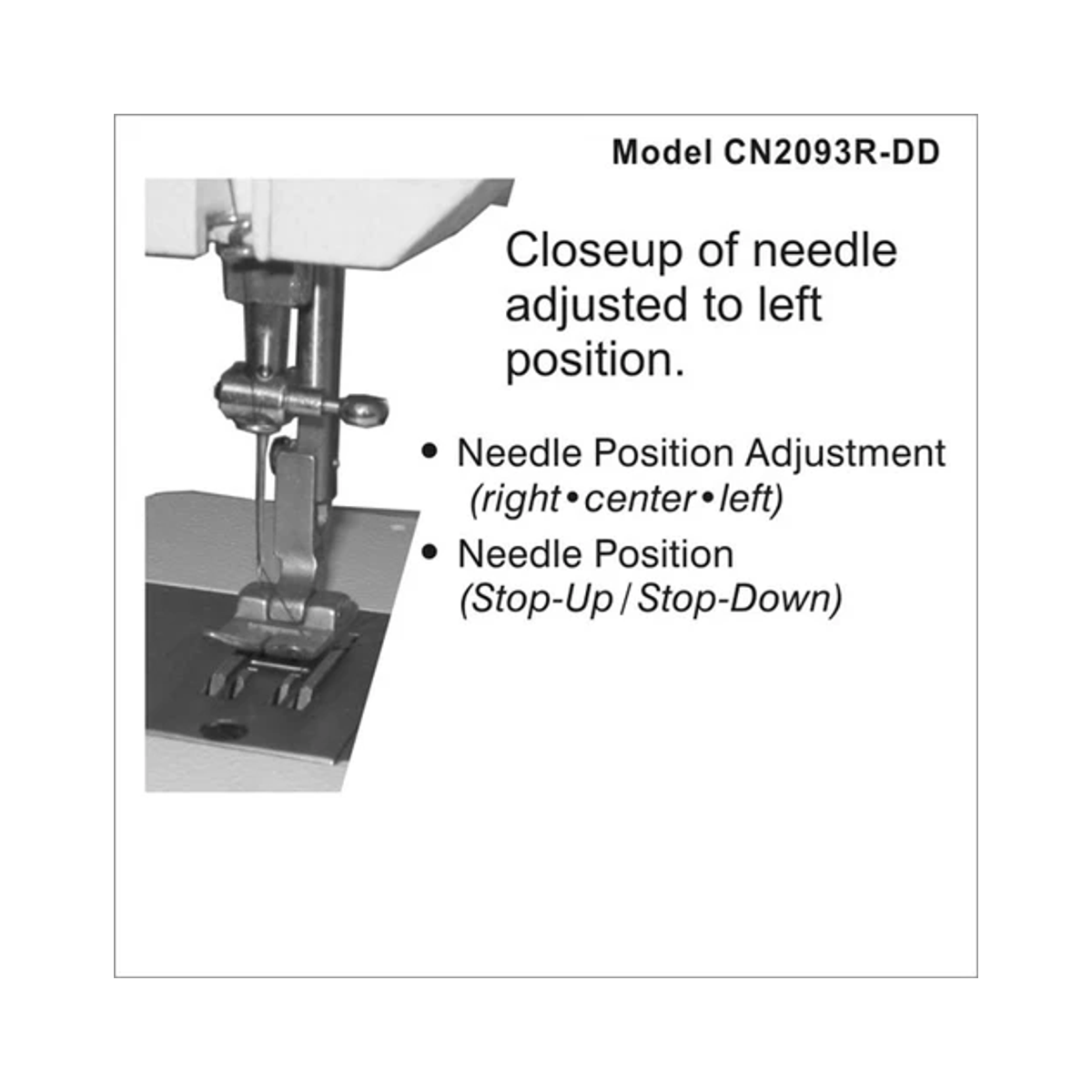

- Needle Position Control: Right, center, or left with stop-up/stop-down function.
- Metal Gears: Hardened steel components for long-term industrial reliability.
Applications
- Clothing, shoes, caps, and leather goods
- Bags, accessories, and medium-weight materials
- Attaching lace, elastic bands, and edging operations
- Bottom hemming, applique, and decorative seams
Technical Specifications
| Model: | Consew CN2093R-DD |
| Needles: | 1 (Single) |
| Feeding Mechanism: | Drop Feed |
| Stitch Type: | 304 / 301 (Zig-Zag / Lockstitch) |
| Maximum Speed: | 1,800 stitches per minute |
| Stitch Length: | 5 mm (5 s.p.i.) |
| Maximum Stitch Width: | 9 mm (11/32") |
| Presser Foot Clearance: | Foot: 10 mm (25/64″) / Hand: 6 mm (15/64″) |
| Needle System: | 135 x 5 |
| Work Space: | 8 5/16" (211 mm) |
| Bed Size: | 7" × 15 11/16" (178 × 398.5 mm) |
| Needle Bar Stroke: | 31.5 mm (1 6/25") |
| Motor Type: | Built-in Direct Drive Servo Motor |
The Consew CN2093R-DD combines precision engineering, digital convenience, and industrial durability — making it the ideal zig-zag and straight-stitch solution for apparel, upholstery, and leather goods production.
