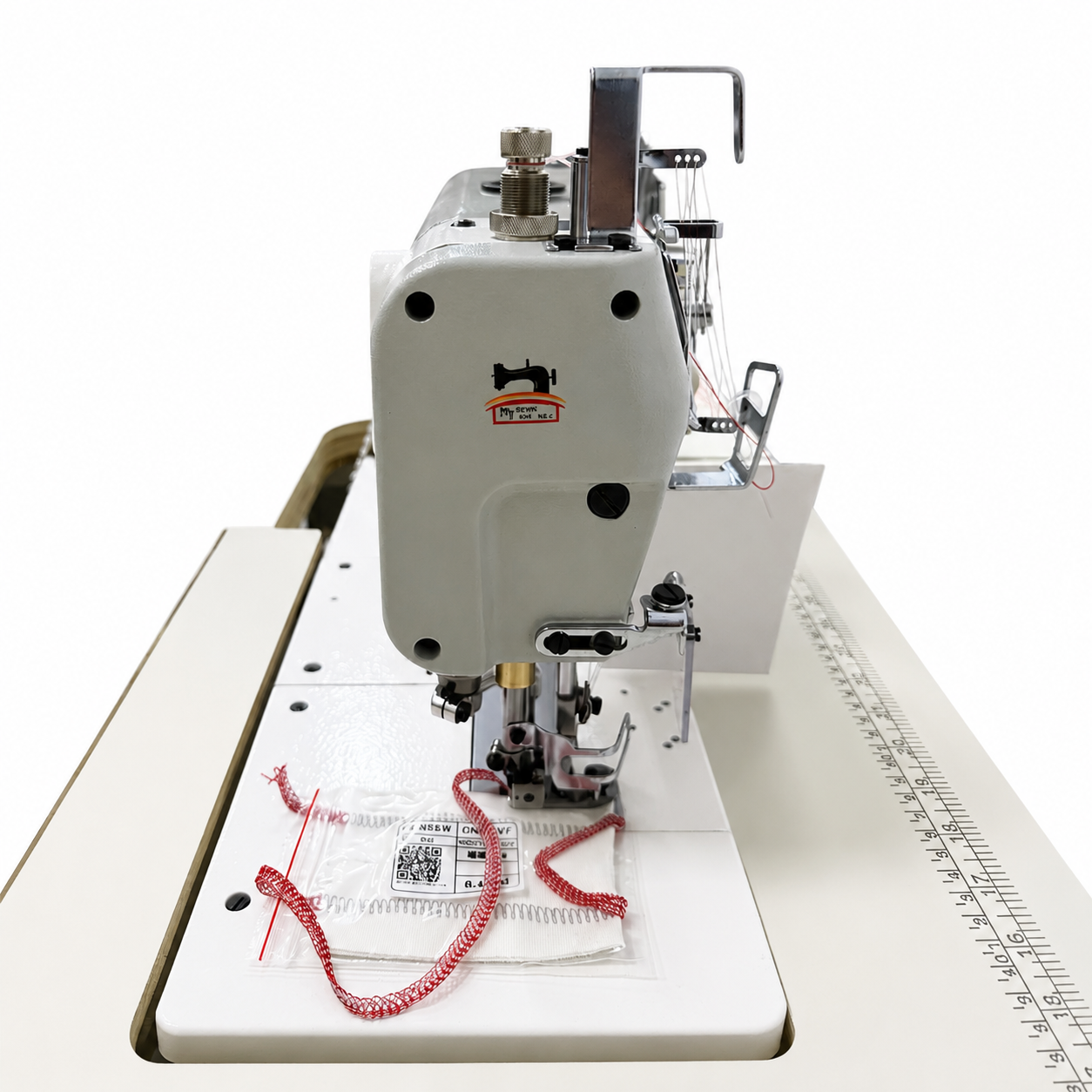

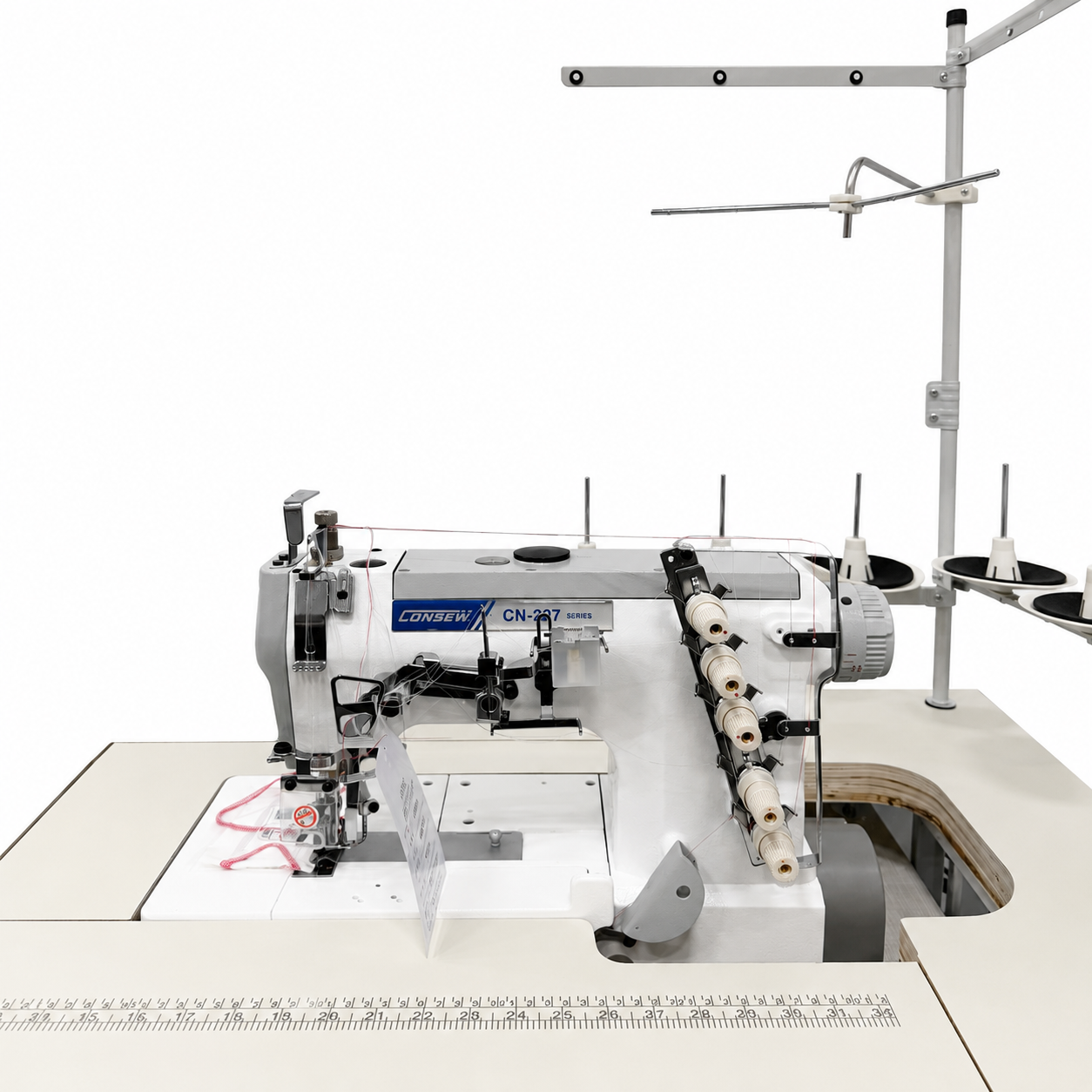

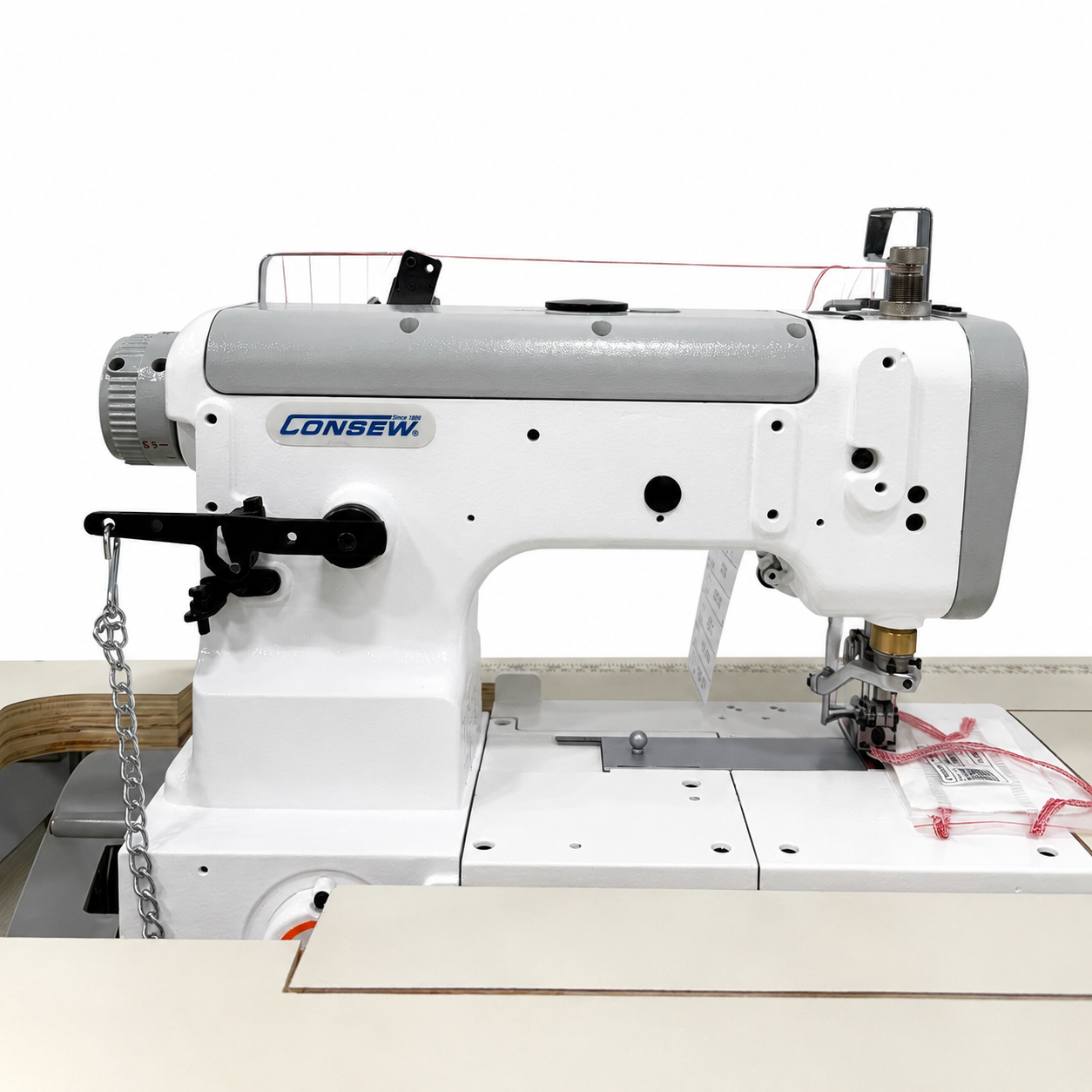

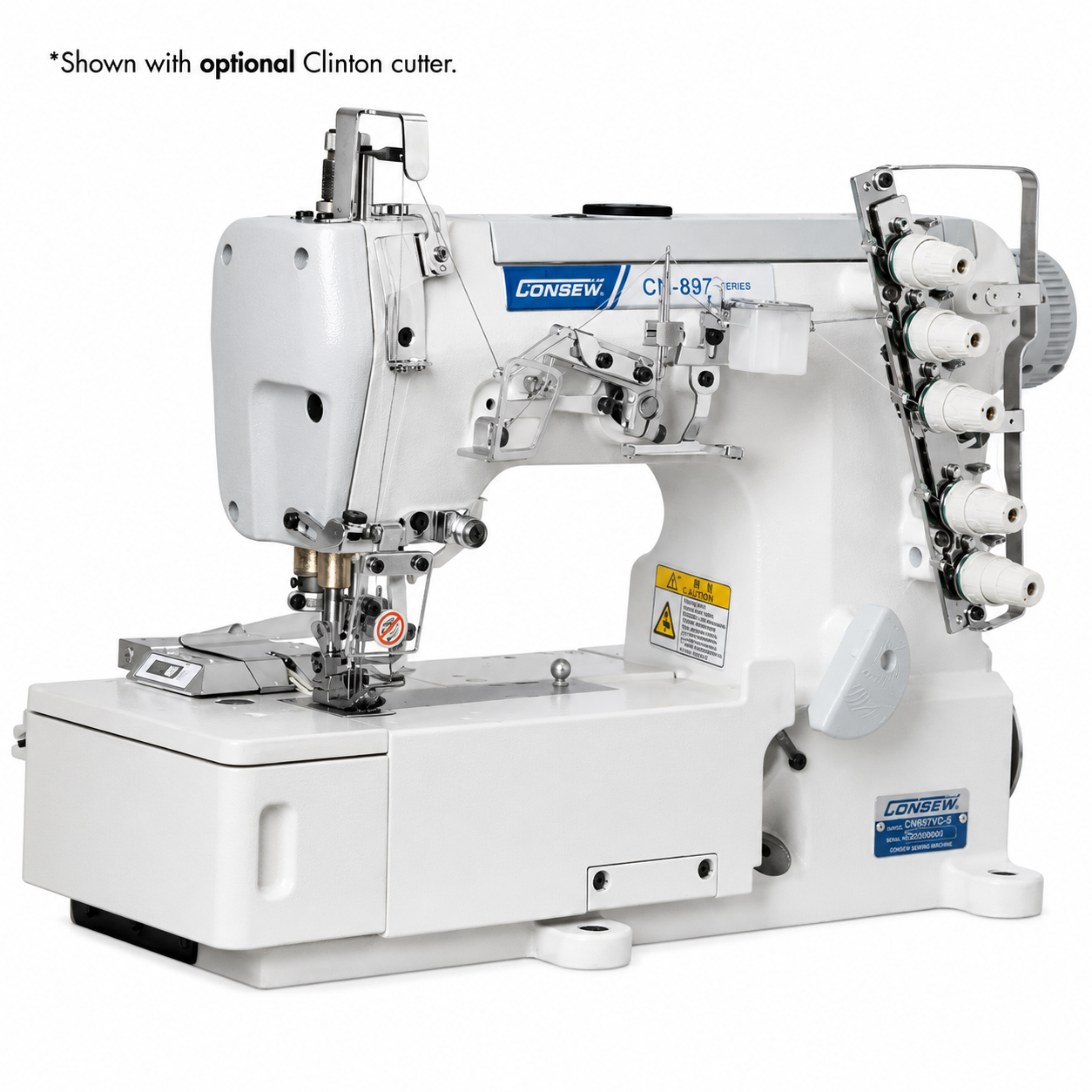

Consew CN897VF

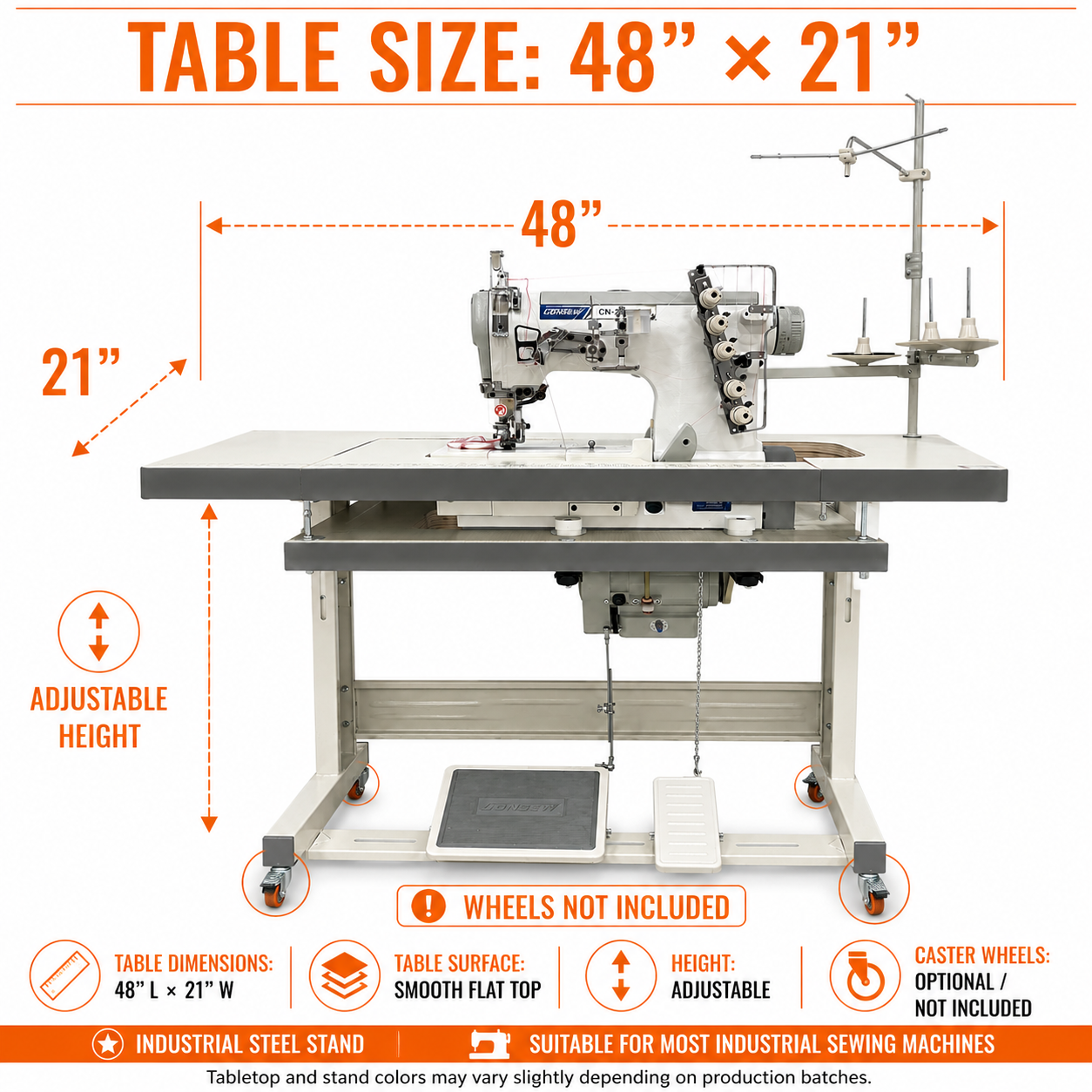

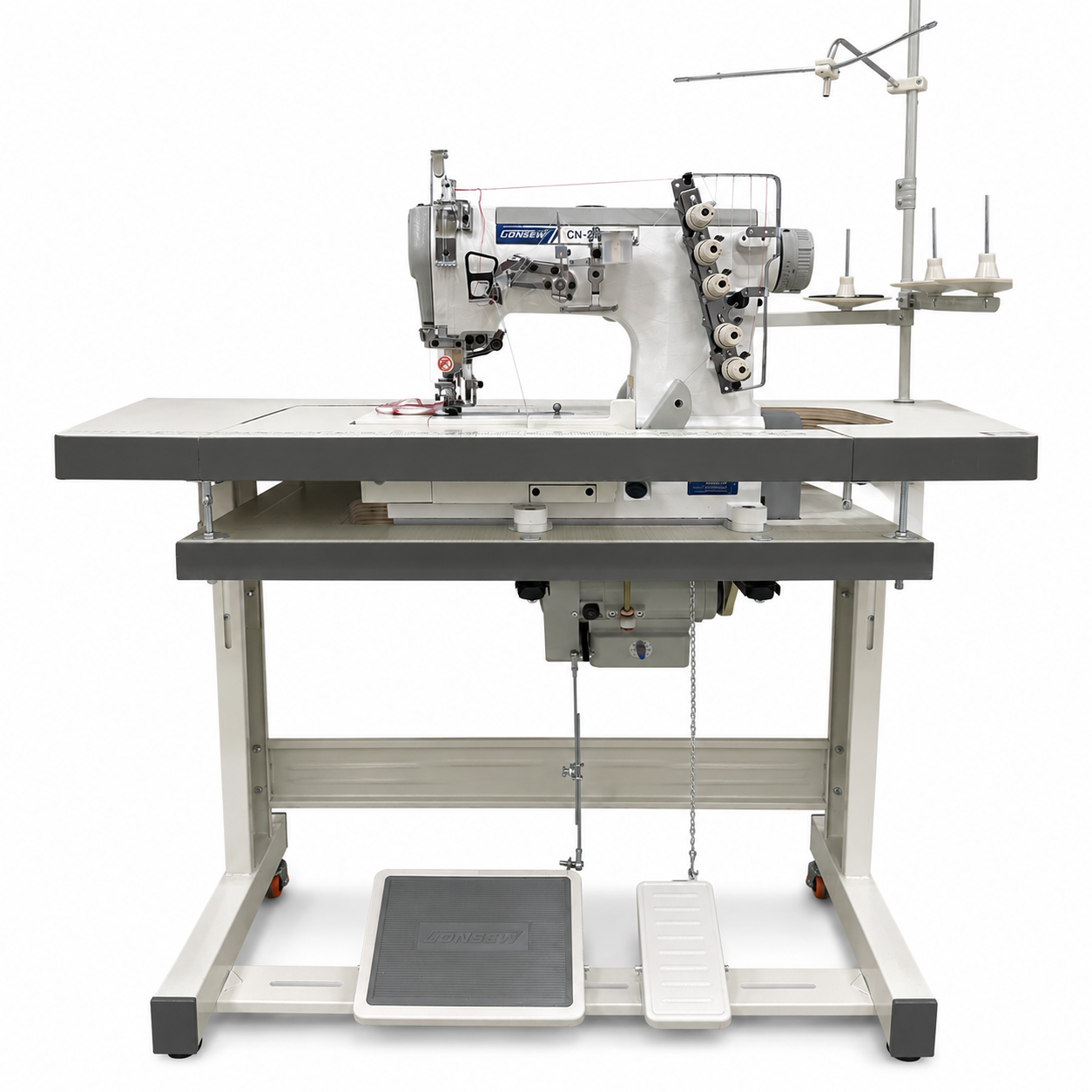

✔ COMPLETE ASSEMBLED WITH TABLE AND STAND INCLUDED
Ready to sew. No setup needed. Professional installation included.
Flat-Bed • High-Speed Coverstitch • 2 or 3 Needles • Differential Feed
The Consew CN897VF is a high-speed industrial flat-bed coverstitch machine engineered for professional garment manufacturing. Designed for plain seaming, bottom hemming, tape binding, and elastic insertion, it provides outstanding stitch quality on light to heavyweight materials while maintaining exceptional speed, precision, and durability.
Equipped with fully automatic lubrication, micrometric differential feed adjustment, silicone-based thread lubrication and needle cooling, and a push-button stitch regulator, the CN897VF delivers smooth fabric feeding and consistent stitch formation. It supports both 2-needle/4-thread and 3-needle/5-thread configurations, making it an ideal solution for a wide range of apparel production applications.
Key Features
- High-speed industrial flat-bed coverstitch machine.
- Available in 2-needle/4-thread and 3-needle/5-thread configurations.
- Maximum sewing speed up to 6,000 stitches per minute.
- Fully automatic lubrication system.
- Visual oil flow indicator.
- Replaceable oil filtration system.
- External oil cooling system.
- Differential feed with micrometric adjustment.
- Push-button stitch regulator.
- Silicone-based thread lubrication and needle cooling system.
- Excellent for stretch and knit fabrics.
- Smooth, quiet, high-speed operation.
- Supports multiple automation upgrades.
Applications
- General garment seaming.
- Bottom hemming.
- Tape binding.
- Elastic insertion.
- T-shirts.
- Sportswear.
- Activewear.
- Underwear.
- Children's apparel.
- Knitwear.
- Light to heavyweight fabrics.
- Industrial apparel manufacturing.
Technical Specifications
| Model | Consew CN897VF |
| Machine Type | Industrial Flat-Bed Coverstitch Machine |
| Bed Type | Flat Bed |
| Needle Configuration | 2 or 3 Needles |
| Thread Configuration | 4 or 5 Threads |
| Loopers | 2 |
| Maximum Sewing Speed | 6,000 SPM |
| Maximum Stitch Length | 1.4 – 3.6 mm |
| Presser Foot Lift | 7.0 mm |
| Needle Bar Stroke | 31 mm |
| Needle System | UY128GAS |
| Standard Needle Gauge | 3 Needles – 5.6 mm |
| Optional Needle Gauges | 2 Needles: 3.2, 4.0, 4.8, 5.6, 6.4 mm • 3 Needles: 5.6, 6.4 mm |
| Feed Mechanism | Differential Feed with Micrometric Adjustment |
| Differential Feed Ratio | 1 : 0.3 ~ 1 : 2.9 |
| Lubrication | Fully Automatic |
| Needle Cooling | Silicone-Based Cooling System |
| Thread Lubrication | Silicone-Based Lubrication |
| Weight | 183 lbs |

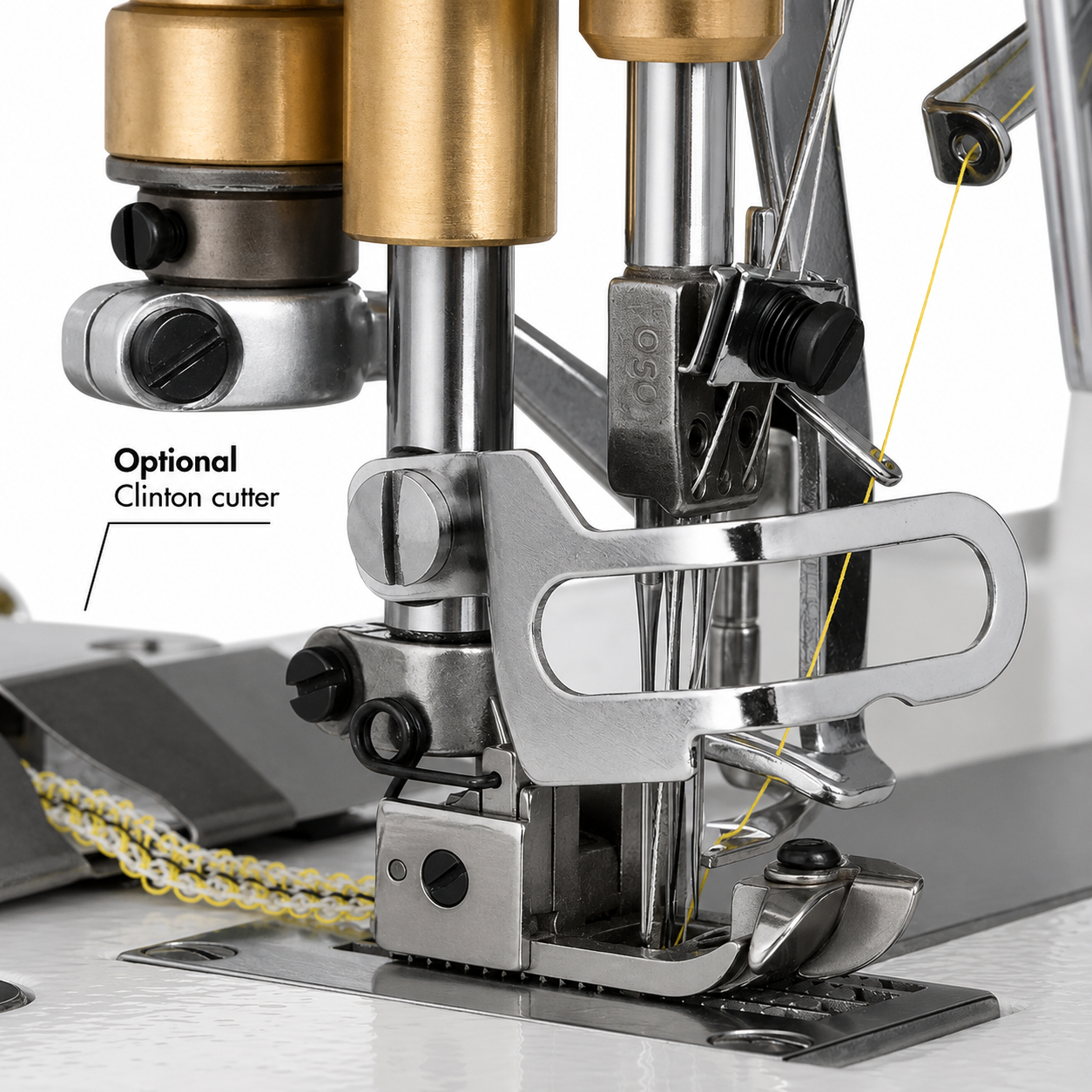

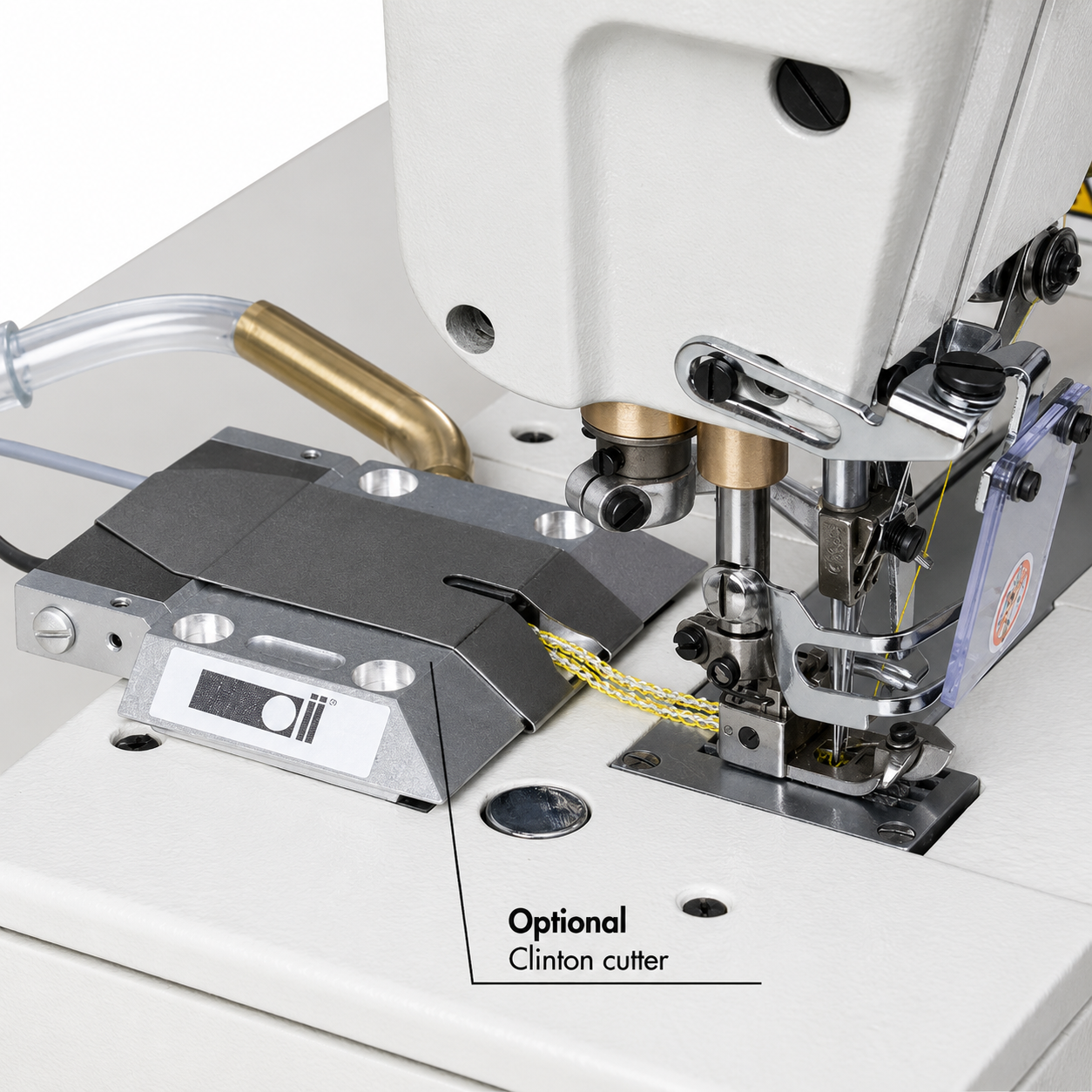

| Available Options | UTA (Pneumatic Under Thread Trimmer), UTM (Electric Under Thread Trimmer), ST (Top Cover Thread Trimmer), W (Electric Thread Wiper), EC (Electric Tape Cutter) |
The Consew CN897VF is a versatile, high-performance flat-bed coverstitch machine built for modern garment production. Combining high-speed operation, micrometric differential feed, advanced lubrication, and flexible needle configurations, it is the ideal solution for hemming, elastic attaching, tape binding, and precision coverstitch sewing on a wide variety of apparel and knitwear.
