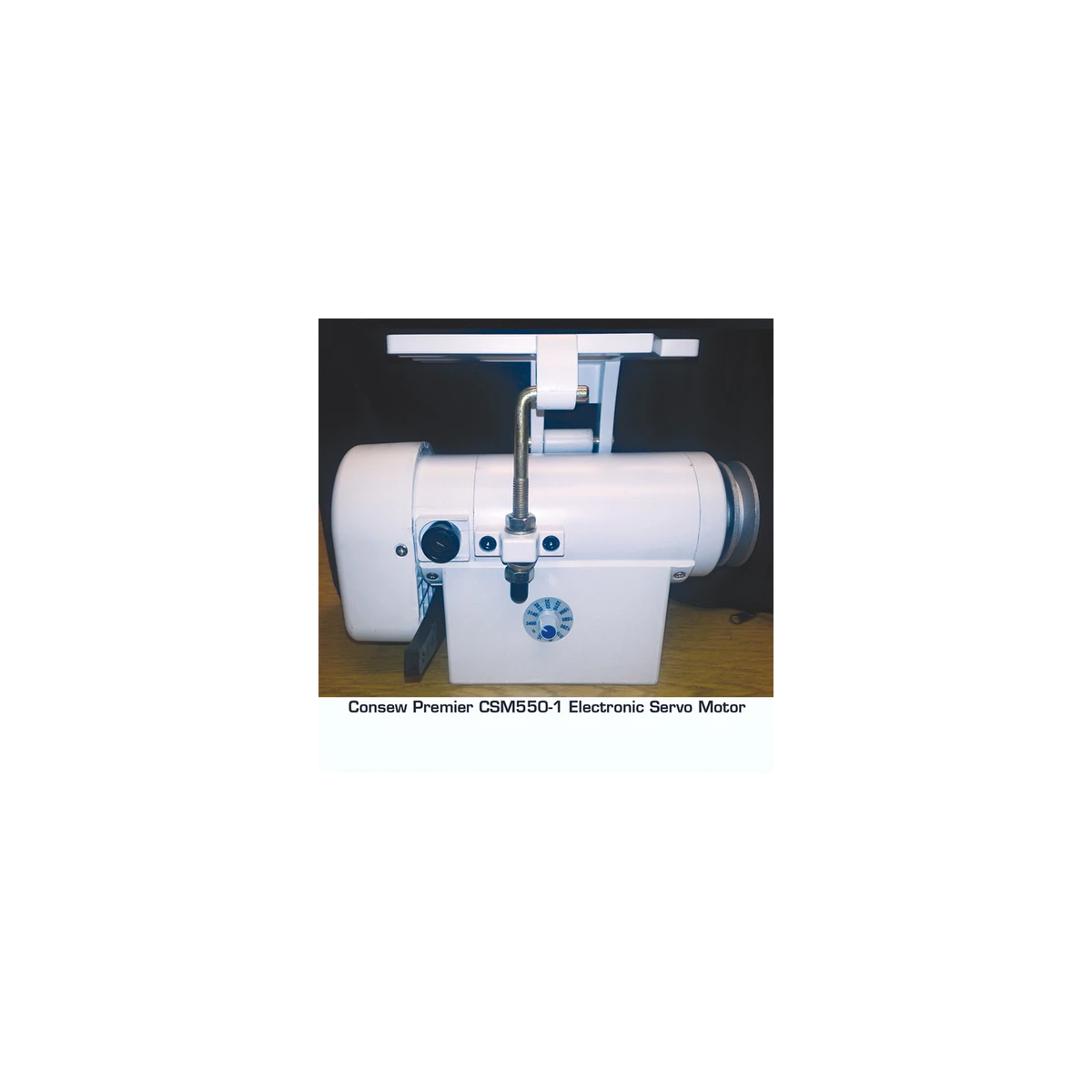

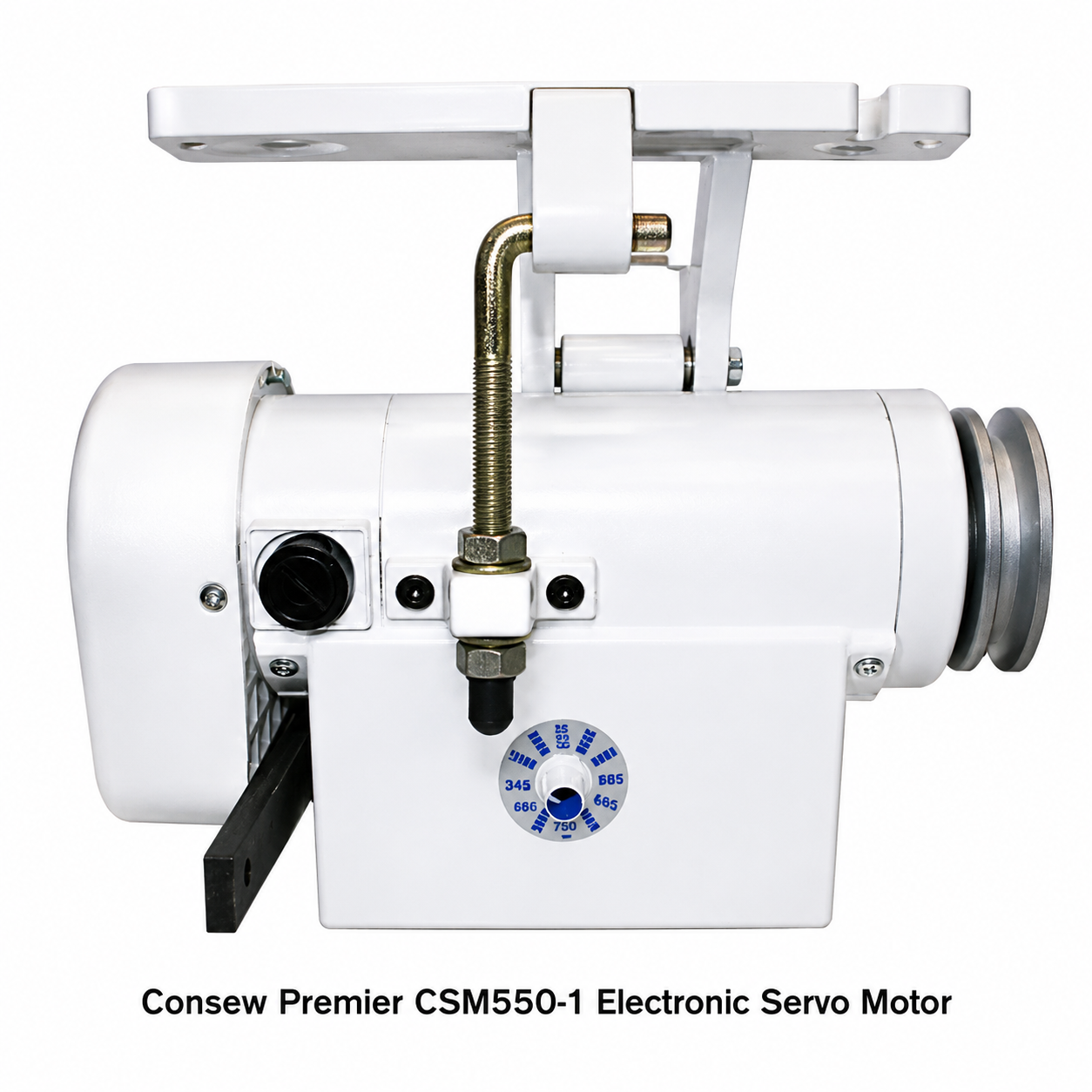

CONSEW® CSM550-1 Energy-Efficient Servo Motor for Industrial Sewing Machines
550W • 3/4 HP • Adjustable Speed • 110V • Industrial Servo Motor
The CONSEW® CSM550-1 is an electronic servo motor designed for compatible belt-driven industrial sewing machines. It offers adjustable speed control and provides an alternative to conventional clutch motors for sewing operations requiring controlled starts, stops, and operating speeds.
Its electronic drive system allows operators to select a suitable motor speed for different sewing tasks. With reversible rotation, convenient speed adjustment, and a mounting arrangement designed for compatible industrial workstations, the CSM550-1 is a practical motor option for garment production, tailoring, upholstery, and other professional sewing applications.
Key Features
- 550W Motor: Provides 3/4 HP of rated power for compatible industrial sewing equipment.
- Adjustable Speed Control: A manual control knob allows operators to select an appropriate motor speed.
- Energy-Efficient Operation: Electronic motor control can reduce electricity consumption compared with traditional clutch-motor installations.
- Quiet When Idle: The motor does not need to run continuously while the sewing machine is stopped.

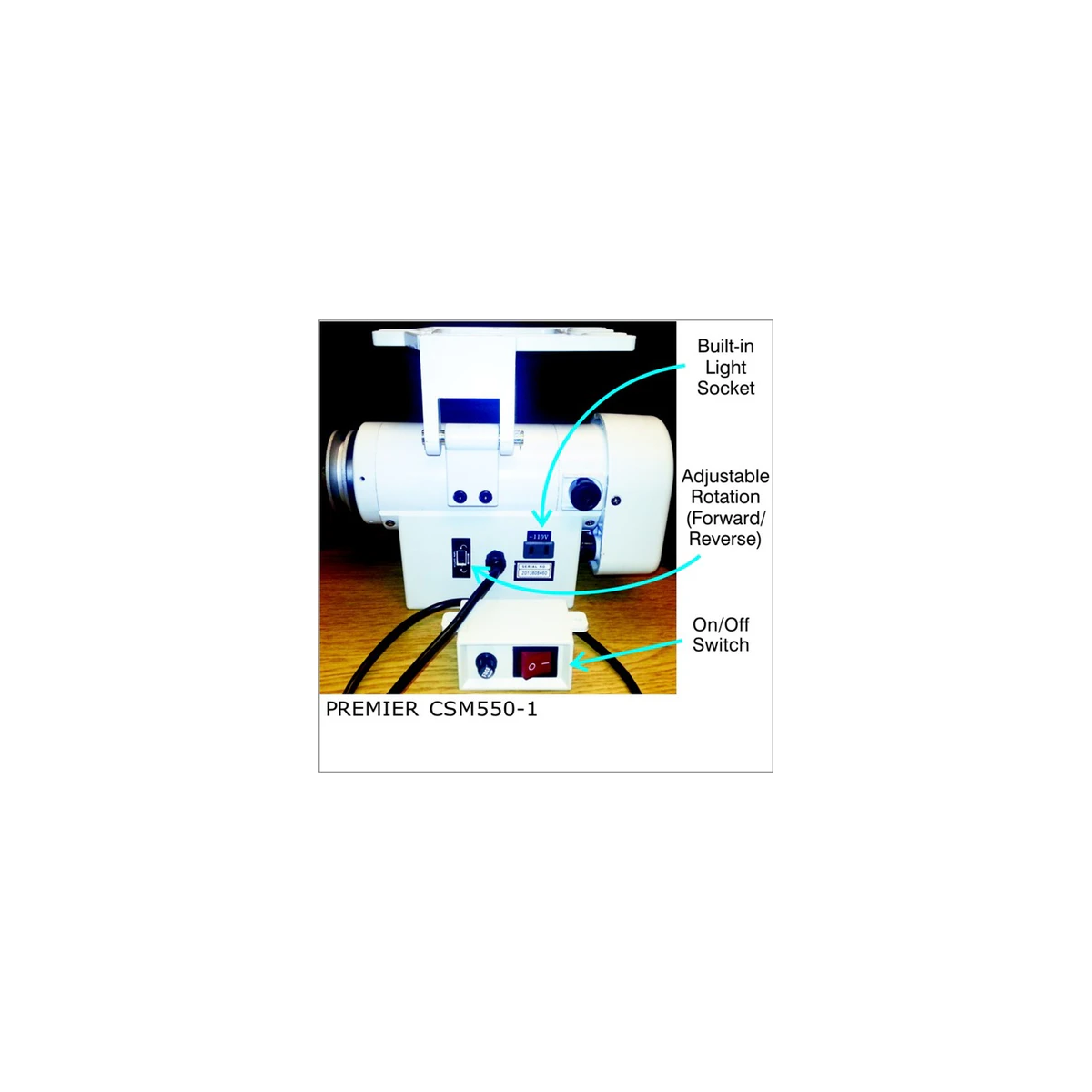

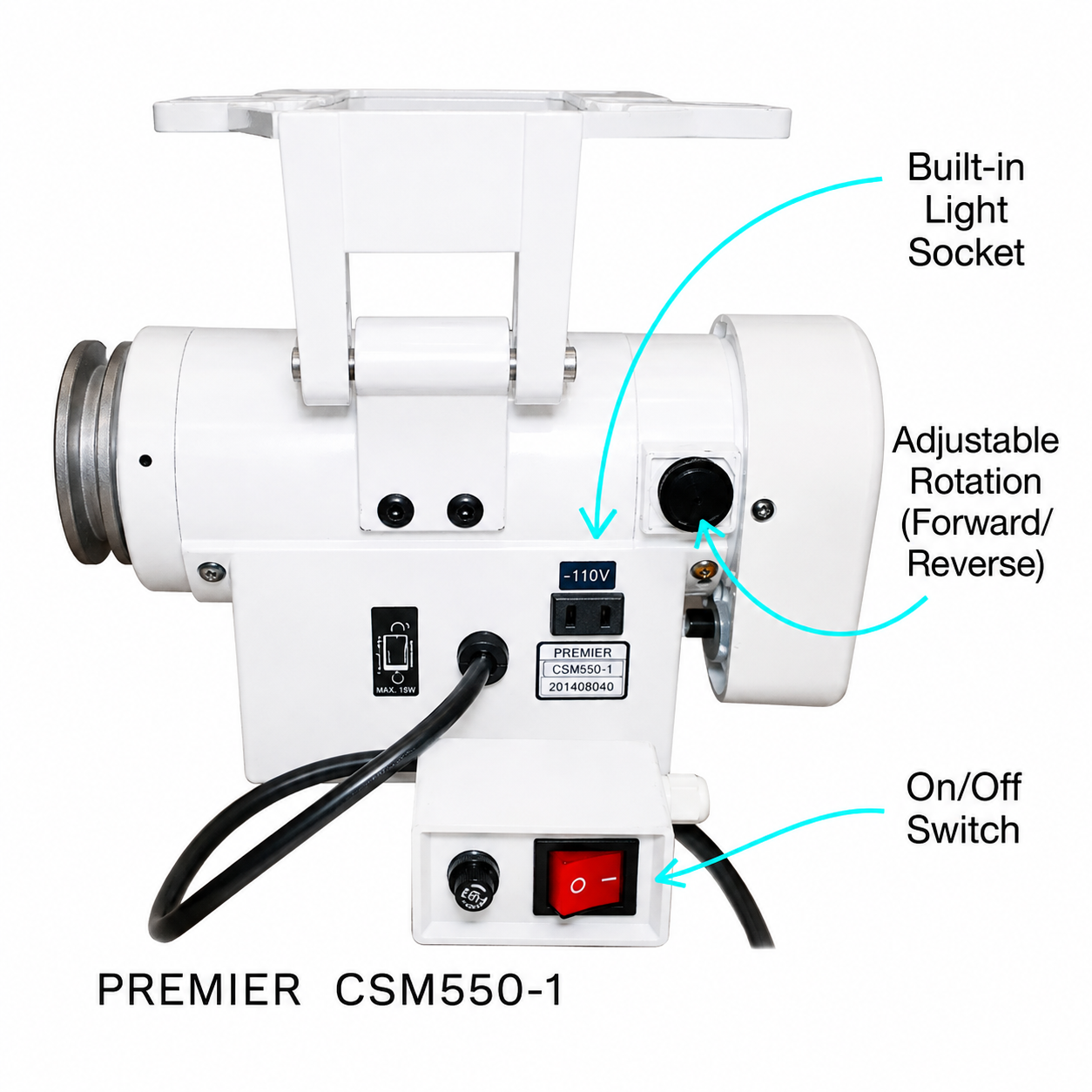

- Reversible Rotation: Supports changing the motor's operating direction for compatible sewing machine configurations.
- Clutch Motor Replacement: Designed for installation in compatible industrial sewing machine motor mounting arrangements.
- Electronic Motor Control: Provides responsive operation for routine sewing and detailed production tasks.
- Reduced Mechanical Components: Does not require a conventional clutch or brake disc.
- Professional Installation: Suitable for integration into compatible industrial sewing workstations.
Applications
- Compatible industrial lockstitch sewing machines.
- Professional garment manufacturing.
- Tailoring and alterations.
- Selected upholstery and leather sewing machines.
- Compatible walking-foot sewing machine setups.
- Replacement of suitable industrial clutch motors.
- Production sewing requiring adjustable motor speed.

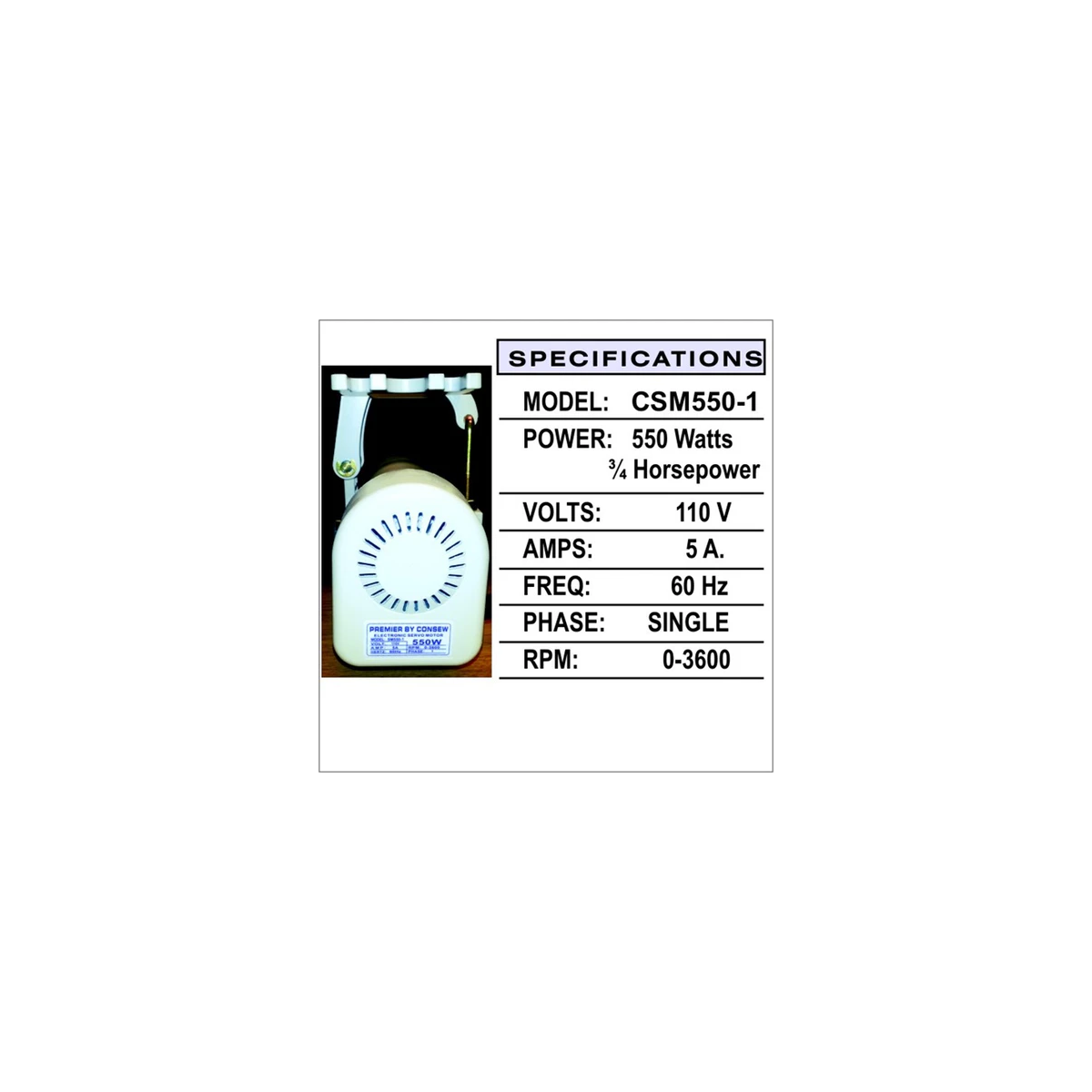

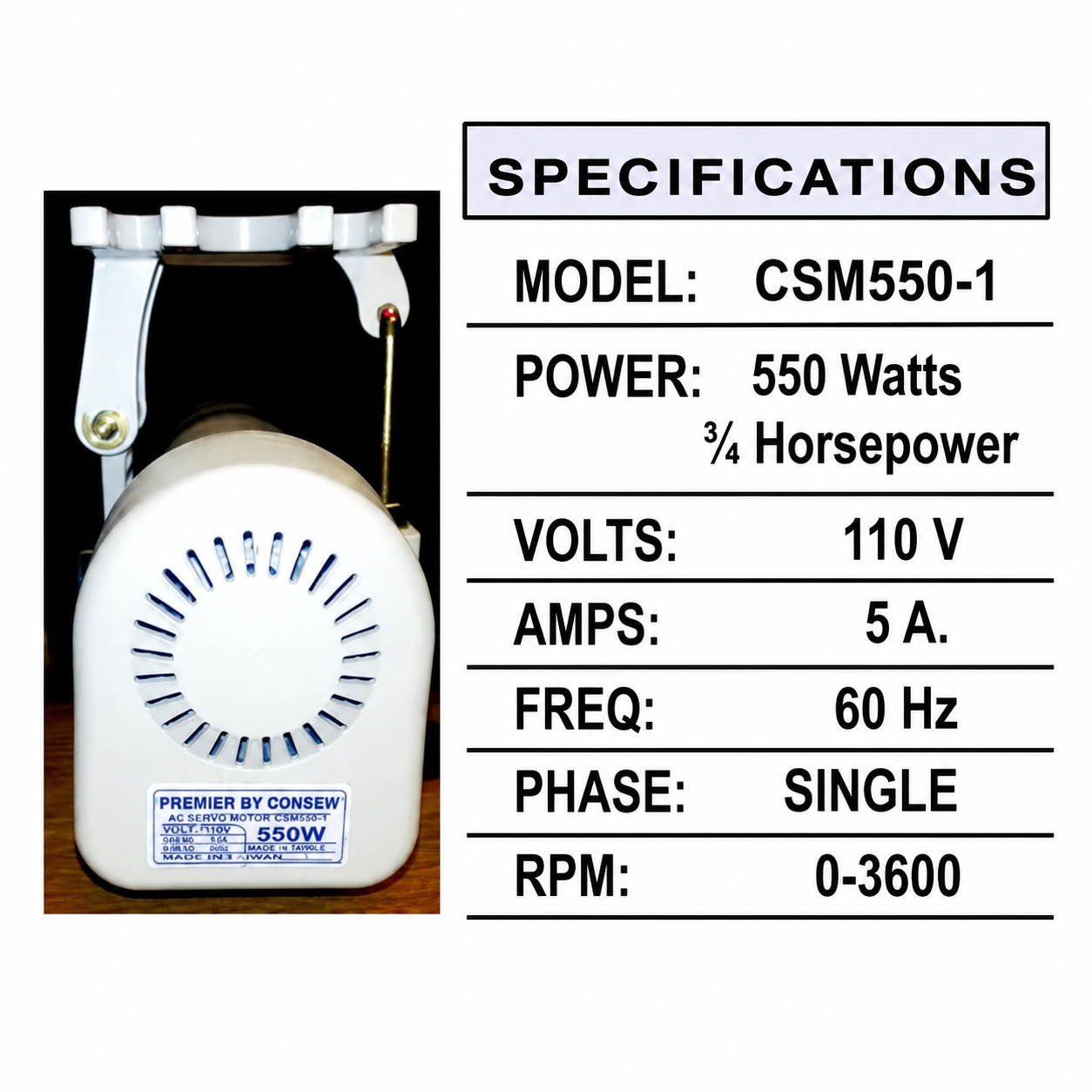

Technical Specifications
| Brand | CONSEW® |
| Model | CSM550-1 |
| Product Type | Industrial Sewing Machine Servo Motor |
| Motor Type | Electronic Servo Motor |
| Rated Power | 550 Watts / 3/4 HP |
| Speed Range | 0–3,450 RPM |
| Input Voltage | 110V AC |
| Phase | Single Phase |
| Speed Adjustment | Manual Control Knob |
| Rotation | Reversible — Forward / Reverse |
| Motor Weight | 15.5 lbs |
| Shipping Weight | 17 lbs |
| Mounting | Compatible Industrial Motor Mounting Pattern |
| Alternative Voltage Model | CSM550-1/220V — Separate Model |
Motor Accessories
- Motor power switch.
- Electrical power cord and plug.
- Motor pulley.
- Belt guard.
- Mounting hardware.
- Vibration-absorbing motor mounts.
- 110V light adapter.
Accessory availability should be confirmed with JMJ Sewing Machines for the exact motor package being purchased.
JMJ Sewing Machines Recommends
JMJ Sewing Machines recommends checking the sewing machine's motor mounting arrangement, pulley diameter, belt length, required rotation direction, and electrical supply before installation. Select an appropriate operating speed and test the complete sewing setup before beginning production.
IMPORTANT — MOTOR COMPATIBILITY & ELECTRICAL SAFETY
This product is the 110V CONSEW® CSM550-1 servo motor. The 220V version is a separate model.
Verify the electrical specifications printed on the motor before connecting power. Confirm the mounting configuration, pulley compatibility, and required drive belt.
Disconnect electrical power before installation or adjustment. Electrical connections should be completed by a qualified technician.
Sewing machine head, industrial table, and stand are not included.
Contact JMJ Sewing Machines for assistance when selecting a compatible motor for your industrial sewing equipment.
The CONSEW® CSM550-1 Servo Motor combines adjustable speed control, reversible operation, and electronic motor technology in a compact industrial drive system. It provides a practical solution for upgrading compatible sewing machine workstations while maintaining convenient control over everyday production tasks.
