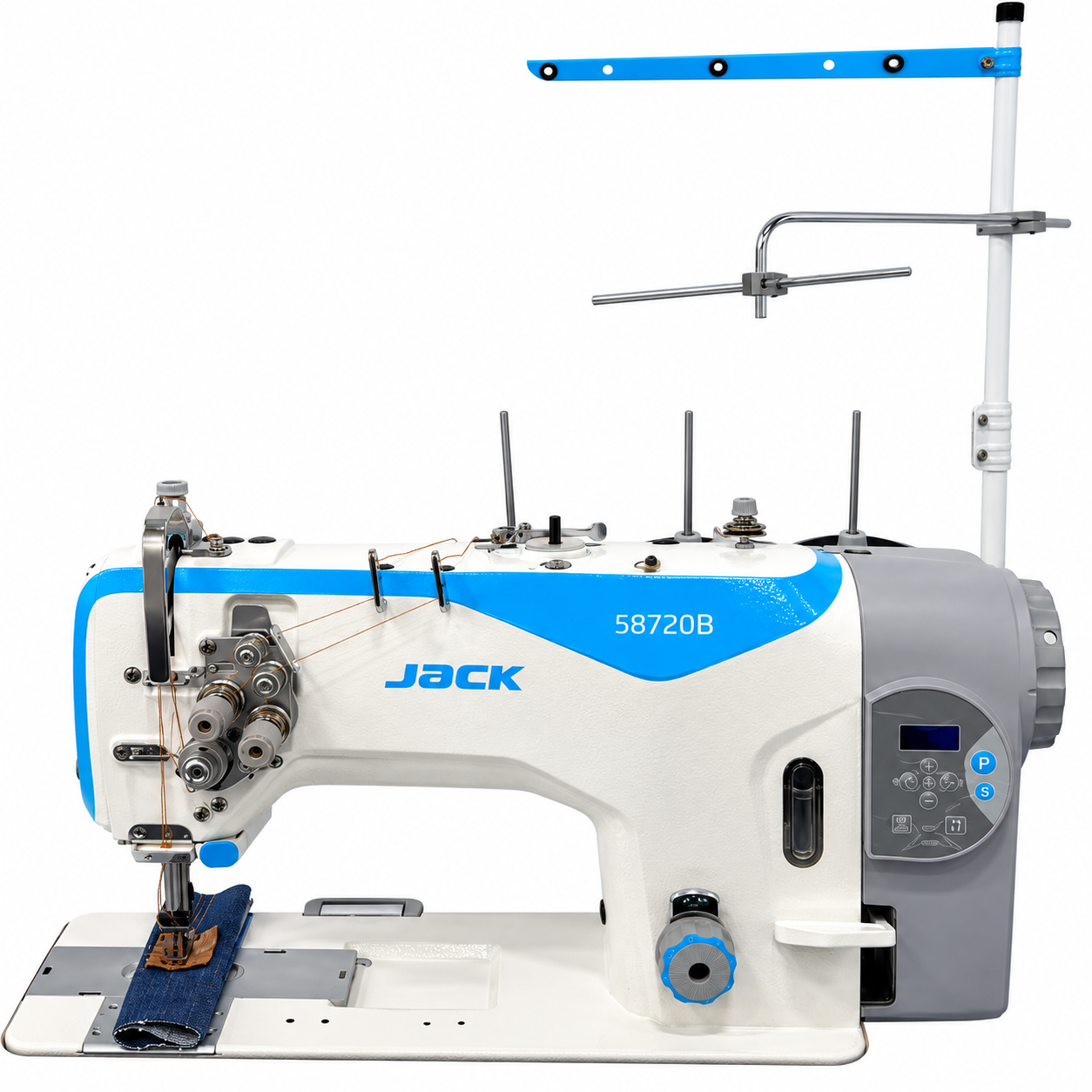

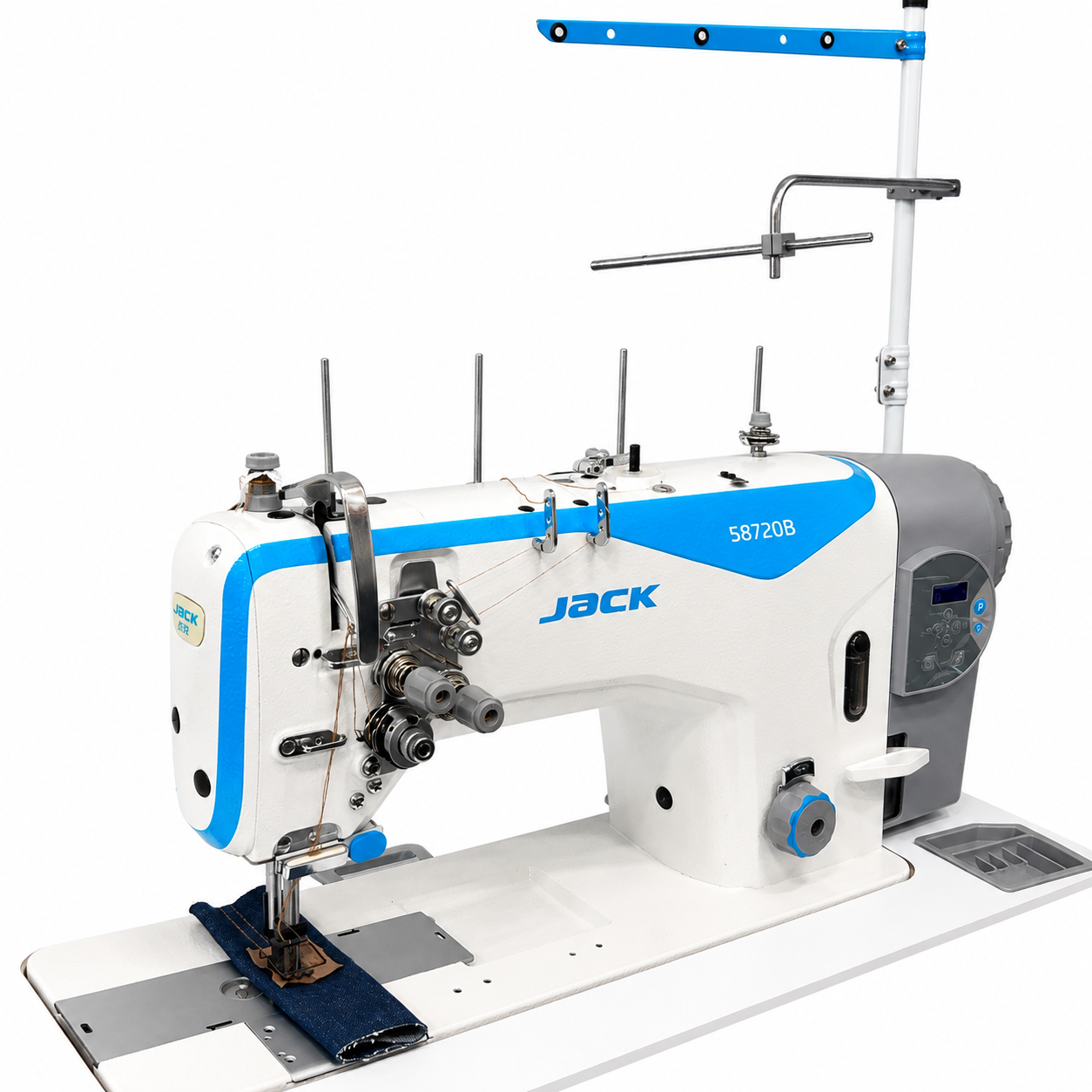

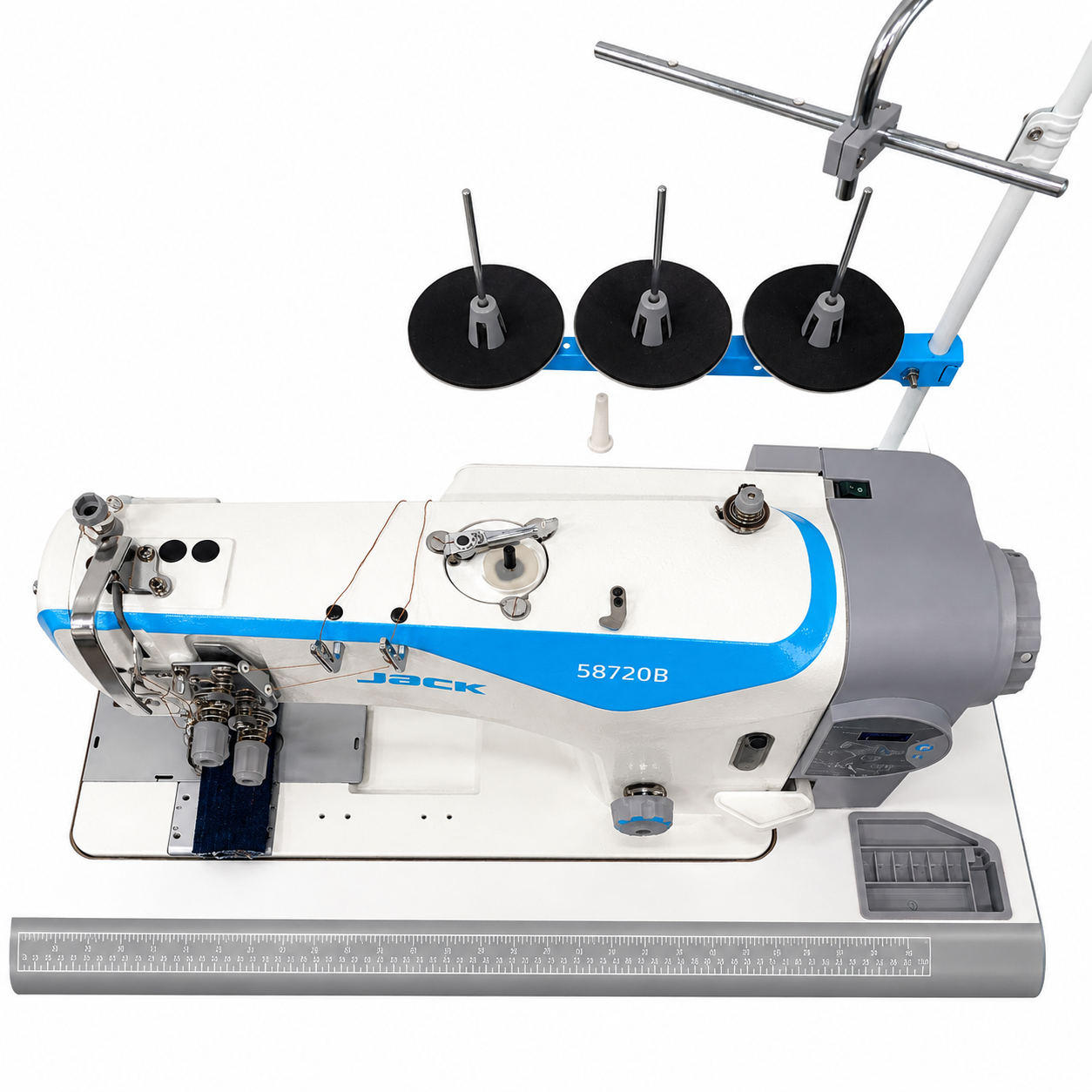

JACK® JK-58720B-005-Double Needle Large Bobbin Needle-Feed Lockstitch Sewing Machine

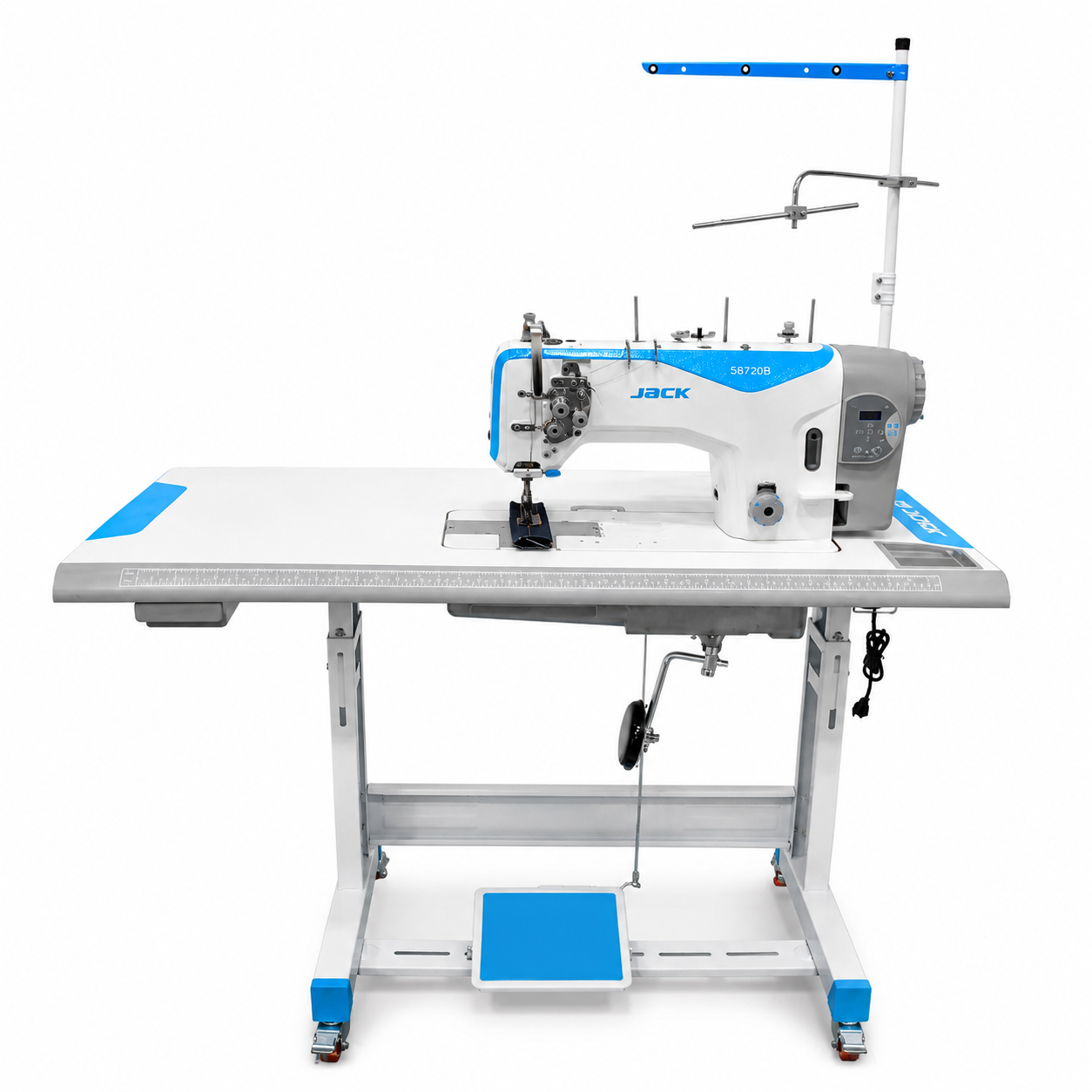

✔ COMPLETE ASSEMBLED WITH TABLE AND STAND INCLUDED
Ready to sew. No setup needed. Professional installation included.
Double Needle • Needle Feed • Large Bobbin • 750W Direct Drive
The JACK® JK-58720B-005 is a professional industrial double-needle needle-feed lockstitch machine designed for accurate, consistent parallel seaming on medium-weight fabrics and layered materials. Its synchronized needle-feed system advances the material with each stitch, helping prevent fabric slippage while maintaining precise and uniform stitch spacing.
Powered by a 750W Direct Drive servo motor with a self-cooling handwheel, the JK-58720B delivers smooth, quiet, and energy-efficient operation at speeds up to 3,000 stitches per minute. Its large-capacity bobbin system extends sewing time between bobbin changes, while the closed lubrication system helps keep oil contained and away from finished fabrics.
Key Features
- Double Needle System: Produces clean, consistent parallel stitch rows for professional garment construction.

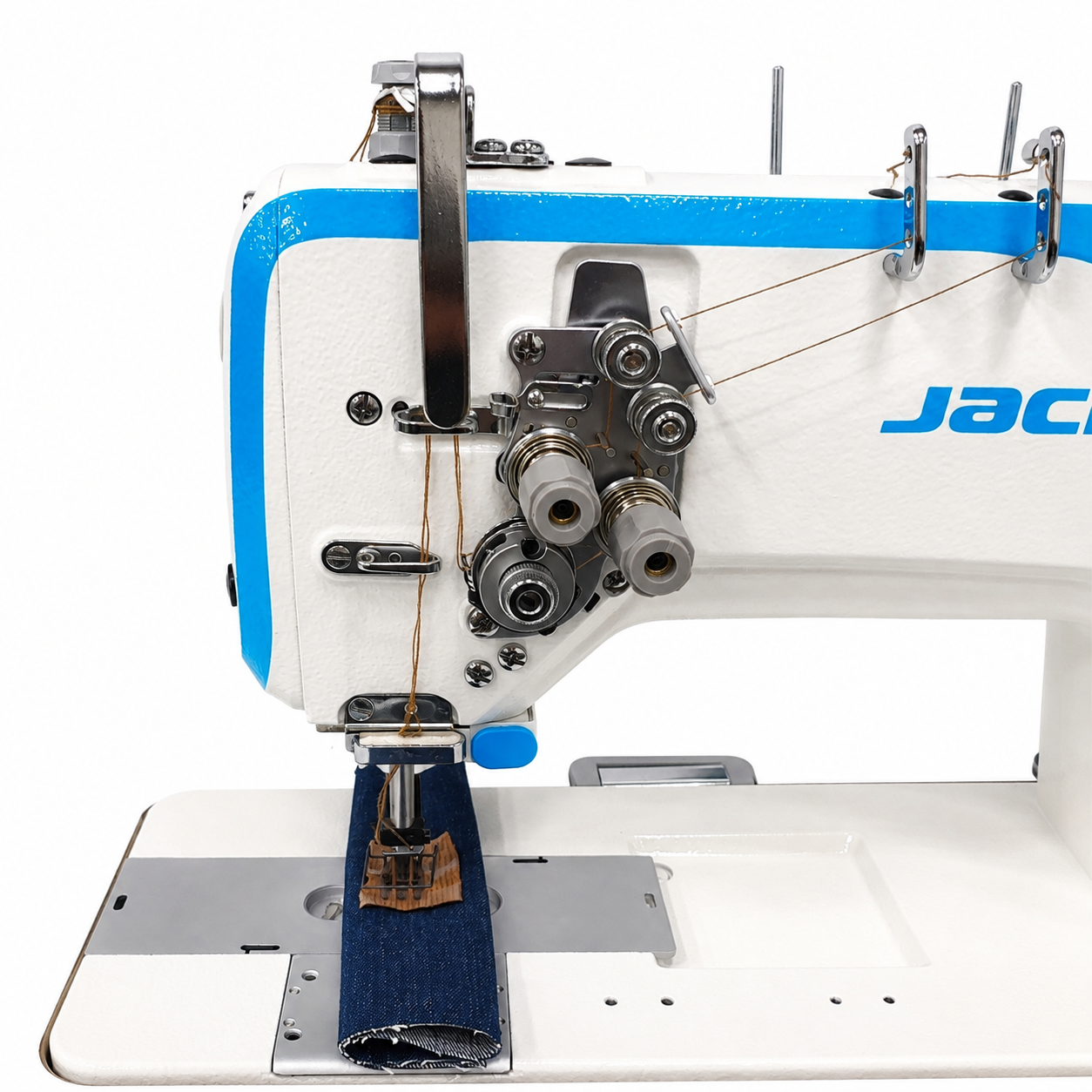

- Needle Feed: Advances the material in synchronization with each stitch to help prevent shifting and layer slippage.
- Large-Capacity Bobbin: Provides longer sewing cycles with fewer bobbin changes.

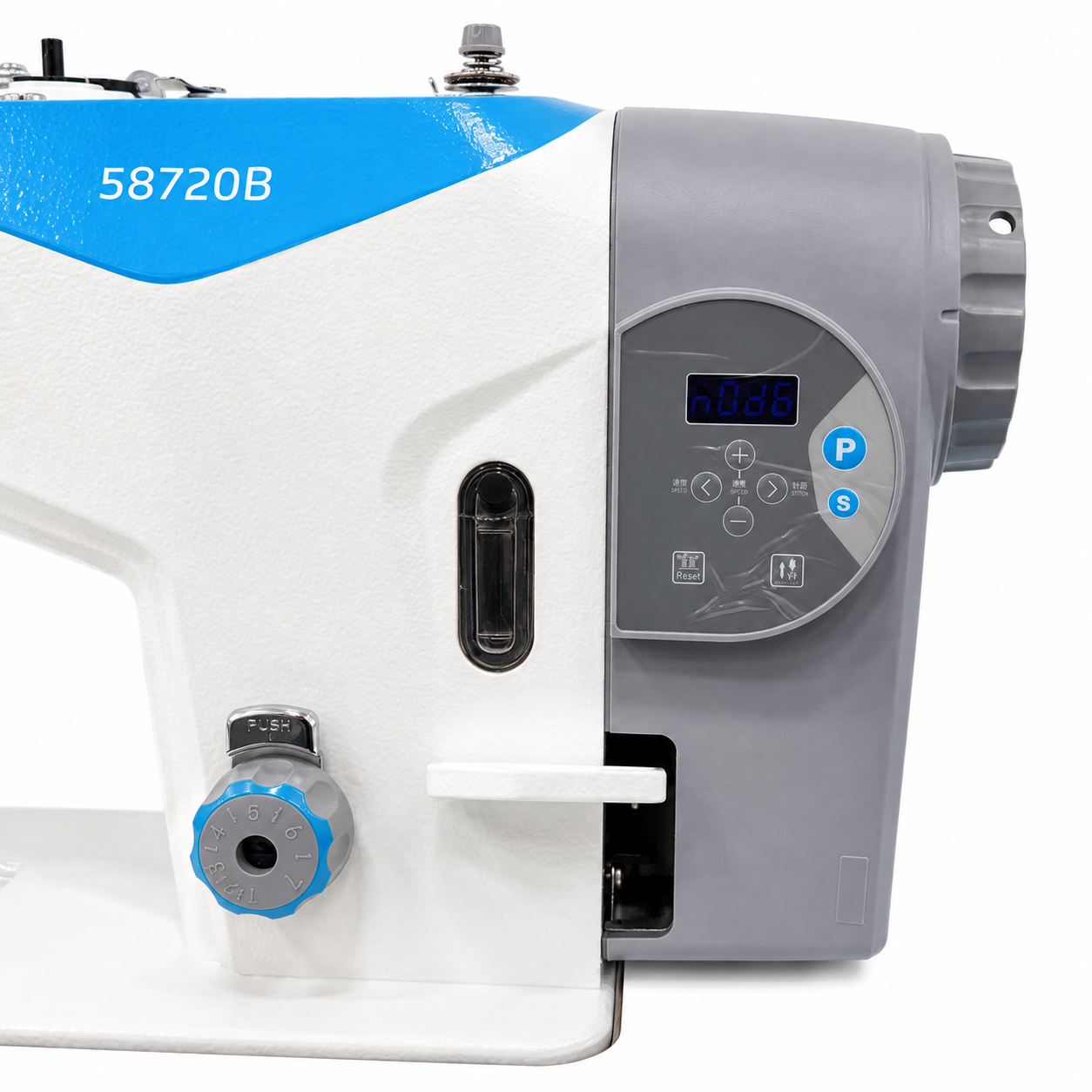

- 750W Direct Drive Servo Motor: Powerful, quiet, energy-efficient operation without a conventional drive belt.
- Self-Cooling Handwheel: Helps maintain efficient motor performance during continuous production.
- Closed Lubrication System: Keeps lubrication contained to help reduce oil contamination on finished fabrics.
- 6.4 mm Needle Gauge: Provides consistent spacing for standard double-needle parallel seams.
- 7 mm Maximum Stitch Length: Provides flexibility for different sewing applications.
- Up to 5 mm Sewing Thickness: Handles layered and structured medium-weight materials.
- 3,000 SPM Maximum Speed: Designed for efficient industrial production.
Ideal For
- Jeans and denim garments.
- Workwear.
- Sportswear.
- Structured garments.
- Medium-weight woven fabrics.
- Layered materials.
- Parallel double-needle seams.
- Decorative topstitching.
- Production applications requiring consistent stitch spacing.
Technical Specifications
| Brand | JACK® |
| Model | JK-58720B-005 |
| Machine Type | Double Needle Needle-Feed Lockstitch with Large Bobbin |
| Number of Needles | 2 (Double Needle) |
| Needle System | DP×5, Sizes #11–#16 |
| Needle Gauge | 6.4 mm |
| Feed System | Needle Feed |
| Maximum Sewing Speed | 3,000 SPM |
| Maximum Stitch Length | 7 mm |
| Presser Foot Lift | 7–13 mm |
| Maximum Sewing Thickness | 5 mm |
| Bobbin System | Large Capacity |
| Motor | 750W Direct Drive Servo Motor |
| Drive Type | Direct Drive |
| Lubrication | Closed Lubrication System |
| Work Area | 264 × 120 mm |
| Machine Weight | Approx. 43–53.5 kg |
What's Included
- JACK® JK-58720B--005 Double Needle Machine Head.
- 750W Direct Drive Servo Motor.
- Industrial Sewing Table.
- Heavy-Duty Industrial Stand.
- Standard Accessories Kit.
The JACK® JK-58720B-005 combines precise needle feeding, large-bobbin capacity, and powerful Direct Drive technology to provide dependable double-needle sewing performance. It is an excellent solution for professional garment manufacturers producing jeans, workwear, sportswear, and other products requiring clean, consistent parallel seams.
