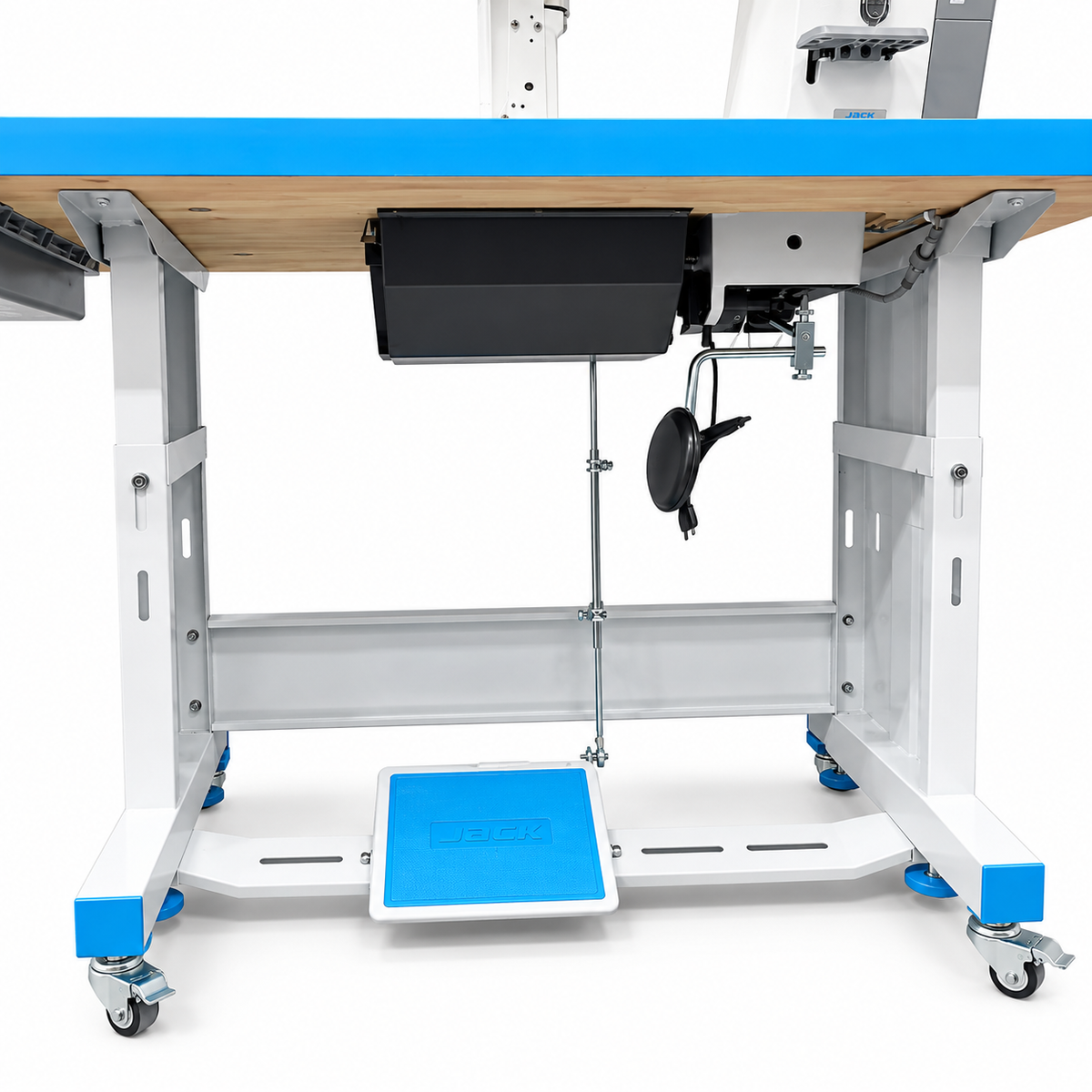

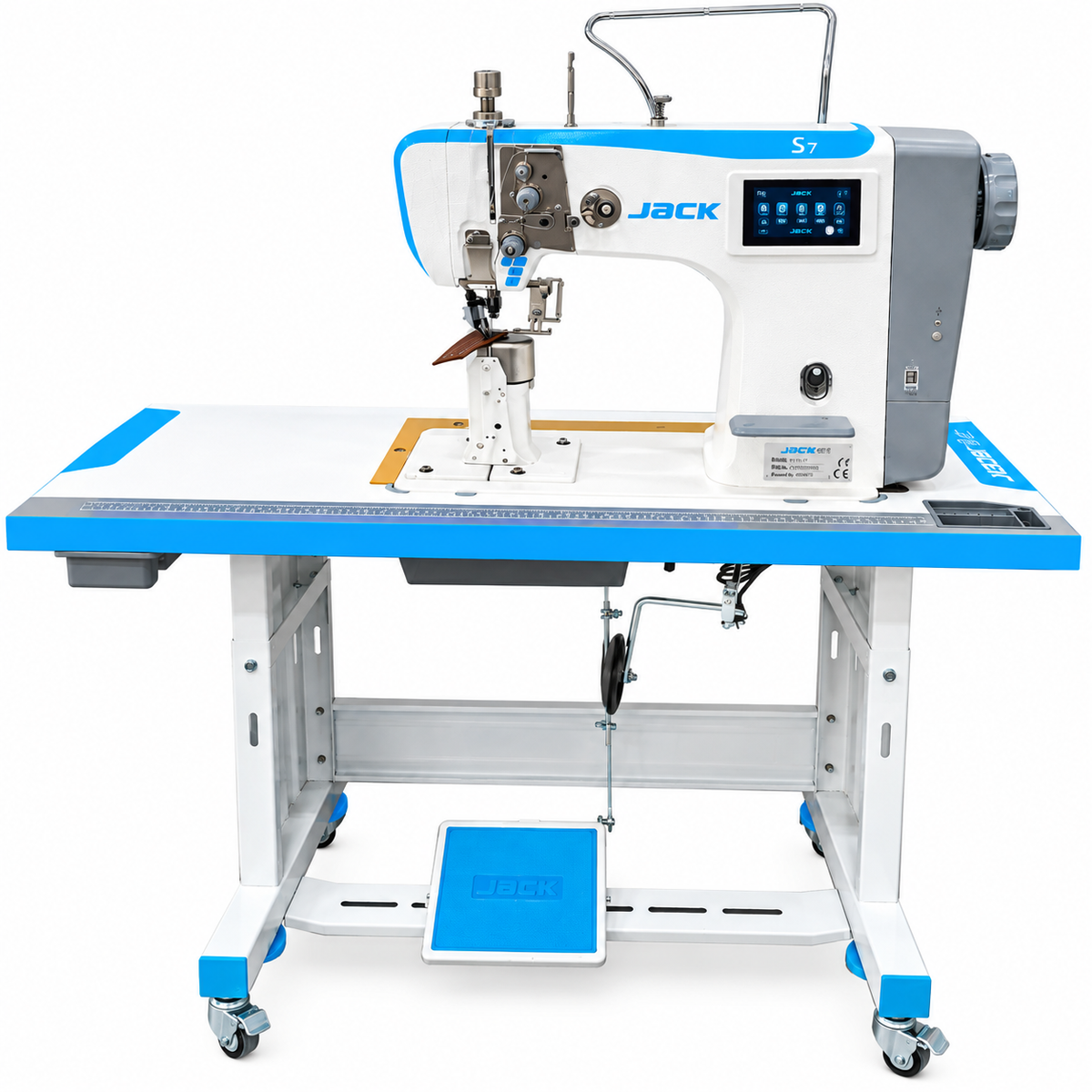

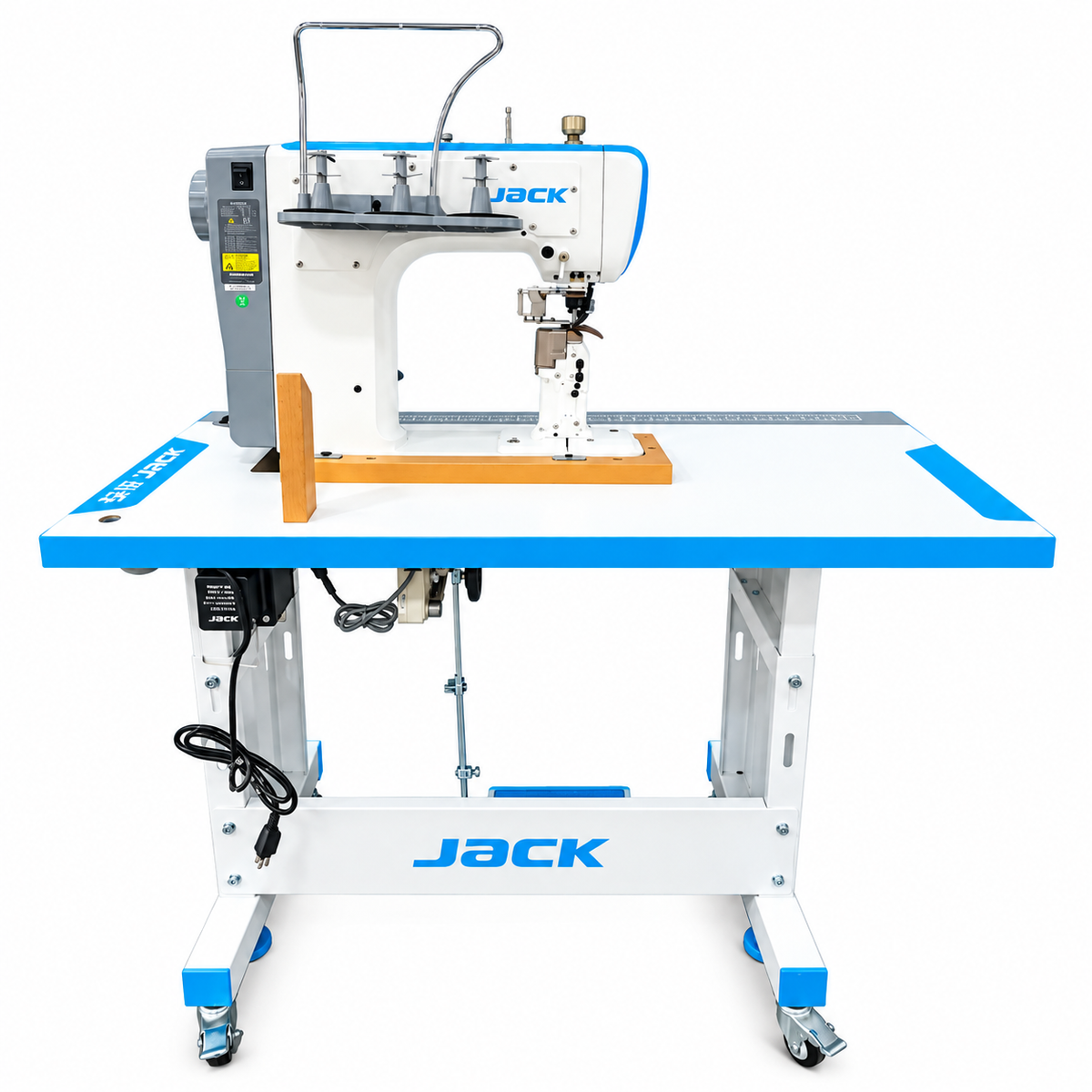

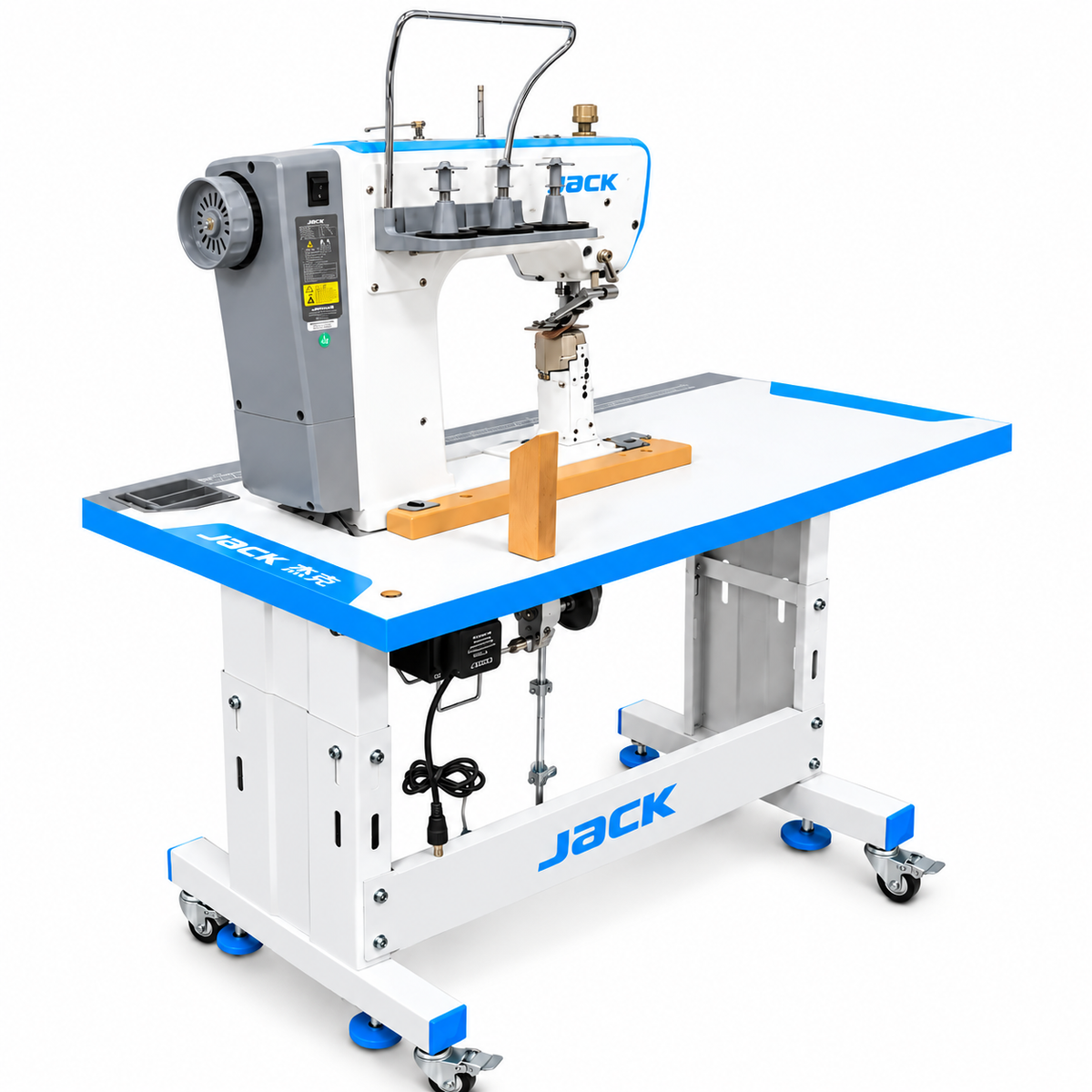

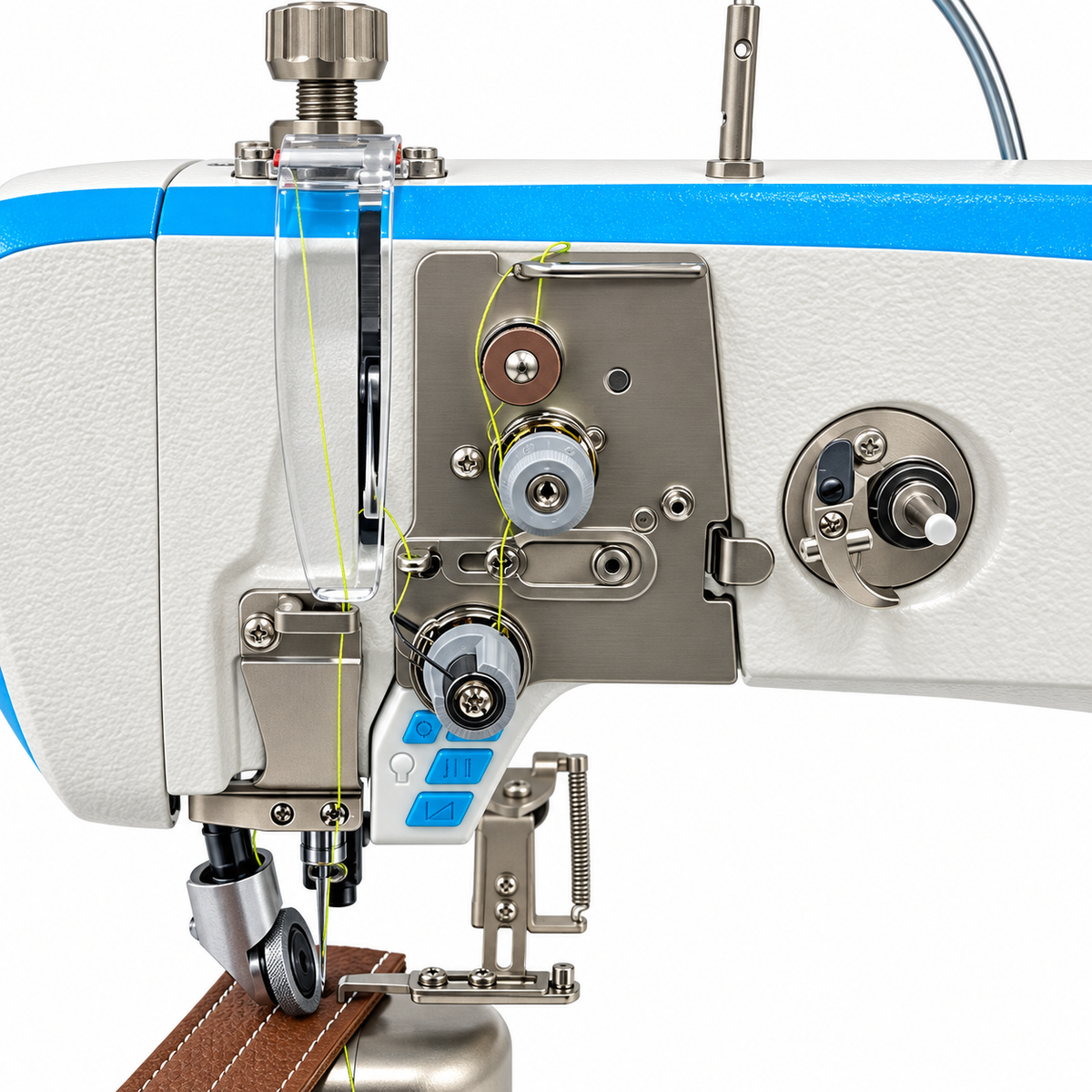

JACK® JK-S7-91-T Single Needle Post-Bed Triple Feed Industrial Lockstitch Sewing Machine – Complete with Table & Stand

JACK® JK-S7-91-T - Single Needle Post-Bed Triple Feed Industrial Lockstitch Sewing Machine

Single Needle • Post-Bed • Triple Feed • Independent Dual Roller Feed • Needle Feed • 4-Motor System • Automatic Thread Trimmer • 5" Touch Screen

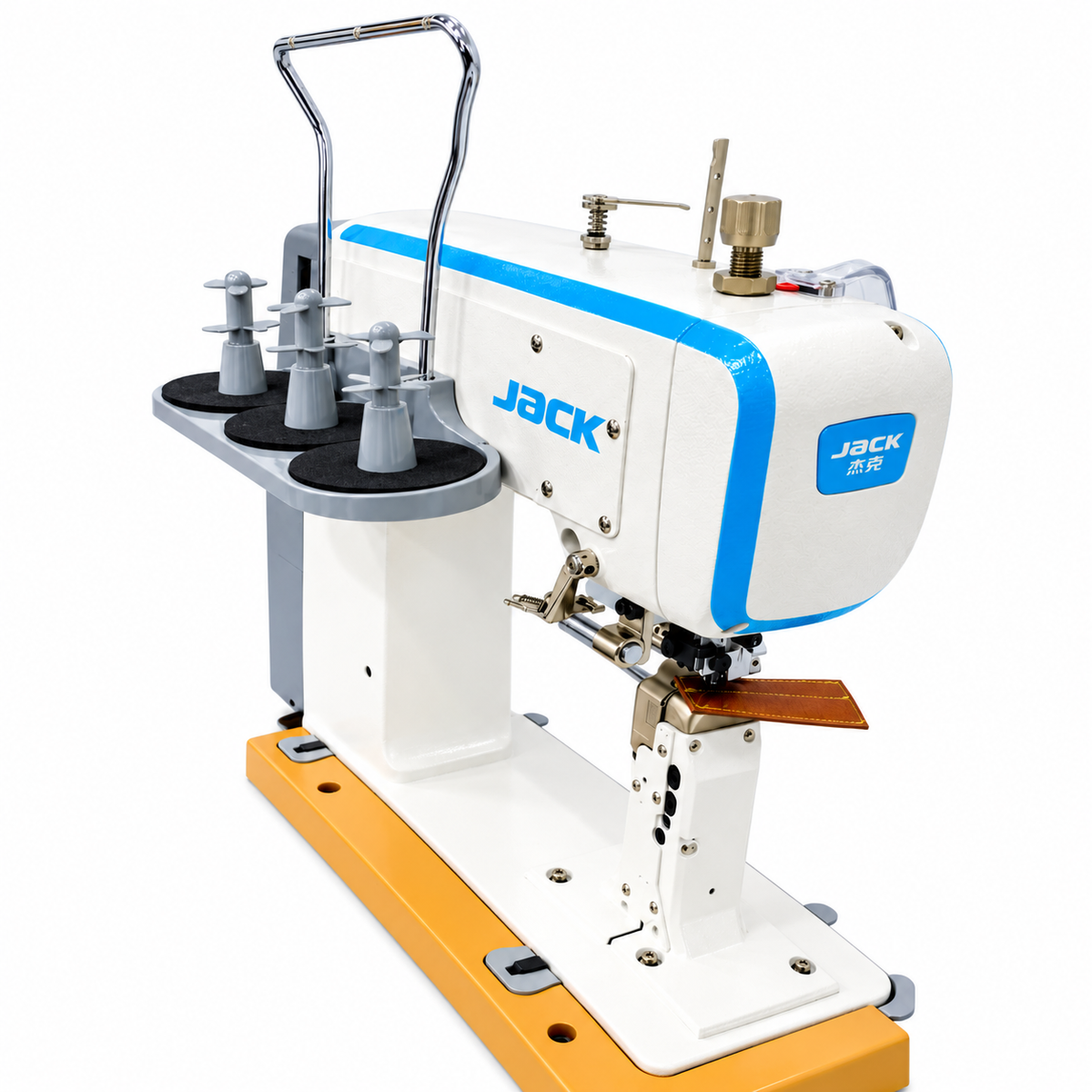

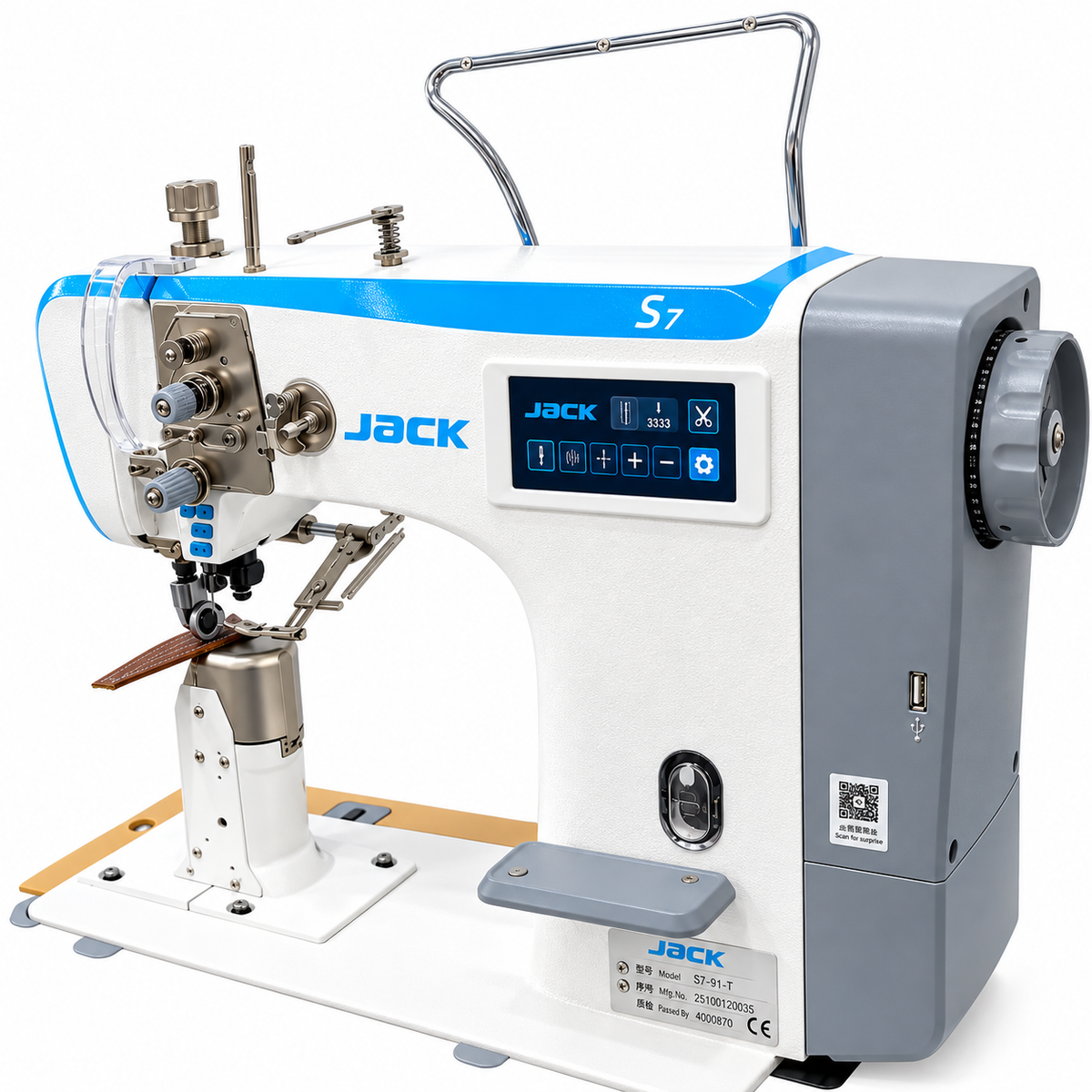

The JACK® S7-91T is an advanced single-needle post-bed industrial lockstitch sewing machine featuring computerized independent dual roller feeding, needle feed, intelligent electronic controls, and a high-torque Direct Drive system.

Its elevated cylindrical post-bed configuration provides excellent access to tubular, curved, hollow, and three-dimensional products that can be difficult to sew on conventional flat-bed machines. This makes the S7-91T particularly effective for attaching embroidered and leather patches to caps and hats, footwear manufacturing, handbags, leather goods, gloves, upholstery, and other precision applications involving complex shapes.

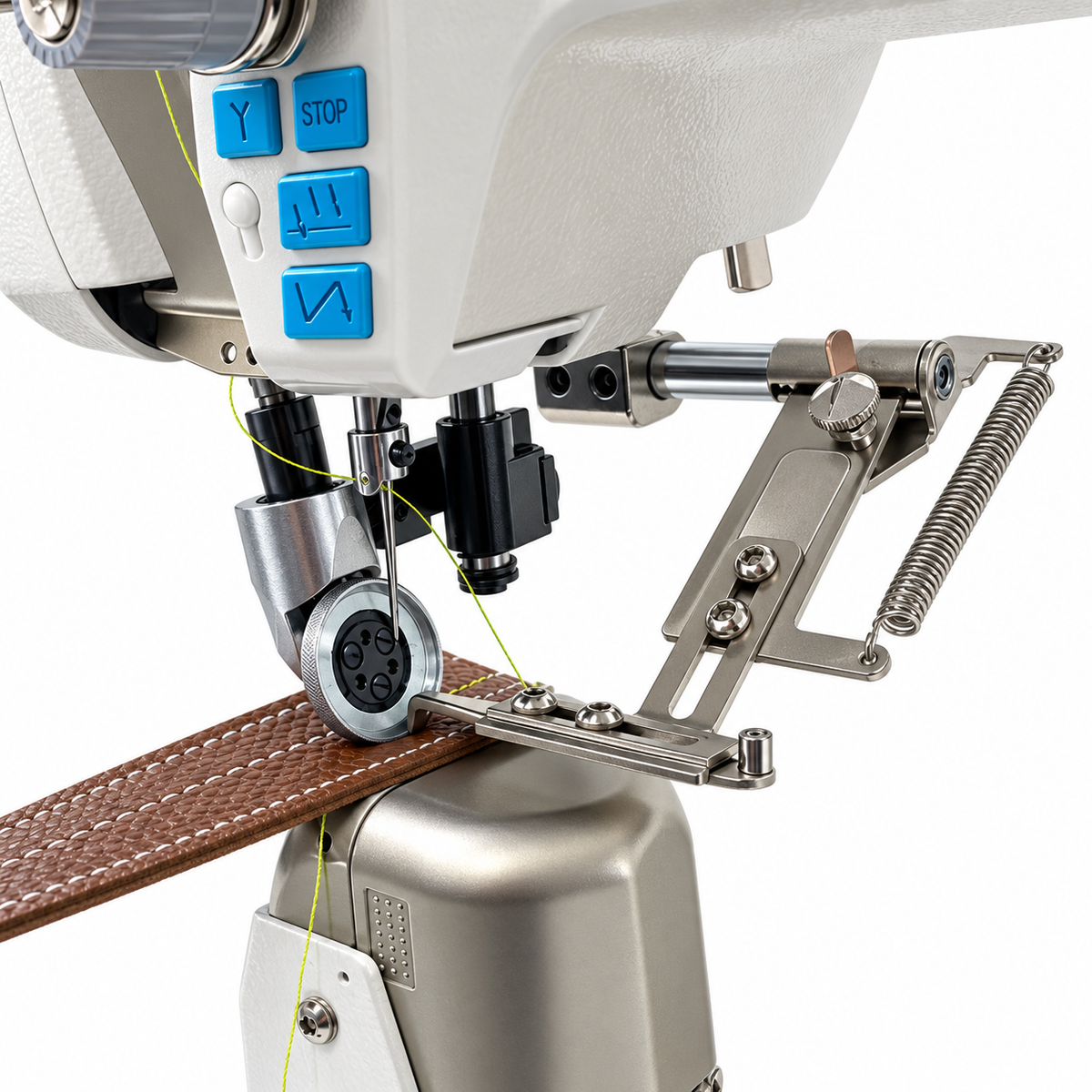

The machine combines top roller feed, bottom roller feed, and needle feed to create a powerful triple-feed system. Two independently controlled rollers with programmable differential help maintain accurate material feeding around curves, thickness transitions, and complex three-dimensional workpieces.

Triple Feed System

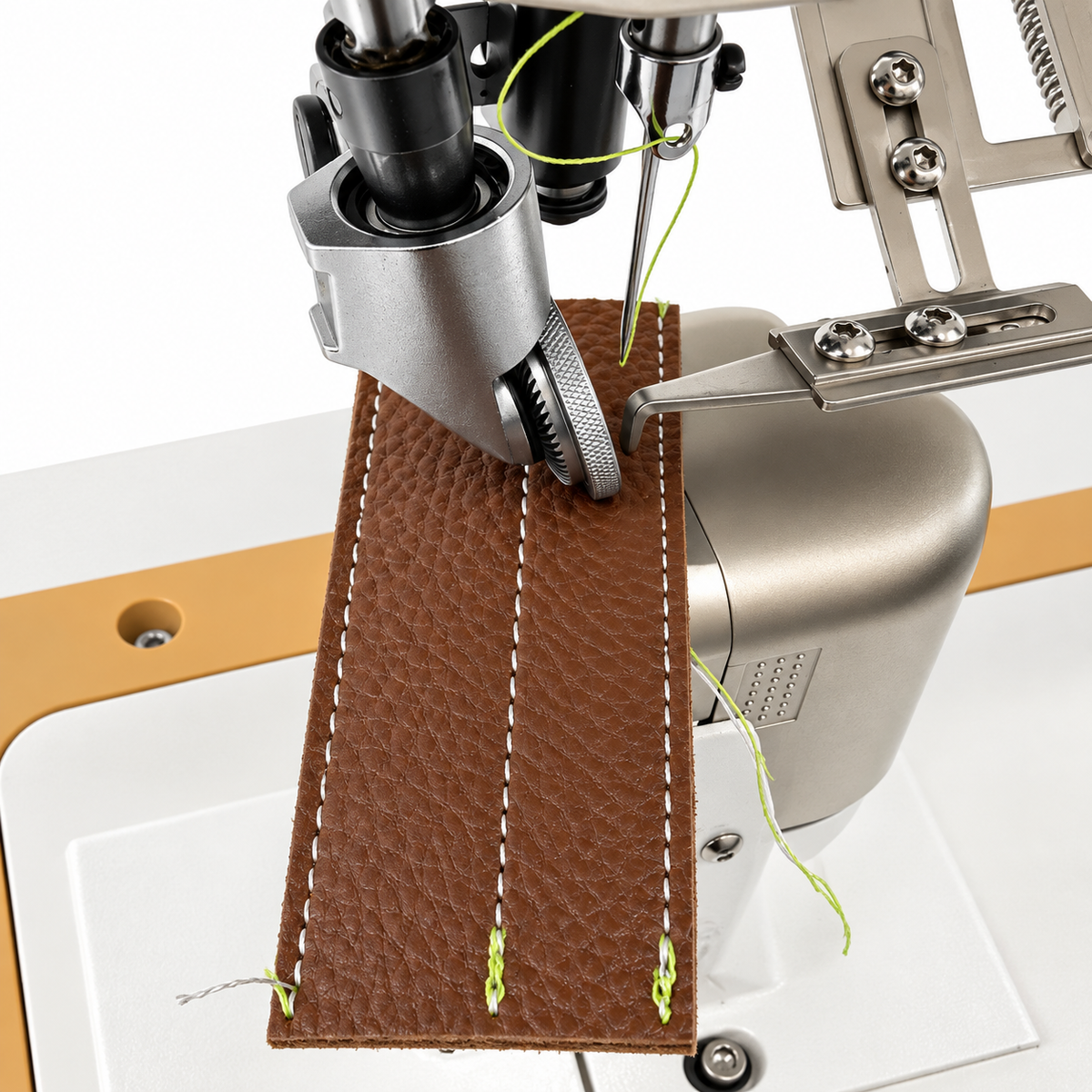

Independent Dual Roller Feed

The S7-91T uses two independently controlled roller feeds with programmable differential. The computerized system allows the feeding relationship between the rollers to be adjusted according to the sewing operation.

This provides greater control when sewing around curved surfaces such as shoe uppers, heels, cap panels, handbags, and other three-dimensional products where conventional feeding systems can struggle to maintain consistent material movement.

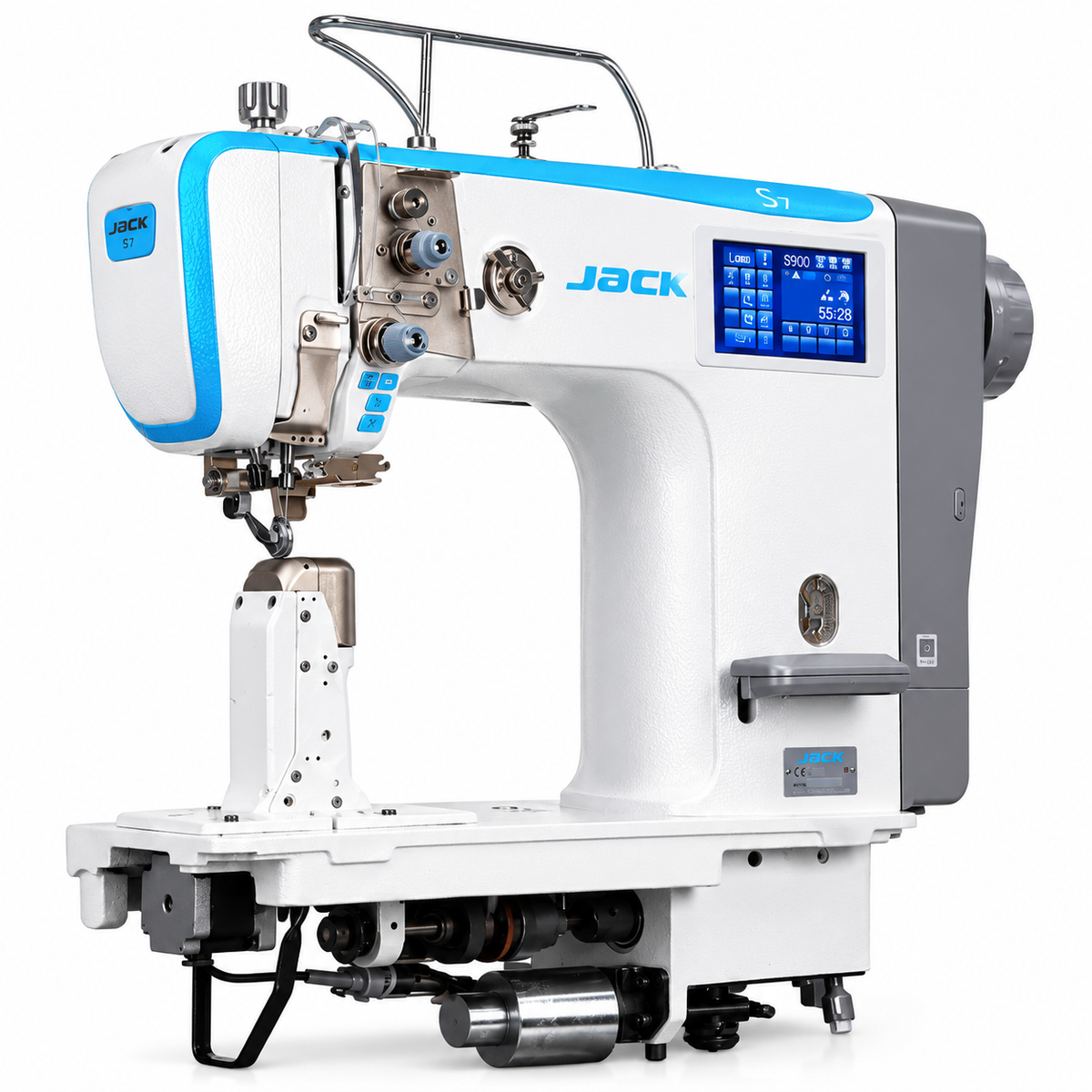

4-Motor Intelligent Drive System

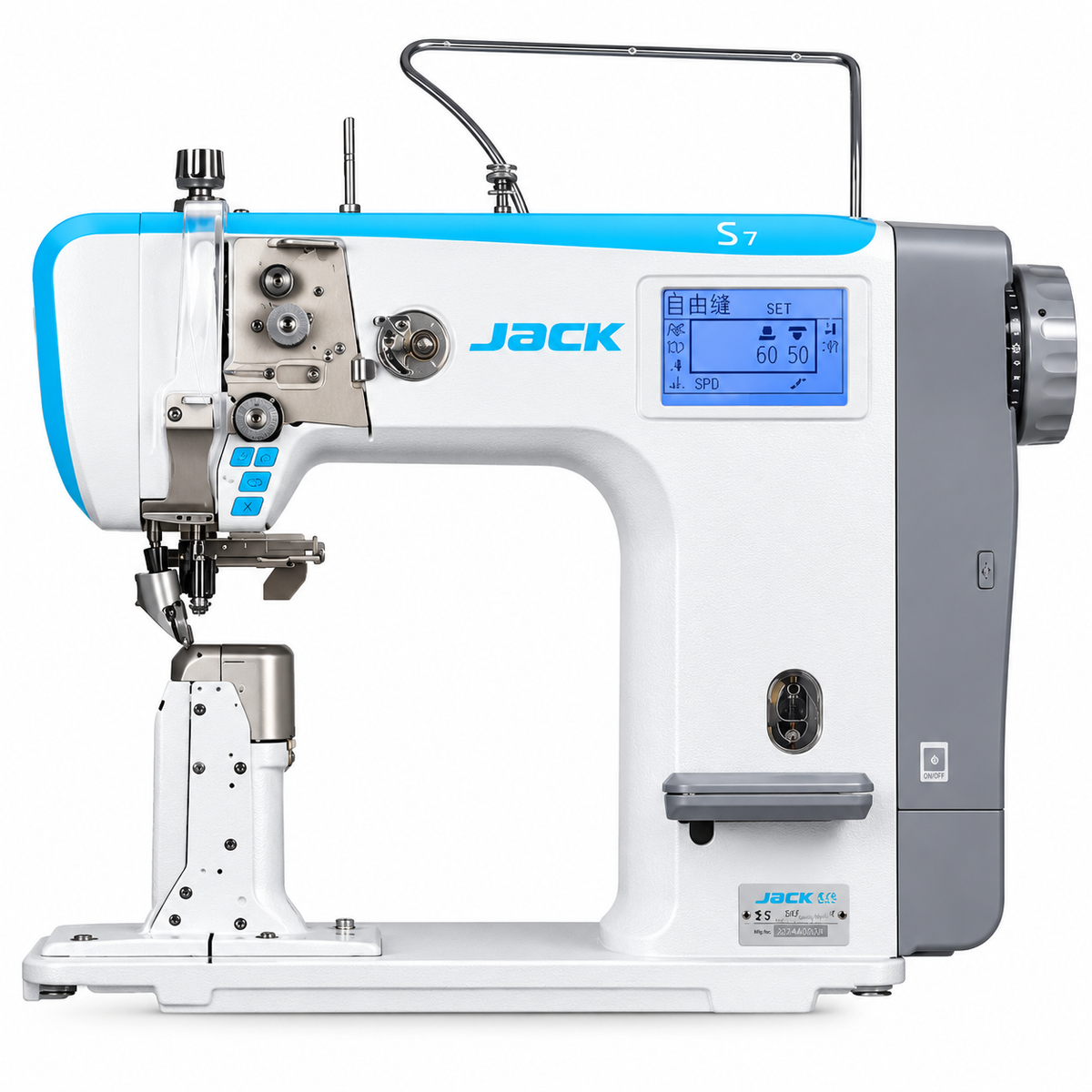

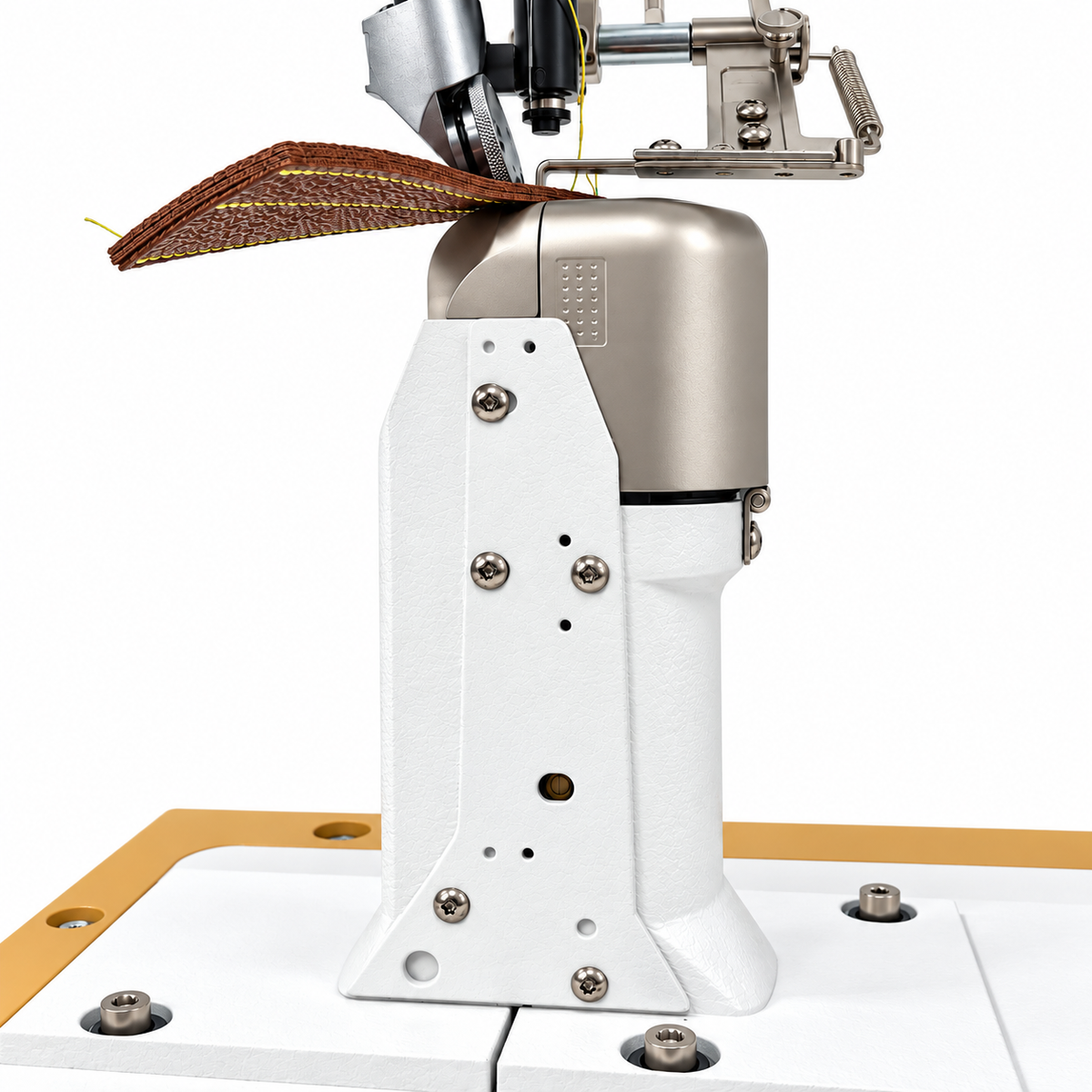

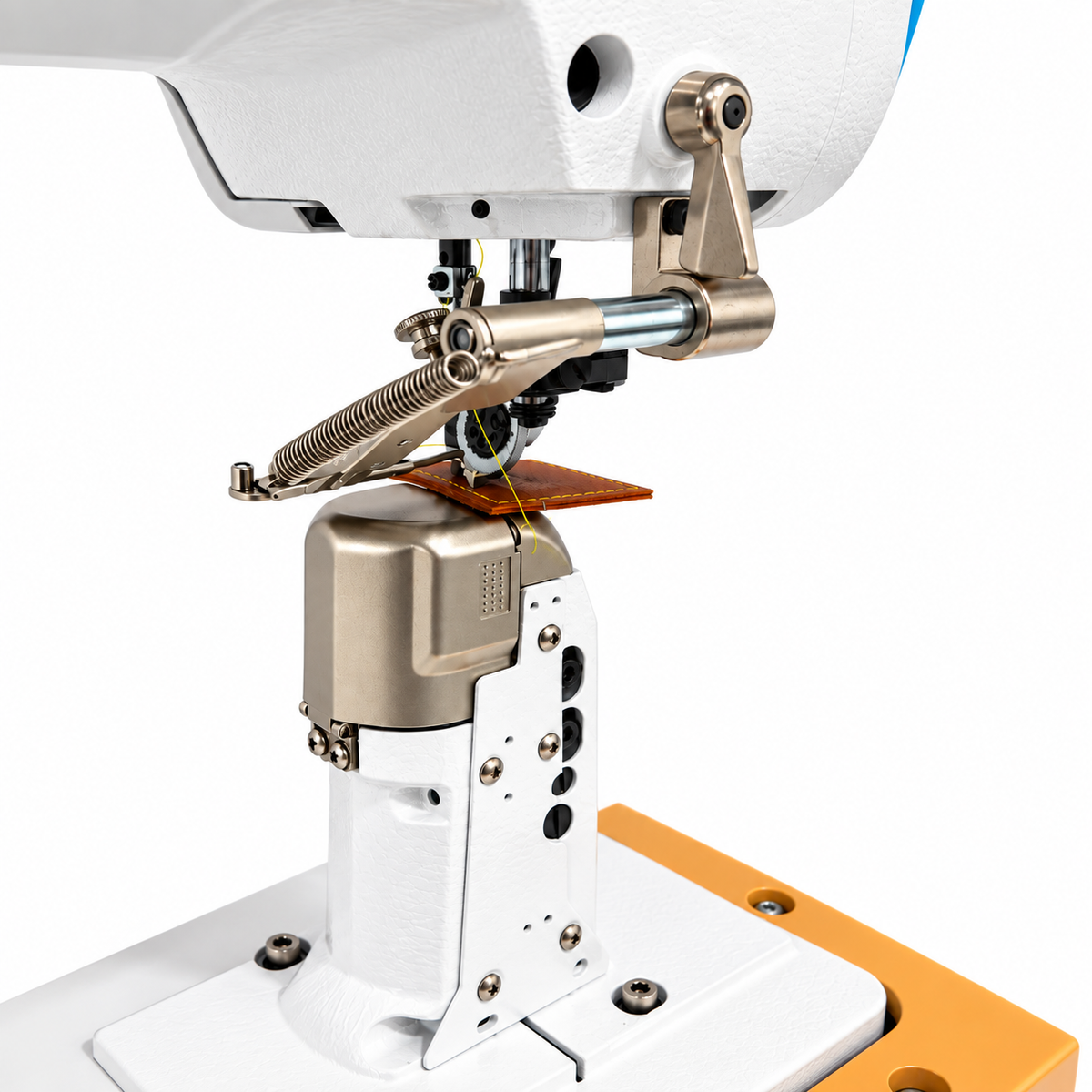

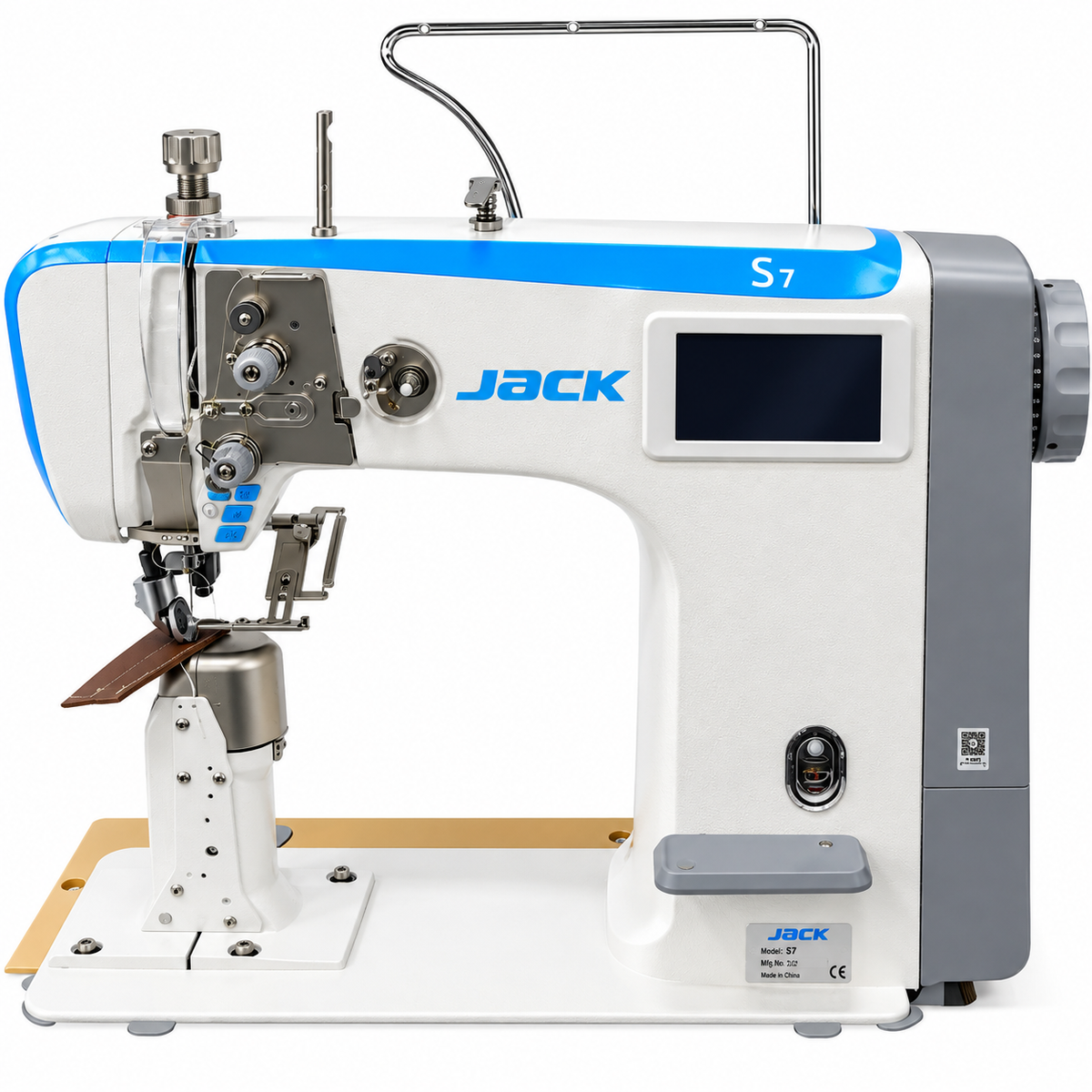

Post-Bed Design for 3D Sewing

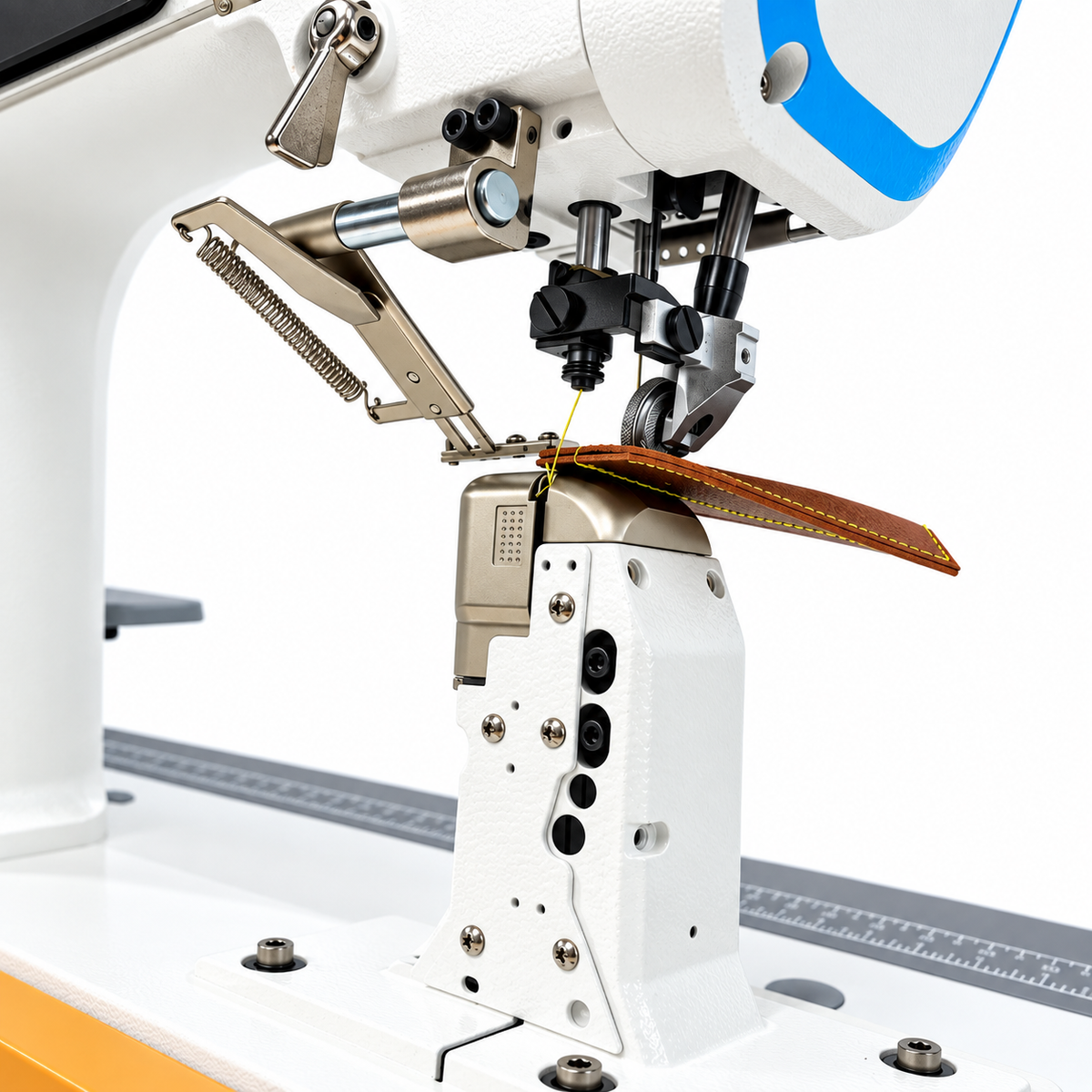

Unlike a conventional flat-bed machine, the S7-91T uses an elevated cylindrical post that allows shaped products to be positioned around the sewing area.

This provides excellent access to curved and difficult areas when sewing cap crowns, shoe uppers, handbag interiors, glove sections, leather accessories, and upholstery components.

Excellent for Patches on Caps & Hats

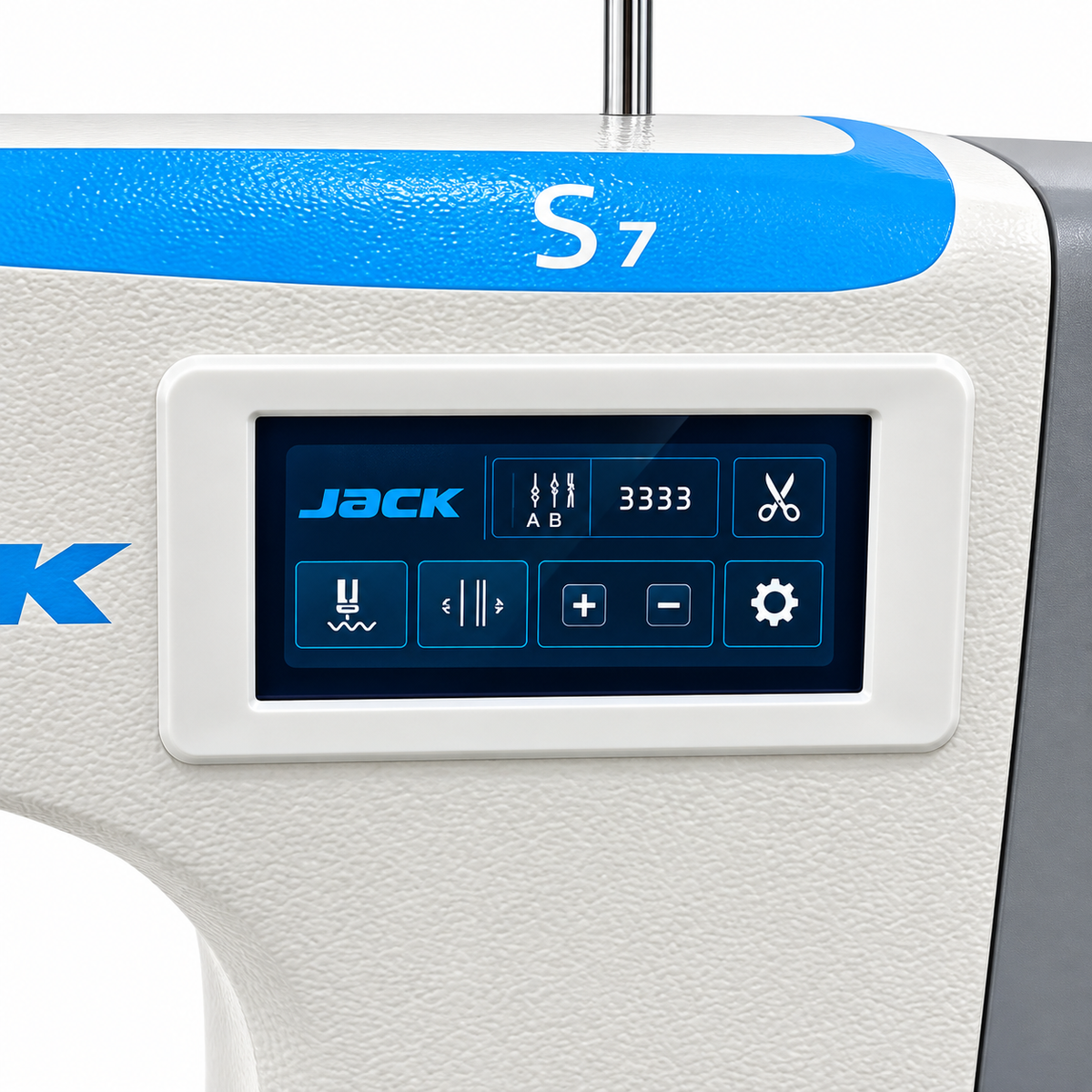

5-Inch Multilanguage Touch Screen

The integrated 5-inch touch screen provides convenient access to machine settings and programmable functions. Operators can manage supported parameters such as sewing speed, stitch length, sewing modes, and other machine settings through the digital interface.

The control system also includes multilanguage operation and voice guidance to simplify machine setup and daily use.

Programmable Stitch Length

A programmable stitch key allows the operator to switch quickly between different stitch lengths during sewing. This is particularly useful for decorative work and applications where different seam sections require different stitch specifications.

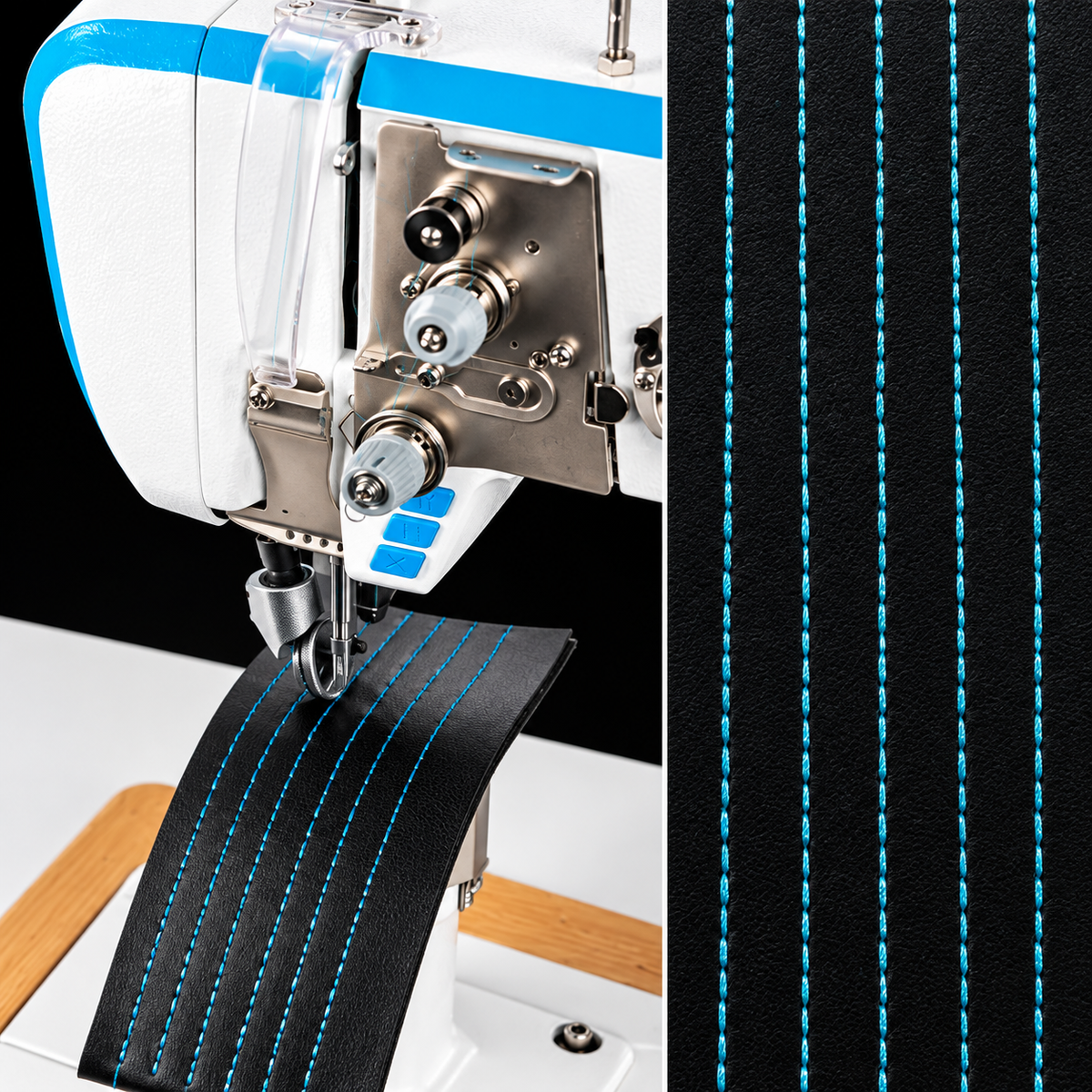

Ornamental Stitch Patterns

The S7-91T can be programmed to combine different stitch lengths and repetitions, allowing the operator to create ornamental and decorative stitch patterns for footwear, leather goods, handbags, and other visible seam applications.

High Penetration Capacity

The machine is engineered for demanding materials and high penetration requirements. The specified penetration capability exceeds 110 layers of A4 paper, demonstrating the machine's ability to handle thick assemblies and demanding materials used in work shoes, leather goods, and heavy industrial products.

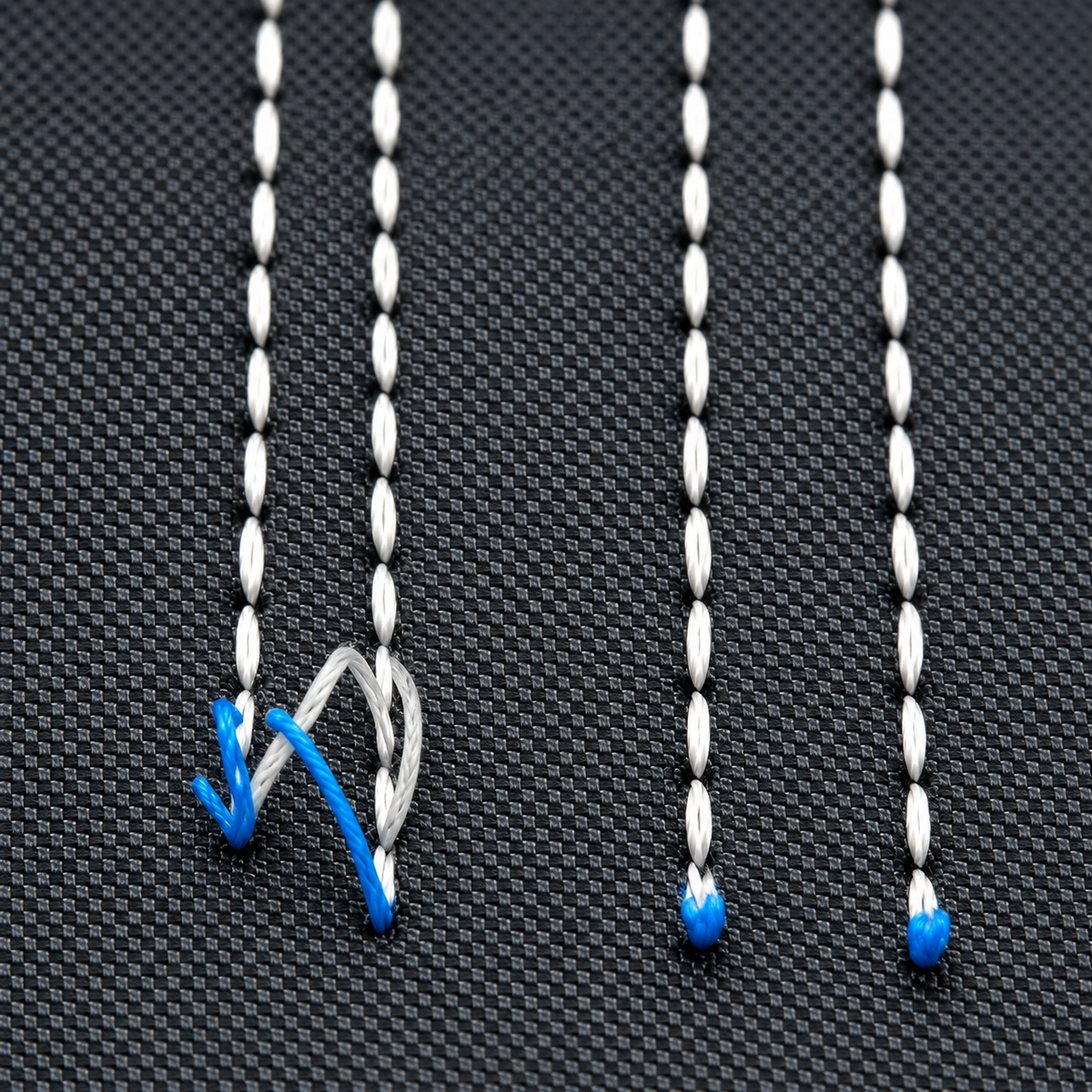

Automatic 3 mm Short Thread Trim

The integrated automatic thread trimming system is designed to leave an approximately 3 mm short thread tail after cutting, reducing the need for manual thread trimming and providing a cleaner finished product.

Silent Stepper-Motor Bartack

The automatic bartacking system is controlled by a stepper motor, providing quieter and faster seam reinforcement compared with traditional mechanical bartack systems.

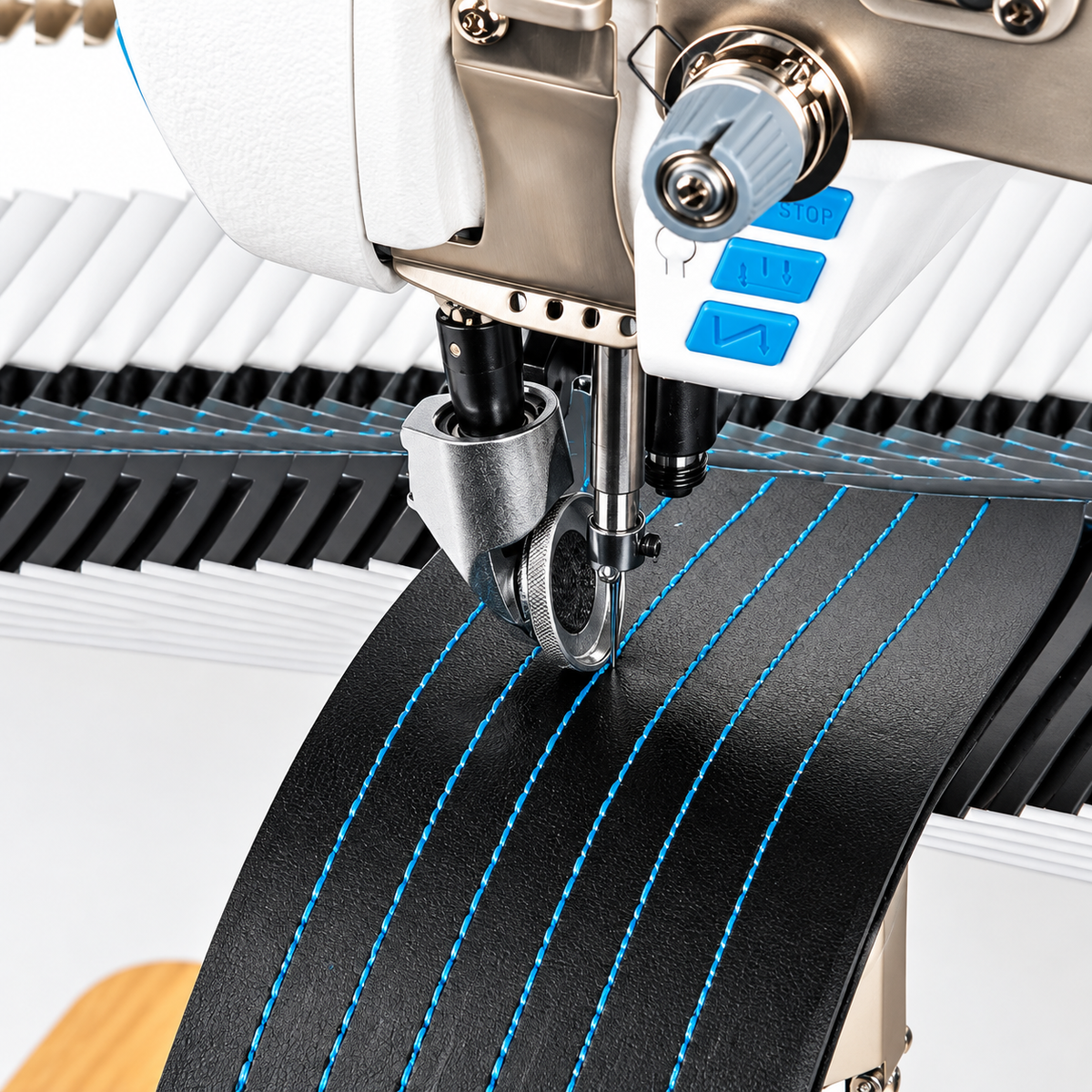

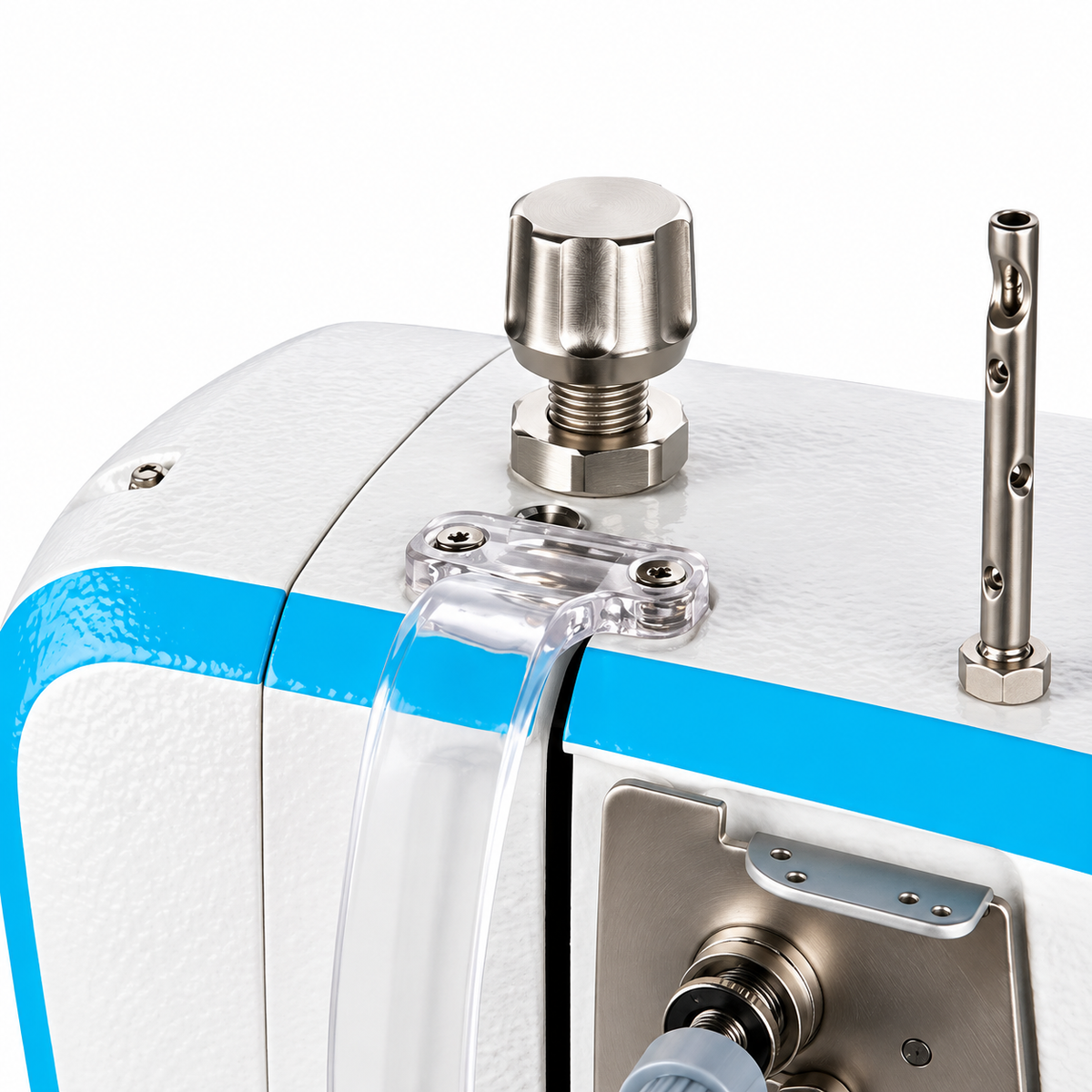

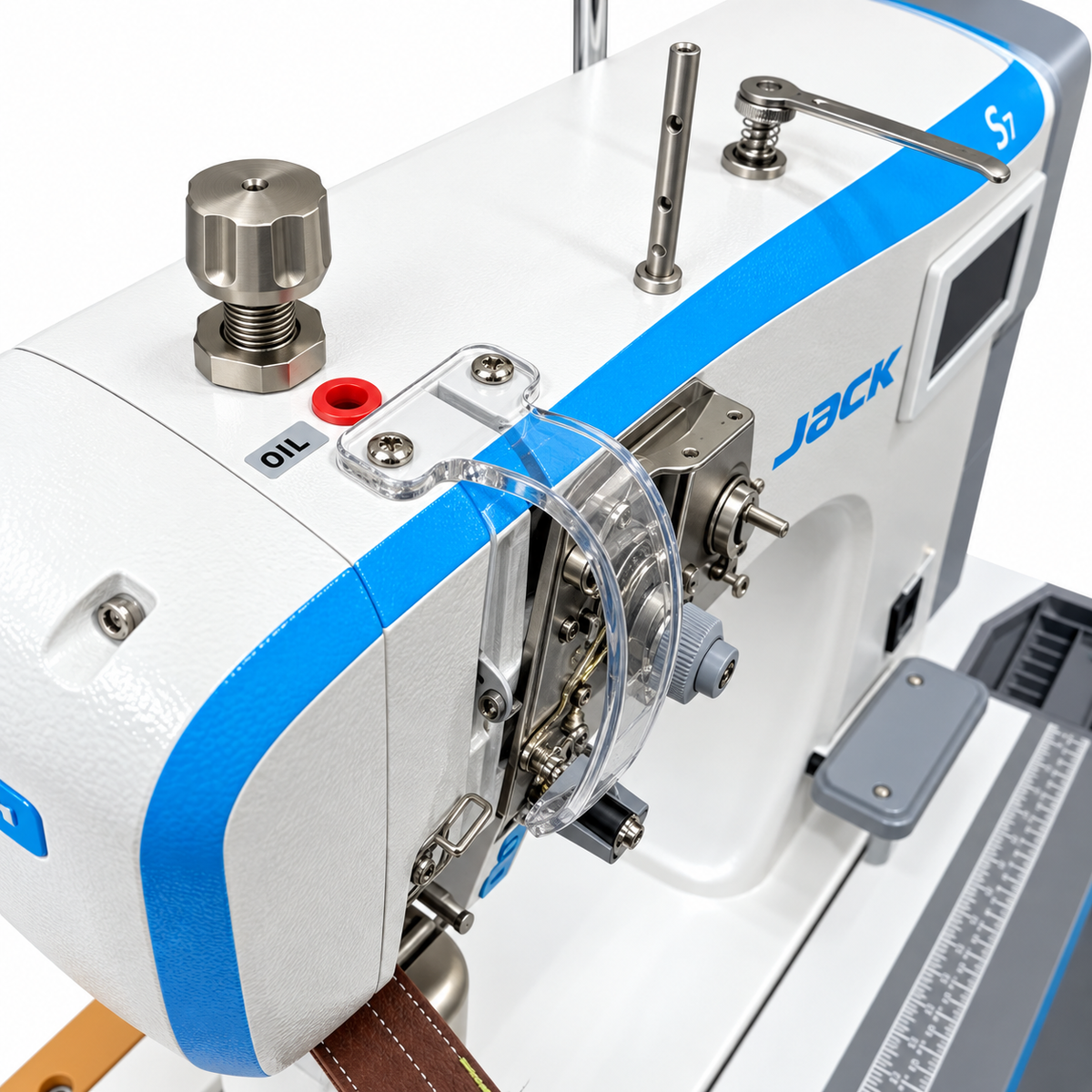

Adjustable Roller Pressure

Roller pressure can be adjusted conveniently using the control located on top of the machine. This allows the operator to adapt material pressure according to different thicknesses and sewing applications.

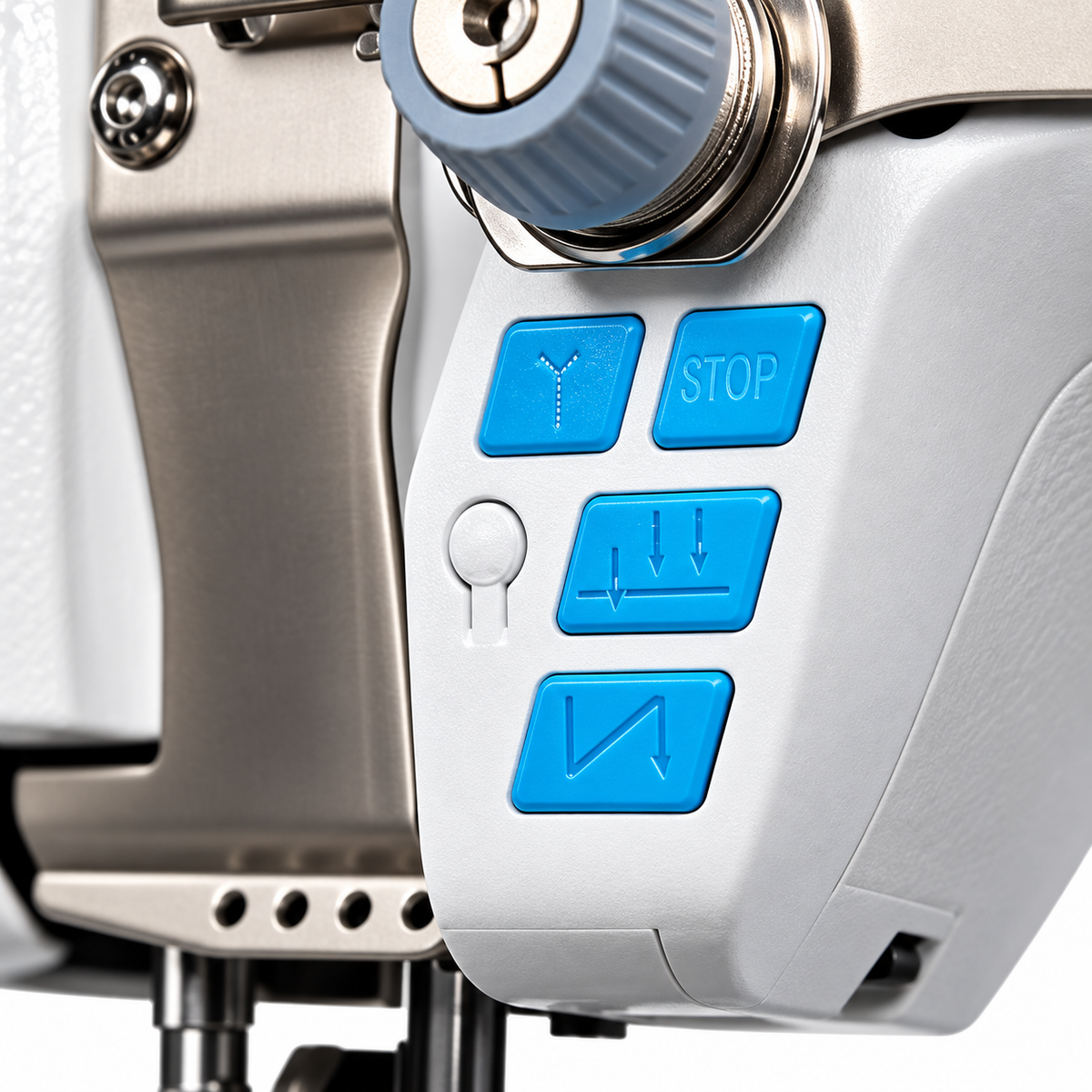

Extendable Double-Layer Bartack Lever

The machine incorporates an extendable double-layer bartack lever designed to provide convenient manual control during sewing. The second layer can be extended when required for easier operator access.

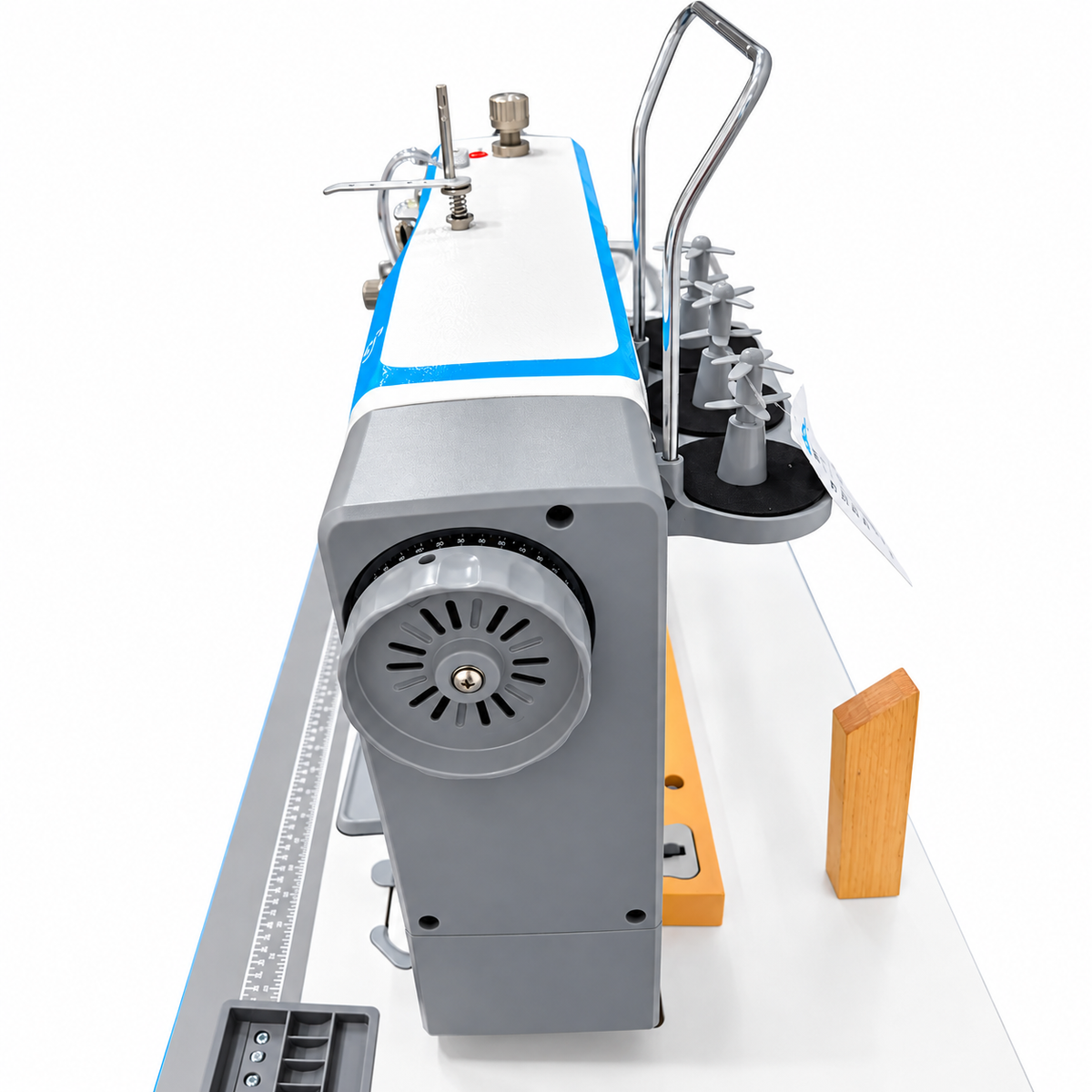

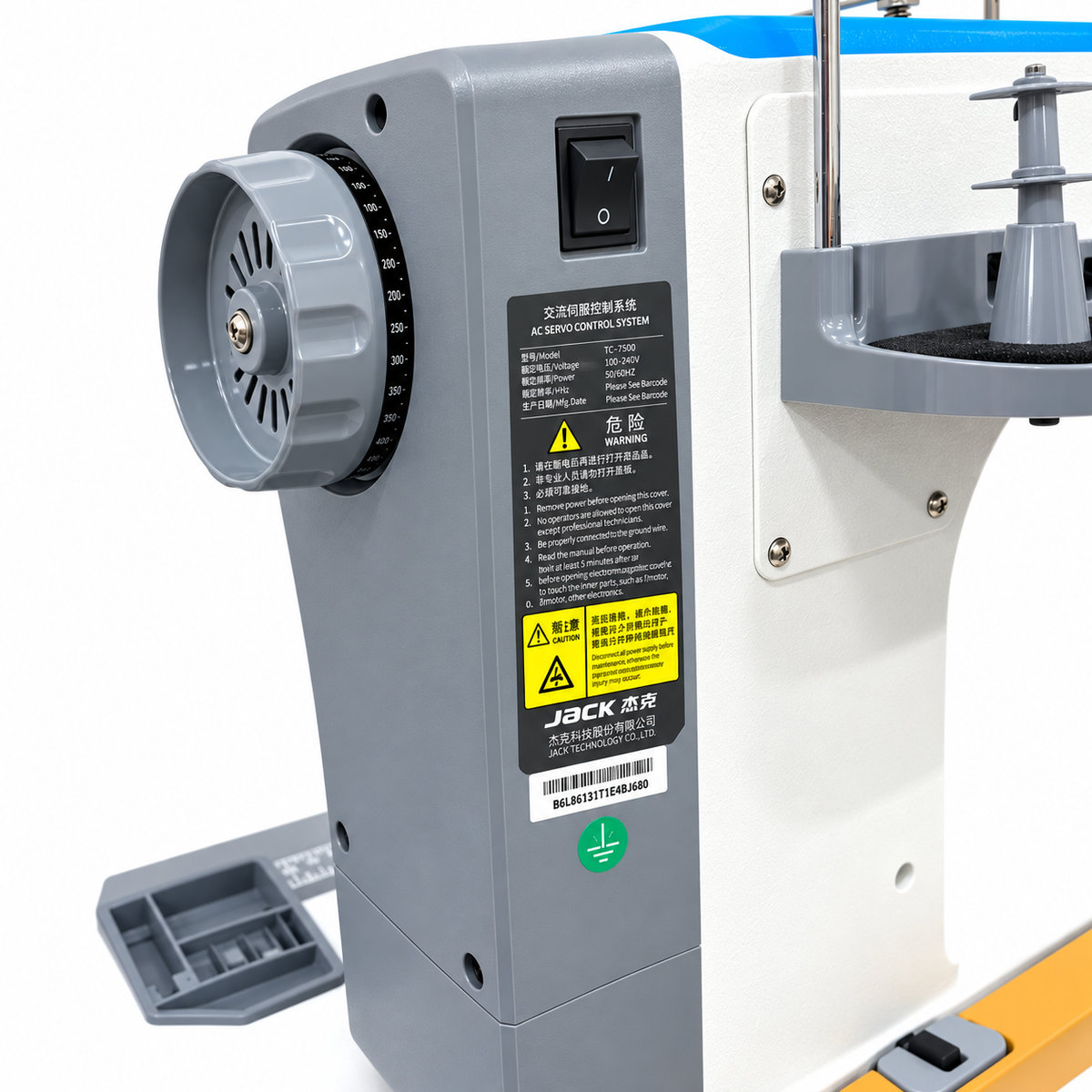

Self-Cooling Handwheel

The fan-style self-cooling handwheel is designed to improve airflow around internal components. According to the specified configuration, the system can help reduce internal operating temperature by approximately 4°C, supporting machine durability during extended production.

LED + Ultraviolet Work Light

The S7-91T incorporates adjustable LED illumination with multiple intensity levels together with an ultraviolet light system. The lighting system improves visibility around the needle and seam area, particularly when working with dark materials and detailed sewing lines.

Swing Edge Guide

The integrated swing guide helps maintain a consistent seam distance during sewing. It is particularly useful when following edges around curves and changing material thicknesses where maintaining uniform seam placement is important.

Variable Speed — 100 to 3,000 SPM

The electronic speed control provides an operating range from approximately 100 to 3,000 stitches per minute. Low-speed operation provides excellent control for detailed decorative work and tight curves, while higher speeds support efficient professional production.

Bevel Gear Hook System

The vertical-axis rotary hook uses a bevel gear drive system designed to reduce mechanical noise and vibration while providing smooth hook operation and consistent lockstitch formation.

Key Features

• Single Needle Post-Bed Lockstitch: Designed for professional three-dimensional sewing applications.
• Triple Feed: Top roller, bottom roller, and needle feed work together for precise material transport.
• Independent Dual Roller Feed: Computerized rollers with programmable differential provide accurate feeding around complex curves.
• 4-Motor System: Main shaft motor plus three independent stepper motors control needle feeding and both rollers.
• High-Torque Direct Drive: Provides responsive beltless power and precise electronic speed control.
• 5-Inch Touch Screen: Multilanguage digital interface with voice guidance.
• Programmable Stitch Length: Quickly switch between different stitch lengths during sewing.
• Ornamental Stitch Programming: Combines different stitch lengths and repetitions for decorative applications.
• Automatic Thread Trimmer: Leaves an approximately 3 mm short thread tail.
• Automatic Presser Foot Lifter: Reduces repetitive operator movements.
• Silent Bartack: Stepper-motor-controlled seam reinforcement.
• High Penetration Capacity: Designed for thick leather and demanding heavy-duty materials.
• Adjustable Roller Pressure: Quickly adapts pressure to different material thicknesses.
• Self-Cooling Handwheel: Fan-style design improves airflow around internal components.
• LED + UV Lighting: Adjustable illumination improves seam visibility.
• Swing Edge Guide: Helps maintain consistent seam positioning.
• Variable Speed: Approximately 100–3,000 SPM.
• Bevel Gear Hook: Designed for smoother operation with reduced noise and vibration.

Ideal For

• Footwear Manufacturing: Leather shoes, athletic shoes, work boots, shoe uppers, and heel seams.
• Leather Goods: Handbags, suitcases, briefcases, wallets, belts, straps, and gloves.
• Caps & Hats: Embroidered patches, leather patches, woven labels, and brand tags on snapbacks, trucker hats, fitted caps, and beanies.
• Automotive Upholstery: Car seats and shaped interior components.
• Furniture Upholstery: Sofas, chairs, and heavy vinyl seating.
• Sports Goods: Protective equipment, athletic products, and technical goods.
• Promotional Products: Branded headwear and custom leather products.
• Heavy-Duty Equipment: Pouches, holsters, harnesses, and similar reinforced textile products.

Technical Specifications
