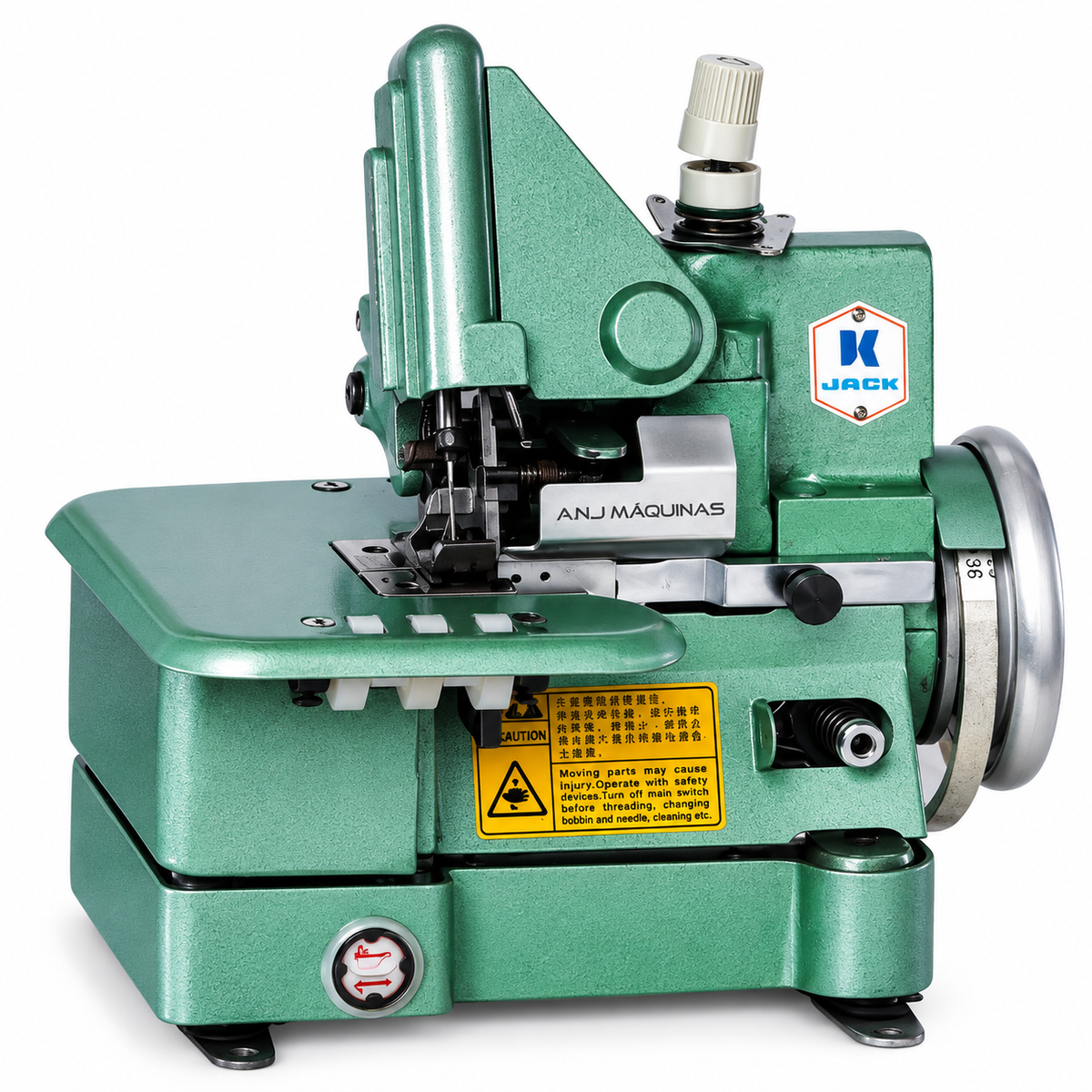

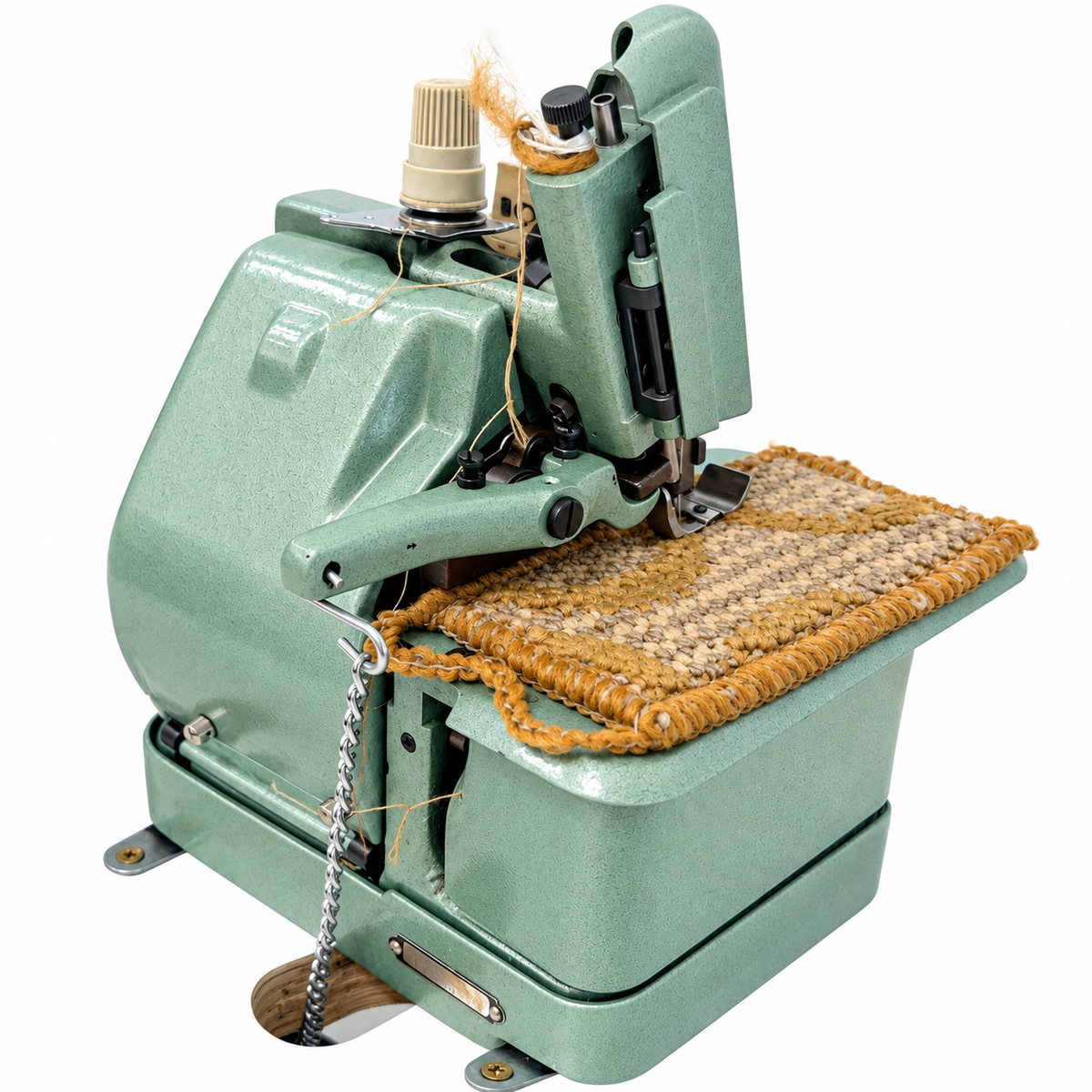

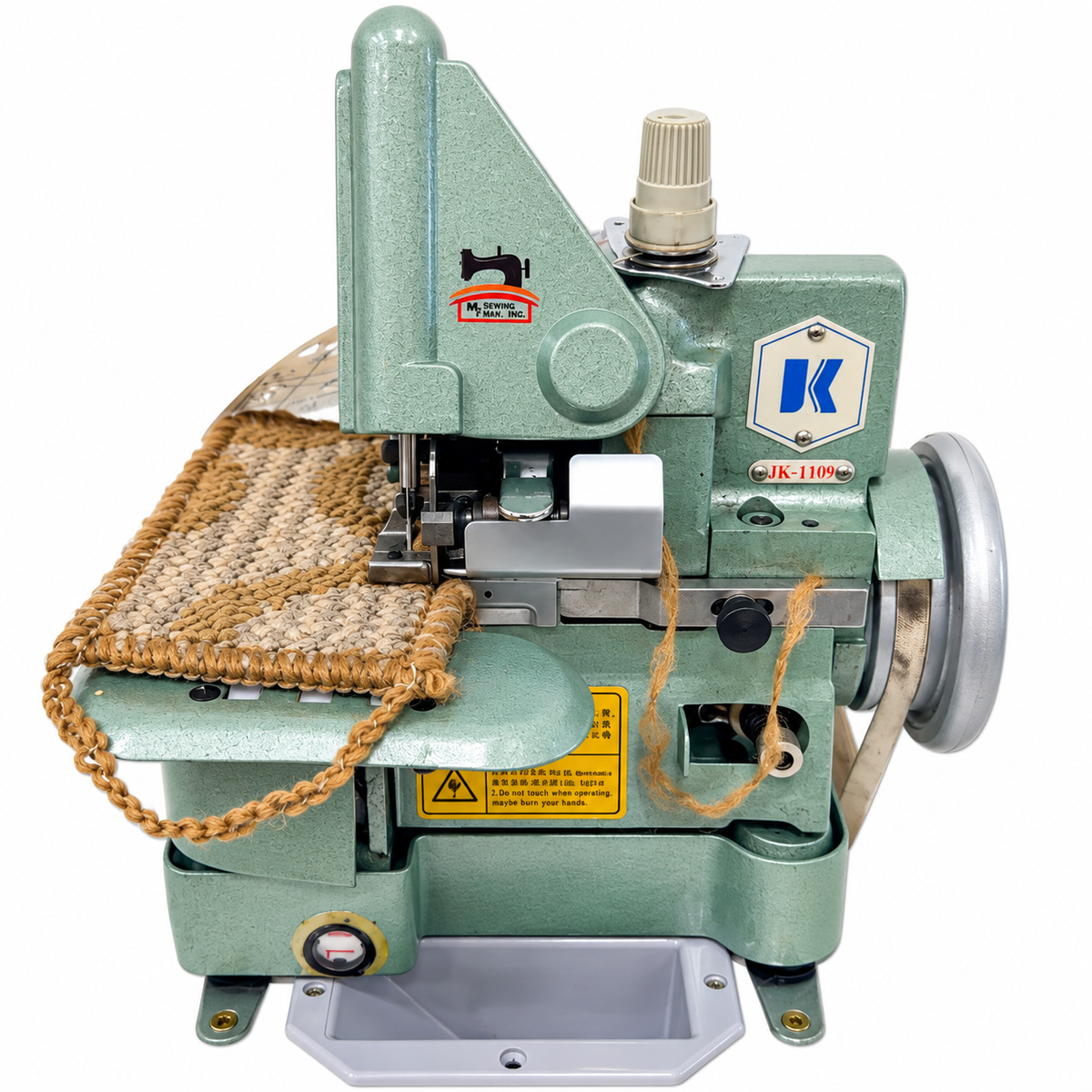

JACK® JK-T109 - Heavy-Duty 1-Needle 3-Thread Carpet Overlock Industrial Sewing Machine
COMPLETE WITH TABLE AND STAND INCLUDED
Heavy-duty industrial setup designed specifically for carpet, rug, mat, and other thick-material edge finishing.
1 Needle • 3 Threads • Heavy-Duty Carpet Overlock • Up to 3,000 SPM • 9–10 mm Overedge Width • Automatic Lubrication
The JACK® JK-T109 is a specialized 1-needle, 3-thread heavy-duty industrial overlock sewing machine designed specifically for sewing and overedging thick materials such as carpets, rugs, mats, and similar heavy textile products.
Unlike a standard garment overlock machine, the JK-T109 is designed to handle substantially thicker materials and create a strong overedge finish around carpet and rug edges. The overlock stitch helps secure the cut edge of the material while providing a clean and professional finished appearance.
With sewing speeds up to approximately 3,000 stitches per minute, an overedge width of approximately 9–10 mm, stitch length up to 6 mm, and presser foot clearance up to approximately 9 mm, the JK-T109 is built for demanding professional carpet-finishing applications.
Designed Specifically for Carpets & Rugs
HEAVY-DUTY CARPET & RUG OVERLOCK MACHINE
The JACK® JK-T109 is designed specifically for overlocking the edges of carpets, rugs, mats, and other thick textile materials. It is not simply a standard garment overlock machine.
The heavy-duty configuration allows the machine to work with materials approximately 7–8 mm thick under applicable sewing conditions.

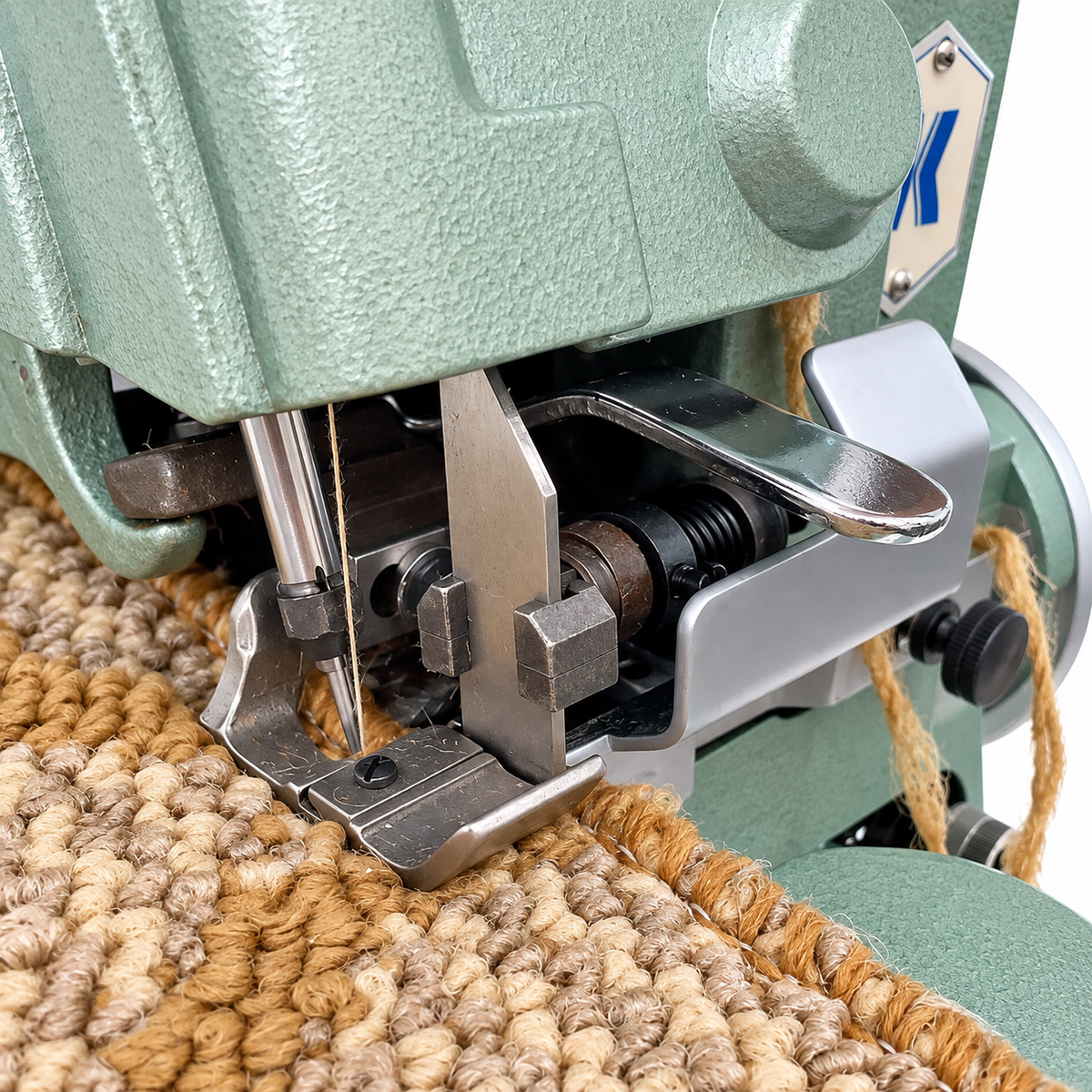

Professional Edge Finishing
The 3-thread overlock stitch wraps thread around the cut edge of the material, helping secure the carpet or rug edge against fraying while creating a clean decorative finish.
This makes the JK-T109 particularly useful for carpet fabrication, rug modification, custom mats, carpet resizing, edge restoration, and professional floor-covering production.
Heavy-Duty Flat-Bed Design
The machine's flat-bed industrial platform provides a stable working surface for handling large and heavy carpet sections. This configuration helps the operator support and guide bulky materials consistently through the sewing area.
Wide 9–10 mm Overedge
The JK-T109 produces an overedge approximately 9–10 mm wide, providing substantial edge coverage for thick carpet and rug materials where a conventional narrow garment overlock stitch would not provide sufficient coverage.
Up to 6 mm Stitch Length
The machine supports stitch lengths up to approximately 6 mm, providing the longer stitch formation needed for thick, dense materials and decorative carpet-edge finishing.
High Presser Foot Clearance
With presser foot clearance up to approximately 9 mm, the machine provides the additional space required to position thick carpet, rug, and mat materials beneath the presser foot.
Automatic Lubrication
The JACK® JK-T109 features an automatic lubrication system designed to provide continuous lubrication to the machine's internal mechanisms during professional operation, supporting smooth performance and reducing routine manual lubrication requirements.
Key Features
- Specialized Carpet Overlock: Designed specifically for carpets, rugs, mats, and other thick textile materials.
- 1-Needle / 3-Thread Configuration: Produces a professional 3-thread overlock edge finish.
- Heavy-Duty Material Capability: Designed for thick materials approximately 7–8 mm under applicable sewing conditions.
- Wide Overedge: Approximately 9–10 mm edge coverage for heavy carpet and rug materials.
- Long Stitch Capability: Stitch length up to approximately 6 mm.
- High Presser Foot Clearance: Up to approximately 9 mm for positioning thick materials.
- High-Speed Industrial Operation: Maximum sewing speed up to approximately 3,000 stitches per minute.
- Flat-Bed Construction: Provides a stable sewing platform for handling large and heavy materials.
- Automatic Lubrication: Supports smooth and dependable industrial operation.
- Professional Edge Protection: Helps prevent carpet and rug edges from fraying.
- Decorative Finish: Creates a clean, finished appearance around carpet and rug edges.
Ideal For
- Carpet edge finishing.
- Area rugs.
- Custom rugs.
- Floor mats.
- Automotive mats.
- Carpet resizing.
- Carpet fabrication.
- Rug modification.
- Edge restoration.
- Heavy textile overedging.
- Professional floor-covering shops.
- Commercial carpet and rug production.
Technical Specifications
| Brand | JACK® |
| Model | JK-T109 |
| Machine Type | Heavy-Duty Carpet Overlock Industrial Sewing Machine |
| Number of Needles | 1 |
| Number of Threads | 3 |
| Application | Carpets, Rugs, Mats & Heavy Textile Edge Finishing |
| Recommended Material Thickness | Approx. 7–8 mm Under Applicable Sewing Conditions |
| Maximum Sewing Speed | Up to Approx. 3,000 Stitches Per Minute |
| Overedge Width | Approx. 9–10 mm |
| Maximum Stitch Length | Up to Approx. 6 mm |
| Presser Foot Lift | Up to Approx. 9 mm |
| Needle System | DM×5 / DC×27 Depending on Machine Configuration |
| Bed Type | Flat-Bed |
| Lubrication | Automatic |
| Industrial Use | Yes |
| Table & Stand | Included |

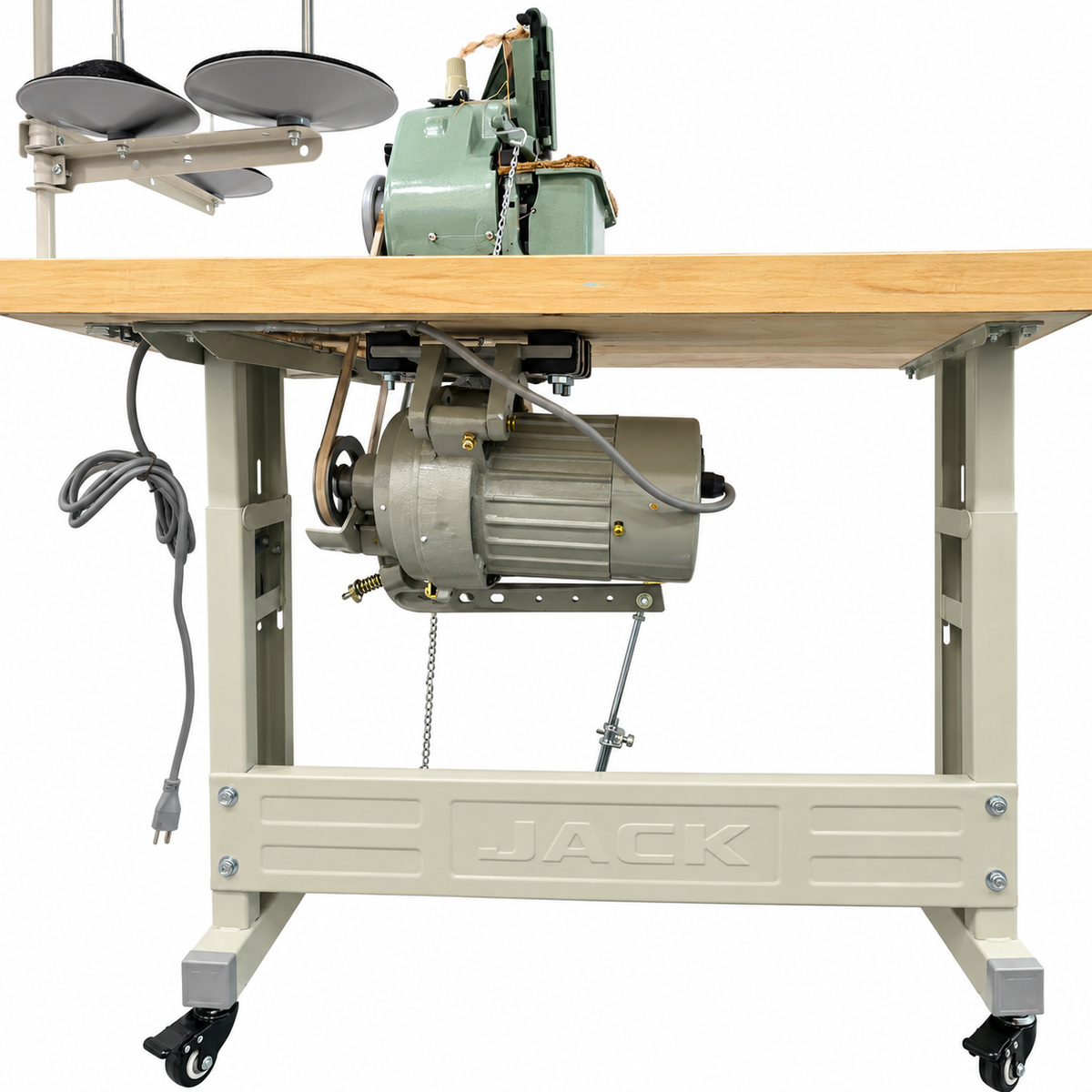

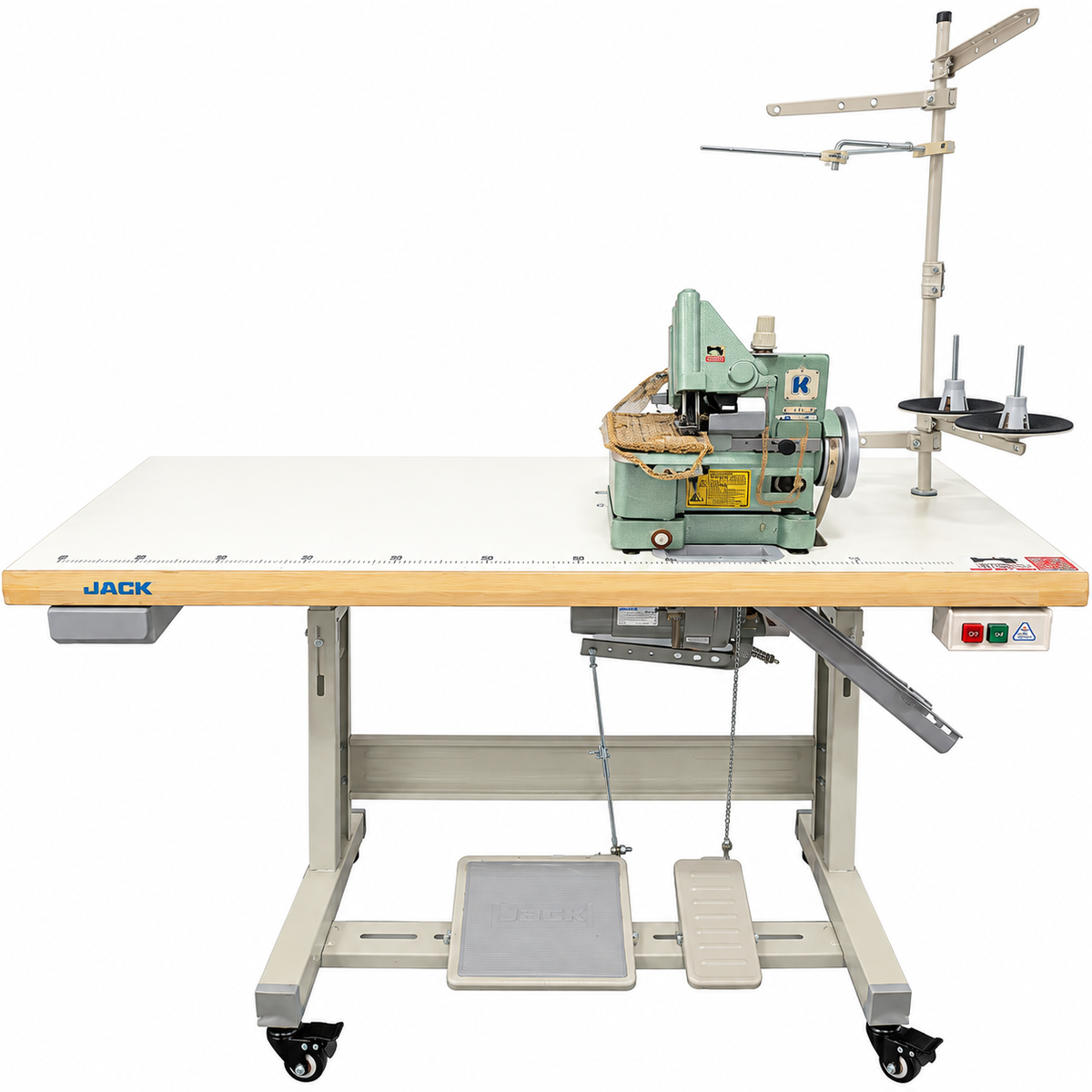

What's Included
- JACK® JK-T109 Heavy-Duty Carpet Overlock Machine Head.
- Industrial Sewing Table.
- Heavy-Duty Industrial Stand.
- Standard Machine Accessories.
The JACK® JK-T109 Heavy-Duty Carpet Overlock Industrial Sewing Machine is a specialized professional solution for finishing carpets, rugs, mats, and other thick textile products. Its 1-needle 3-thread configuration, wide 9–10 mm overedge, long stitch capability, high presser-foot clearance, stable flat-bed design, and automatic lubrication provide the strength and control required for professional carpet and rug edge finishing.
