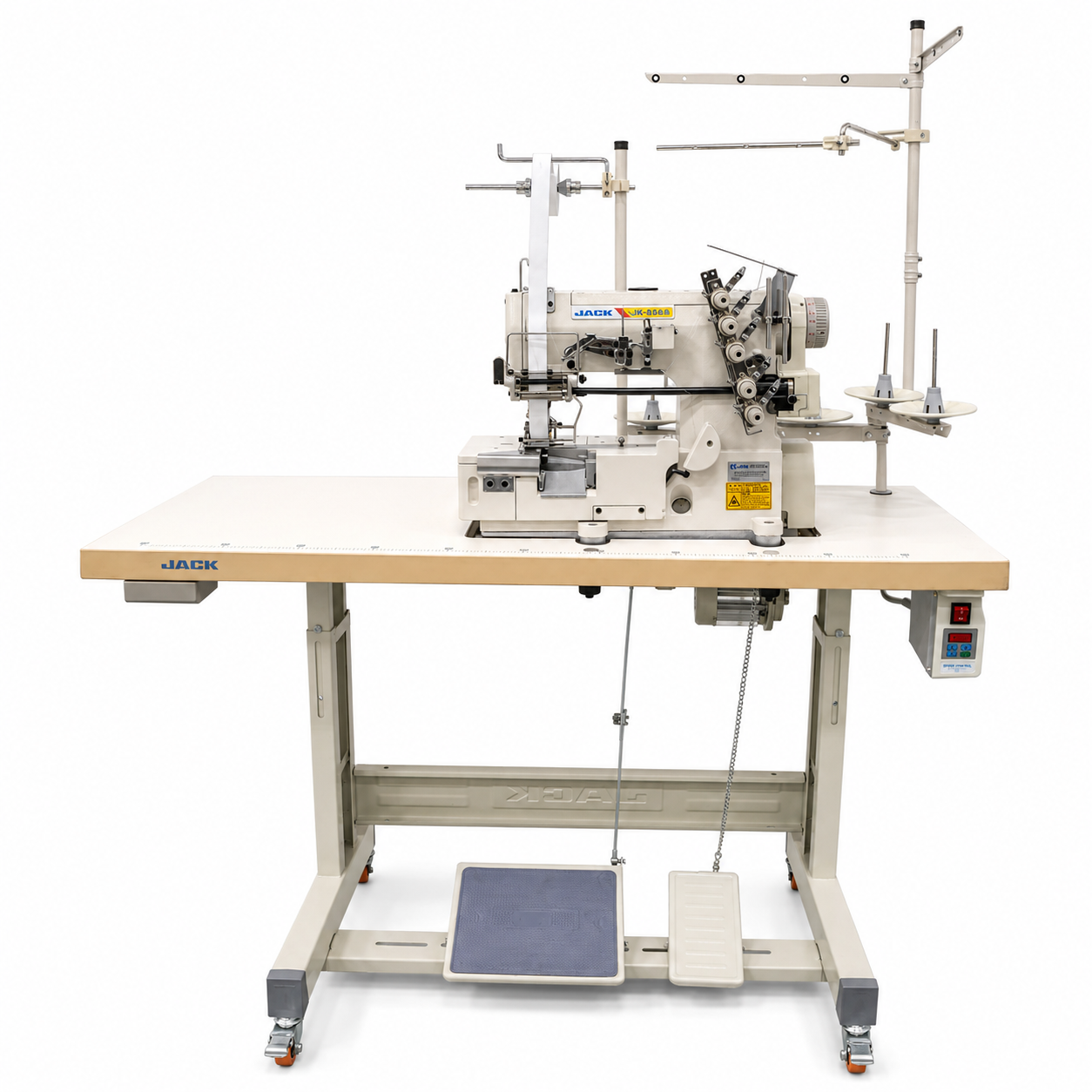

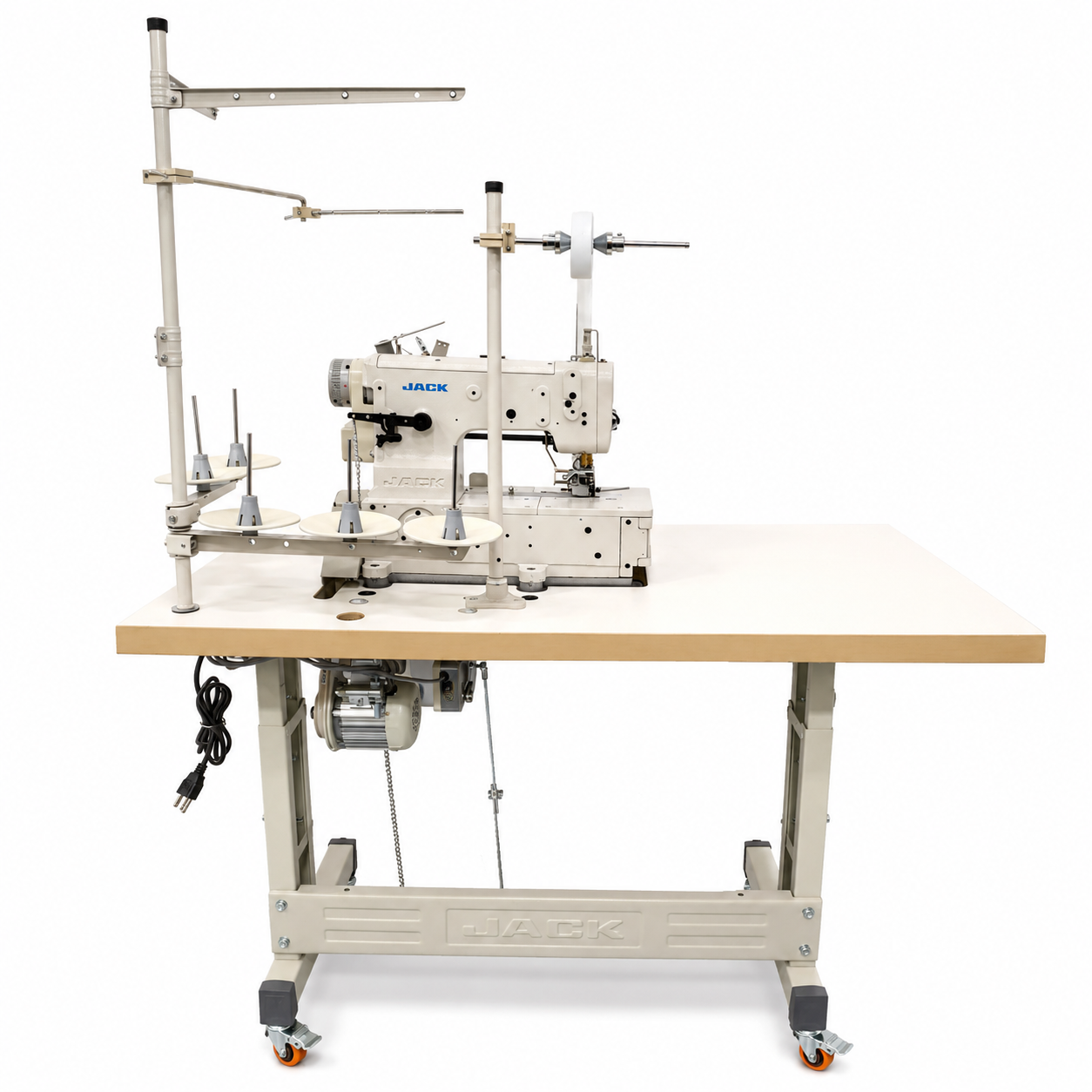

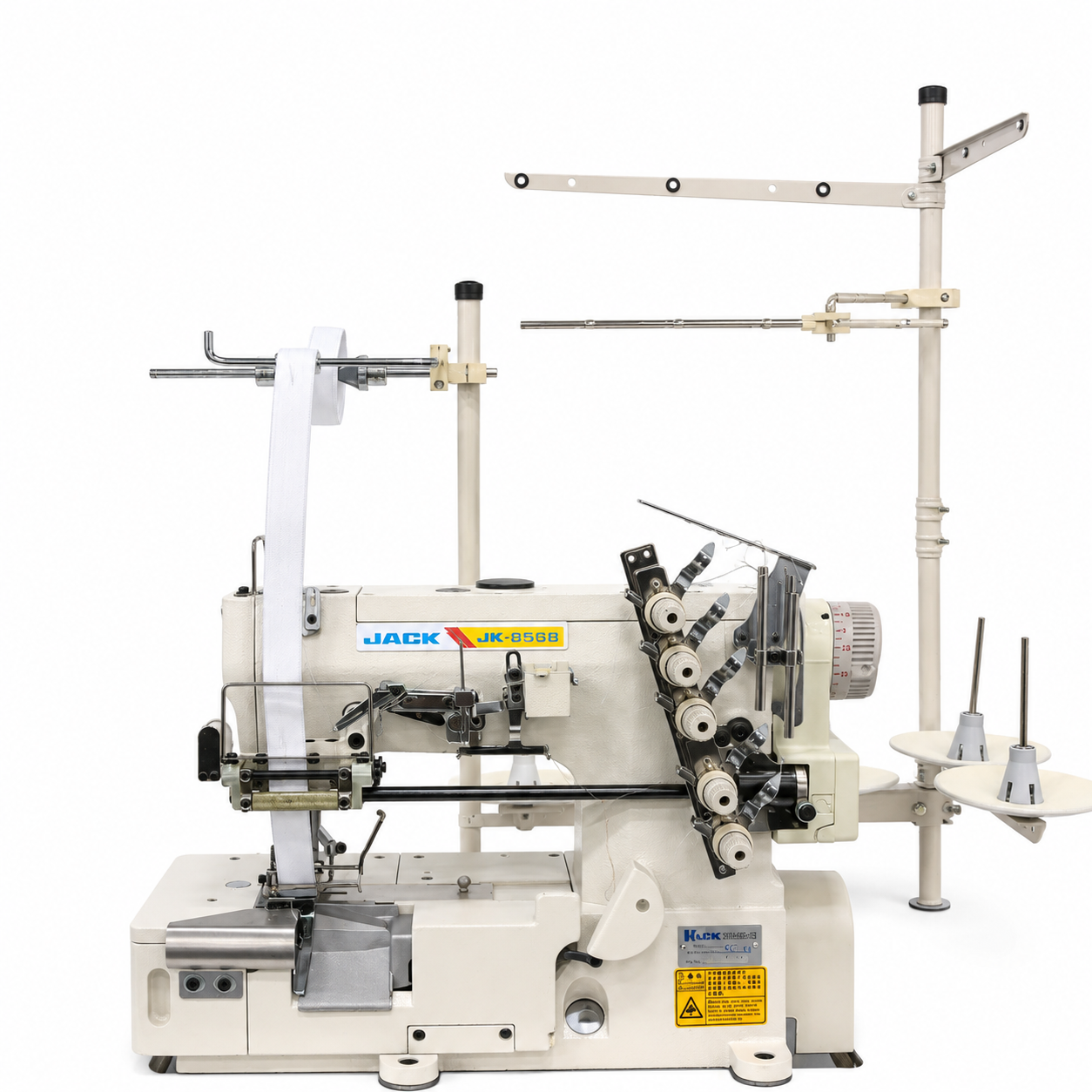

JACK® JK-8568-05GBX356 - 3-Needle 5-Thread Flatbed Interlock Sewing Machine with Elastic Attaching & Edge Trimming

JACK® JK-8568-05GBX356 - 3-Needle 5-Thread Flatbed Interlock Sewing Machine with Elastic Attaching & Edge Trimming

3 Needles • 5 Threads • Elastic Attaching • Edge Trimming • Upper & Lower Covering • 5.6 mm Gauge

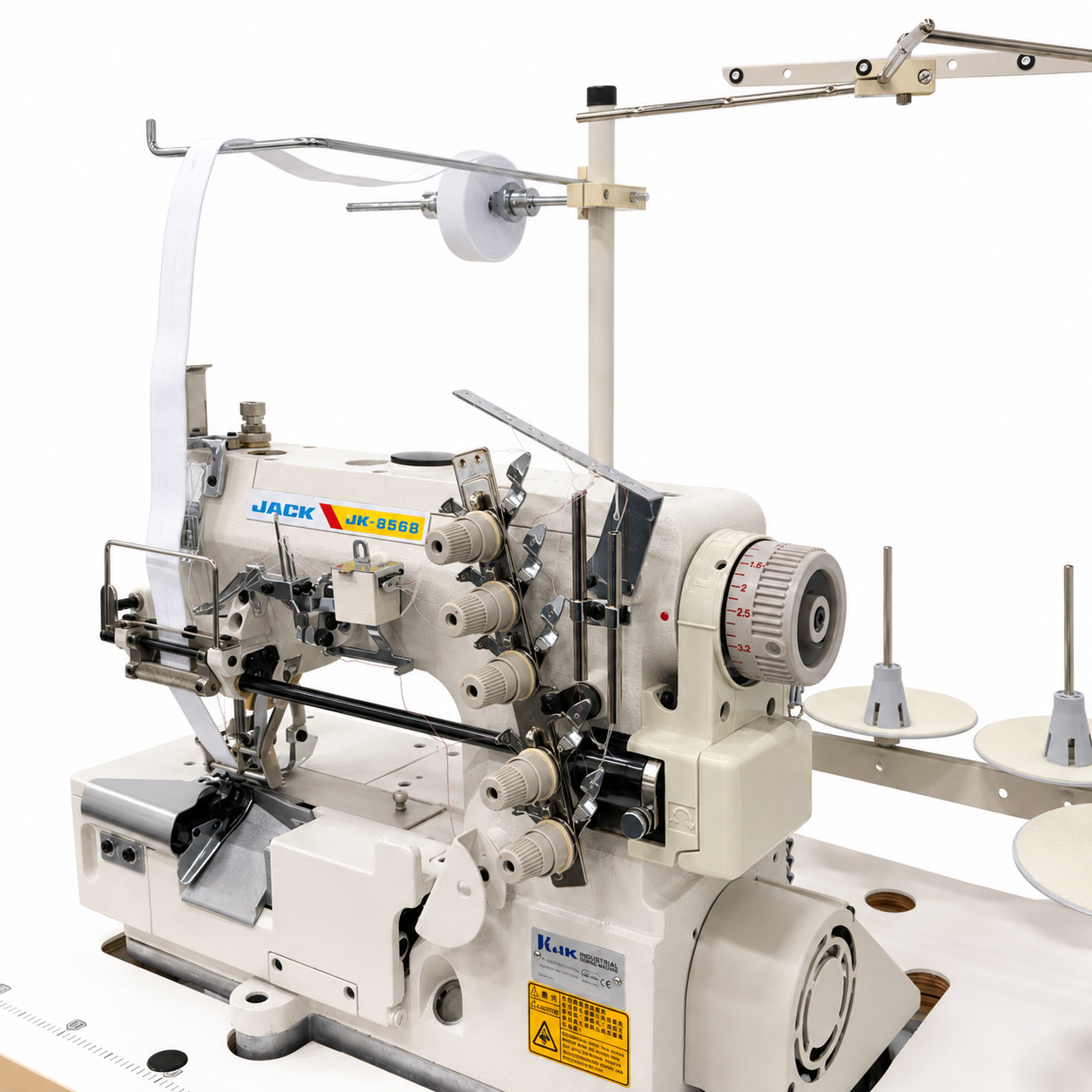

The JACK® JK-8568-05GBX356 is a specialized industrial 3-needle, 5-thread flatbed interlock / coverstitch sewing machine designed for elastic attaching and simultaneous fabric edge trimming. Unlike a standard flatbed coverstitch machine, the 05GB configuration combines multiple production operations into one sewing process, making it particularly effective for underwear, sportswear, activewear, and other knit garment manufacturing.

The machine applies elastic while simultaneously trimming excess fabric from the edge, helping produce a clean, consistent professional finish while reducing separate production steps. Its upper and lower covering capability provides strong, flexible seams suitable for garments that must stretch during use.

The X356 configuration provides a 5.6 mm needle gauge. The machine uses the UY128GAS needle system, with recommended needle sizes from #11/75 to #14/90 for light to medium-weight knit fabrics.

Special 05GB Configuration

The 05GB configuration is specifically designed for elastic attaching applications where the elastic must be sewn to the garment while the excess fabric edge is trimmed during the same operation. This combination improves production efficiency and provides a cleaner, more consistent finish than performing the operations separately.

• Attaches elastic during sewing.
• Simultaneously trims excess fabric from the edge.
• Produces upper and lower covering stitches.
• Reduces separate handling and finishing operations.
• Provides consistent elastic application on production garments.

Key Features

• 3-Needle / 5-Thread Configuration: Produces strong, flexible professional interlock seams.

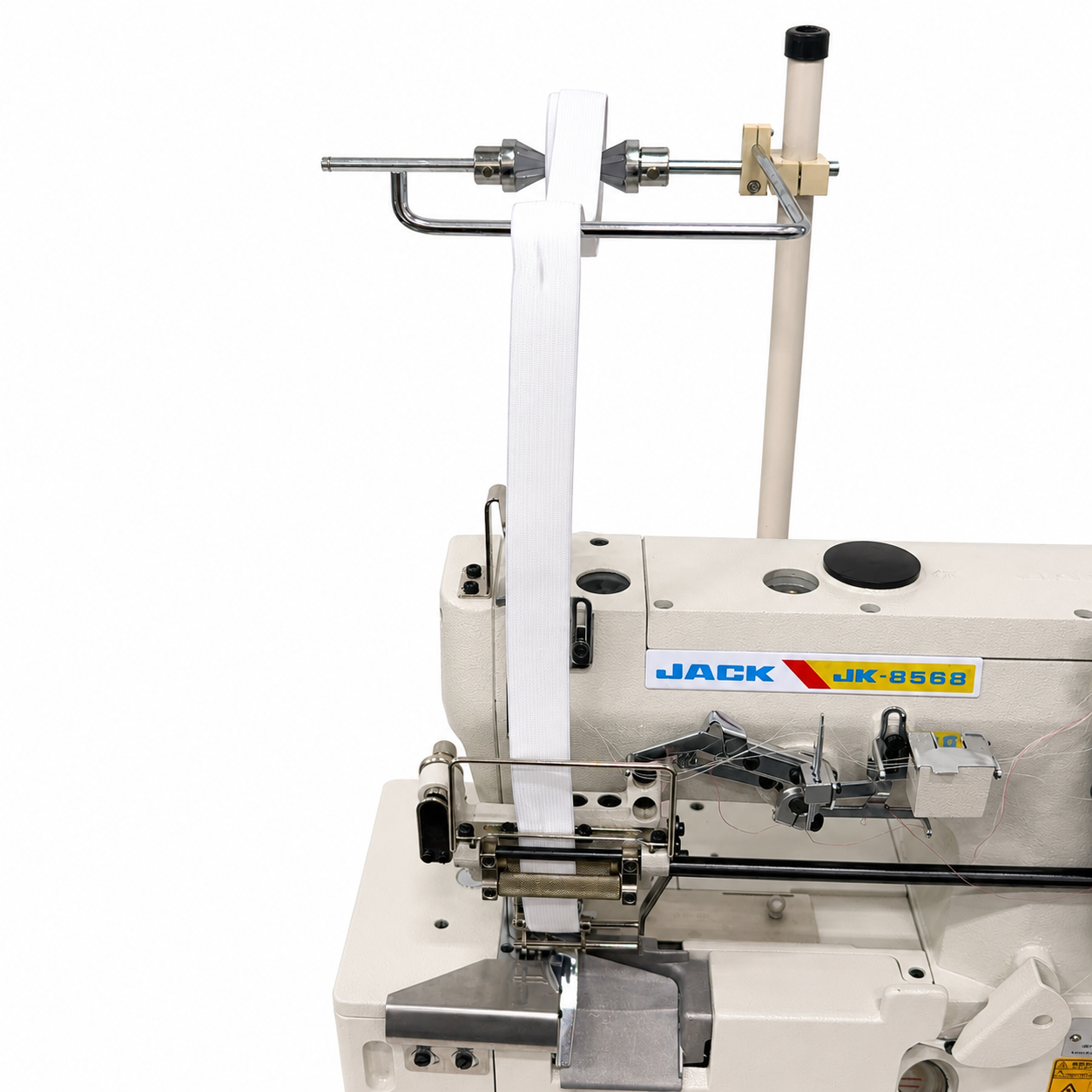

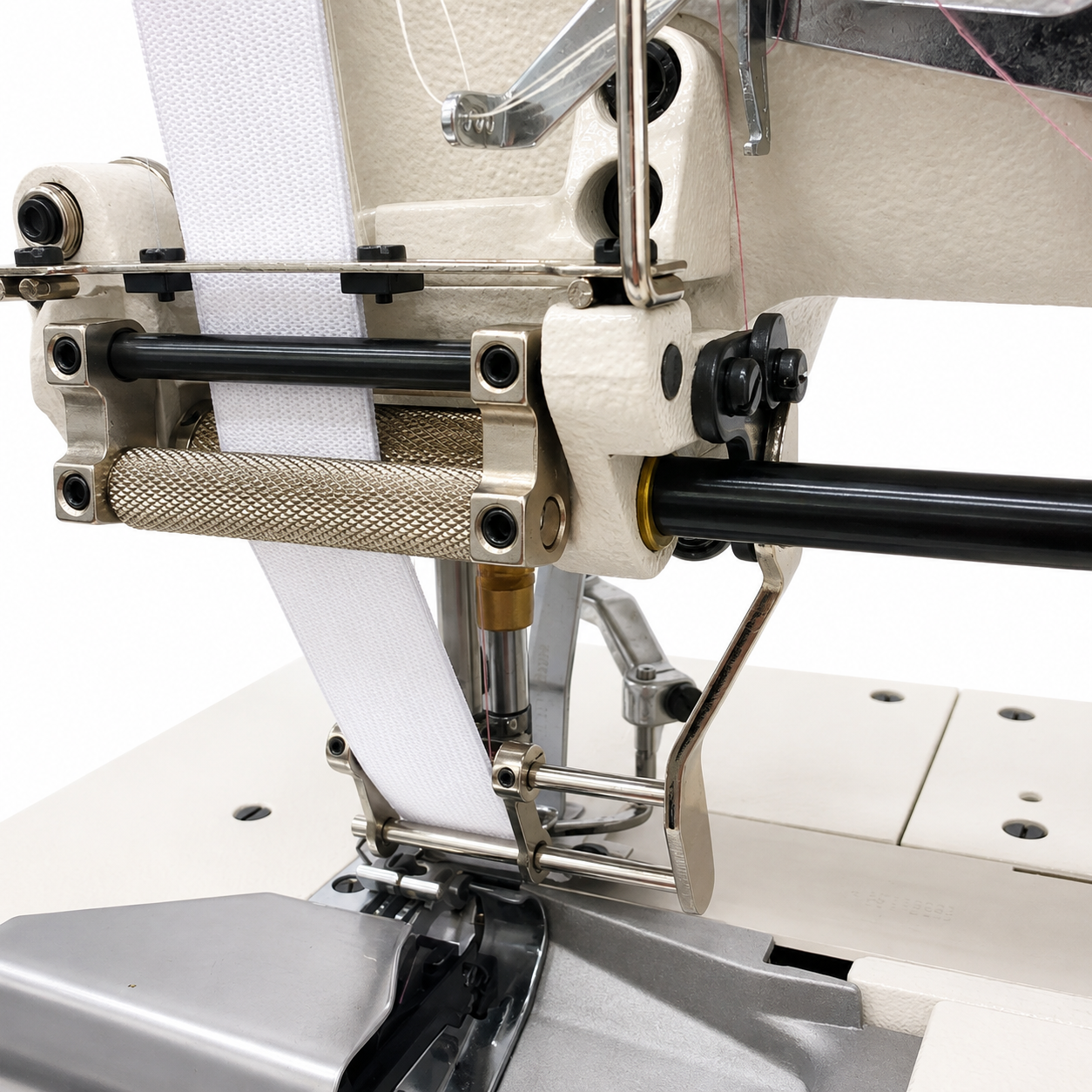

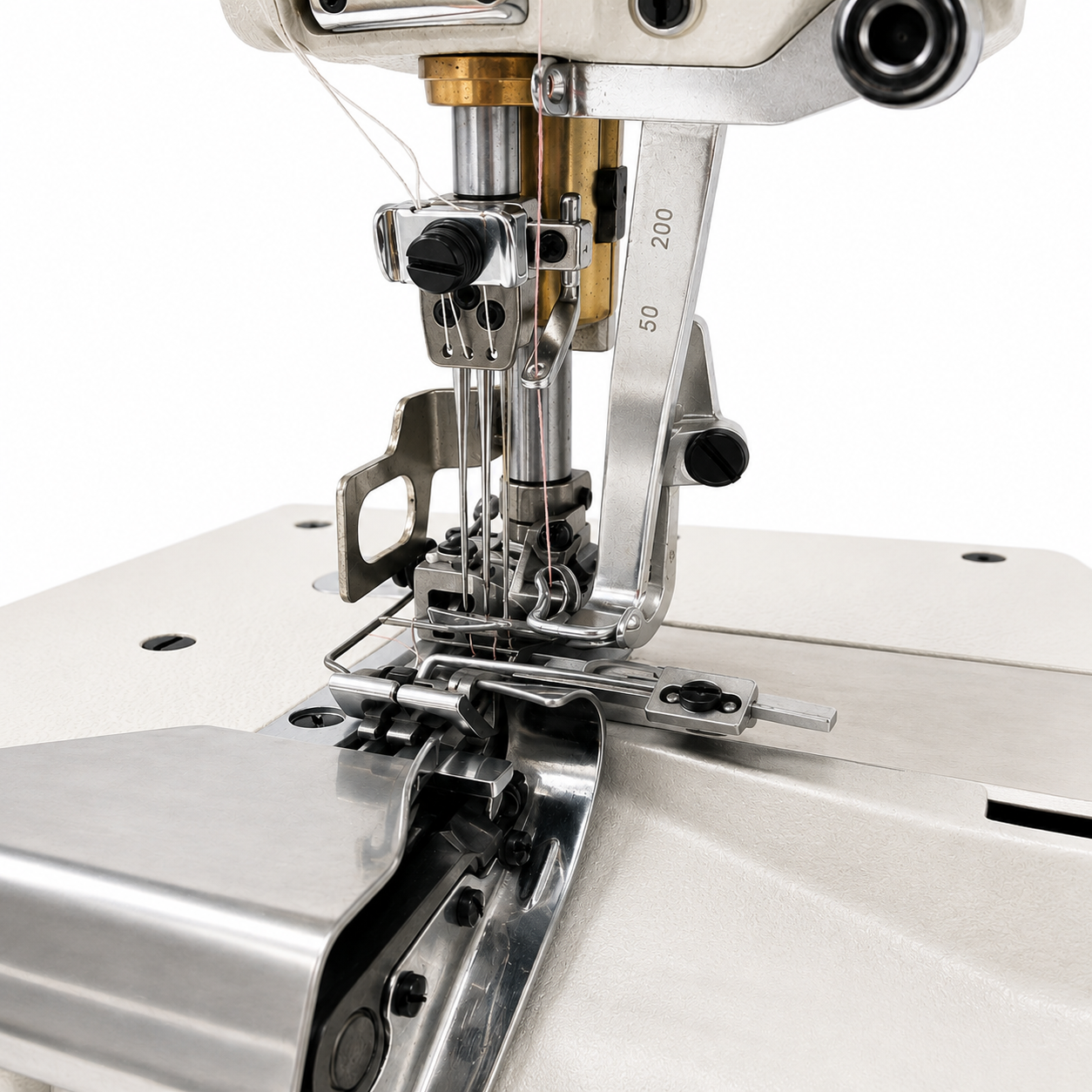

• Elastic Attaching Device: Designed specifically for applying elastic during garment production.
• Edge Trimming Mechanism: Trims excess material while sewing for a clean finished edge.
• Upper Covering: Provides professional covering stitches on the upper surface of the fabric.
• Lower Covering: Creates flexible looper coverage underneath the fabric.
• 5.6 mm X356 Gauge: Provides professional stitch spacing for elastic and coverstitch applications.
• Flatbed Configuration: Provides a stable work surface for garment panels and continuous production.
• Differential Feed: Helps control stretching and gathering on knit and elastic fabrics.
• Automatic Lubrication: Provides consistent lubrication for continuous industrial operation.
• High-Speed Production: Maximum sewing speed up to 5,000 stitches per minute.
• UY128GAS Needle System: Professional industrial coverstitch needle system.

Ideal For

• Underwear production.
• Elastic waistbands.
• Elastic leg openings.
• Sportswear.
• Activewear.
• Stretch garments.
• Knitwear.
• Intimate apparel.
• Light to medium-weight knit fabrics.
• Garment operations requiring elastic attachment and edge trimming in one process.

Technical Specifications

What's Included

• JACK® JK-8568-05GBX356 Industrial Sewing Machine.
• Elastic Attaching System.
• Edge Trimming Mechanism.
• Industrial Sewing Table.
• Heavy-Duty Industrial Stand.
• Standard Machine Accessories.

The JACK® JK-8568-05GBX356 is more than a standard 3-needle coverstitch machine. Its specialized 05GB configuration combines elastic attachment, edge trimming, and coverstitch sewing in a single operation, making it an efficient production solution for underwear, sportswear, activewear, and other knit garments requiring clean, consistent elastic finishing.
