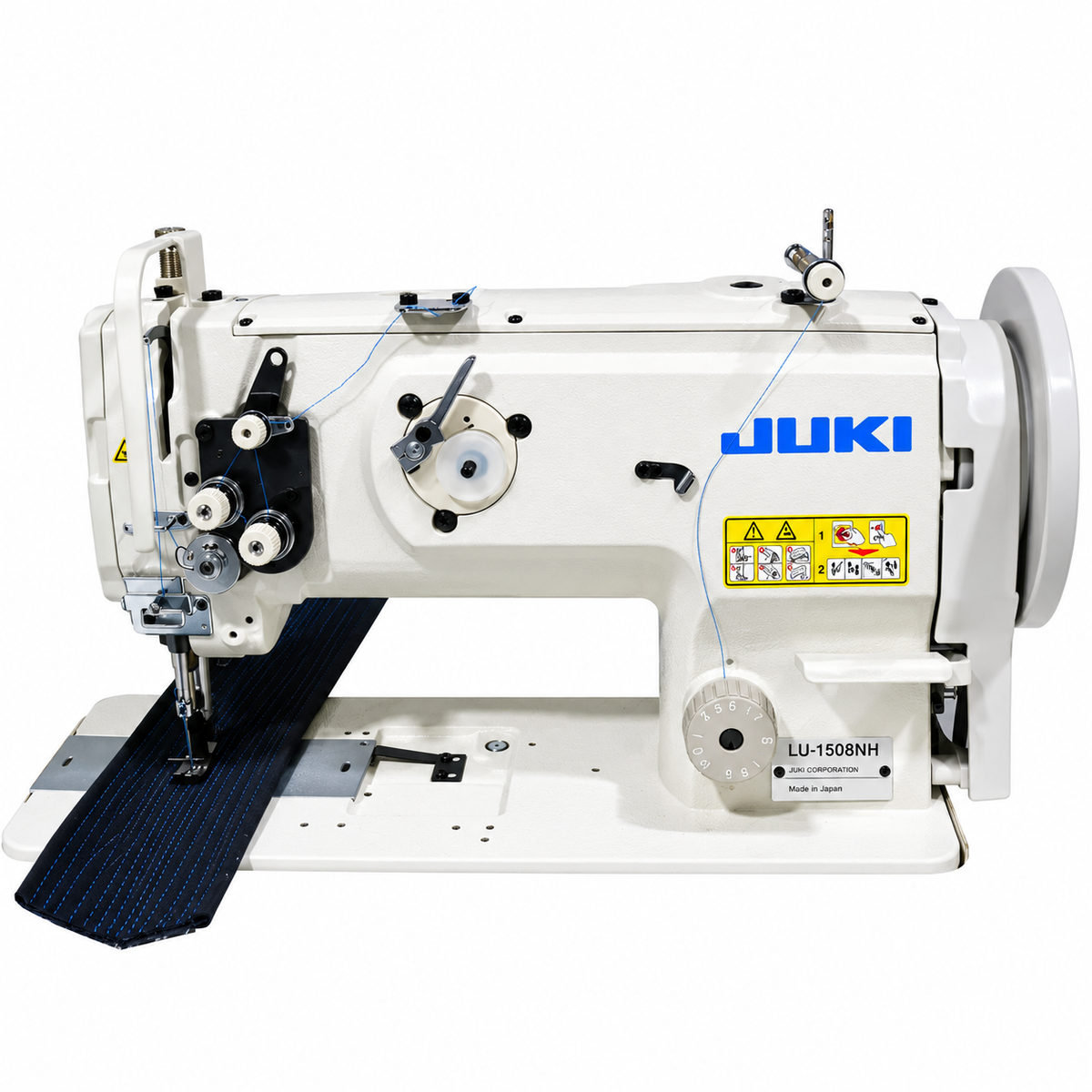

JUKI® LU-1508NH – Single Needle Unison Feed Walking Foot Lockstitch Machine for Extra Heavy Materials with Vertical-Axis Double-Capacity Hook, 10mm Stitch Length & 16mm Foot Lift – Complete Setup, Table & Stand Included

JUKI® LU-1508NH - Single Needle Unison Feed Walking Foot Lockstitch Machine for Extra Heavy Materials

Single Needle • Unison Feed Walking Foot • Extra Heavy-Weight • 10 mm Stitch Length • 16 mm Foot Lift • Servo Motor

The JUKI® LU-1508NH is a professional single-needle unison-feed walking foot lockstitch machine designed for extra heavy-weight sewing applications. Its heavy-duty feeding system provides excellent material control when sewing thick, layered, and difficult-to-feed materials.

With a maximum stitch length of 10 mm in both forward and reverse, a 16 mm presser foot lift, adjustable alternating vertical movement, and complete rectangular feed, the LU-1508NH provides the clearance, feeding strength, and stitch control required for demanding industrial production.

The machine accommodates heavy industrial thread from #20 to #1 / B69 to B207 and needle sizes from Nm125 to Nm200, making it particularly suitable for applications requiring strong seams and heavy thread.

Key Features

• Extra Heavy-Weight Capability: Designed for demanding industrial sewing applications involving thick and multi-layer materials.
• Single Needle Unison Feed: Provides positive and consistent material feeding for improved control when sewing difficult materials.
• Walking Foot System: Helps maintain alignment between multiple layers and reduces material shifting during sewing.
• Complete Rectangular Feed: Provides stable material transport and consistent stitch formation throughout the sewing cycle.
• 10 mm Maximum Stitch Length: Long forward and reverse stitches provide flexibility for structural and decorative heavy-duty seams.
• 16 mm Presser Foot Lift: High knee-operated foot lift provides additional clearance for positioning thick material assemblies.
• Adjustable Alternating Vertical Movement: Adjustable from 2.5 to 6.5 mm for improved feeding across different material thicknesses.
• Heavy Thread Capability: Supports industrial thread sizes from #20 to #1 and B69 through B207.
• Heavy Needle Capability: Supports needle sizes from Nm125 through Nm200.
• Centralized Lubrication: Oil-wick lubrication supports reliable operation during continuous industrial use.
• Automatic Hook Lubrication: Provides continuous lubrication to the hook mechanism during operation.
• 255 mm Working Space: Provides approximately 10 inches of clearance between the needle and machine arm.
• Servo Motor Included: Provides quiet operation, adjustable speed control, and improved energy efficiency compared with traditional clutch motors.

Unison Feed Walking Foot System

The unison feed walking foot system is designed to provide dependable feeding when sewing heavy, layered, or difficult-to-feed materials. The coordinated feeding action helps move material consistently through the sewing area, reducing layer slippage and helping maintain uniform stitch length.

Combined with the machine's complete rectangular feed motion and adjustable alternating foot movement, this system provides excellent control when sewing across seams, multiple layers, and changing material thicknesses.

Heavy Thread & Needle Capability

The LU-1508NH is designed for applications requiring substantially heavier sewing thread than standard garment machines. It supports thread sizes from #20 through #1, B69 through B207, and Nm 40/3 through 8/3.

The machine uses 190R / 135×17 needles with a supported size range of Nm125–Nm200. The standard needle at the time of delivery is Nm180.

Ideal For

• Furniture upholstery.
• Automotive upholstery.
• Marine upholstery.
• Leather goods.
• Heavy canvas.
• Vinyl materials.
• Heavy bags and luggage.
• Boat covers.
• Awnings.
• Tents.
• Tarpaulins.
• Belts and straps.
• Heavy workwear.
• Industrial textile products.
• Multi-layer heavy-duty sewing applications.

Technical Specifications

Advantages of the Servo Motor

• Quiet operation compared with conventional clutch motors.
• Significantly reduced power consumption.
• Lighter and more compact than traditional clutch motors.
• Adjustable speed control for precise heavy-duty sewing.
• Motor rotation can be reversed when required by the installation.
• Reliable operation with reduced mechanical maintenance.
• Excellent low-speed control for detailed sewing applications.

What's Included

• JUKI® LU-1508NH Machine Head.
• Energy-Efficient Servo Motor.
• Industrial Table Top — Made in USA.
• Heavy-Duty Industrial Stand / Legs.
• Standard Machine Accessories.
• Instruction Manual.
• Parts Book and Documentation.

The JUKI® LU-1508NH is engineered for professional extra heavy-weight sewing where powerful feeding, long stitches, heavy thread, and high material clearance are required. Its unison-feed walking foot system, 10 mm stitch capability, 16 mm presser foot lift, and servo-motor control make it an excellent solution for leather, upholstery, canvas, automotive, marine, and other demanding industrial sewing applications.
