JUKI® LU-1508NS – Single Needle Unison Feed Walking Foot Lockstitch Machine for Heavy Materials with Vertical-Axis Double-Capacity Hook, 9mm Stitch Length & 16mm Foot Lift – Complete Setup, Table & Stand Included

Single Needle • Compound Walking Foot • Large Hook • Extra Heavy-Weight • 10 mm Stitch Length • Servo Motor

The JUKI® LU-1508NS is a professional heavy-duty single-needle industrial lockstitch sewing machine designed for extra heavy-weight materials. Its compound walking foot feeding system provides positive and consistent material transport, making it an excellent choice for demanding sewing applications involving thick, layered, or difficult-to-feed materials.

With a maximum stitch length of 10 mm, a high 16 mm presser foot lift, complete rectangular feed, and a large working capacity, the LU-1508NS provides the power and control required for professional upholstery, leatherwork, canvas, automotive, marine, and other heavy-duty sewing operations.

The machine accommodates heavy industrial thread ranging from #20 to #1 / B69 to B207 and needle sizes from Nm125 to Nm200, making it suitable for applications requiring strong seams and heavy thread.

Key Features

• Extra Heavy-Weight Capability: Engineered for demanding industrial sewing applications involving thick and layered materials.
• Compound Walking Foot Feed: Provides positive material feeding for improved control and reduced layer shifting.
• Complete Rectangular Feed: Provides stable and consistent material transport throughout the sewing cycle.

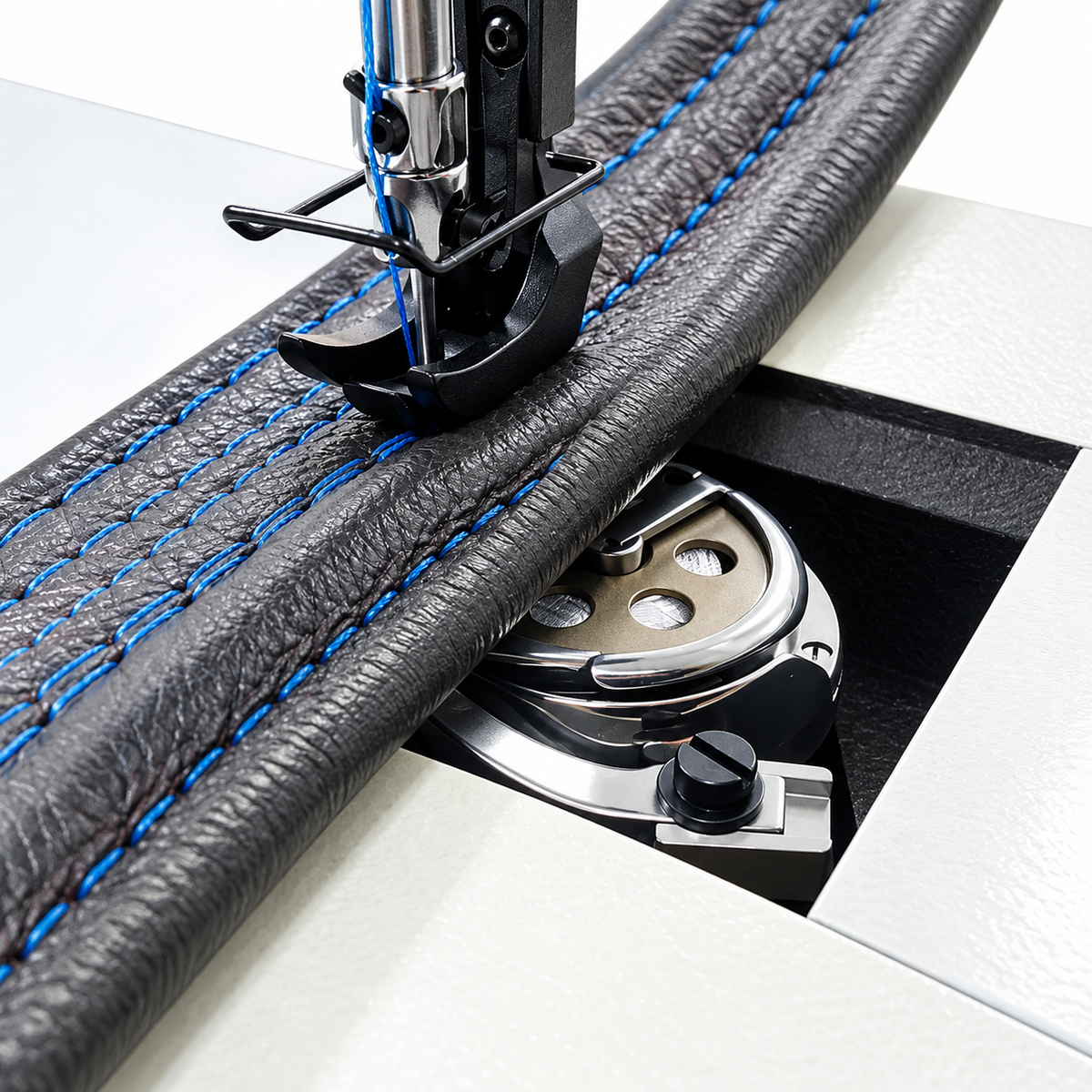

• Large Hook System: Increased bobbin thread capacity helps reduce interruptions during long production runs.
• 10 mm Maximum Stitch Length: Long forward and reverse stitches are ideal for heavy-duty decorative and structural seams.

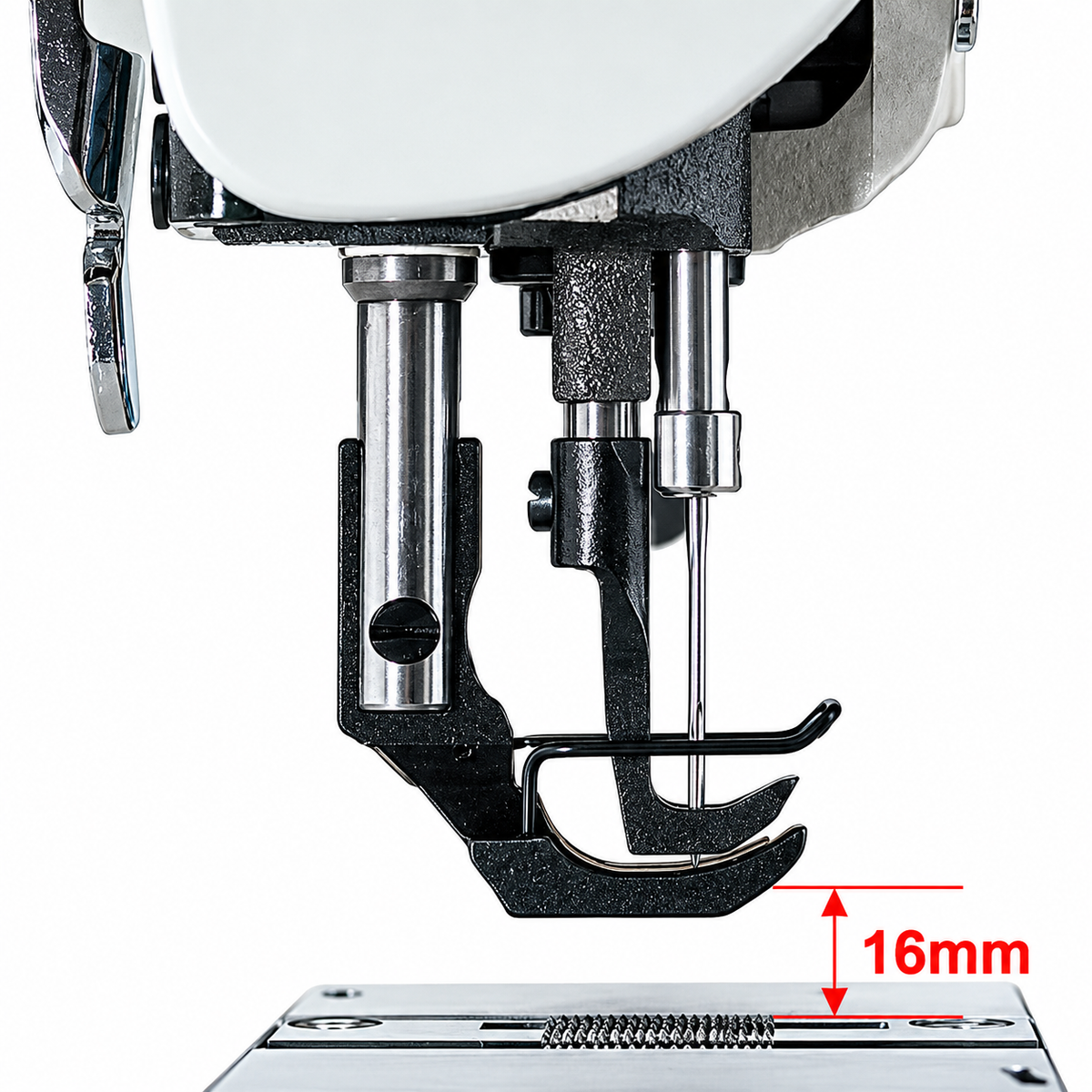

• 16 mm Presser Foot Lift: Provides additional clearance for positioning thick and multi-layer material assemblies.
• Adjustable Alternating Foot Movement: 2.5–6.5 mm range provides flexibility when sewing materials with changing thicknesses.
• Heavy Thread Capability: Supports thread sizes from #20 to #1 and B69 through B207.
• Automatic Hook Lubrication: Helps maintain reliable hook performance during continuous industrial operation.
• Centralized Oil-Wick Lubrication: Provides dependable lubrication to the machine's primary mechanisms.
• 255 mm Working Space: Provides ample room between the needle and machine arm for handling larger projects.
• Servo Motor Included: Provides quiet operation, precise speed control, and improved energy efficiency compared with conventional clutch motors.

Compound Walking Foot Feeding

The compound walking foot feeding system is designed to move heavy and multi-layer materials evenly through the sewing area. This helps reduce slipping between material layers and improves stitch consistency when working with leather, upholstery, canvas, vinyl, and other difficult-to-feed materials.

Combined with the machine's complete rectangular feed motion and adjustable alternating foot movement, the LU-1508NS provides excellent control when sewing across seams, multiple layers, and changing material thicknesses.

Ideal For

• Furniture upholstery.
• Automotive upholstery.
• Marine upholstery.
• Leather goods.
• Canvas products.
• Vinyl materials.
• Heavy bags and luggage.
• Boat covers.
• Awnings.
• Tents and tarpaulins.
• Heavy workwear.
• Belts and straps.
• Industrial textile products.
• Extra heavy-weight layered materials.

Technical Specifications

Advantages of the Servo Motor

• Quiet operation compared with conventional clutch motors.
• Significantly reduced power consumption.
• Lighter and more compact than traditional clutch motor systems.
• Adjustable speed control for greater operator precision.
• Motor rotation can be reversed when required by the installation.
• Reliable operation with reduced mechanical maintenance.
• Excellent low-speed control for detailed heavy-duty sewing.

What's Included

• JUKI® LU-1508NS Machine Head.
• Energy-Efficient Servo Motor.
• Industrial Table Top — Made in USA.
• Heavy-Duty Industrial Stand / Legs.
• Standard Machine Accessories.
• Instruction Manual.
• Parts Book and Documentation.

The JUKI® LU-1508NS combines extra heavy-duty sewing capacity, compound walking foot feeding, a large hook, 10 mm stitch length, high presser foot clearance, and precise servo-motor control. It is an excellent professional solution for upholstery, leather, canvas, automotive, marine, bags, luggage, and other demanding industrial applications requiring powerful feeding and consistent stitch quality.
