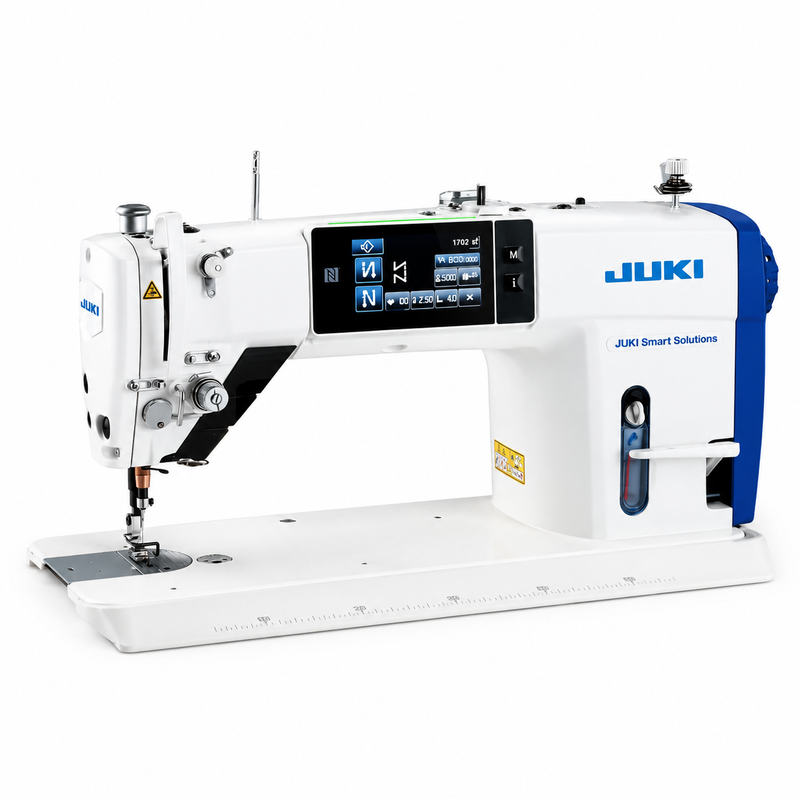

JUKI® DDL-9000C-FMS Single Needle Semi-Dry Head Direct Drive Industrial Lockstitch Sewing Machine – Complete with Table & Stand

JUKI® DDL-9000C-FMS - Single Needle Semi-Dry Head Direct Drive Industrial Lockstitch Sewing Machine

Single Needle • Full Digital • Semi-Dry Head • Direct Drive • Automatic Thread Trimmer • Medium-Weight

The JUKI® DDL-9000C-FMS is an advanced full-digital, single-needle industrial lockstitch sewing machine engineered for professional medium-weight garment production. It combines JUKI's digital sewing technology with a semi-dry head, Direct Drive system, automatic thread trimming, electronically controlled feeding, active needle-thread tension, and electronic presser foot pressure control.

Unlike conventional industrial lockstitch machines that depend heavily on mechanical adjustments and operator experience, the DDL-9000C platform allows critical sewing conditions to be digitally adjusted and reproduced. This helps maintain consistent seam quality when changing materials, products, or production requirements.

Double Digital Feed Mechanism

The DDL-9000C features a digitally controlled feed mechanism that controls both vertical and horizontal feed movement. Feed dog height and feed characteristics can be adjusted according to the material being sewn, helping optimize seam quality across different sewing conditions.

Different feed loci can be selected through the operation panel, allowing the feeding characteristics of the machine to be adapted to the fabric and sewing process without relying exclusively on conventional mechanical adjustments.

Short Remaining Thread After Trimming

The double digital feed mechanism works together with the double-edge rotary thread trimming system to lower the feed dog during thread trimming. This allows the cutting knives to operate close to the needle entry point and helps reduce the remaining needle thread after trimming to approximately 3 mm or less.

When the machine stops with the needle bar raised, the feed dog does not protrude above the throat plate surface, making it easier to place and remove material while helping prevent damage to delicate fabrics.

Digital Needle-Thread Active Tension

The Active Tension system digitally controls needle-thread tension. Thread tension settings can be entered through the operation panel and stored in memory, allowing sewing conditions to be reproduced when returning to the same product or material.

This digital control helps reduce setup time and provides more consistent stitch quality in operations where material characteristics or fabric layers change during sewing.

Active Presser Foot Pressure Control

Presser foot pressure is electronically controlled. In automatic operation, the machine can respond to changes in material thickness and adjust presser foot pressure accordingly, helping maintain stable feeding when sewing across multi-layered sections.

Needle-thread tension, presser foot pressure, stitch pitch, feed locus, and feed dog height can be coordinated to provide greater control over seam quality.

Key Features

• Full Digital Control: Digitally controlled sewing parameters provide repeatable machine settings and consistent production quality.
• Single Needle Lockstitch: Designed for professional straight-stitch garment production.

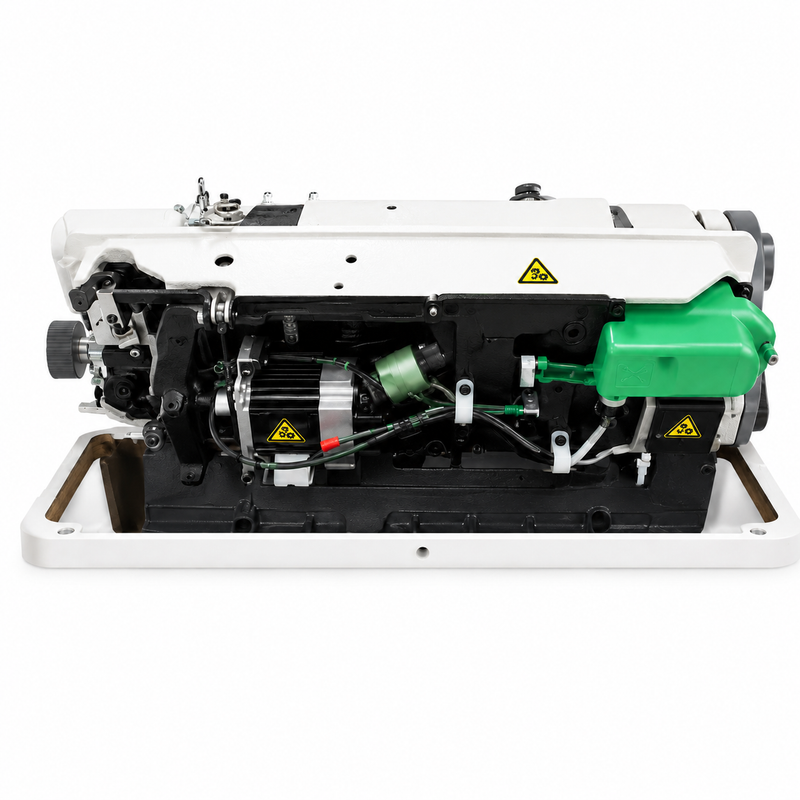

• Semi-Dry Head: Helps reduce oil contamination around the needle area and finished garments.
• Direct Drive System: Compact AC servo motor is directly connected to the main shaft for responsive and efficient operation.
• Double Digital Feed: Electronic vertical and horizontal feed control provides greater flexibility when adapting the machine to different materials.
• Digital Feed Dog Height: Feed dog height can be adjusted according to the sewing application.
• Selectable Feed Locus: Feeding characteristics can be configured through the operation panel.
• Active Needle-Thread Tension: Digitally controlled thread tension can be stored and reproduced.
• Electronic Presser Foot Pressure: Provides precise pressure control and improved handling across changing material thicknesses.
• Automatic Thread Trimmer: Double-edge rotary trimming system provides fast, clean thread cutting.
• Short Thread Trimming: Remaining needle thread can be reduced to approximately 3 mm or less.
• Needle Thread Clamp: Draws the needle thread underneath the material at the beginning of sewing to help reduce thread tangling on the underside.
• Automatic Presser Foot Lifter: AK-154 stepper-motor auto-lifter provides electronically controlled presser foot lifting.
• Customizable Hand Switches: Frequently used sewing functions can be assigned to the machine's hand switches.
• Reverse-Feed Lever: Allows fine correction sewing and reverse-feed operation.
• 5-Level LED Lighting: Dual-direction illumination around the needle entry area improves visibility.

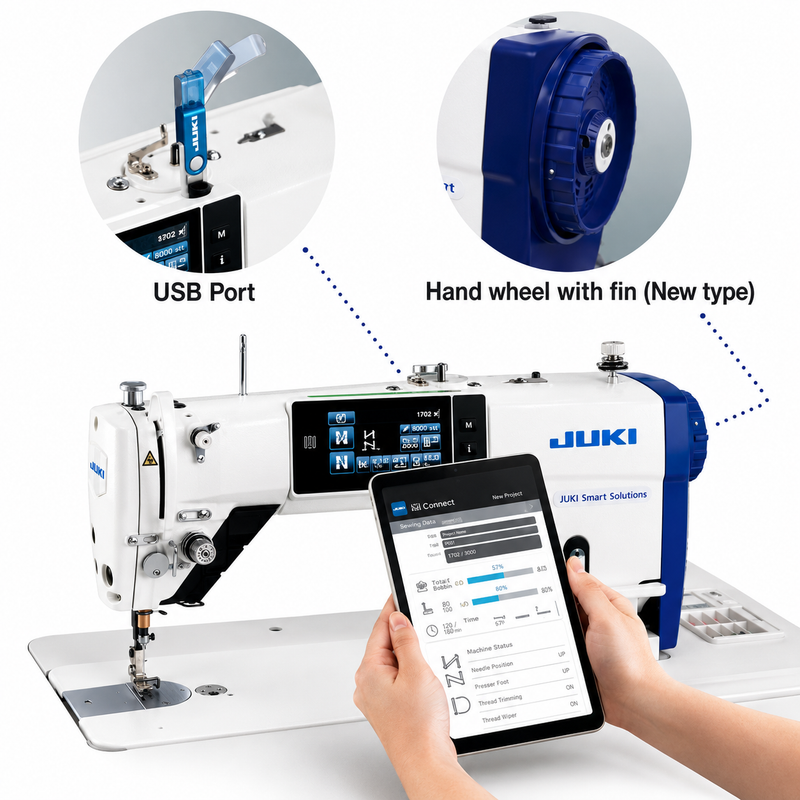

• USB Connectivity: Supports sewing-data management and software updates using compatible USB media.
• NFC Capability: Supports contactless data transfer to compatible Android devices.

Digital Operation Panel

The digital operation panel provides separate operating environments for machine operators and service personnel. Sewing conditions and machine settings can be managed directly from the panel, allowing adjustments to be standardized across production operations.

USB and NFC connectivity provide additional options for transferring sewing data, managing machine settings, and supporting production management applications.

AK-154 Automatic Presser Foot Lifter

The AK-154 auto-lifter uses a stepping motor for quieter and more precise operation. Presser foot lift can be electronically adjusted through the operation panel, with a maximum programmable lift of up to 13.5 mm depending on the configured lifting stage.

Ideal For

• Professional garment manufacturing.
• Medium-weight apparel.
• Shirts and blouses.
• Uniforms.
• Fashion garments.
• Dress pants.
• General apparel assembly.
• Topstitching.
• Production operations requiring repeatable digital settings.
• Factories requiring consistent seam quality across multiple operators.

Technical Specifications

What's Included

• JUKI® DDL-9000C-FMS Machine Head.
• Integrated Direct Drive Servo Motor.
• Digital Operation Panel.
• Automatic Thread Trimming System.
• AK-154 Automatic Presser Foot Lifter.

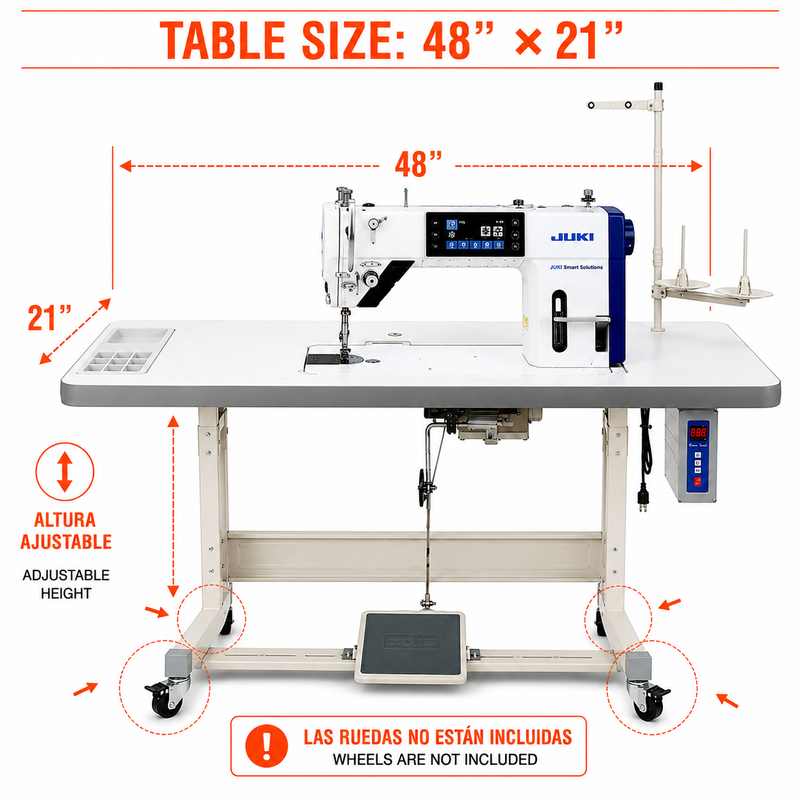

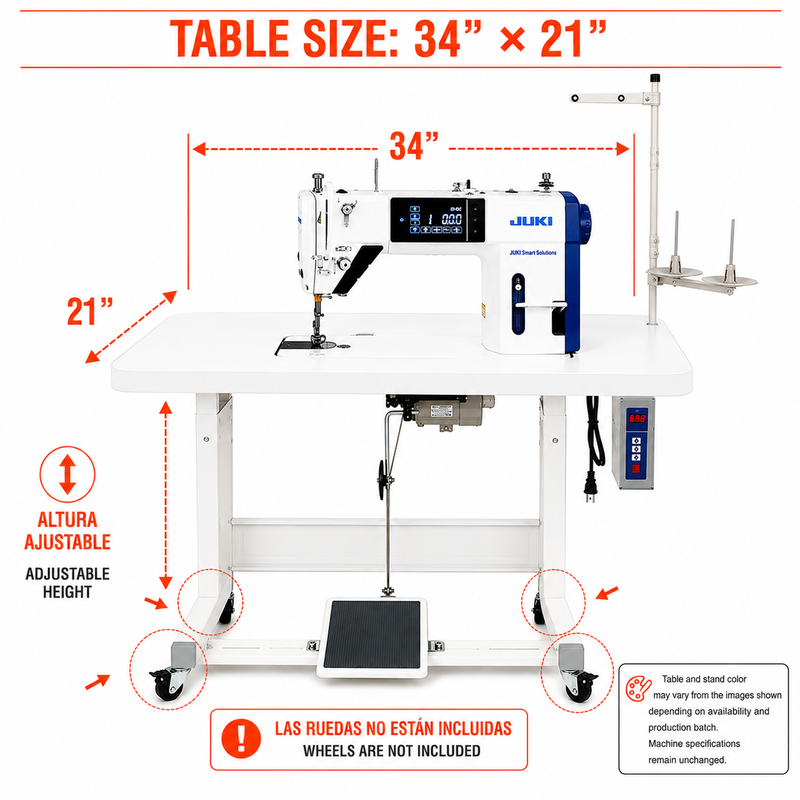

• Industrial Sewing Table.
• Heavy-Duty Industrial Stand.
• Thread Stand.
• Standard Accessories and Tools.

The JUKI® DDL-9000C-FMS combines full-digital sewing control, semi-dry technology, Double Digital Feed, active thread tension, electronic presser foot pressure, short-thread trimming, and Direct Drive performance in one advanced industrial sewing system. It is an excellent solution for professional garment manufacturers requiring precise, repeatable sewing conditions and consistently high seam quality.
