View store informationJUKI MO-6714DA — 4-Thread Industrial Overlock Sewing Machine
High Speed • Precision Finish • Tape Attachment Ready

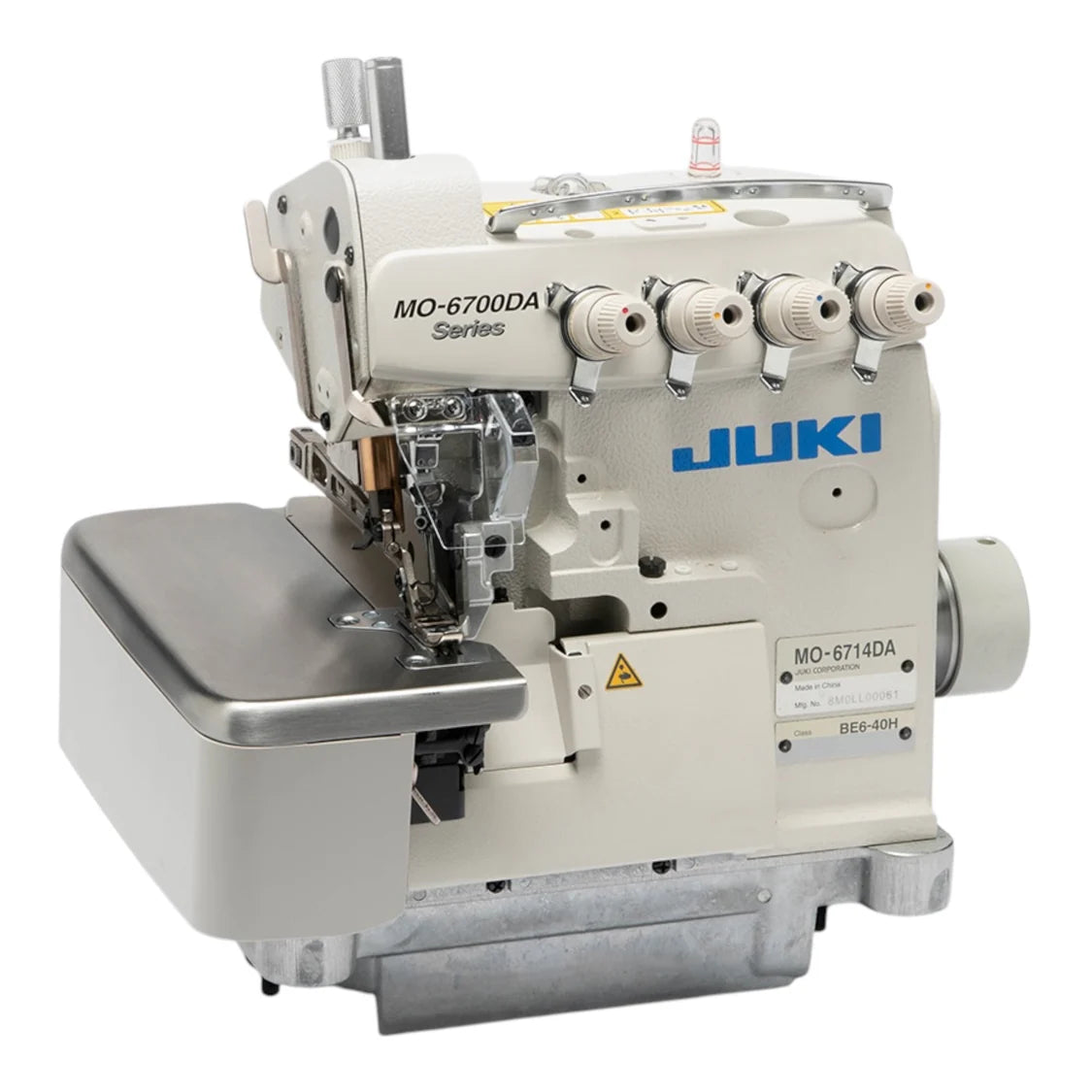

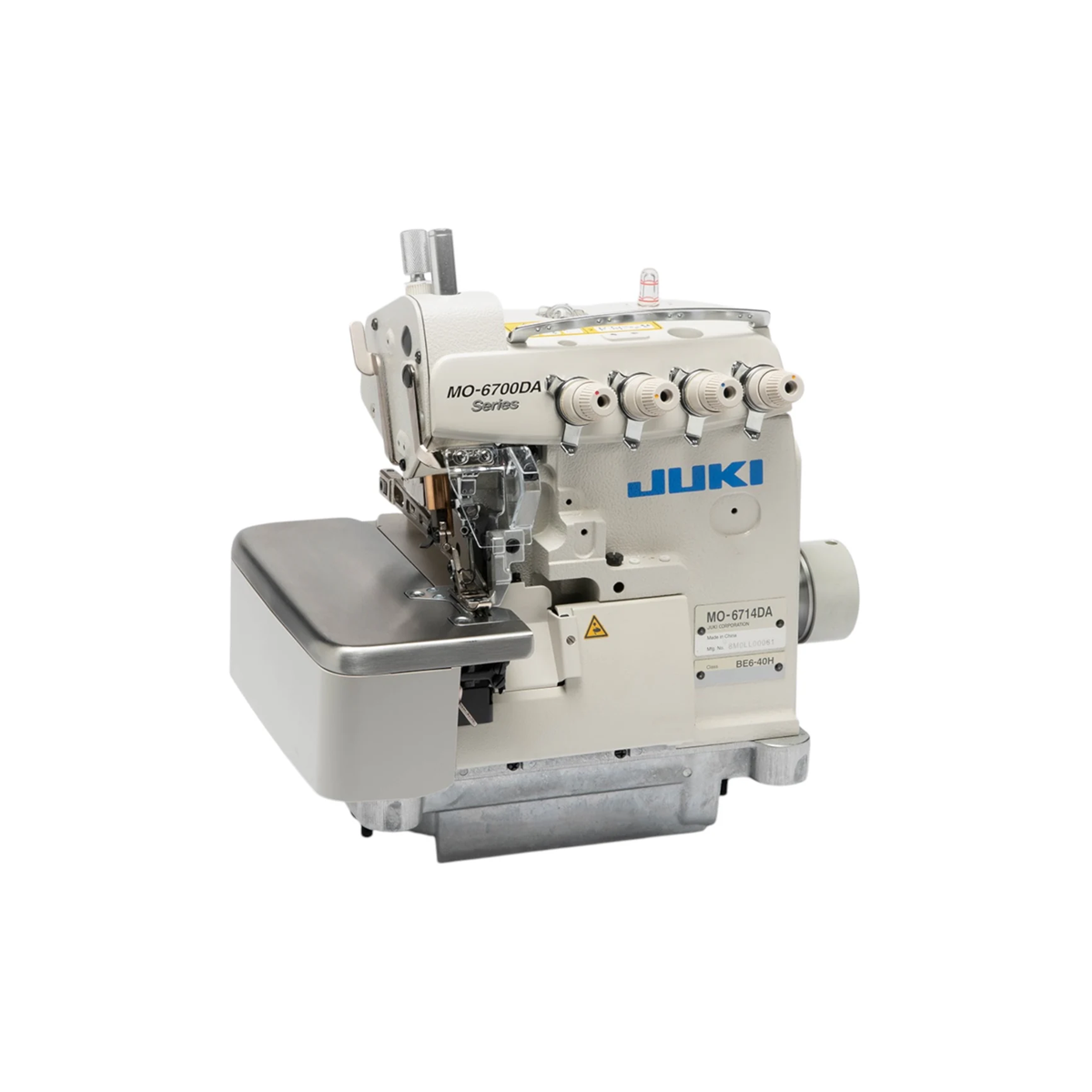

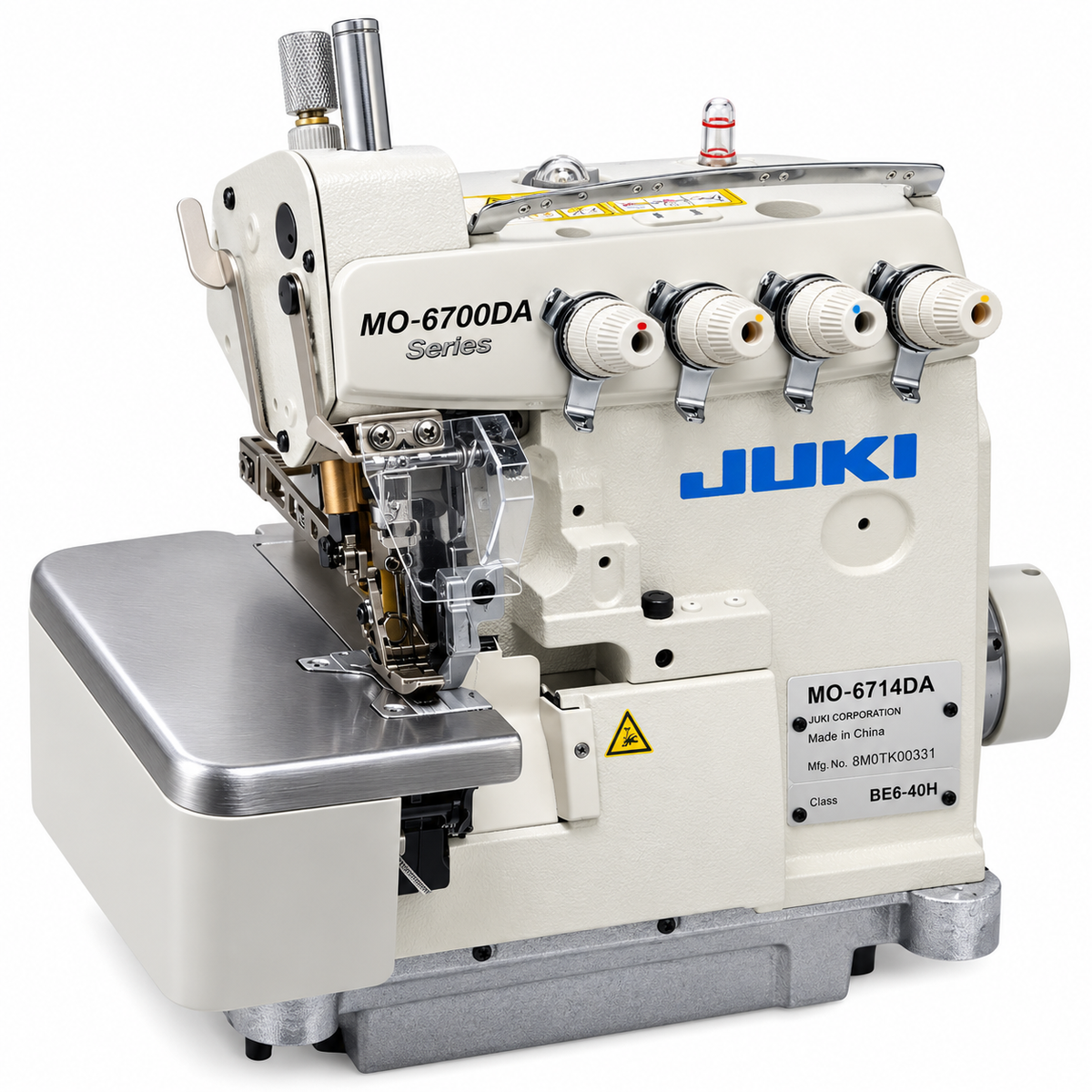

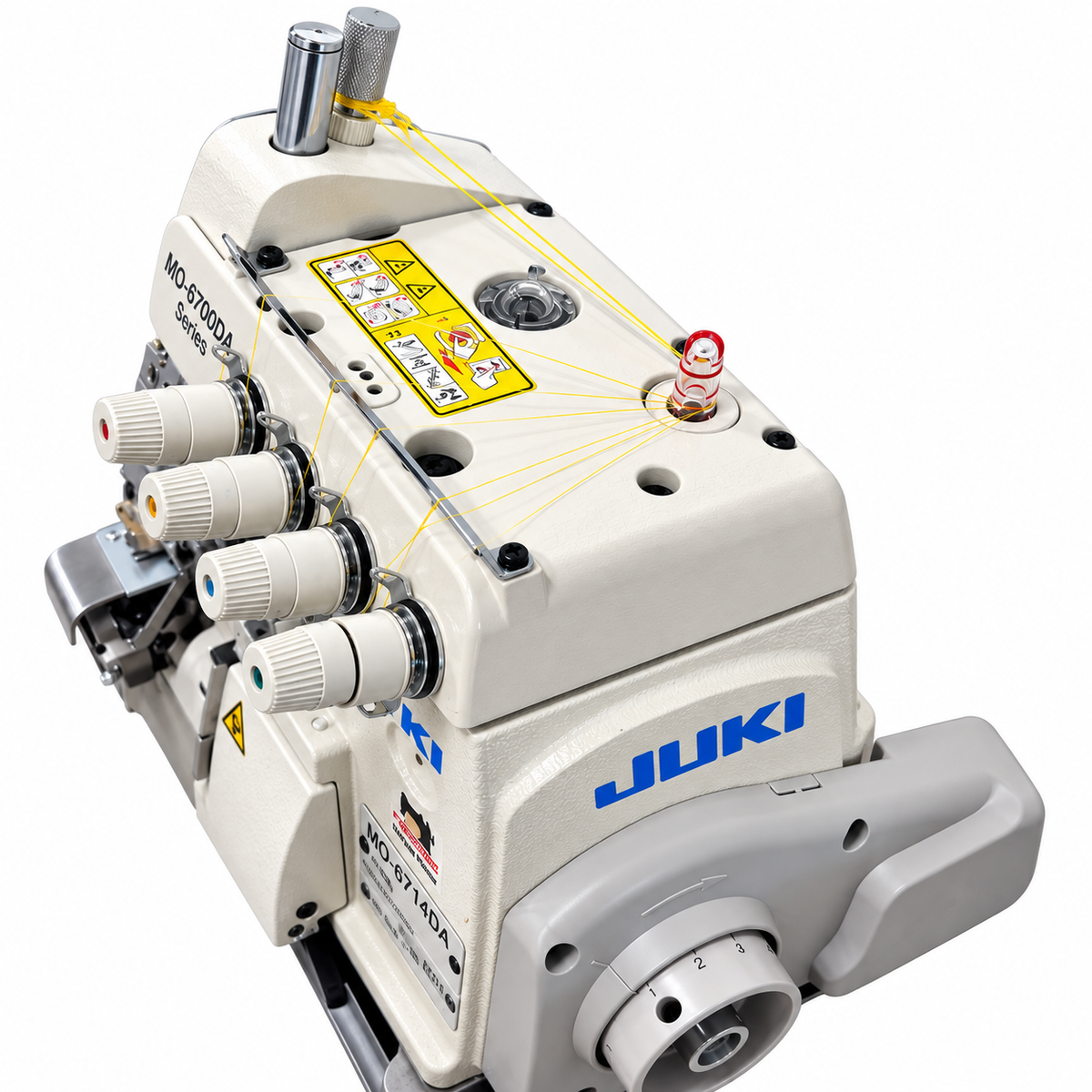

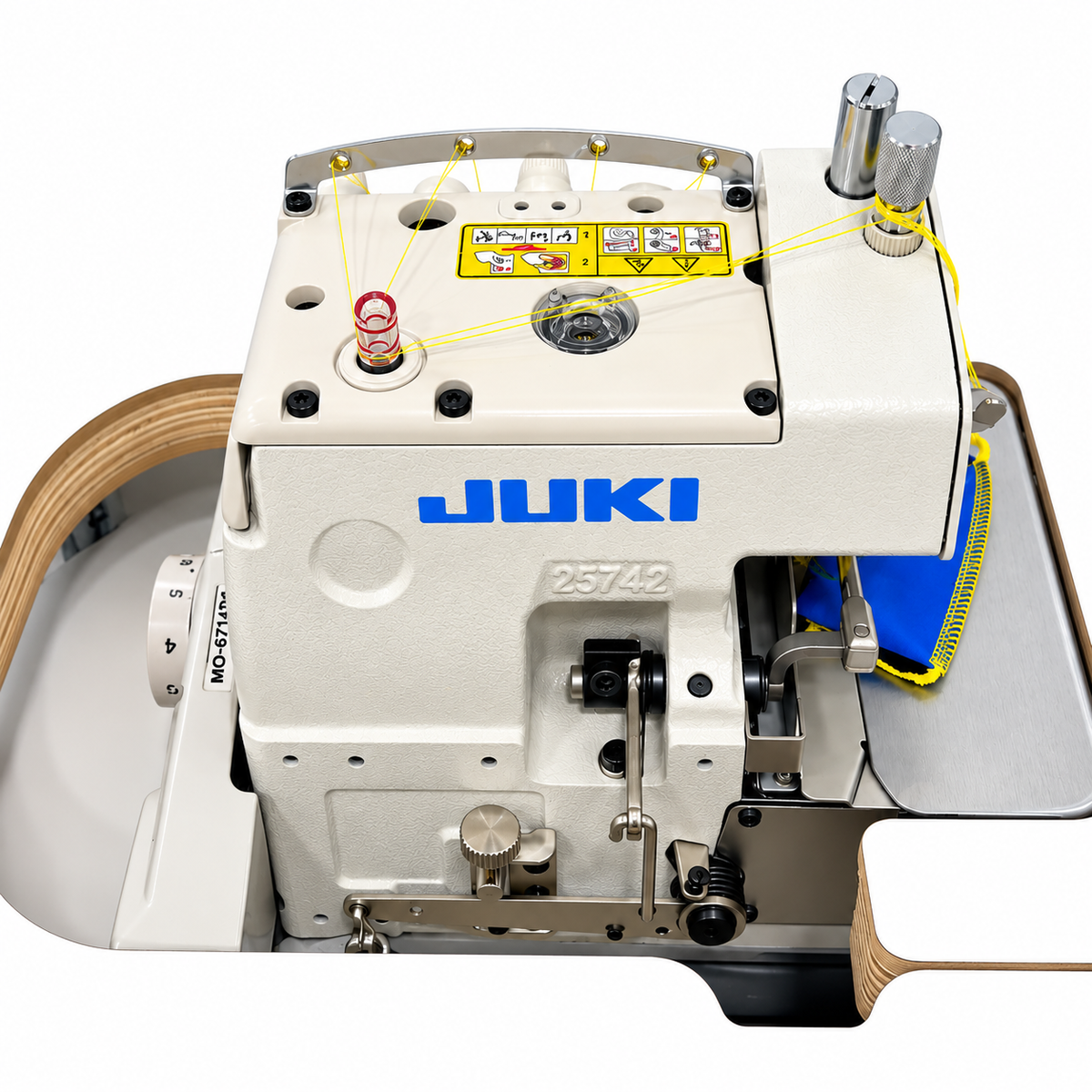

The JUKI MO-6714DA is a high-speed 4-thread overlock machine (ISO Stitch Type 514) designed to deliver clean, durable seams on light- to medium-weight fabrics. Part of JUKI’s renowned MO-6700DA Series, it provides smooth overedge stitching with low vibration and stable thread tension at high production speeds. This configuration includes a tape presser foot and edge guide, allowing uniform application of twill tape, reinforcement tape, elastic, or binding with professional accuracy and finish. The unit is delivered fully assembled with servo motor, industrial table, and fully submerged oil system.
Key Features
- 4-Thread Overlock (ISO 514): Produces strong, flexible, and clean overedge seams.
- High-speed operation: Smooth, quiet start-up ideal for mass production environments.
- Balanced needle and looper mechanism: Reduces thread breakage and ensures consistent stitch formation.
- Adjustable differential feed: Prevents stretching or puckering on knit and lightweight woven fabrics.
- Automatic lubrication system: Extends component life and maintains consistent sewing performance.

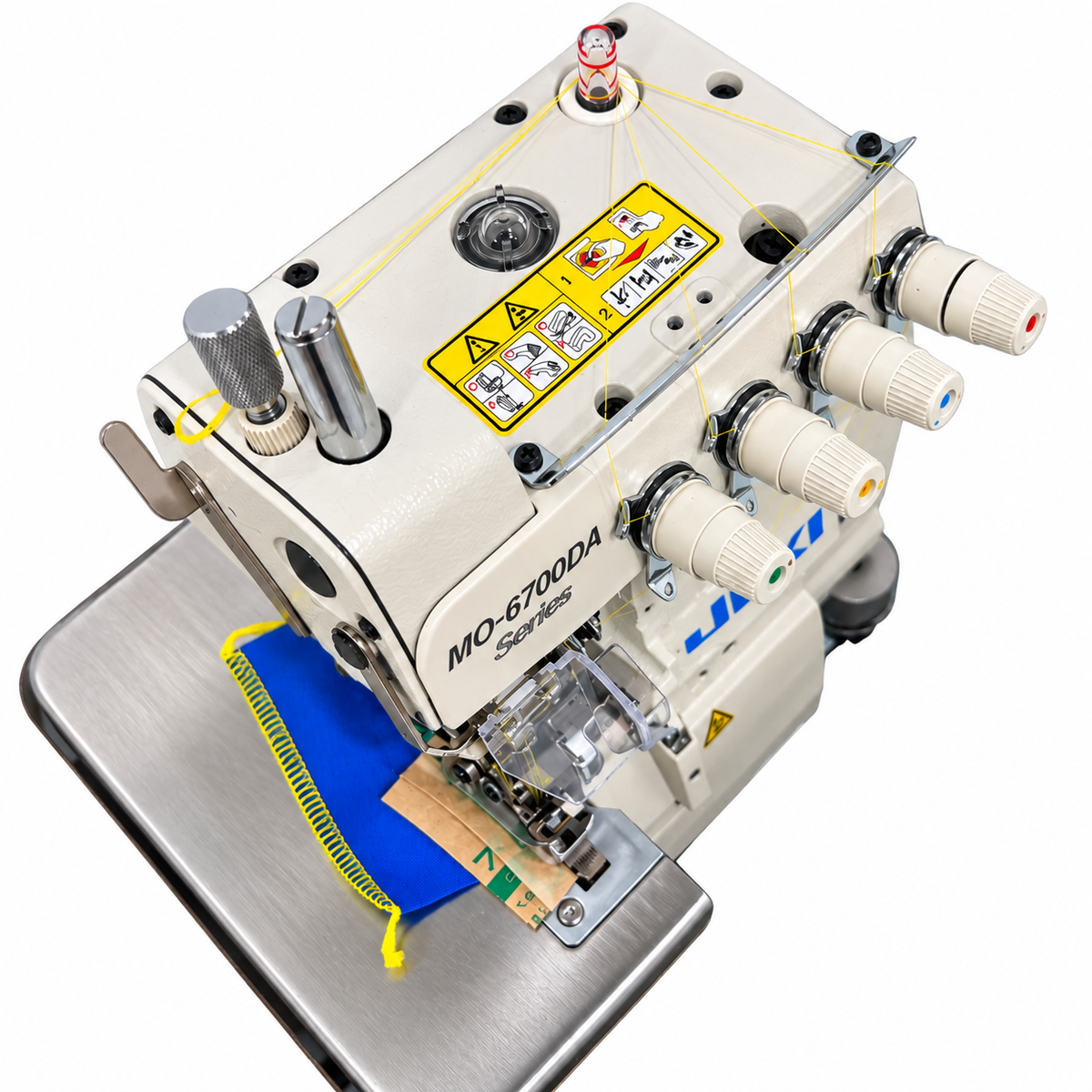

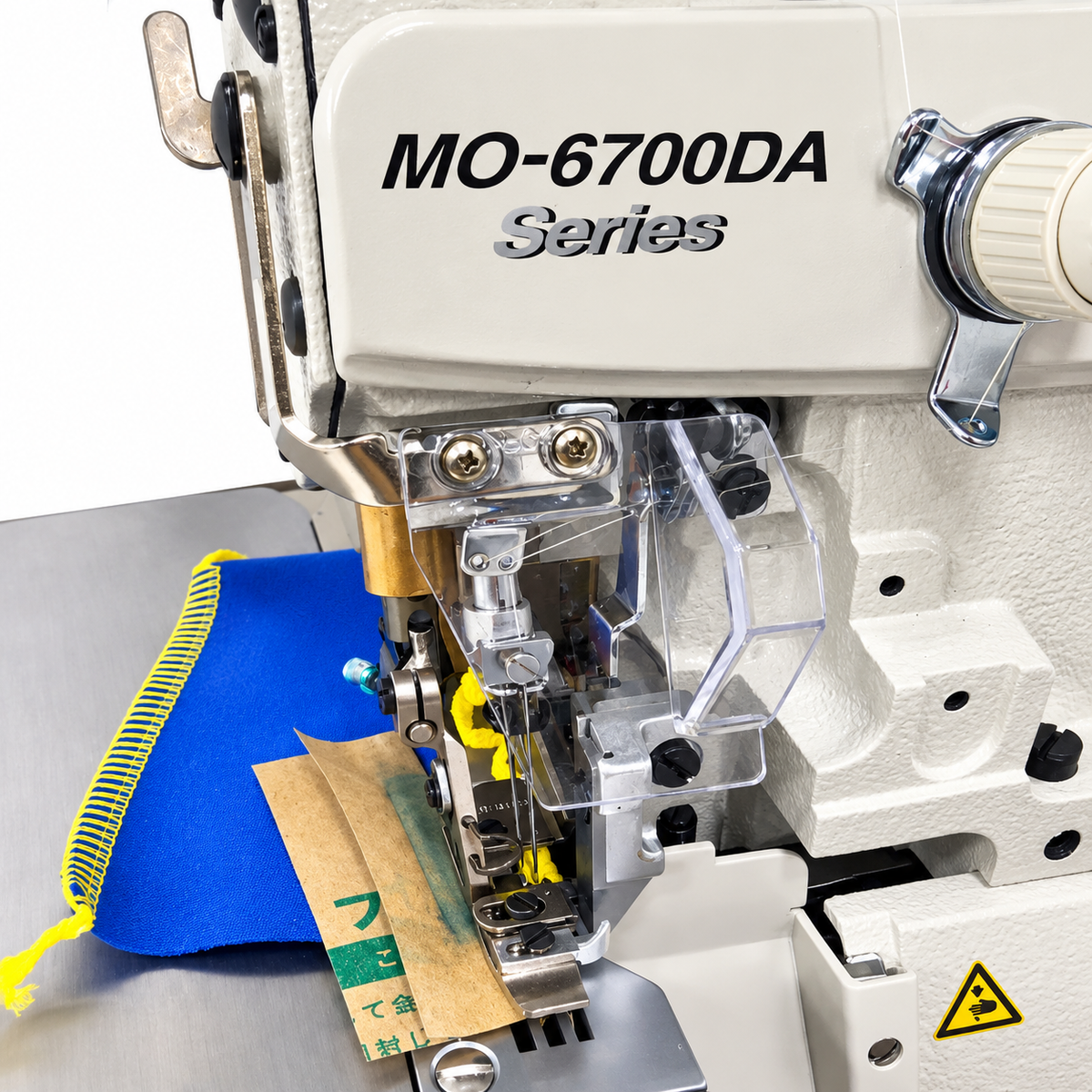

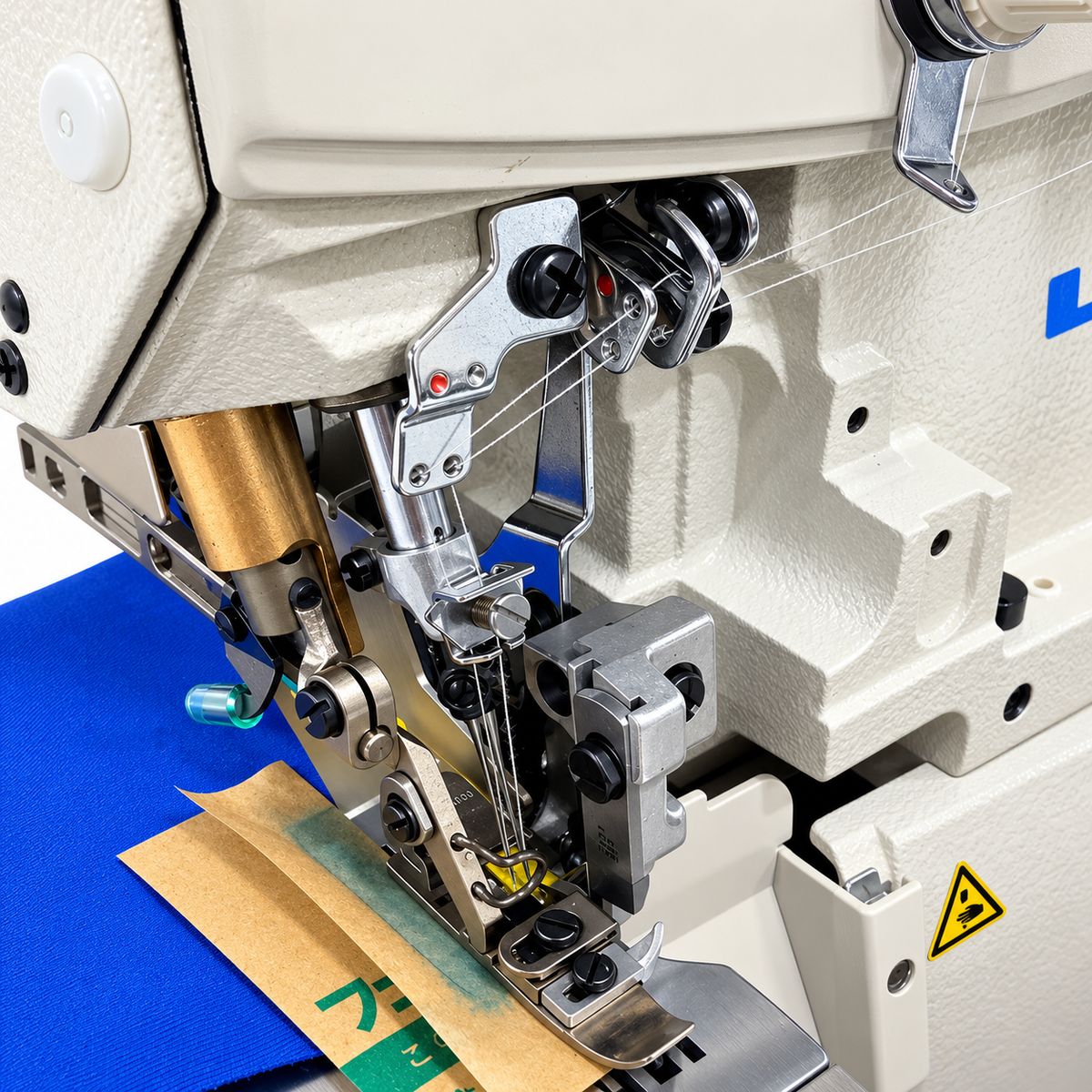

- Tape presser foot + edge guide: Ensures precise placement of elastic tape, twill tape, or reinforcement strips.
- Precision engineering: Tight, uniform stitches for superior seam appearance and strength.
- Operator comfort: Low vibration, ergonomic controls, and stable thread path for extended work sessions.
Applications
- Knitwear and jersey garments: T-shirts, sportswear, athleisure apparel.
- Light to medium fabrics: Blouses, uniforms, and workwear panels.
- Elastic and binding applications: Elastic insertion, twill tape, and edge binding.
- General seam finishing: Clean edge overlocking on side seams, hems, and stretch garments.
Technical Specifications
| Model: | MO-6714DA |
| Series: | MO-6700DA Series |
| Stitch Type: | 4-thread overlock (ISO 514) |
| Needle Gauge: | 2.0 mm |
| Overedge Width: | 4.0 mm |
| Maximum Speed: | Up to 7,000 stitches per minute |
| Differential Feed: | Adjustable (Stretch / Gather control) |
| Needle System: | DC×27 (#11–14) |
| Lubrication: | Automatic (Oil circulation system) |
| Presser Foot Lift: | 5.5 mm (by hand) / 6.0 mm (by knee) |
| Motor Type: | Energy-saving servo motor (included) |

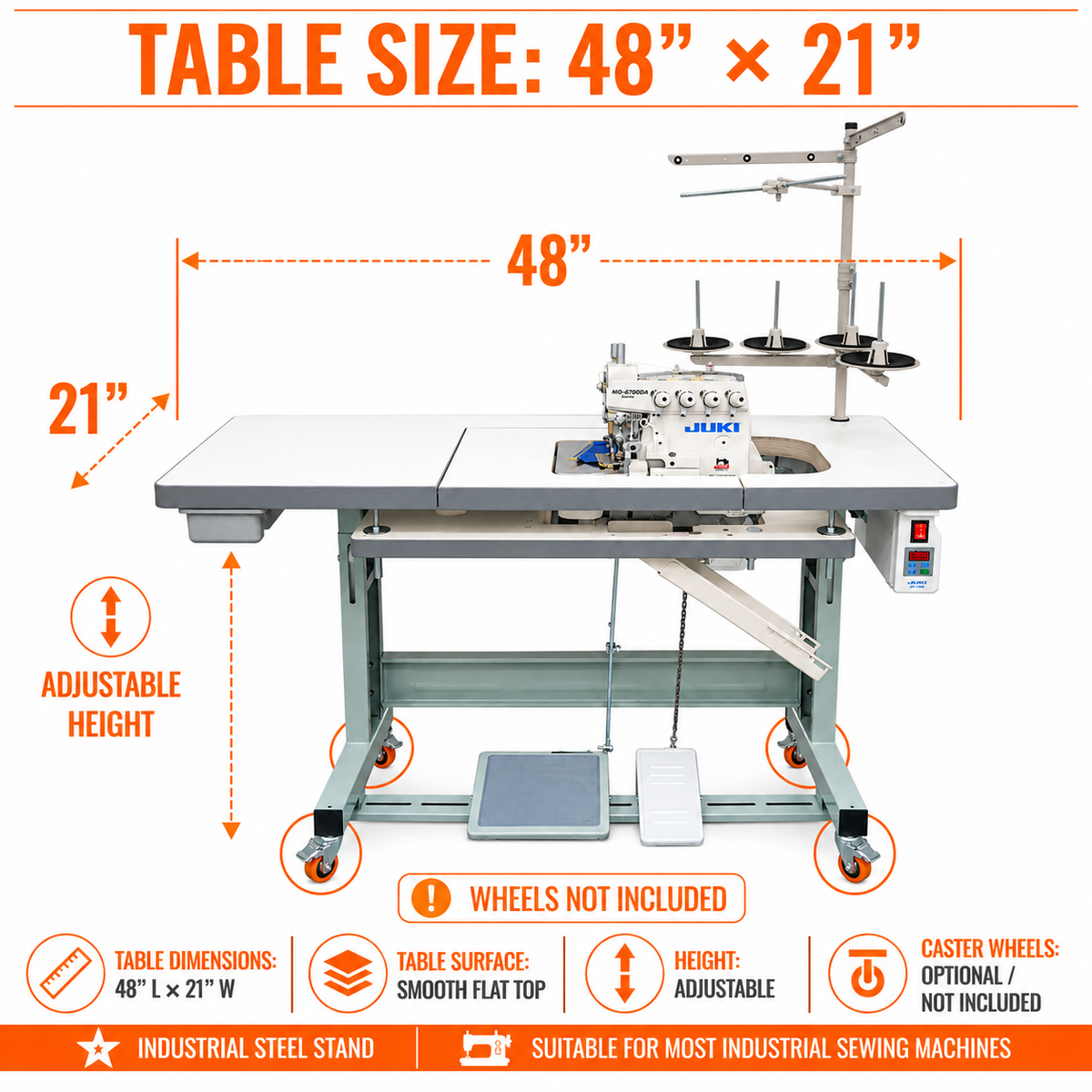

| Table Type: | Fully submerged industrial table assembly |
| Power Supply: | 110V or 220V, single-phase |
| Included Attachment: | Tape presser foot + edge guide |
| Included Accessories: | Basic tools, oil bottle, manual, lighting kit |

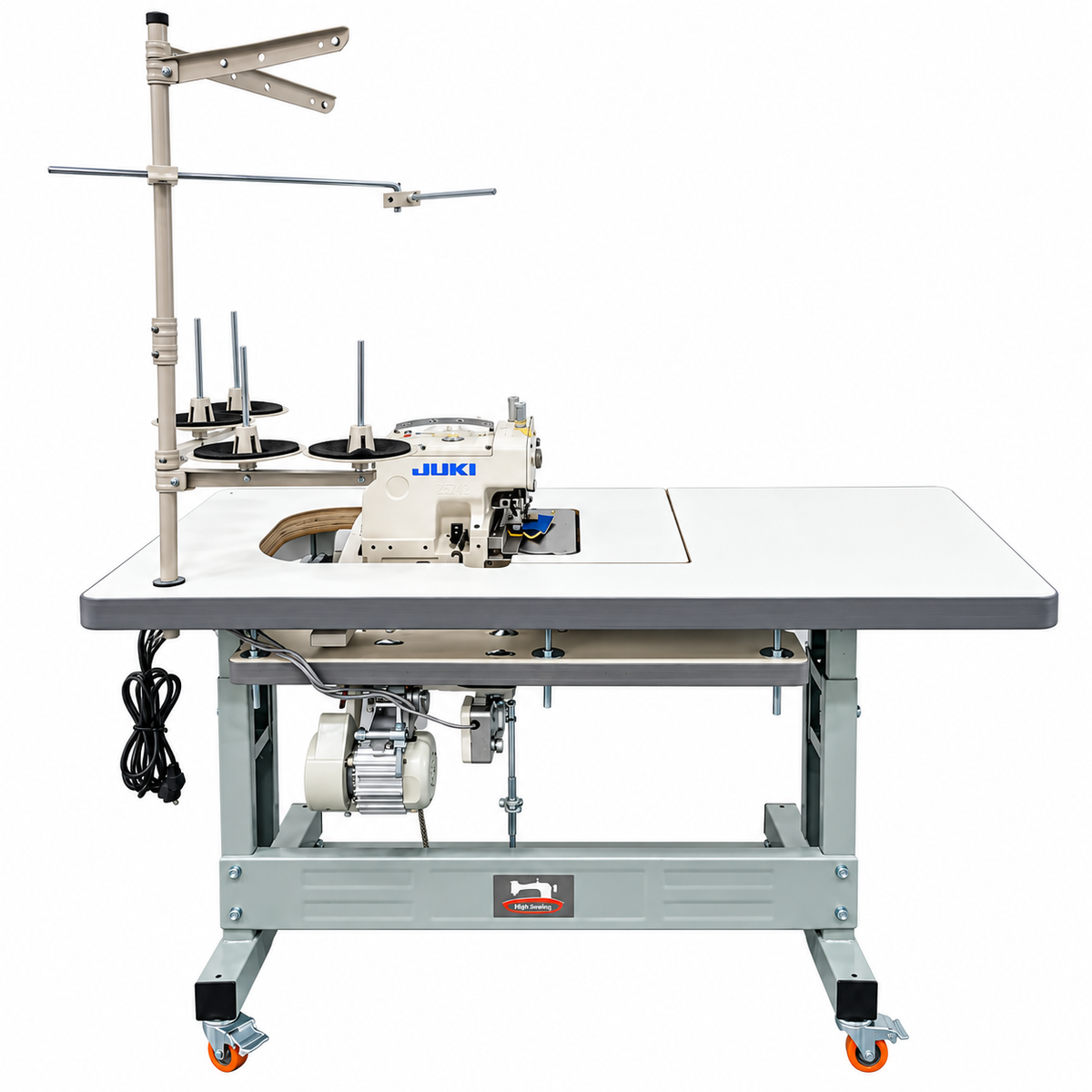

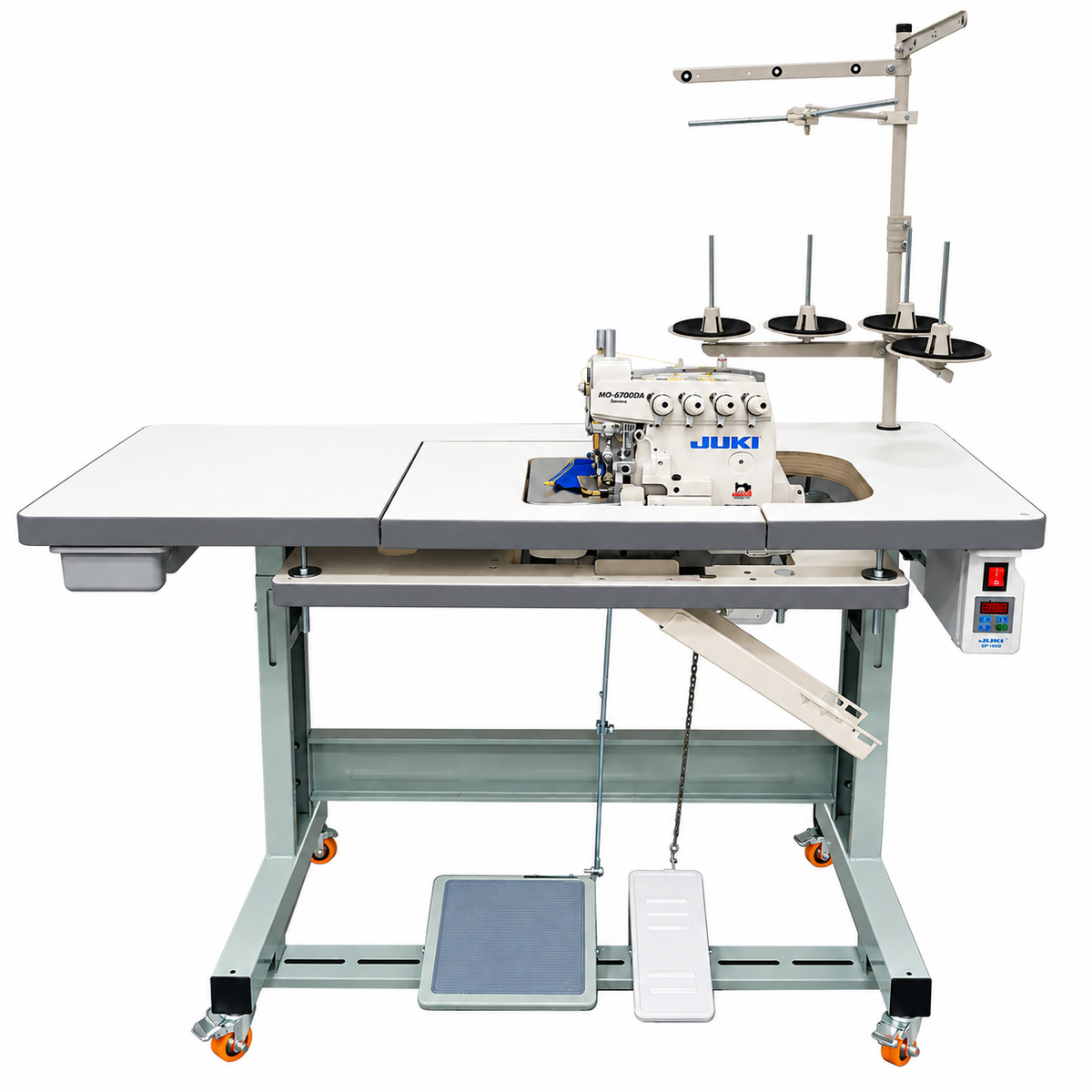

| Assembly: | Complete: machine head, servo motor, submerged table and stand |
Advantages
- Professional 4-thread overlock with industrial-grade speed and precision.
- Integrated tape attachment system improves uniformity in elastic and binding applications.
- Automatic lubrication reduces maintenance downtime.
- Low-vibration, ergonomic design enhances operator comfort.
- Fully assembled package, ready for immediate production use.
The JUKI MO-6714DA is engineered for precision finishing and tape attachment applications in knitwear, uniforms, and light- to medium-weight garment production, delivering the performance, stability, and quality expected from JUKI’s industrial heritage.
