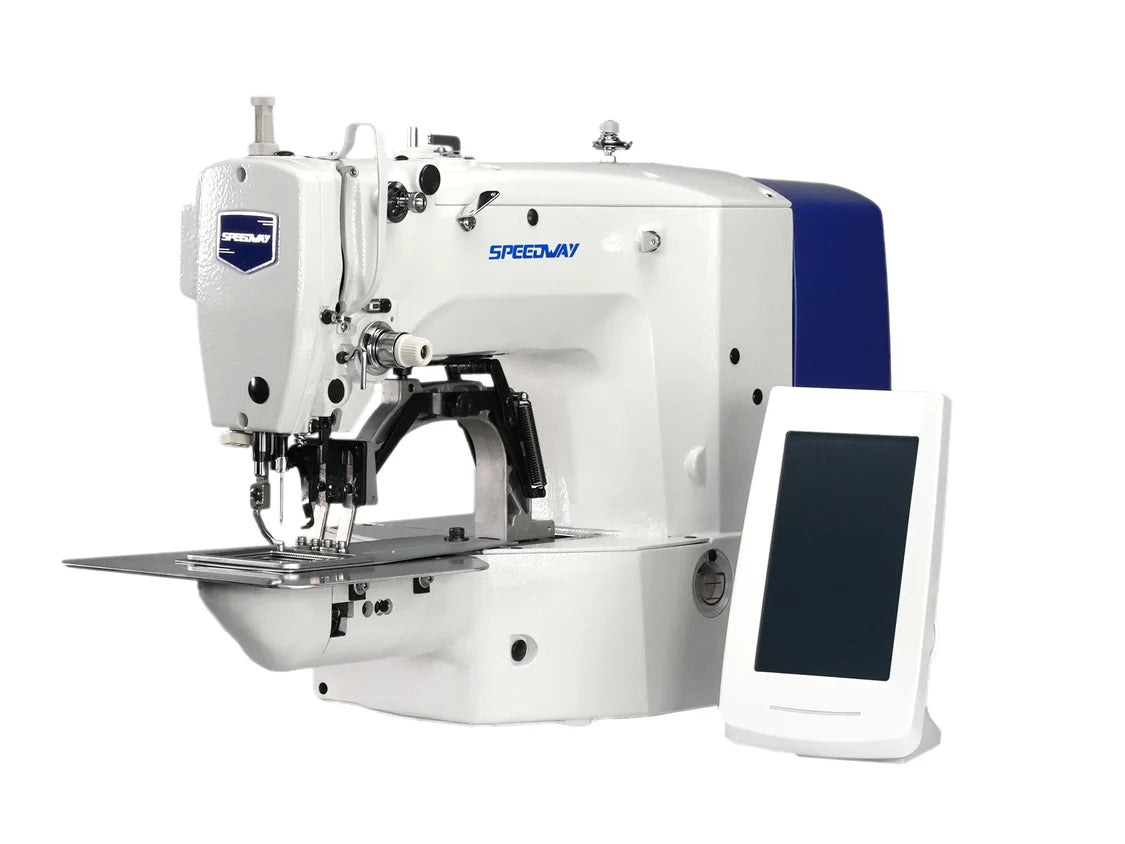

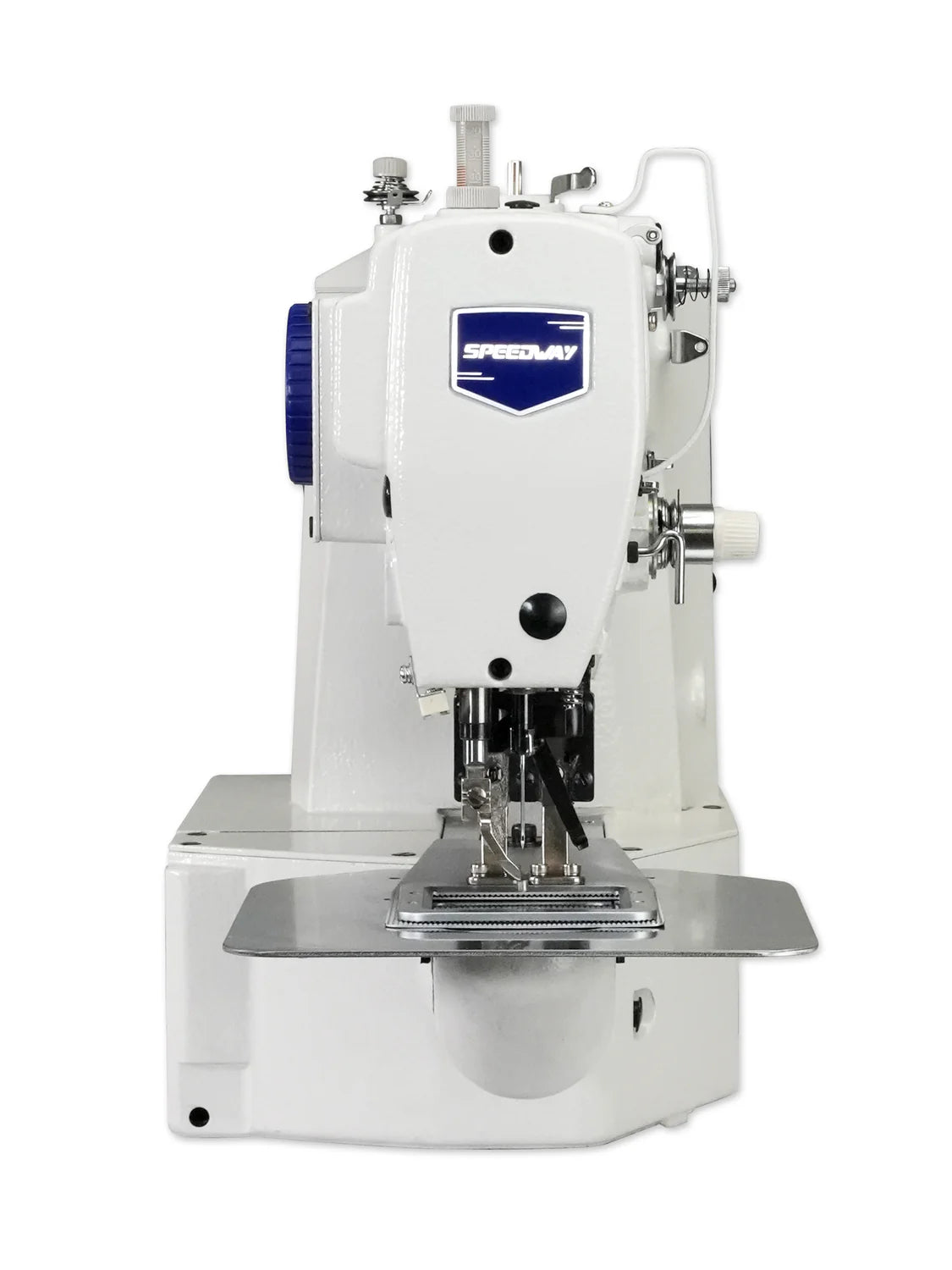

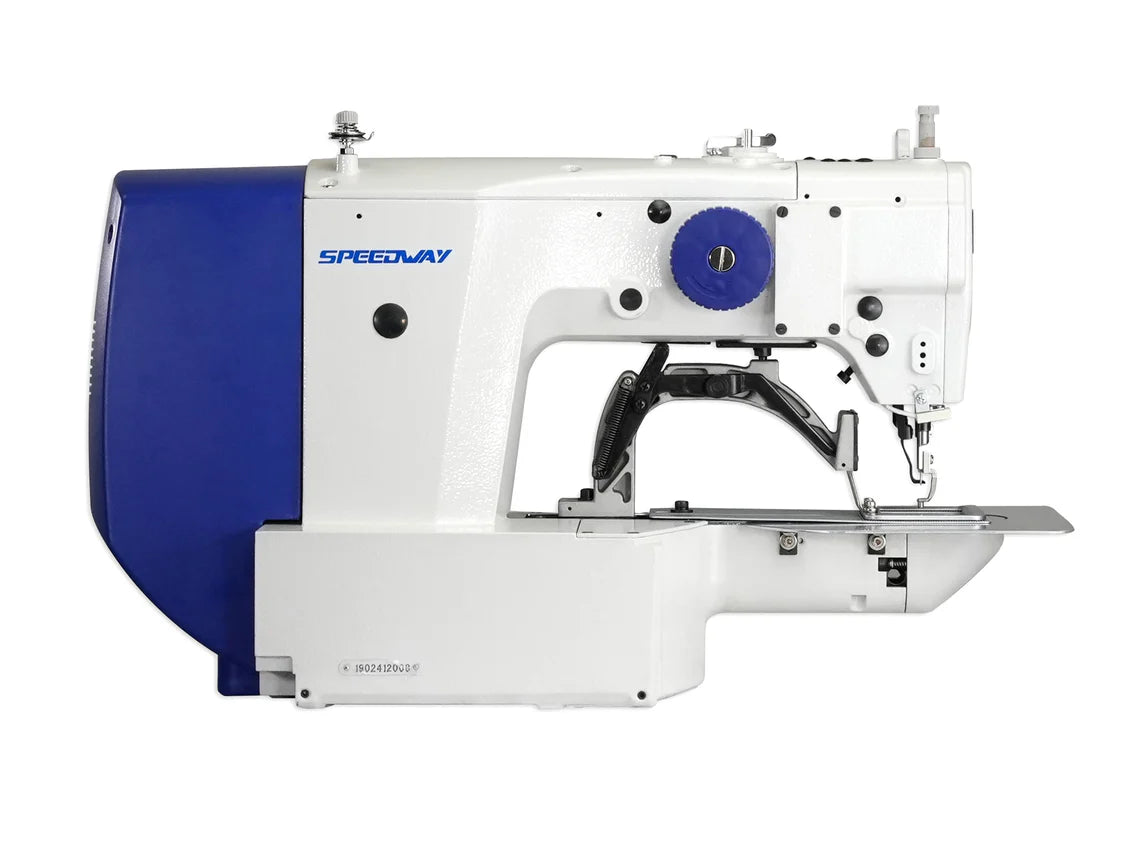

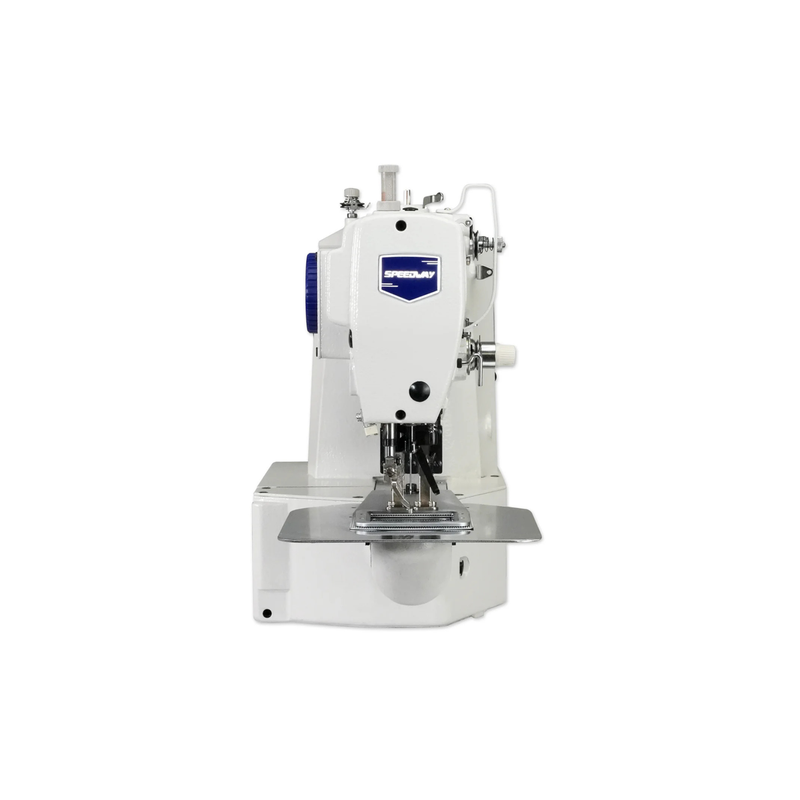

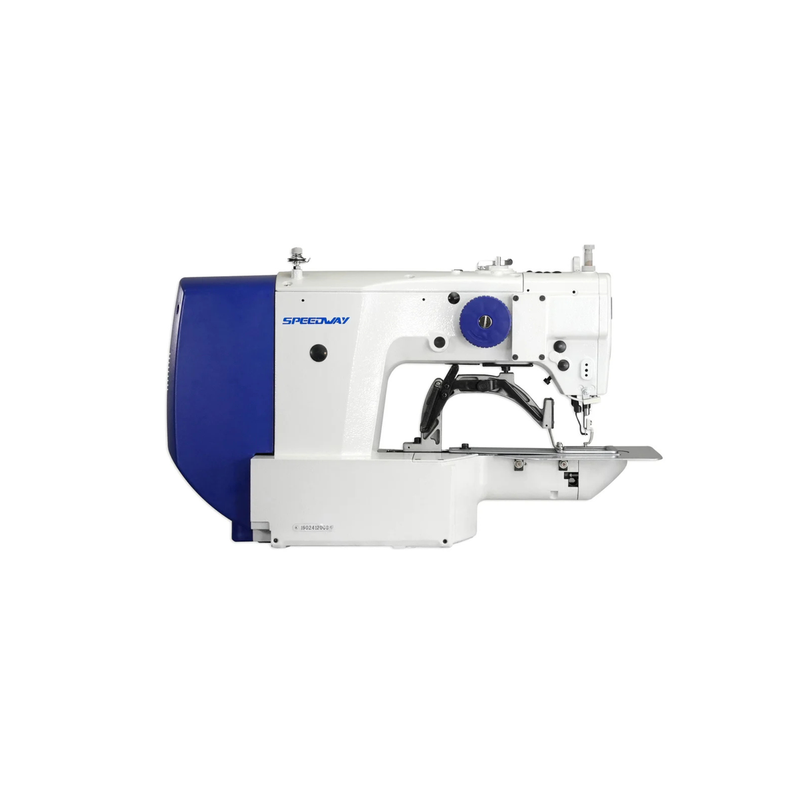

View store informationSPEEDWAY SW 1906GH Direct Drive Electronic Bar-Tacking Sewing Machine
Electronic Bartack • Direct Drive • Heavy-Duty Reinforcement

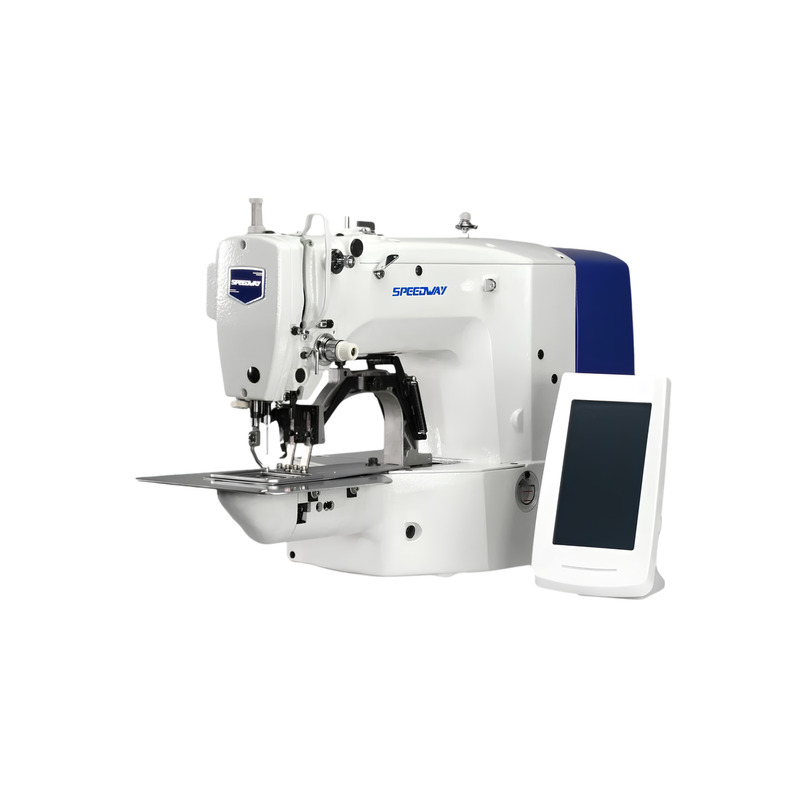

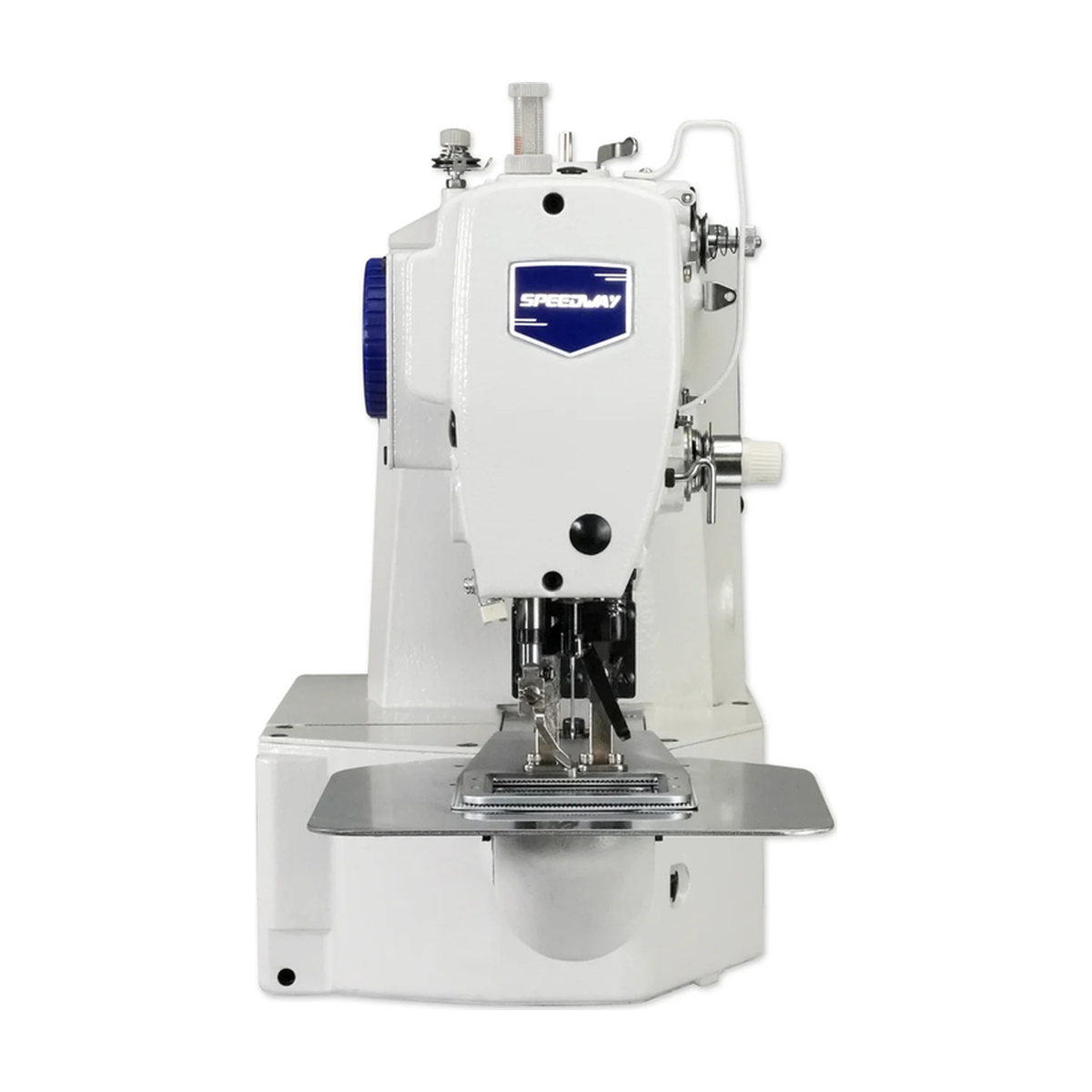

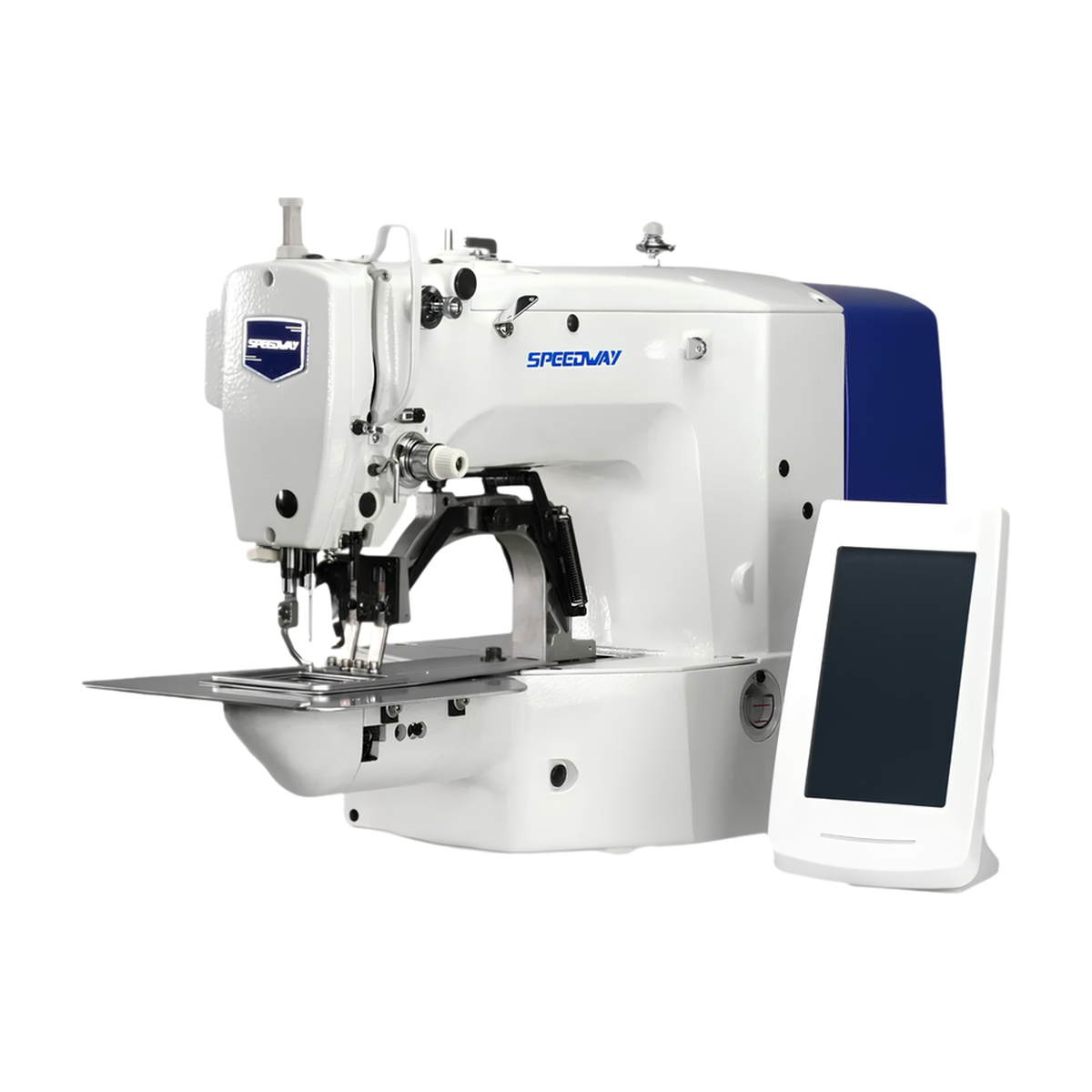

The SPEEDWAY SW 1906GH is a high-performance electronic bar-tacking sewing machine engineered for heavy-duty reinforcement and industrial production. Equipped with a direct drive servo motor and an advanced full-color touch screen control panel, this machine delivers high-speed operation, precise stitch control, and consistent results. Programmable bartack patterns and customizable settings make it ideal for reinforcing stress points on garments and technical products across a wide range of materials.
Key Features
- Direct drive servo motor for energy efficiency, low noise, and smooth operation.
- Programmable electronic bartack patterns with onboard editing.
- High-speed performance up to 3,000 stitches per minute.
- Touch screen full-color control panel for easy programming and setup.
- Automatic thread trimming for faster production cycles.
- Adjustable stitch length and sewing field for flexible applications.
- Automatic lubrication system for extended machine life.
Applications
Ideal for denim, workwear, sportswear, backpacks, belts, webbing, and technical textiles. The SW 1906GH is designed for any product that requires strong, durable bartack reinforcement such as pocket corners, belt loops, straps, and stress points.
Technical Specifications
| Model | SPEEDWAY SW 1906GH |
| Stitch Type | Electronic Bartack |

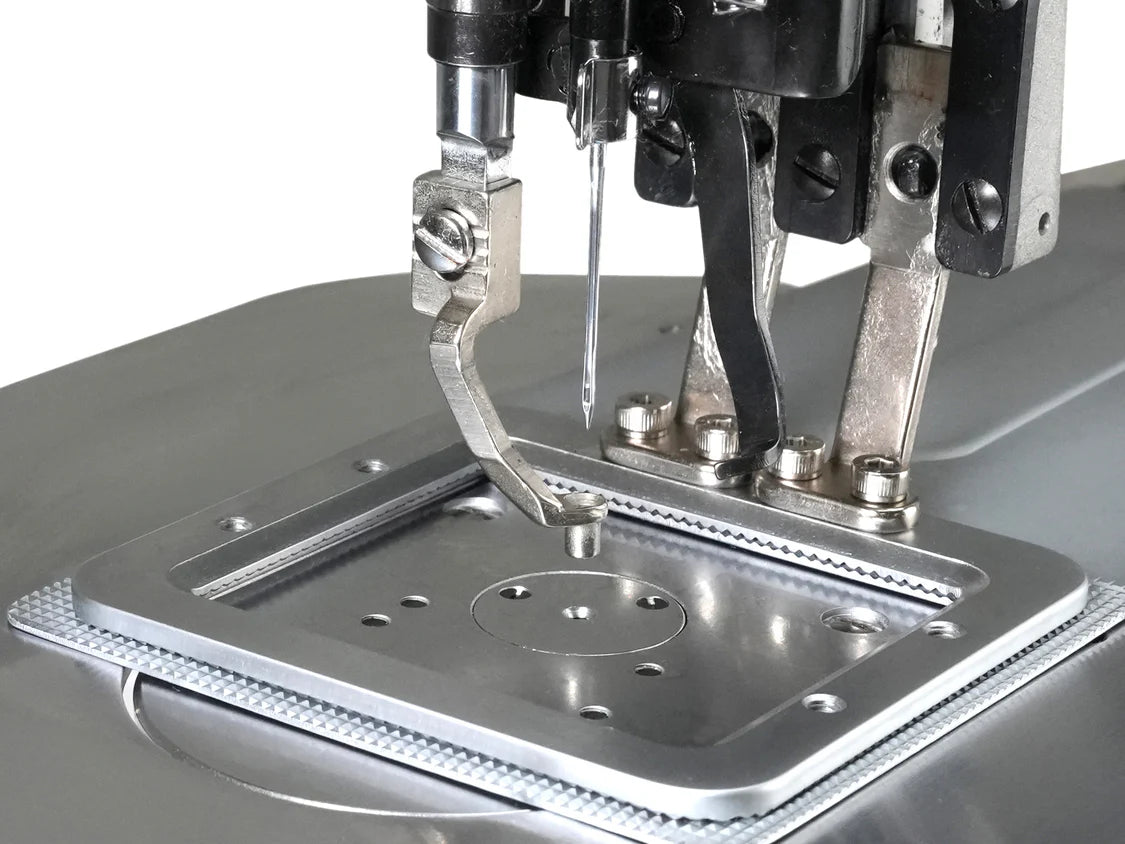

| Maximum Sewing Field | 60mm (X) × 50mm (Y) / 2.4″ × 2″ |
| Maximum Speed | 3,000 stitches per minute |
| Stitch Length Range | 0.1 – 10 mm |
| Presser Foot (Clamp) Lift | Up to 20 mm |
| Needle System | 135×17 (DP×17), sizes #14 – #22 |
| Bobbin | Standard bartack bobbin (large bobbin optional) |

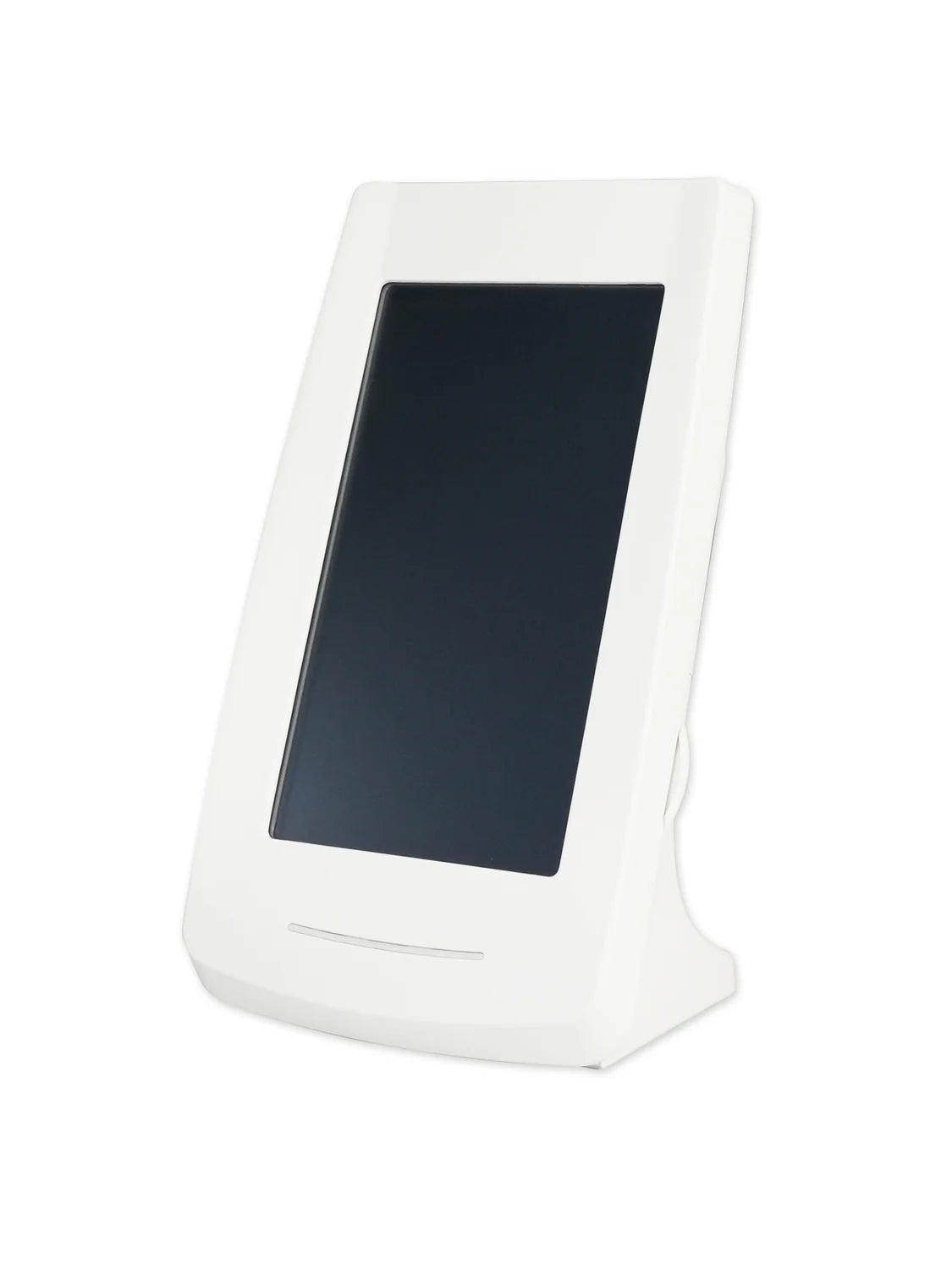

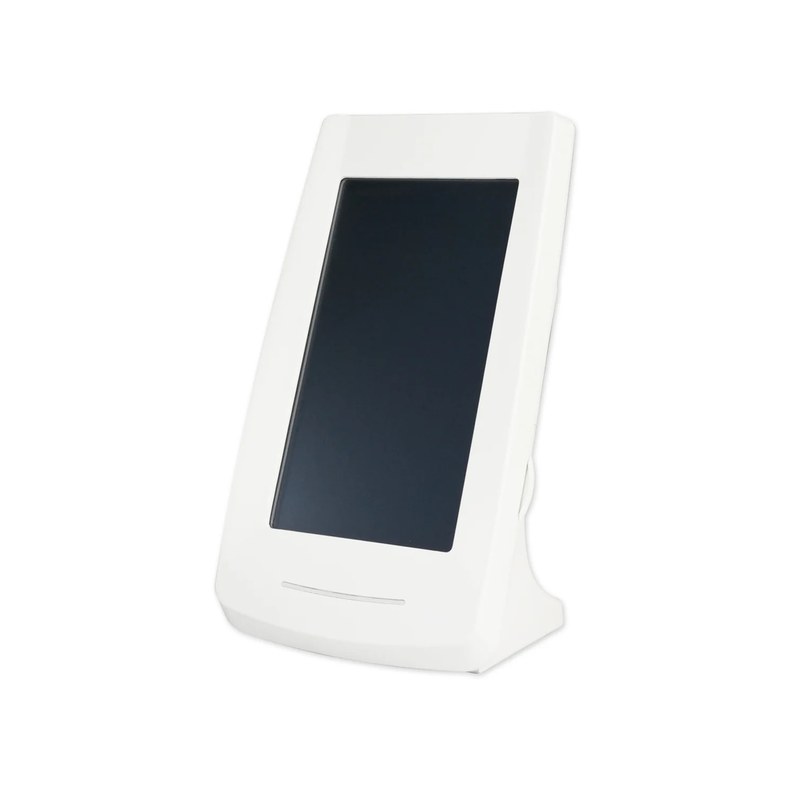

| Control Panel | Full-color touch screen with onboard programming |
| Power Supply | 220V single phase (110V converter included) |
| Configuration | Complete set with table and stand |
Advantages
- Consistent and durable bartack stitches for high-stress areas.
- Reduced noise and vibration thanks to direct drive technology.
- High productivity with programmable automation and auto trimming.
- Easy operation via intuitive touch screen interface.
- Long service life with automatic lubrication system.
Commercial Summary: The SPEEDWAY SW 1906GH is a powerful, reliable electronic bartack machine built for industrial reinforcement applications. With direct drive efficiency, advanced programming, and high-speed performance, it is an excellent solution for manufacturers demanding strength, consistency, and productivity.
