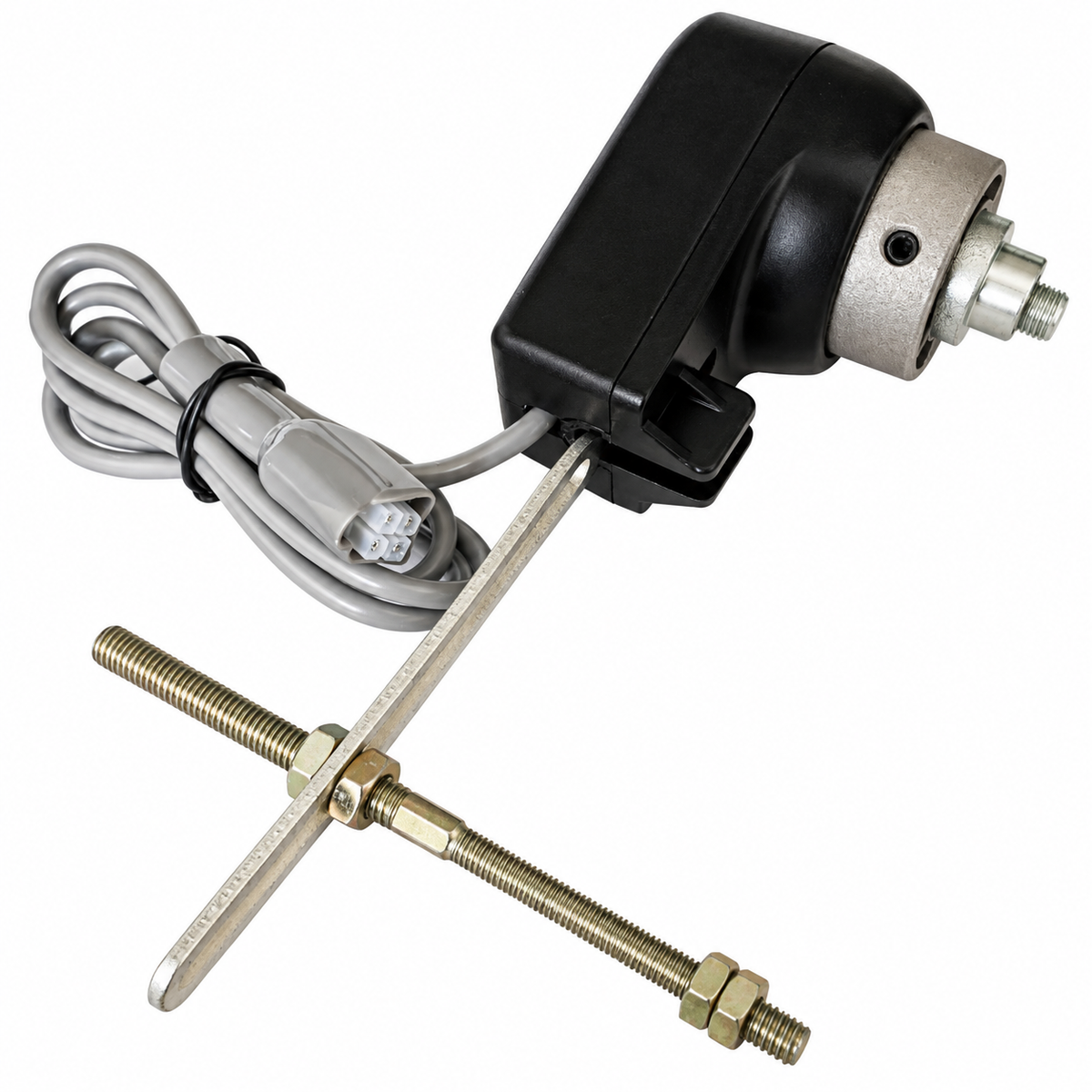

CONSEW® CSM1001 Needle Positioner & Synchronizer for Industrial Sewing Machines
Needle Up / Down Positioning • Fixed Handwheel Compatibility • Digital Brushless Servo Motors • Industrial Sewing Machine Accessory
The CONSEW® CSM1001 Needle Positioner and Synchronizer is designed for compatible industrial sewing machines with a fixed or bolted handwheel attached to the main shaft. It works with compatible digital brushless servo motor systems to provide controlled needle positioning for professional sewing applications.
The synchronizer allows the sewing machine to stop the needle in a selected up or down position, providing greater control when turning corners, repositioning material, performing detailed sewing, or completing operations where consistent needle stopping position is important.
Needle Up / Down Position Control
PRECISION NEEDLE POSITIONING
The CONSEW® CSM1001 synchronizer provides controlled needle positioning, allowing the machine to stop with the needle in the up or down position according to the servo motor settings and sewing requirements.
Needle-down positioning is particularly useful when turning corners because the needle can remain in the material while the operator repositions the workpiece.
Designed for Fixed Handwheels
The CONSEW® CSM1001 needle positioner is designed for compatible industrial sewing machines with a handwheel that is fixed or bolted directly to the machine's main shaft.
Always verify the handwheel configuration and available mounting arrangement on your sewing machine before ordering.
Compatible with Digital Brushless Servo Motors

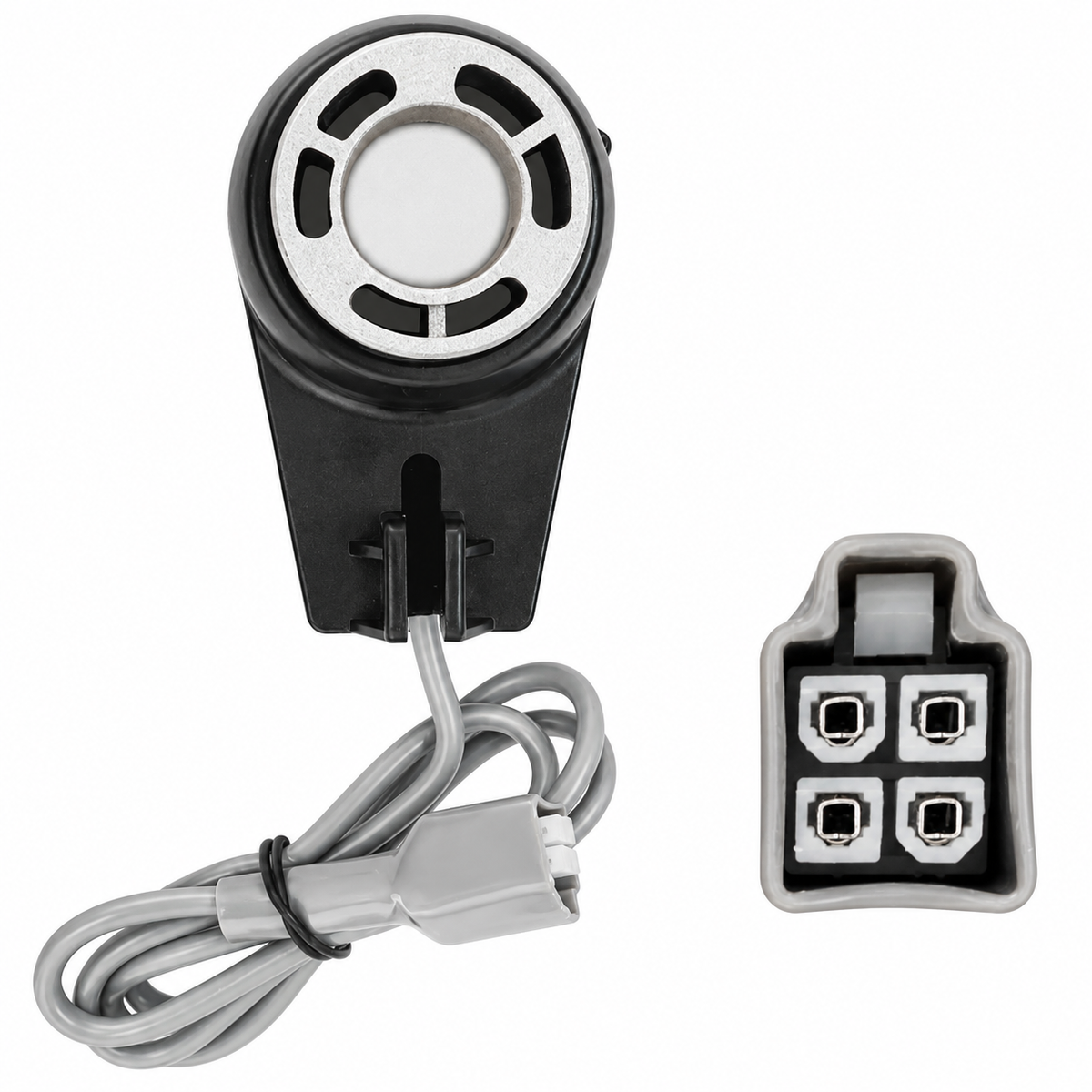

The synchronizer is designed to operate with compatible digital brushless servo motors that support an external needle-positioner / synchronizer connection.
When properly installed and configured, the positioner communicates the machine shaft position to the compatible servo motor control system, allowing controlled needle stopping.
Ideal for Corners & Precision Sewing
Controlled needle positioning improves accuracy during sewing operations that require frequent stopping and material repositioning. This is especially useful for corners, curves, detailed seams, topstitching, and precision industrial sewing.
How to Synchronize the Needle Position
BASIC SYNCHRONIZATION
- Position the needle in the down position, just before it begins to rise again.
- Hold the needle positioner stationary while adjusting the handwheel to the correct position.
- Loosen the applicable mounting screws as required to make the adjustment.
- Align the positioner and handwheel correctly.
- Tighten the screws securely after the correct position has been established.
Key Features
- Needle Position Control: Allows compatible machines to stop with the needle up or down.
- Fixed Handwheel Application: Designed for machines with handwheels fixed or bolted to the main shaft.
- Brushless Servo Motor Application: Designed for compatible digital brushless servo motors supporting a synchronizer connection.
- Improved Corner Sewing: Needle-down positioning helps hold the material in place while turning corners.
- Precision Sewing: Provides greater control during detailed and stop-and-turn sewing operations.
- Adjustable Synchronization: Position can be mechanically adjusted according to the machine's handwheel and needle position.
- Improved Workflow: Automatic needle positioning can reduce manual handwheel positioning between sewing operations.
- Industrial Application: Designed as an accessory for compatible industrial sewing machine and servo motor setups.
Technical Specifications
| Brand | CONSEW® |
| Model | CSM1001 |
| Product Type | Needle Positioner / Synchronizer |
| Machine Application | Compatible Industrial Sewing Machines |
| Handwheel Requirement | Fixed / Bolted to Main Shaft |
| Motor Application | Compatible Digital Brushless Servo Motors |
| Needle Position | Up / Down |
| Primary Function | Automatic Needle Stop Position Control |
| Condition | New |

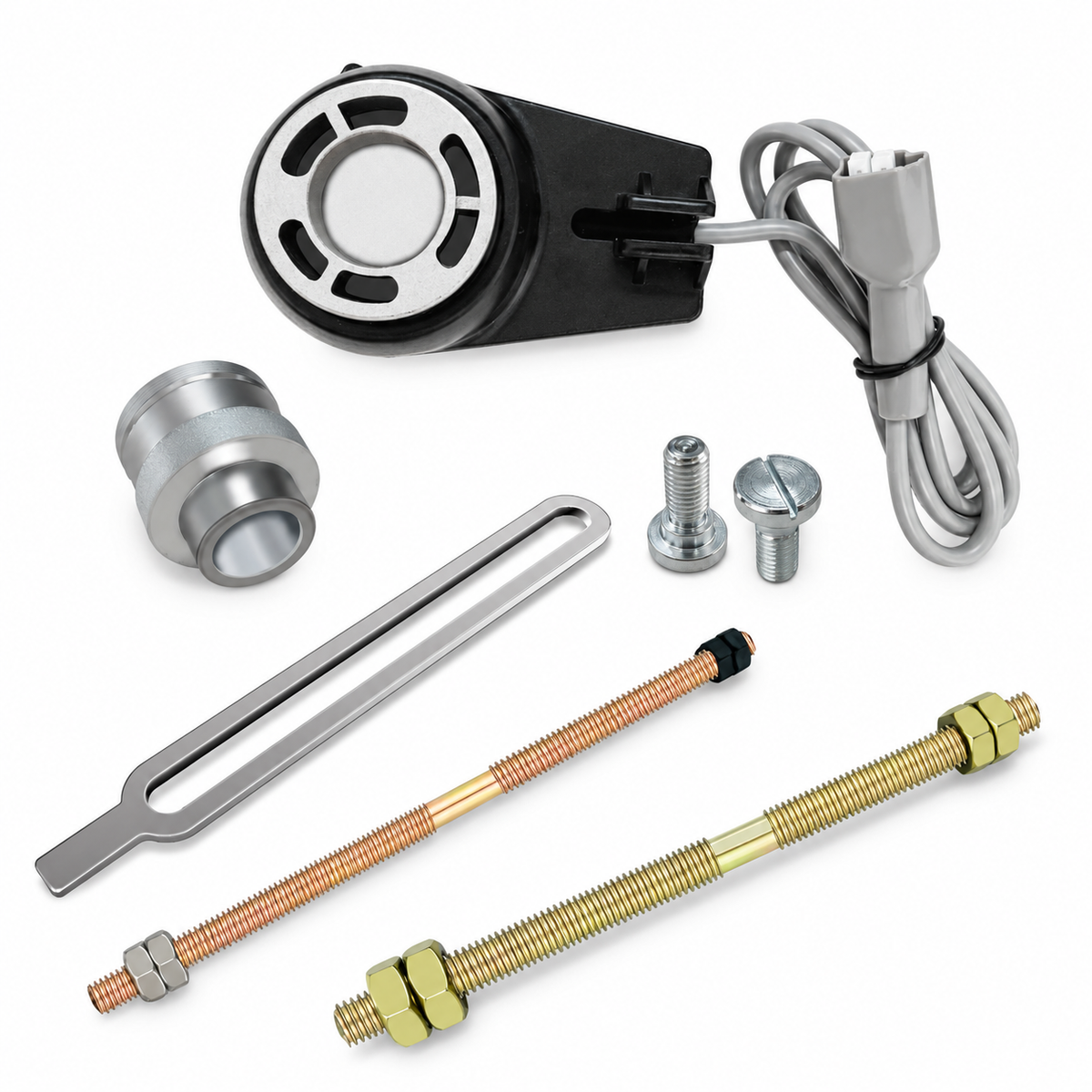

What's Included
- 1 CONSEW® CSM1001 Needle Positioner / Synchronizer
- 2 Screws
- 1 Adapter
- 2 Threaded Rods
- 1 Rod Rail
⚠️ IMPORTANT — VERIFY COMPATIBILITY BEFORE ORDERING
This product is not automatically compatible with every industrial sewing machine or every servo motor. Before ordering, verify that your sewing machine has the required fixed or bolted handwheel configuration and that your digital brushless servo motor supports the appropriate external needle-positioner / synchronizer connection.
Always verify the machine model, motor model, connector, mounting configuration, handwheel design, and installation requirements before purchase. Compatibility information is provided for reference only. JMJ Sewing Machines is not responsible for purchases made without confirming compatibility with your specific machine and motor. All replacement parts and accessories sales are final.
The CONSEW® CSM1001 Needle Positioner and Synchronizer for Industrial Sewing Machines provides precise needle up/down stopping control for compatible machines equipped with a fixed handwheel and supported digital brushless servo motor, helping improve corner sewing, material repositioning, precision, and production efficiency.
