Consew P1510RB-14-7DD

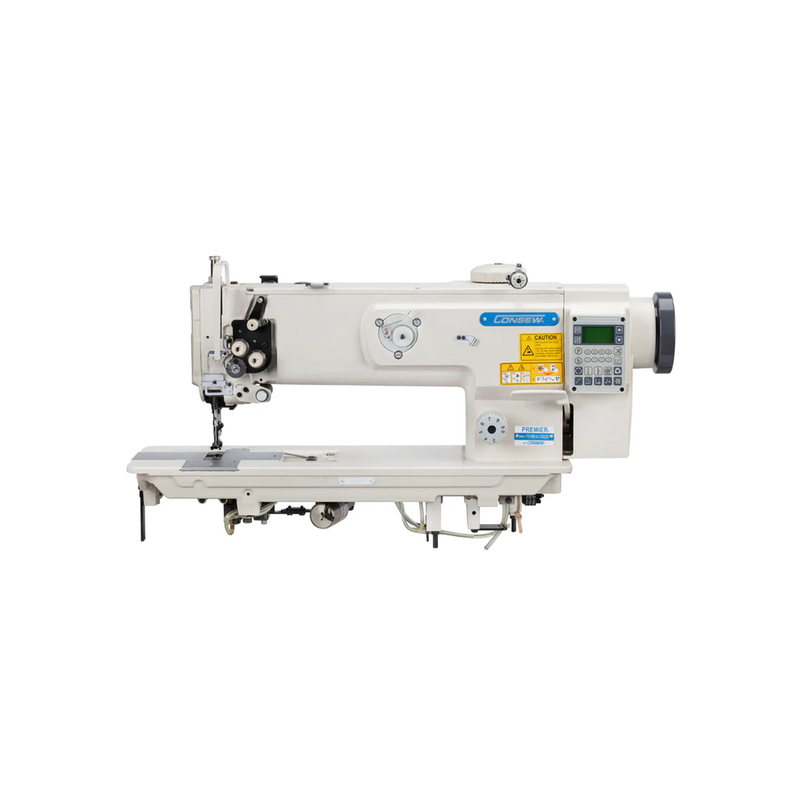

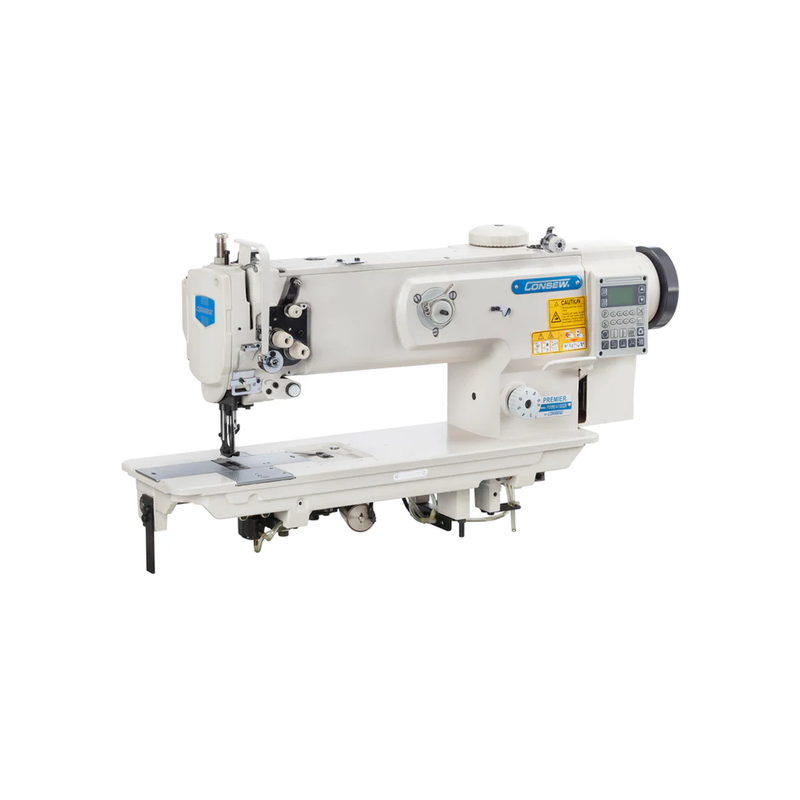

Consew P1510RB-14-7DD — Single Needle, Walking Foot, Lockstitch Machine

Complete Assembled with Table and Stand Included

Heavy-Duty Control • Direct Drive Precision • Full Automatic (-7DD)

The Consew P1510RB-14-7DD is a heavy-duty, single-needle walking foot lockstitch machine engineered for automotive, marine, leather, canvas, and general upholstery applications. With a direct-drive servo motor on the top shaft, automatic thread trimming (-7DD), auto reverse, and automatic presser-foot lift, it delivers smooth feeding, clean finishes, and consistent industrial performance on light to heavy materials.

Key Features

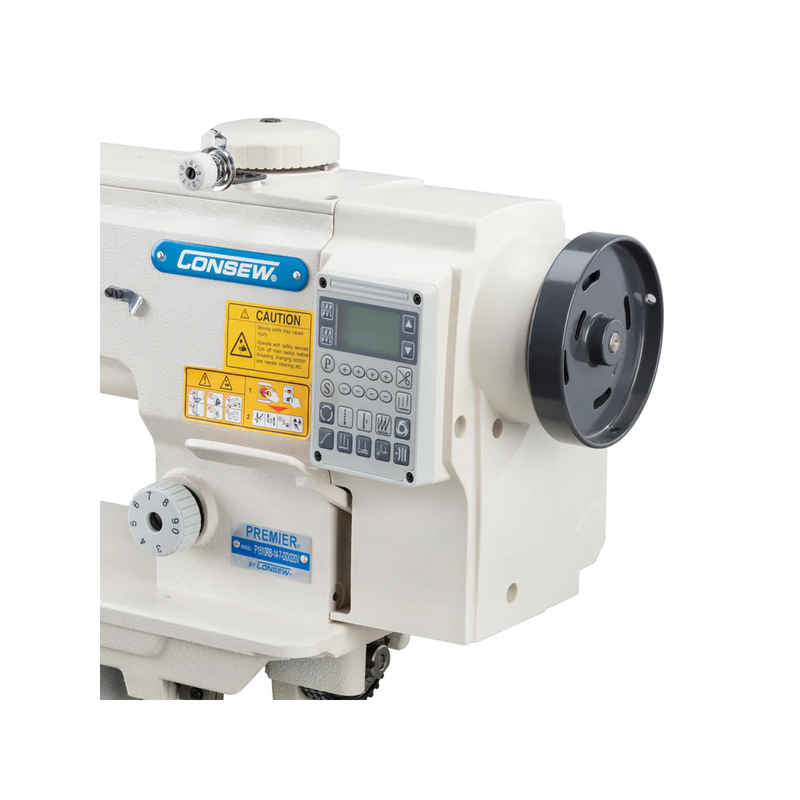

• Direct Drive Servo (110 VAC): Motor coupled directly to the top shaft for high efficiency, low vibration, and precise speed control.

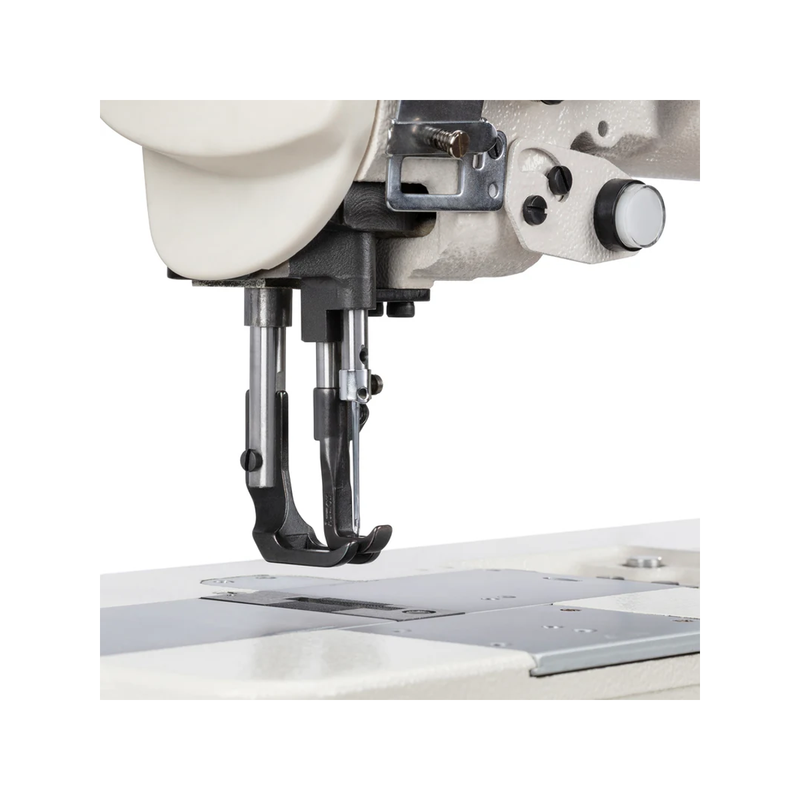

• Walking Foot Mechanism: Positive feeding across thick, layered, or slippery materials for uniform stitch formation.
• Automatic Thread Trim (-7DD only): Clean end-of-seam cut for faster cycles and professional results.
• Automatic Presser-Foot Lift & Auto Reverse: Improves throughput and reinforces seams with consistent back-tacks.
• “Roll-In” Start: Tucks the top thread under the fabric at start to reduce birds’ nests and rework.
• Climbing Device: Assists over height transitions and thick spots for stable feeding.
• Large Top-Load Bobbin & Built-in Winder: Fewer changeovers and convenient bobbin prep on the head.
• Semi-Automatic Lubrication: Reliable oiling to key components for longer service life.

Applications

• Automotive, boat, and furniture upholstery
• Leather goods, vinyl, synthetics, laminated and coated fabrics
• Tarpaulins, covers, awnings, tents, umbrellas
• Handbags, luggage, travelware, outdoor gear, footwear
• General apparel and heavy textile fabrication

Technical Specifications

Advantages

• Industrial-grade feeding and penetration on heavy or layered materials.
• Faster workflow with auto trim, auto lift, and programmable reverse (-7DD).
• Cleaner starts with “roll-in” thread control; fewer restarts and defects.
• Energy-efficient, quiet operation with direct drive and speed modulation.

Model Lineup

• Full Automatic (-7DD) with Auto Thread Trim
  • P1510RB-14-7DD — 14" workspace (355 mm)
  • P1510RBL-18-7DD — 18" workspace (457 mm)
  • P1510RBL-25-7DD — 25" workspace (635 mm)
• Automatic (-DD) without Auto Thread Trim
  • P1510RB-14-DD — 14" workspace (355 mm)
  • P1510RBL-18-DD — 18" workspace (457 mm)
  • P1510RBL-25-DD — 25" workspace (635 mm)

*Max speed depends on material, thread, and operation.
