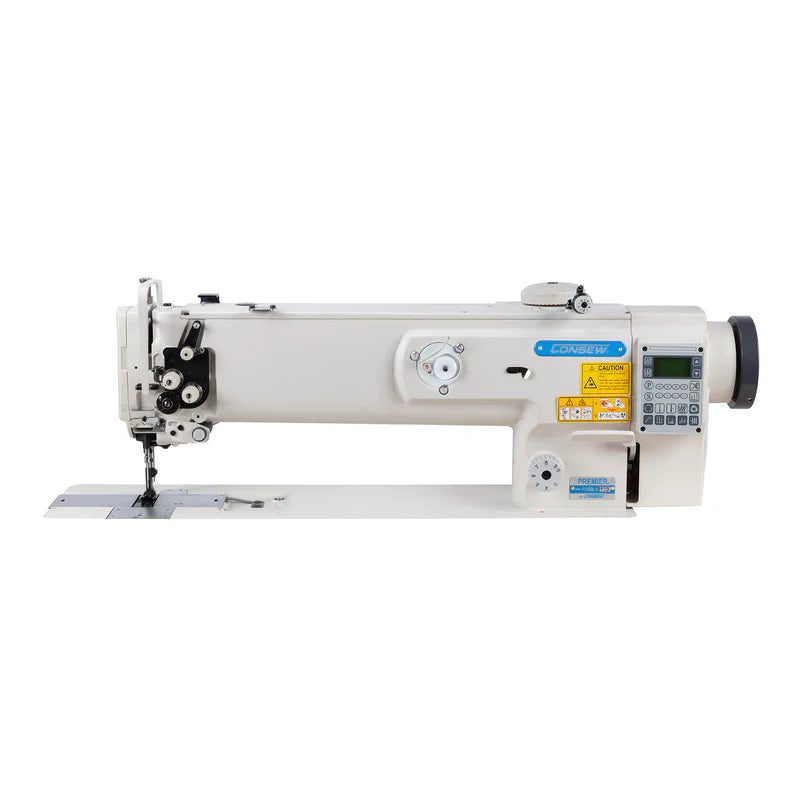

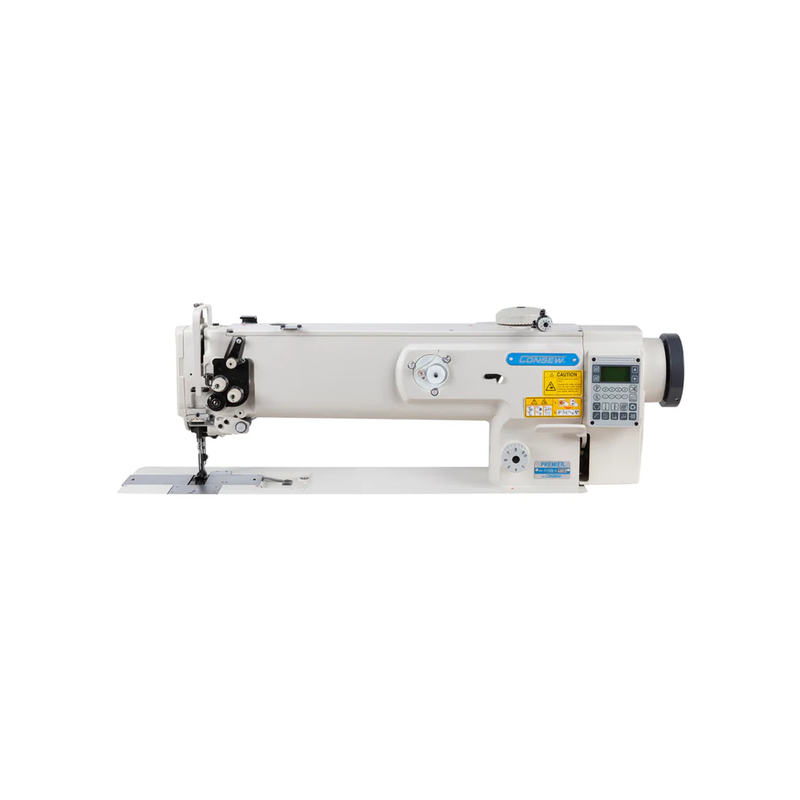

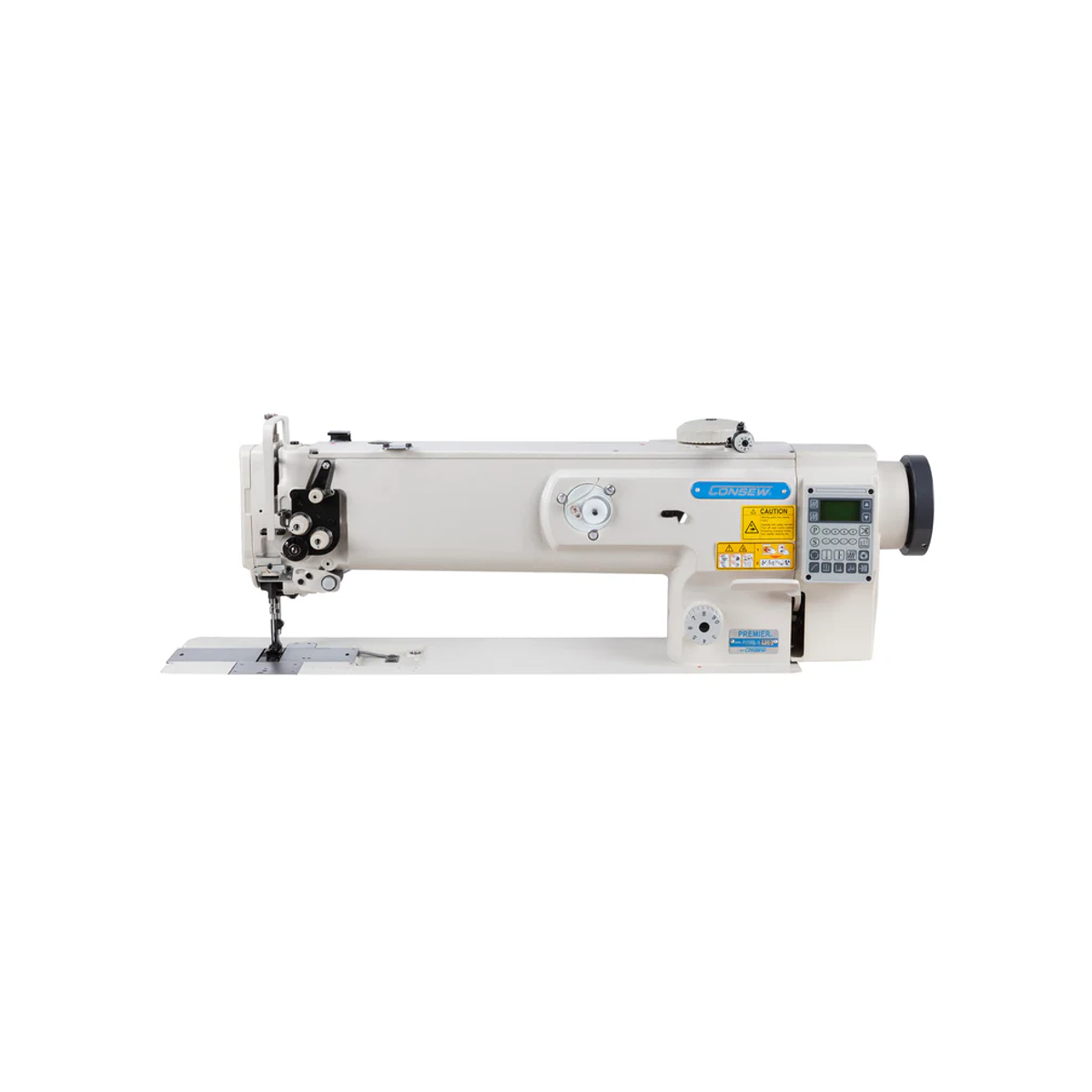

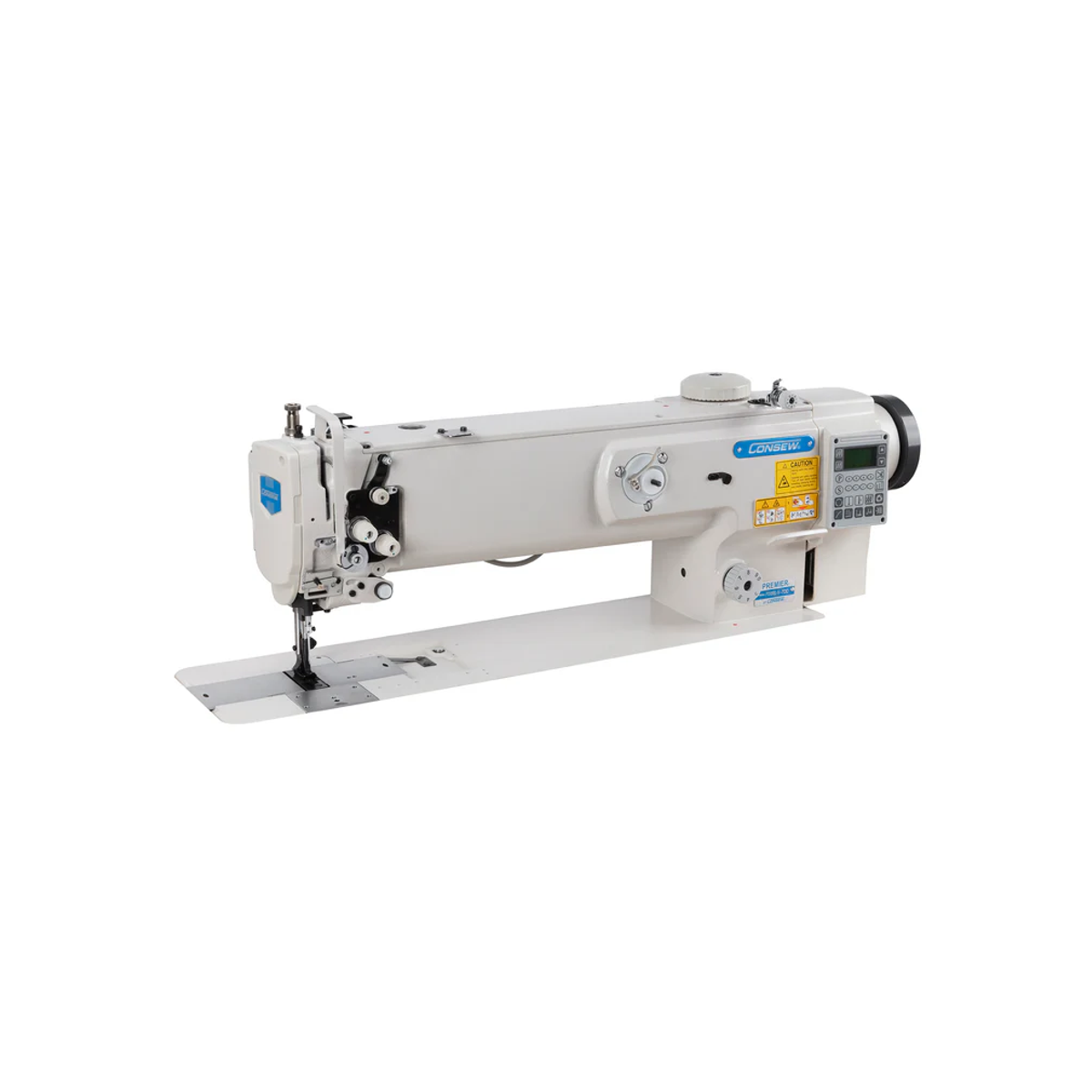

Consew P1510RBL-18-7DD — Single Needle, Long Arm, Walking Foot, Lockstitch Machine

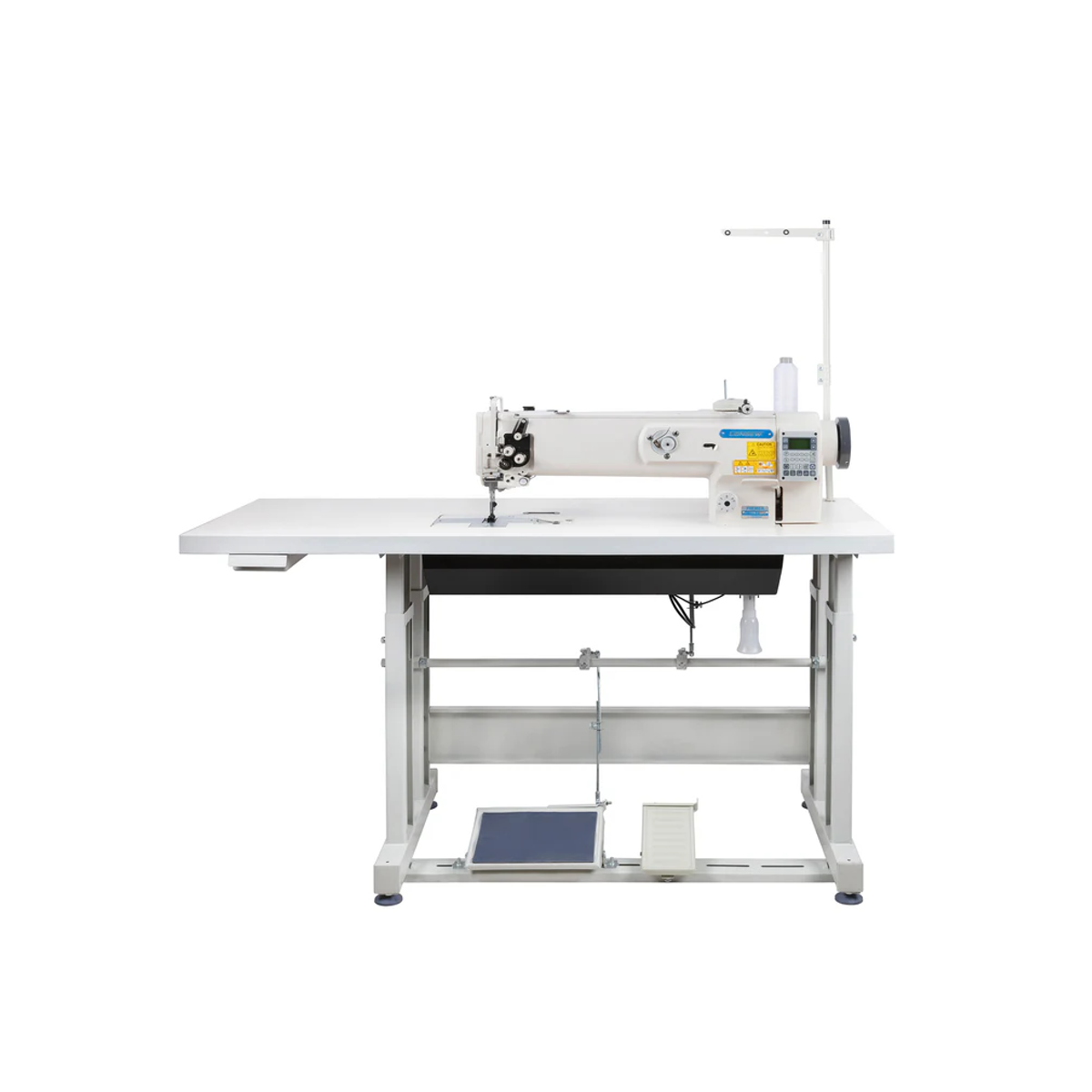

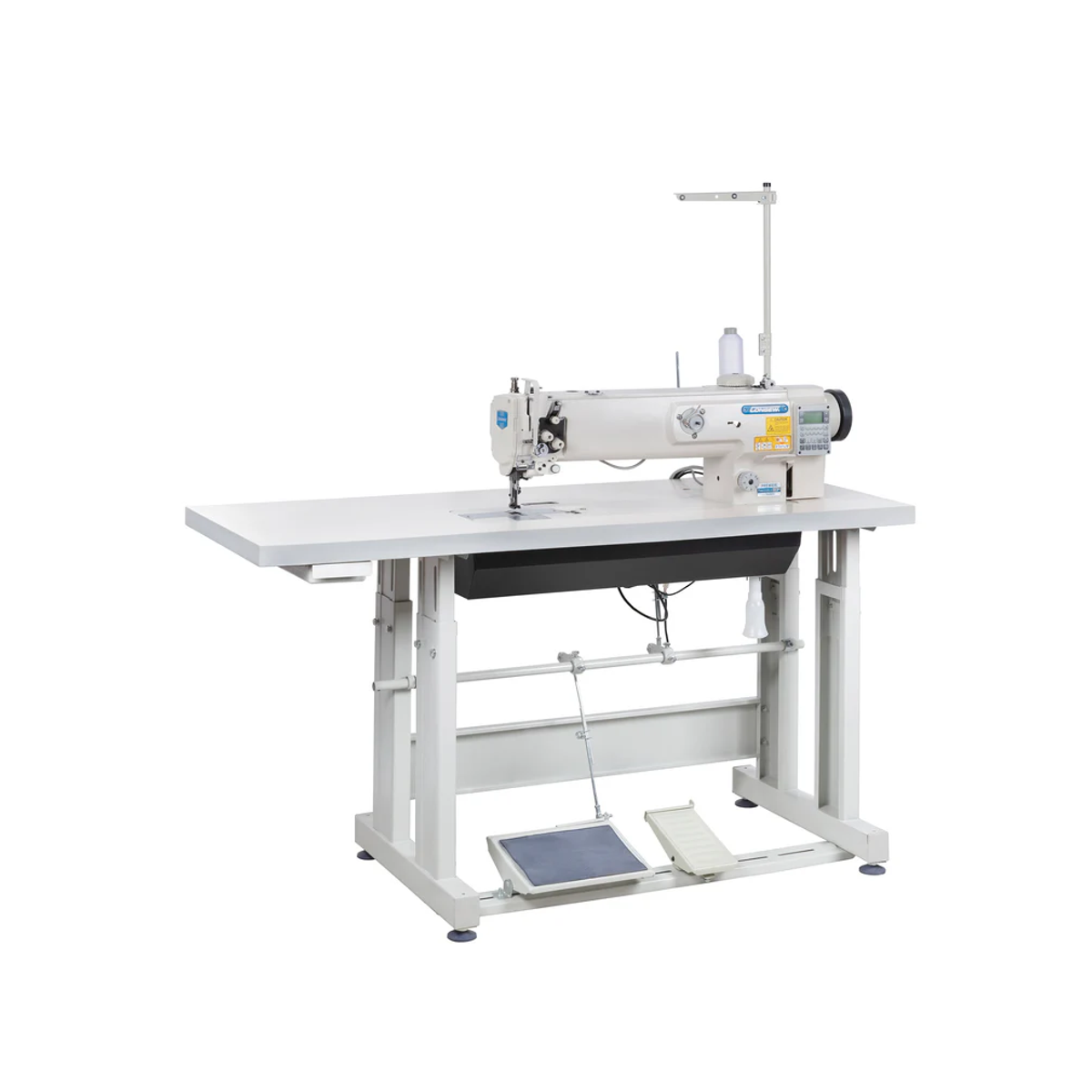

Complete Assembled with Table and Stand Included
Complete Assembled with Table and Stand Included
Heavy-Duty • Precision Stitching • Full Automatic (-7DD)
The Consew P1510RBL-18-7DD is the 18" long-arm version of Consew’s professional-grade walking foot series. Designed for automotive, marine, leather, canvas, and upholstery applications, this high-speed machine combines powerful compound feed with Direct Drive servo technology, automatic thread trimming, and programmable automation (-7DD). Built for consistent, heavy-duty performance with quiet operation and exceptional stitch quality across light to heavyweight materials.
Key Features
- 18″ Long Arm: Extended 457 mm workspace for handling large and bulky projects.
- Direct Drive Servo Motor (110V): Integrated motor connected directly to the top shaft for smooth, energy-efficient operation and precise speed control.

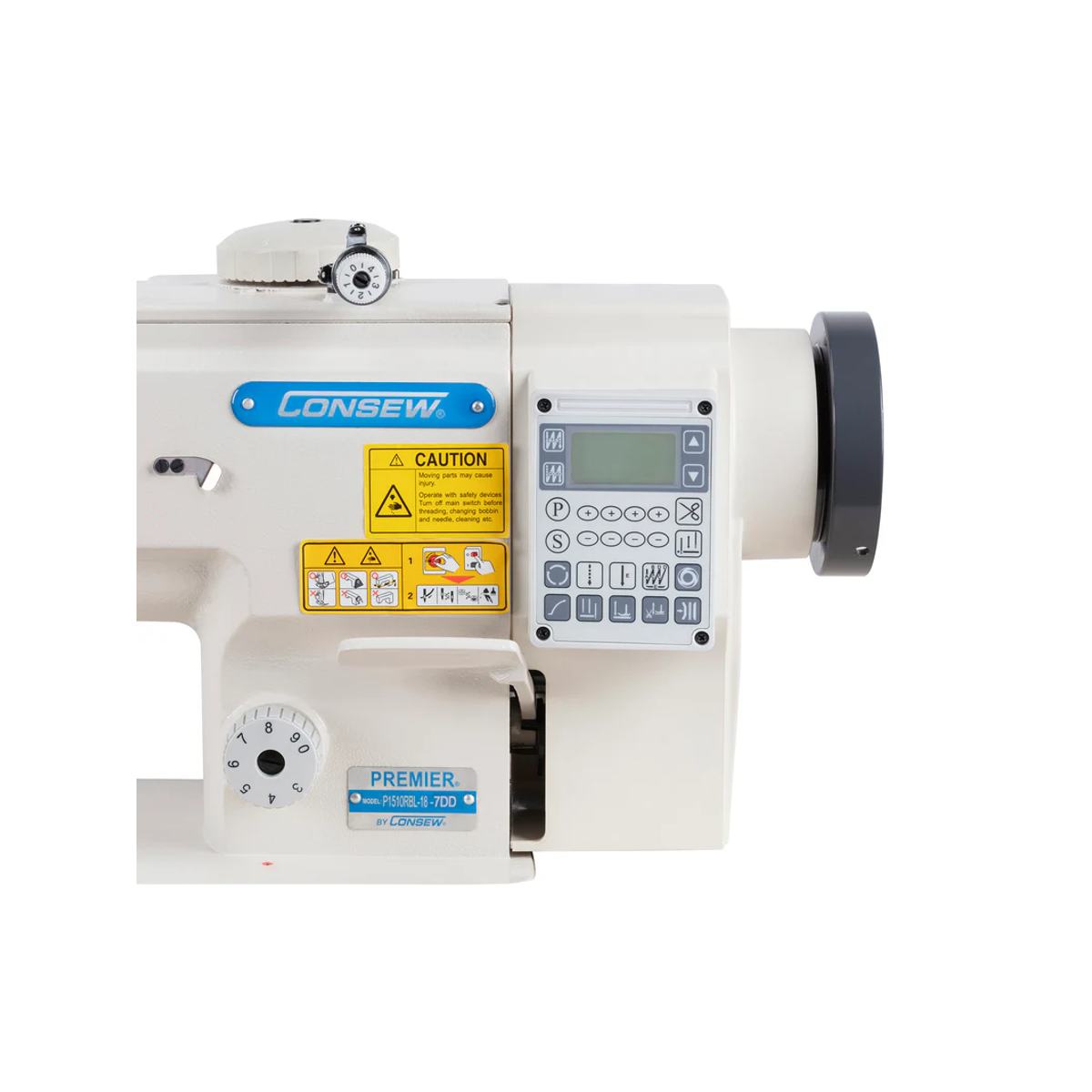

- Full Automatic Functions (-7DD): Automatic thread trim, foot lift, and reverse stitching for fast, efficient workflow.

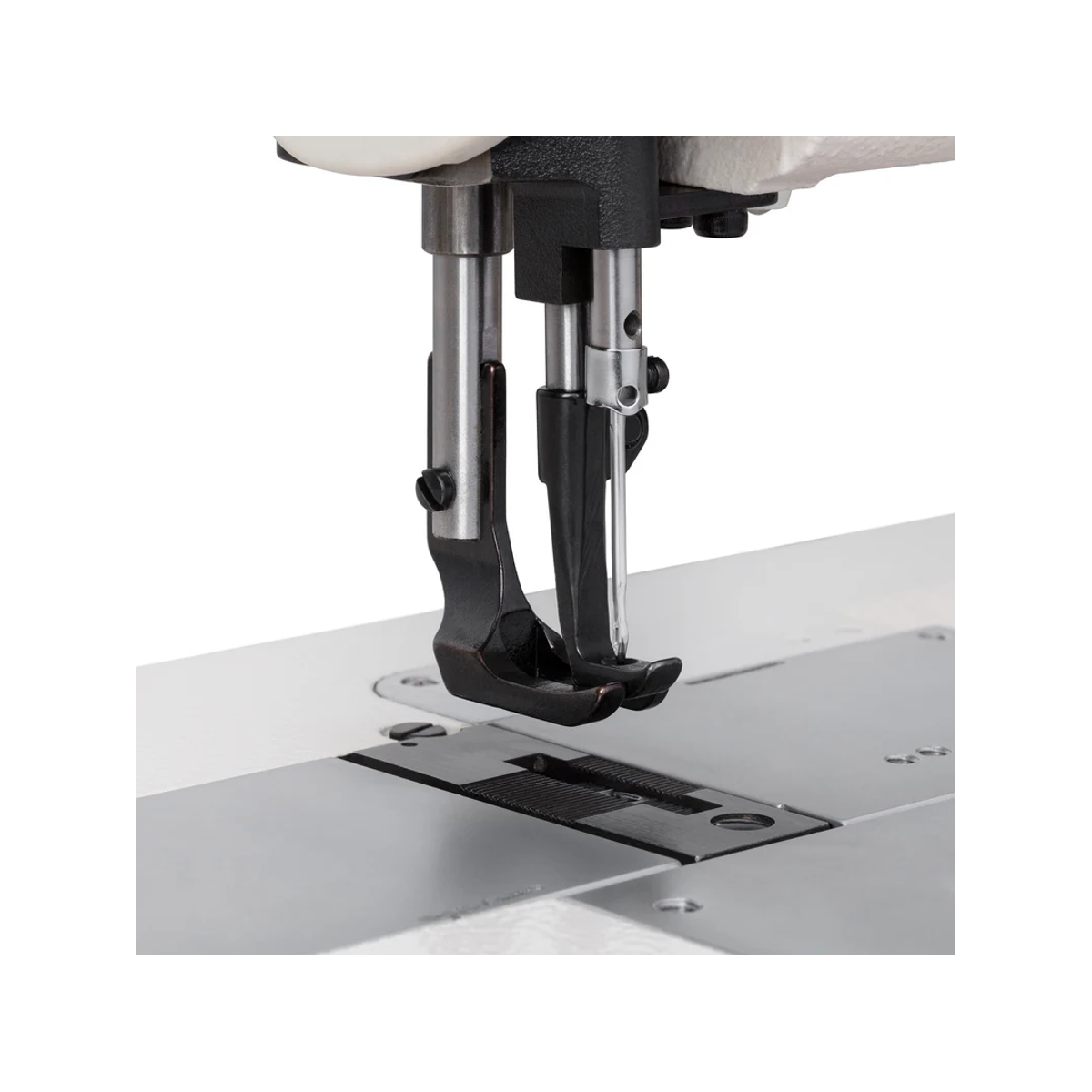

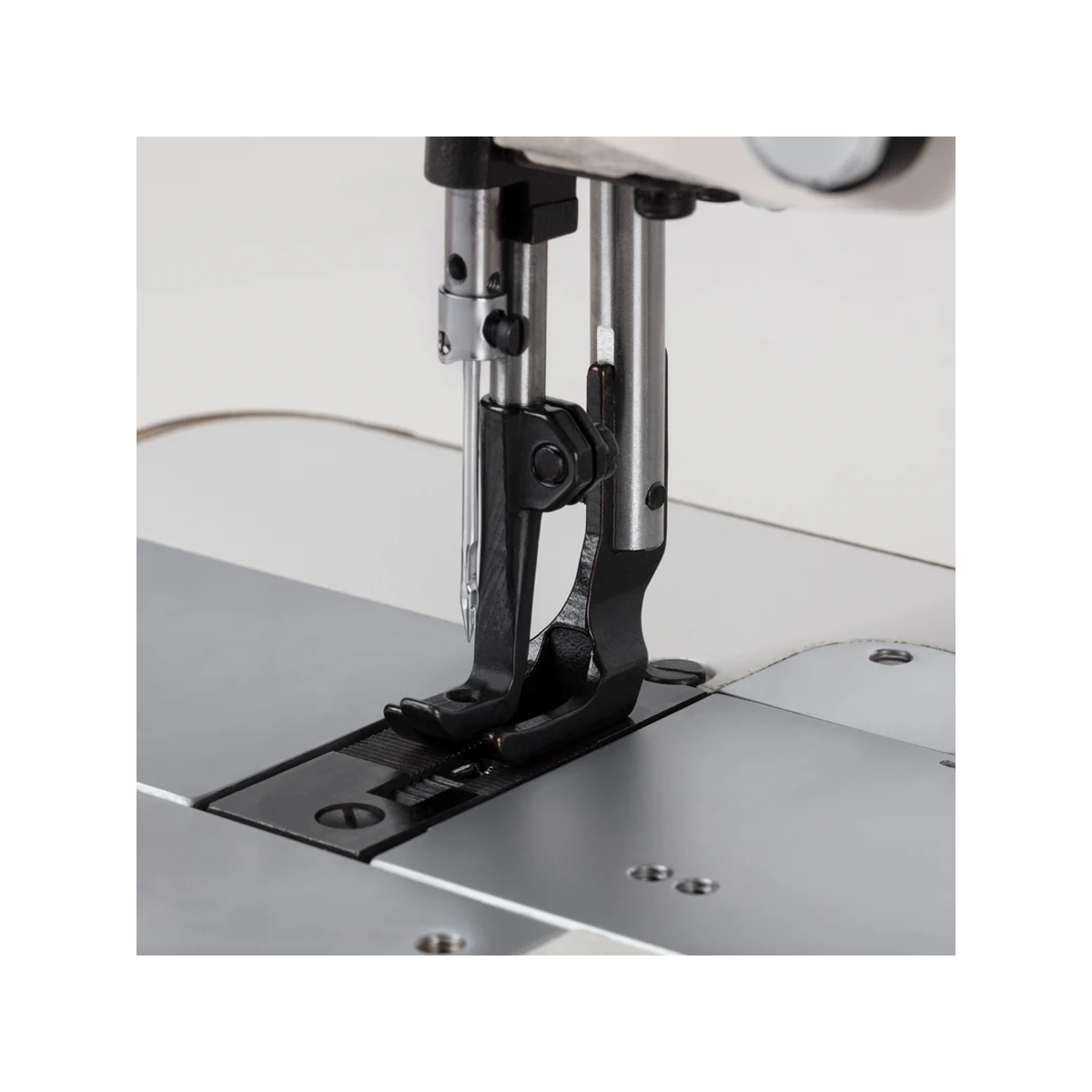

- Walking Foot Compound Feed: Synchronizes needle, feed dog, and presser foot for stable feeding through thick or layered fabrics.
- “Roll-In” Thread Control: Automatically tucks the top thread under the fabric at start-up, preventing thread nests.
- Climbing Device: Assists in smooth feeding over uneven or multi-layered materials.
- Large Top-Load Bobbins & Built-in Winder: Quick-change bobbins for uninterrupted sewing cycles.
- Semi-Automatic Lubrication: Ensures consistent oil distribution to key components for reduced maintenance.
Applications
- Automotive, marine, and furniture upholstery
- Leather goods, handbags, luggage, and travelware
- Canvas, vinyl, synthetics, and laminated materials
- Tarpaulins, covers, awnings, tents, and umbrellas
- Footwear, outdoor gear, and orthopedic appliances
Technical Specifications
| Model: | P1510RBL-18-7DD |
| Needles: | 1 (Single) |
| Feeding Mechanism: | Walking Foot (Compound Feed) |
| Workspace (Throat): | 18" (457 mm) |

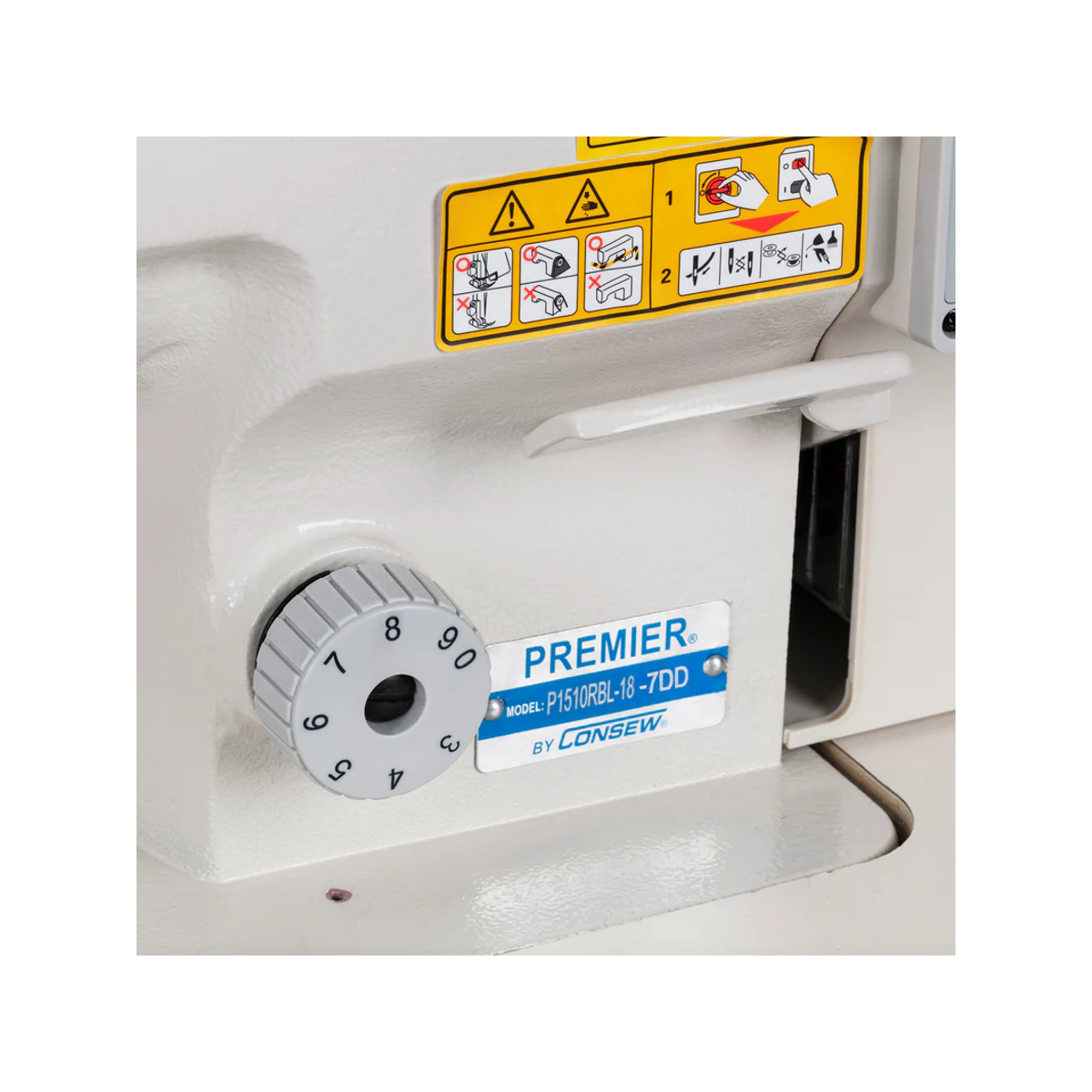

| Stitch Length (Max): | 9 mm (adjustable by dial) |
| Speed (Max): | 2,000–2,500 stitches per minute* |
| Presser Foot Lift: | Hand: 9 mm • Knee: 16 mm |
| Clearance Under Foot: | 9/16" (14 mm) |
| Needle System: | 135 × 17 (DPx17) |
| Bobbin Type: | U or S |
| Lubrication: | Semi-Automatic |
| Motor Type: | Direct Drive Internal Servo |
| Power: | 110 VAC |
Advantages
- Extended 18″ arm for large upholstery and leather projects.
- Automatic trimming and foot lift for maximum productivity (-7DD).
- Energy-efficient, low-noise direct-drive operation.
- Consistent stitch quality on multiple fabric thicknesses.
- Built to handle continuous, high-speed industrial workloads.
The Consew P1510RBL-18-7DD delivers industrial strength and precision with modern automation — the perfect choice for professional upholstery, leatherwork, and heavy textile production.
