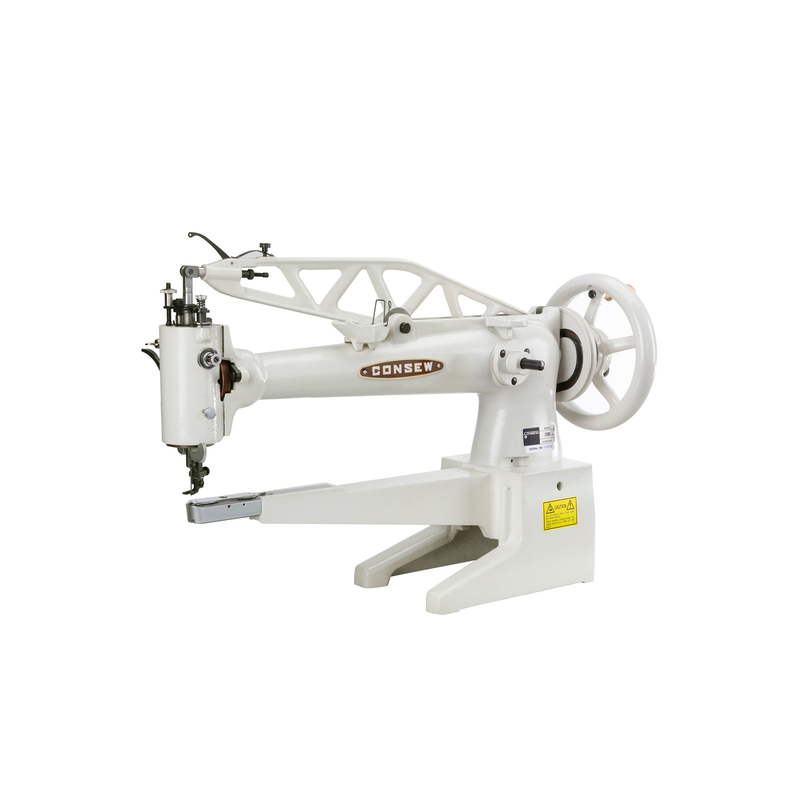

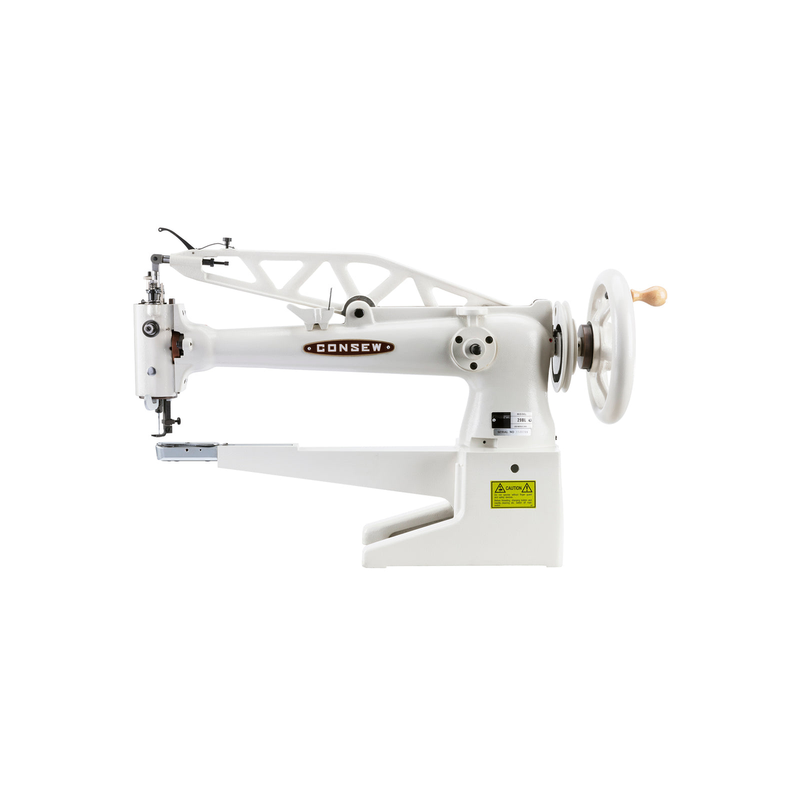

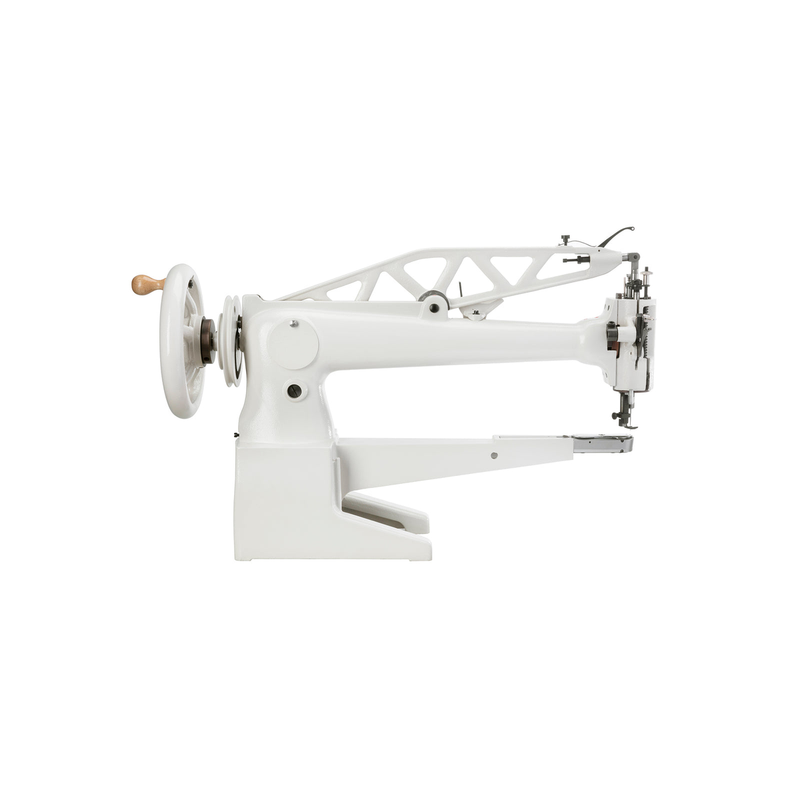

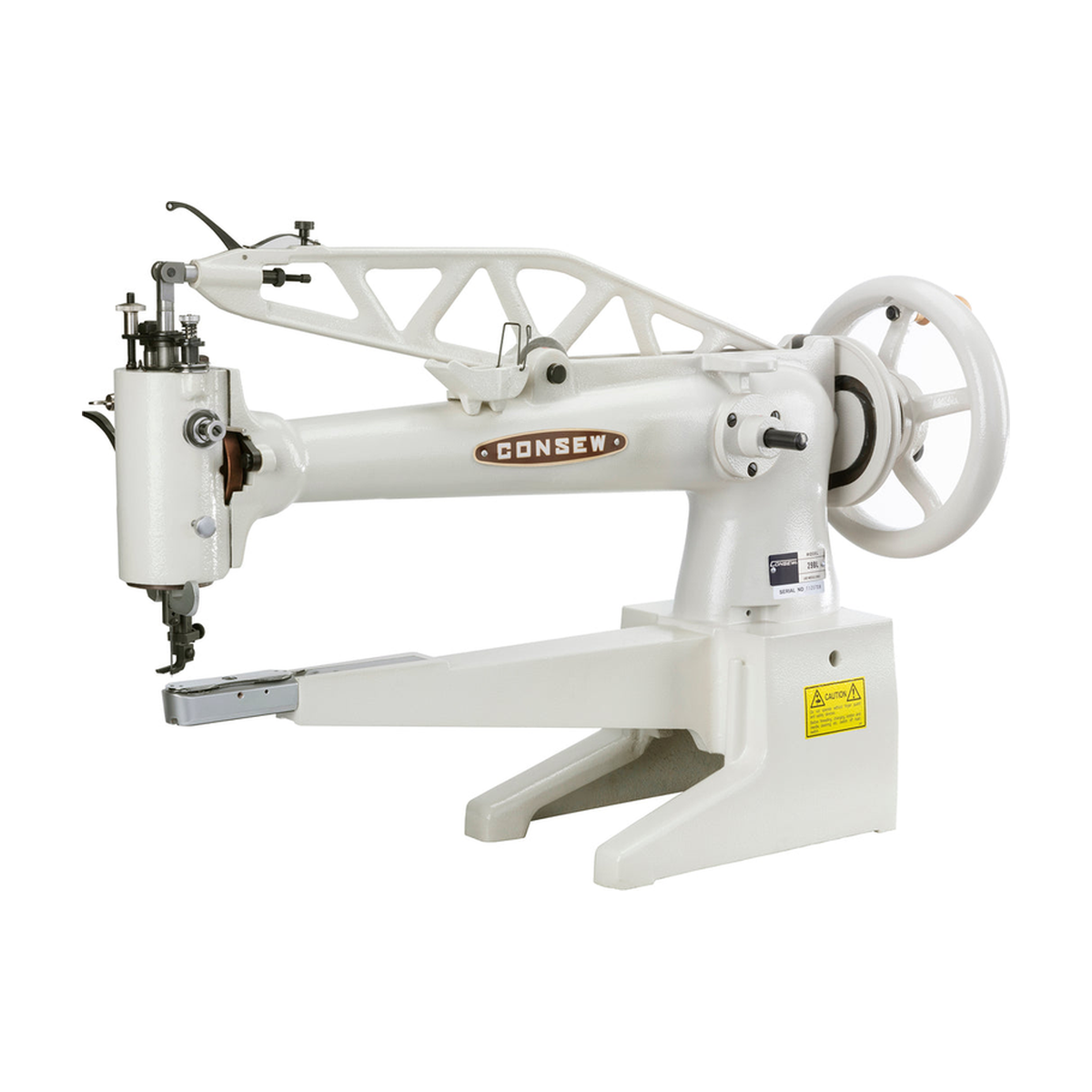

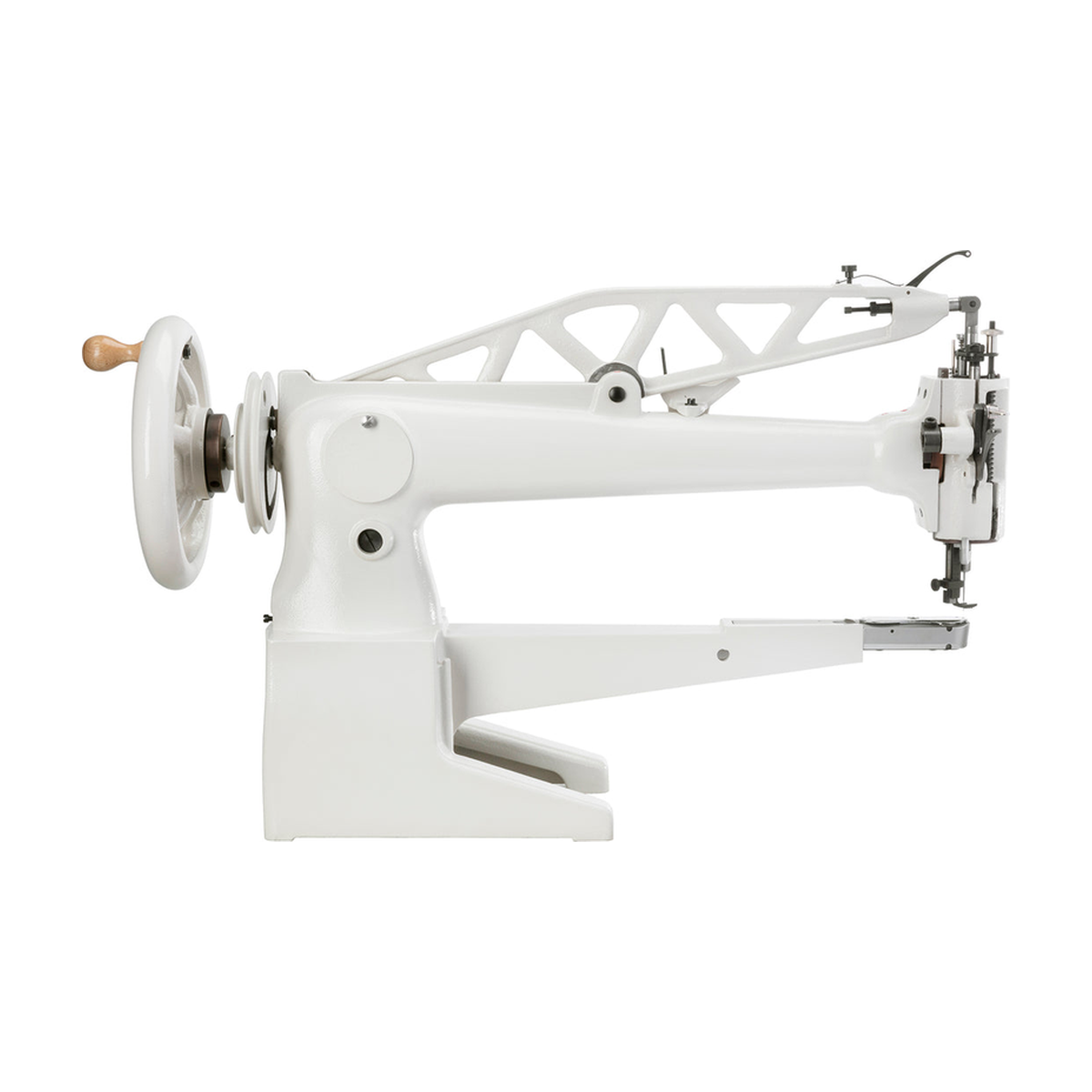

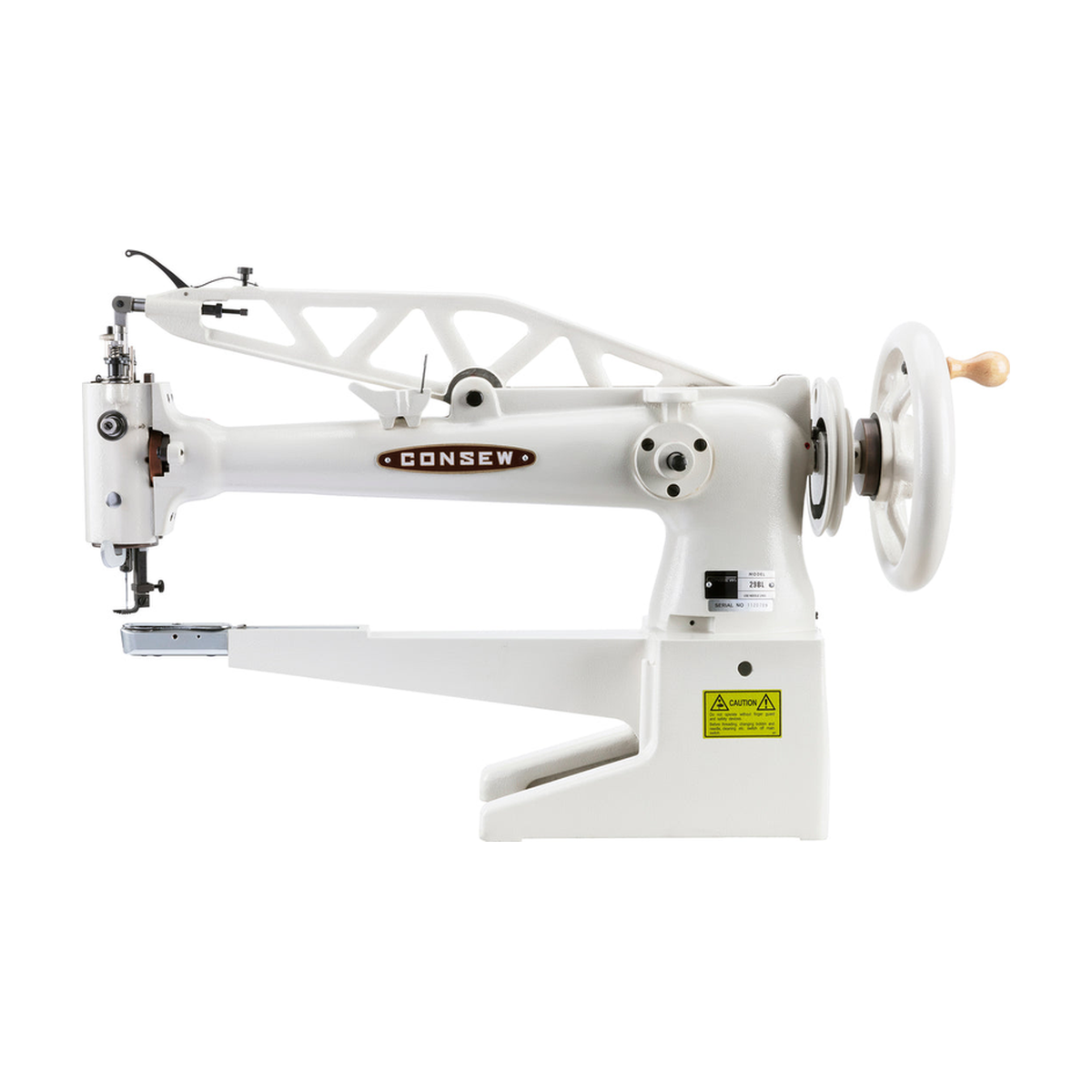

CONSEW® 29BL Long Arm Leather Patcher & Shoe Repair Industrial Sewing Machine – Complete with Table & Stand

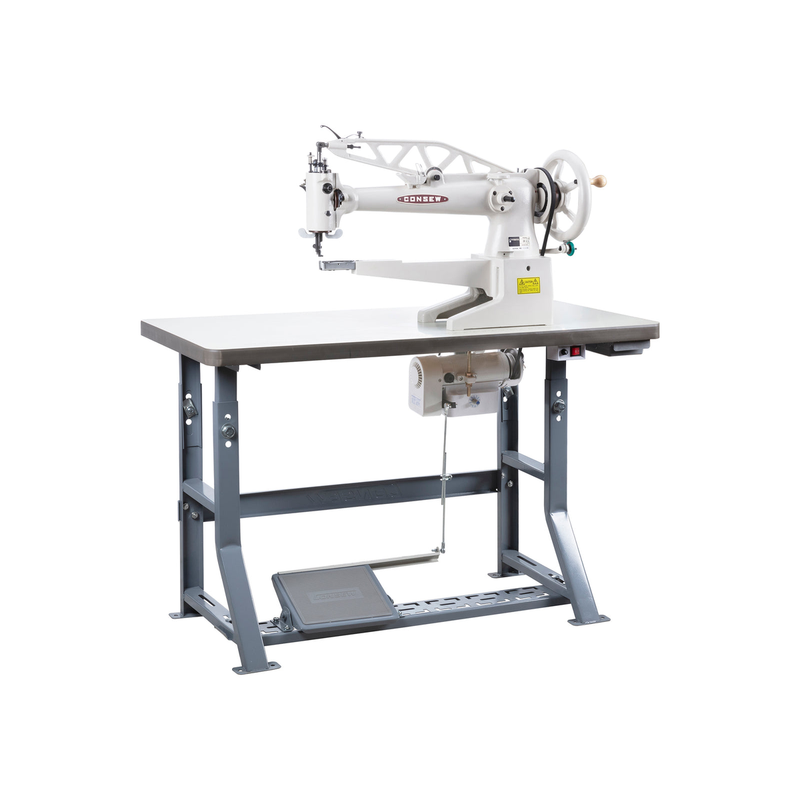

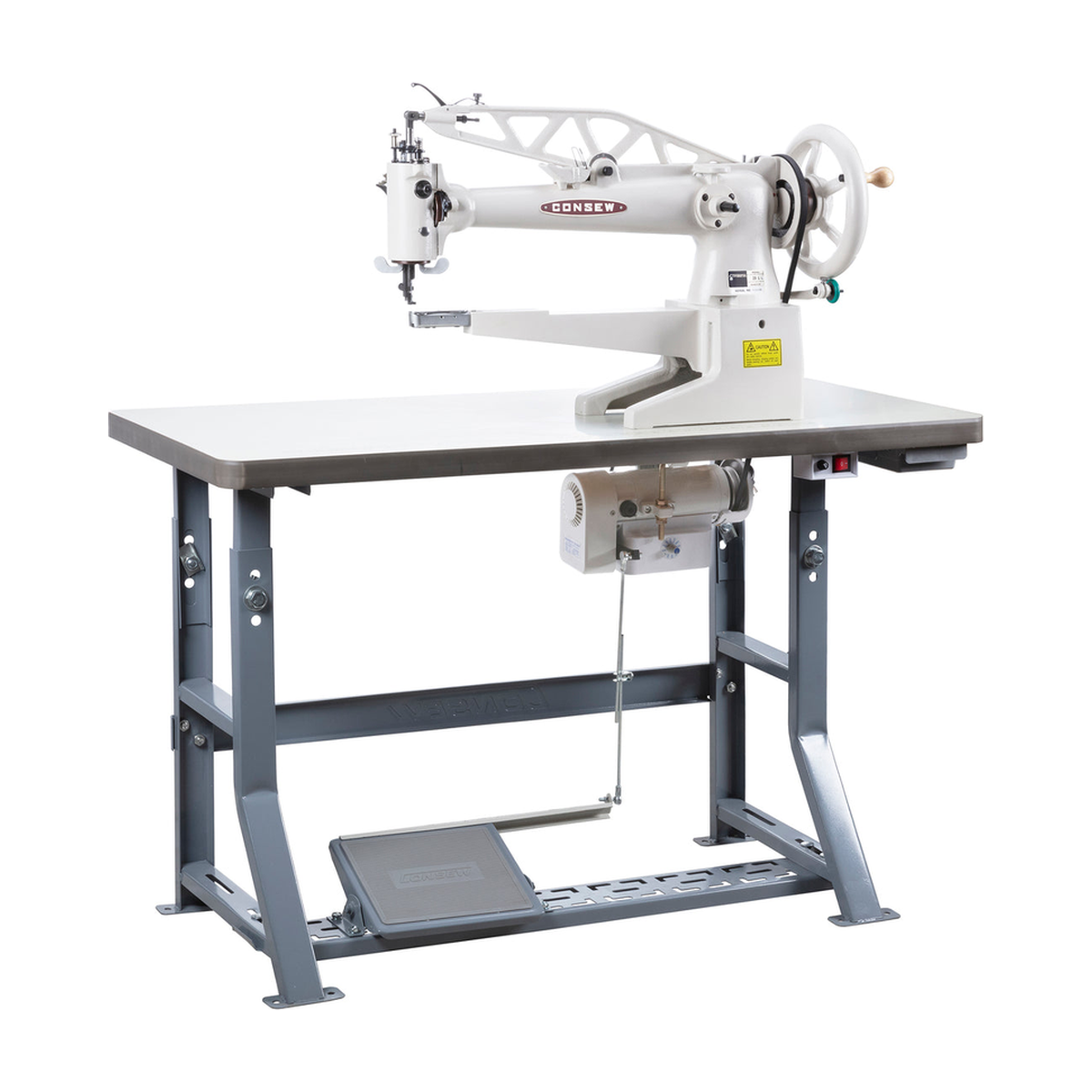

✔ COMPLETE ASSEMBLED WITH TABLE AND STAND INCLUDED
Ready to sew. No setup needed. Professional installation included.
18-Inch Long Arm • Universal Upper Feed • Large Bobbin • Shoe & Leather Repair
Reach areas that are difficult to sew on conventional flatbed machines with the CONSEW® 29BL. Its long, narrow cylinder arm is designed for patching and repairing shoe uppers, boots, leather articles, and other assembled items where access around the seam is limited.
The machine uses a universal upper-feed mechanism that allows the operator to change sewing direction without continually turning the workpiece. An oscillating shuttle and large-bobbin arrangement support controlled lockstitch repair work. JMJ Sewing Machines supplies this industrial unit with a table and stand.
Key Features
- 18-Inch Long Arm: Provides working reach for boots, bags, and larger repair pieces.
- Narrow Cylinder Bed: Helps position small or curved sections around the sewing area.

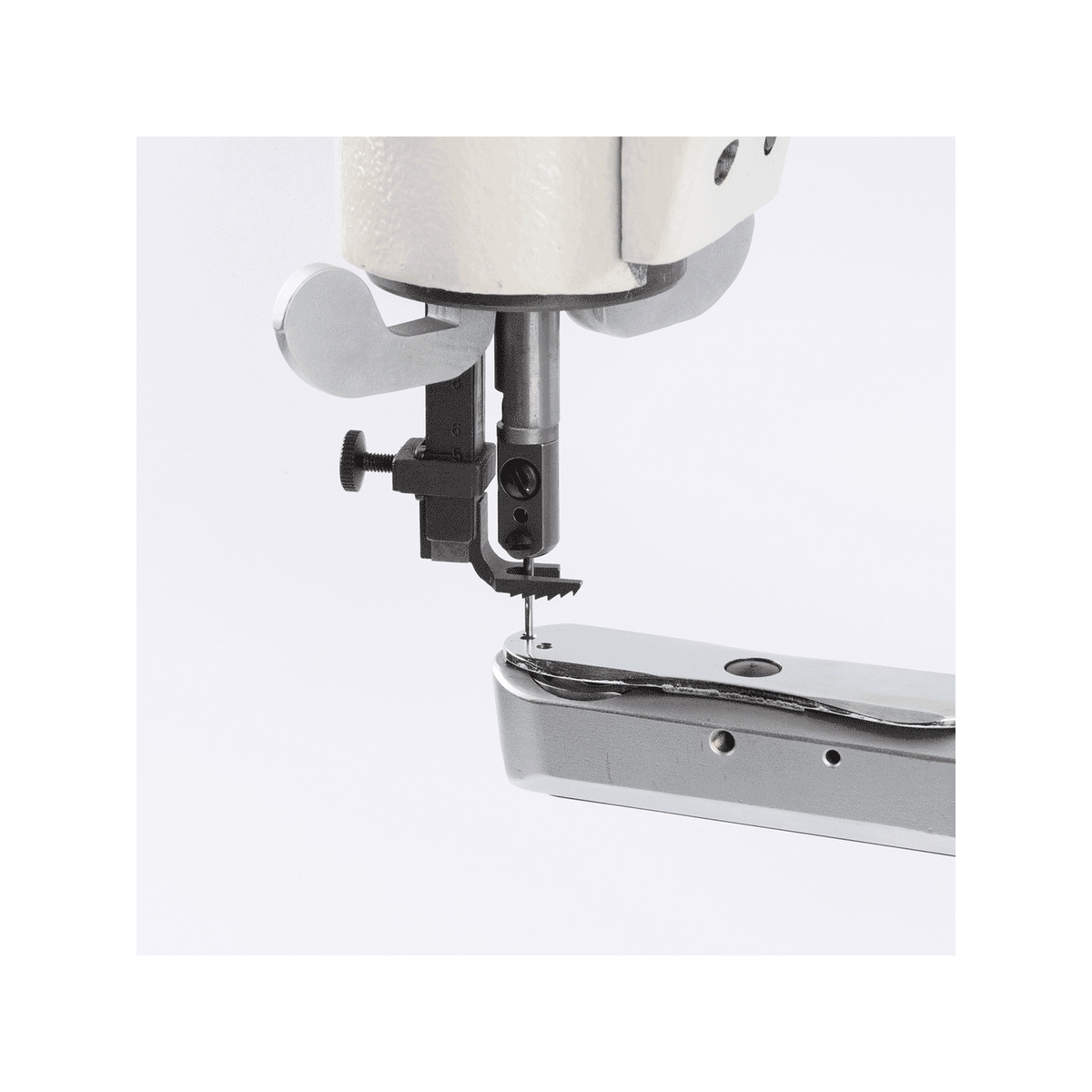

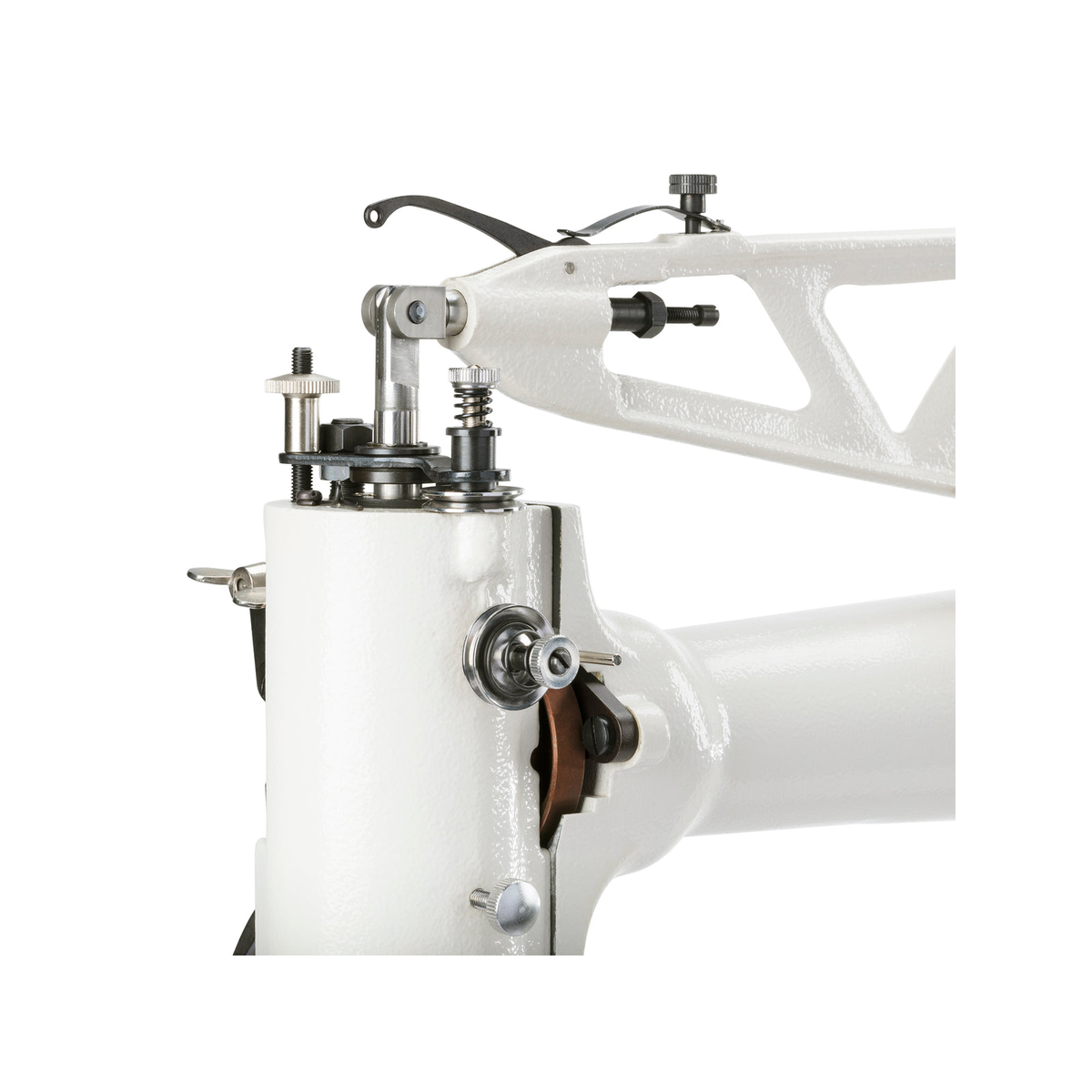

- Universal Upper Feed: Supports stitching in different directions while keeping the material positioned.
- Large Bobbin: Offers greater bobbin capacity than the standard small-bobbin version of the series.
- Oscillating Shuttle: Forms a lockstitch for repair and patching operations.

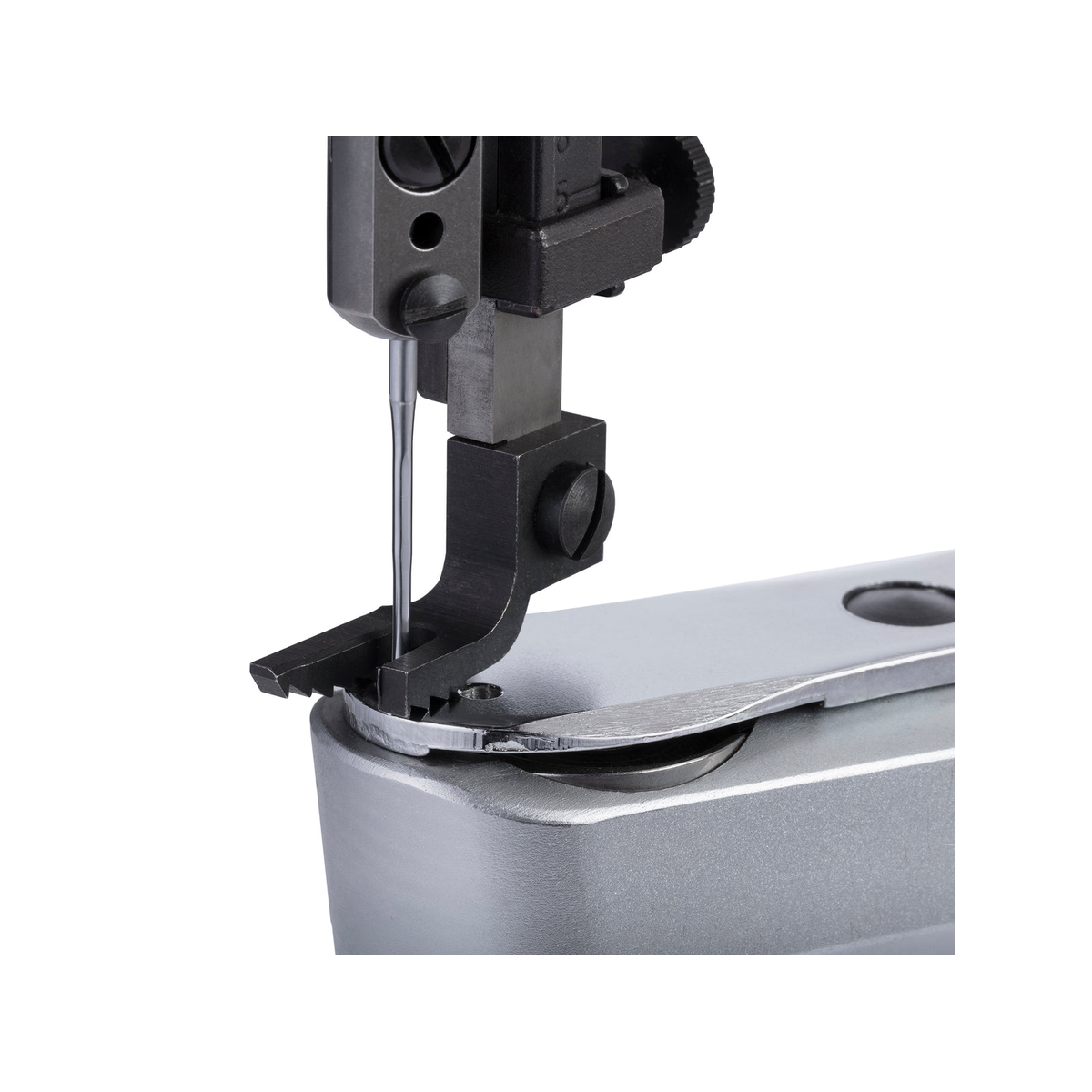

- Double-Ended Needle Plate: Provides needle-hole options for appropriate needle sizes.

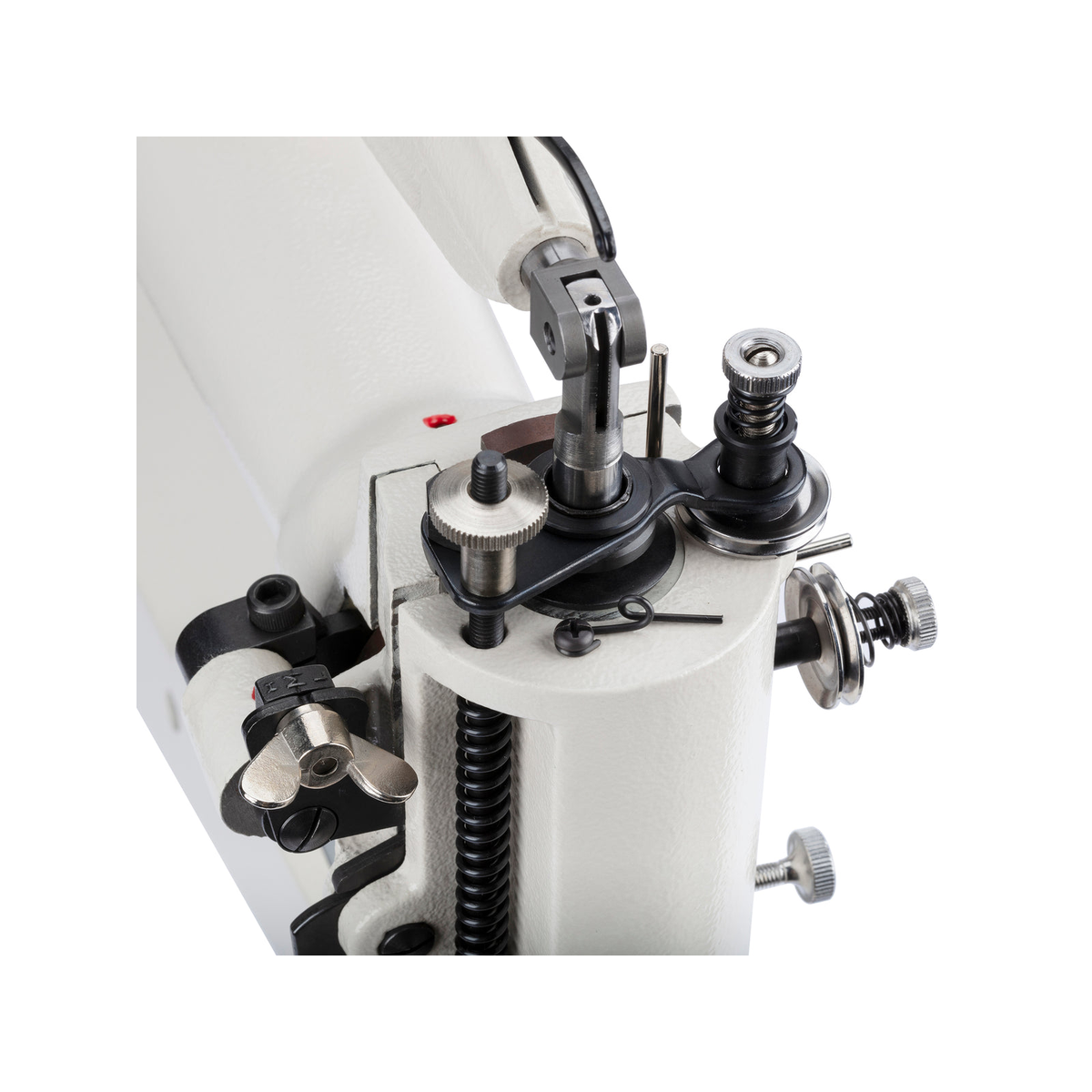

- Adjustable Controls: Thread take-up and presser-foot pressure can be set for the job.
- Complete JMJ Workstation: Includes industrial table and stand, assembled and tested before delivery.
Applications
- Shoe uppers and boot repairs.
- Leather patches and localized seam repairs.
- Handbags, luggage, and leather accessories.
- Curved and tubular articles with restricted sewing access.
- Suitable canvas and specialty repair projects.
- Professional cobbler and leather-repair workshops.
Technical Specifications
| Brand | CONSEW® |
| Model | 29BL |
| Machine Type | Single-Needle Cylinder-Arm Lockstitch Patcher |
| Feed Mechanism | Universal Upper Feed |
| Arm Workspace | 18 in. (460 mm) |
| Maximum Sewing Speed | 500 SPM |
| Stitch Length | 1–7 mm (manufacturer-listed range) |
| Presser-Foot Clearance | 10.5 mm (13/32 in.) |
| Hook / Shuttle | Large-Bobbin Oscillating Shuttle |
| Cylinder-Bed Width | 27.8 mm (1 5/32 in.) |
| Cylinder-Bed Depth | 29.4 mm (1 3/32 in.) |
| Needle System | Verify against the needle specification for the supplied unit |
| Net Machine Weight | 77 lb (35 kg) |
| JMJ Configuration | Complete with Table & Stand |
Included with the Machine
- CONSEW® 29BL machine head.
- Industrial sewing table.
- Heavy-duty industrial stand.

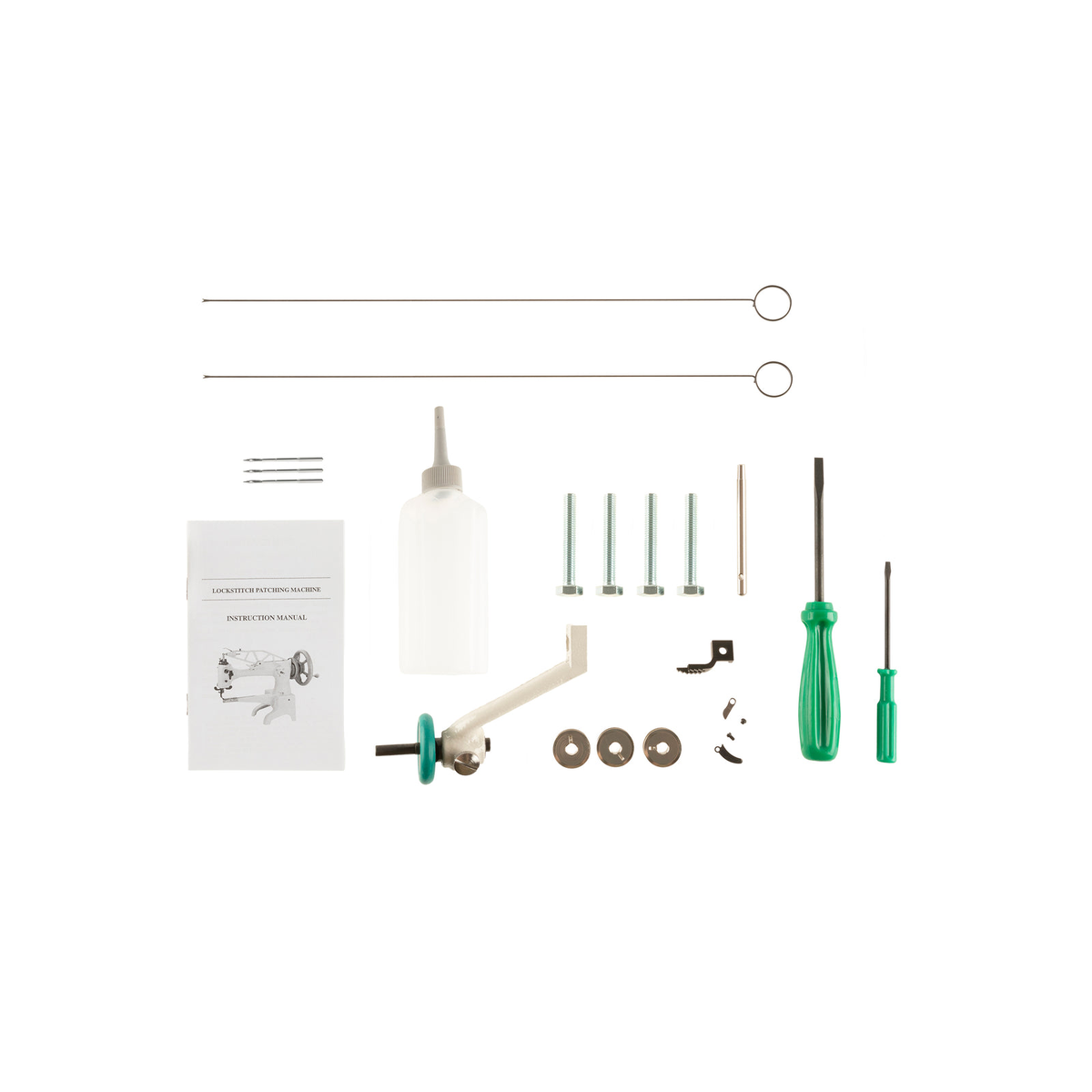

- Standard accessories supplied with the JMJ configuration.
JMJ Sewing Machines Recommends
JMJ Sewing Machines recommends checking needle compatibility, thread size, and stitch settings before beginning a repair. Test the seam on comparable material, particularly when working near existing stitching or on finished leather goods. JMJ prepares, adjusts, and sewing-tests industrial machine setups before delivery.
IMPORTANT — NEEDLE SYSTEM & DRIVE CONFIGURATION

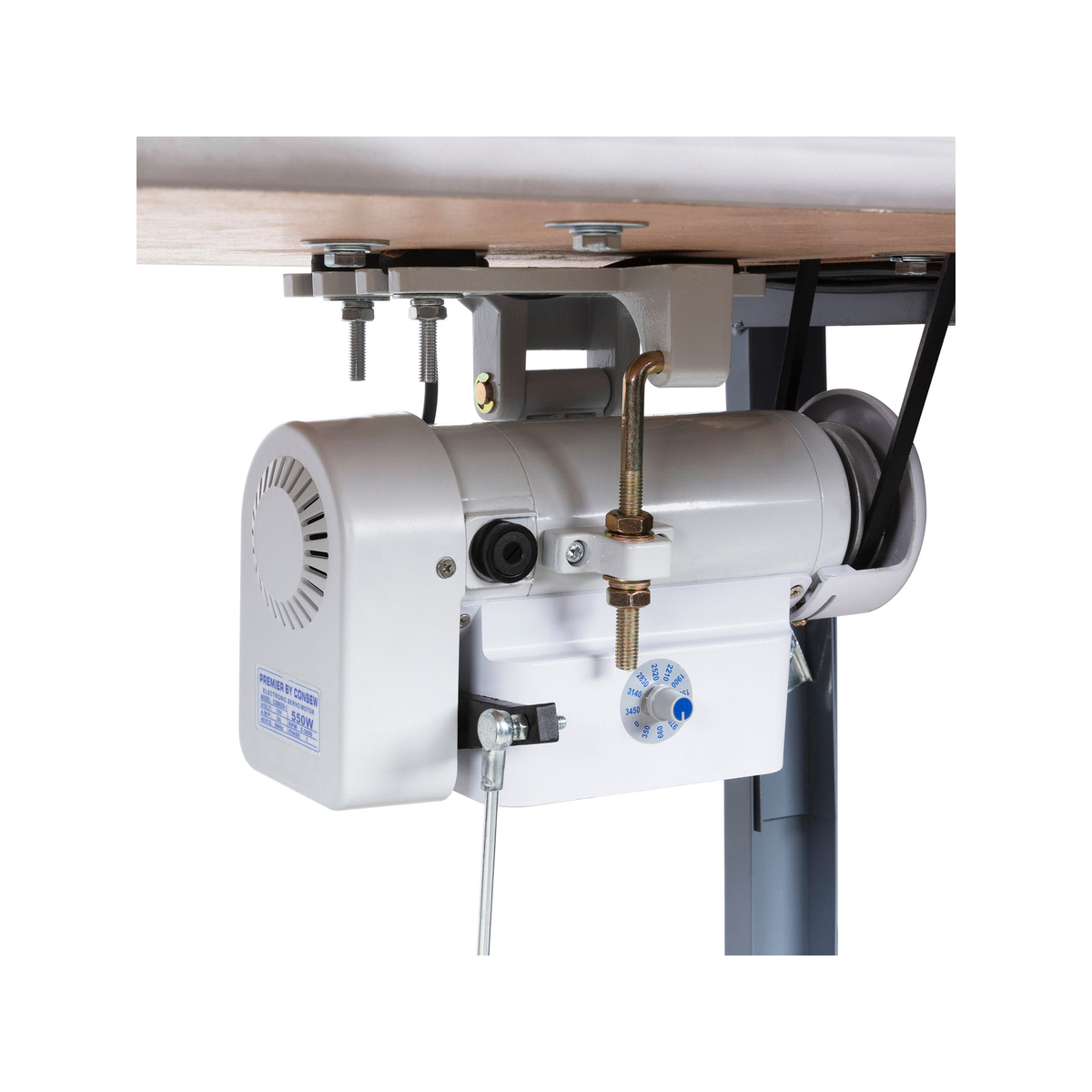

Manufacturer documents for the 29 series differ on needle-system references. Confirm the correct needle system for the exact machine supplied. Drive arrangements can vary; verify the installed drive configuration with JMJ Sewing Machines before purchase.
The CONSEW® 29BL combines long-arm access, a narrow cylinder bed, and directional upper feeding for controlled shoe, leather, and specialty-item repairs in a professional industrial workstation.
