SINGLE NEEDLE • LARGE BOBBIN • DROP FEED • AUTOMATIC LUBRICATION
FULLY ASSEMBLED | TABLE, MOTOR & STAND INCLUDED
Professionally assembled, inspected, adjusted, and sewing-tested by JMJ Sewing Machines before delivery.
Product Overview

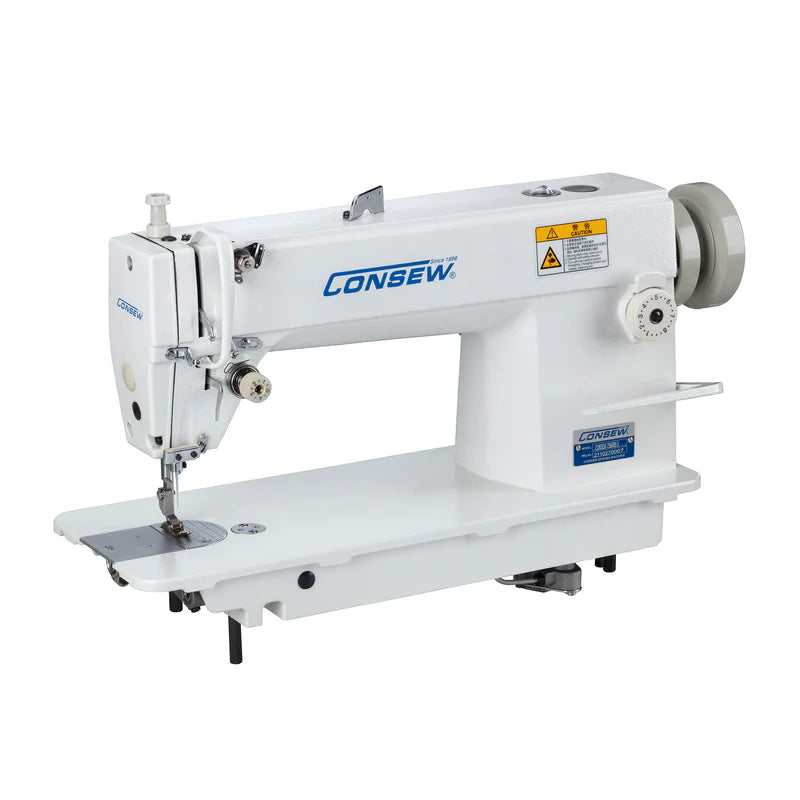

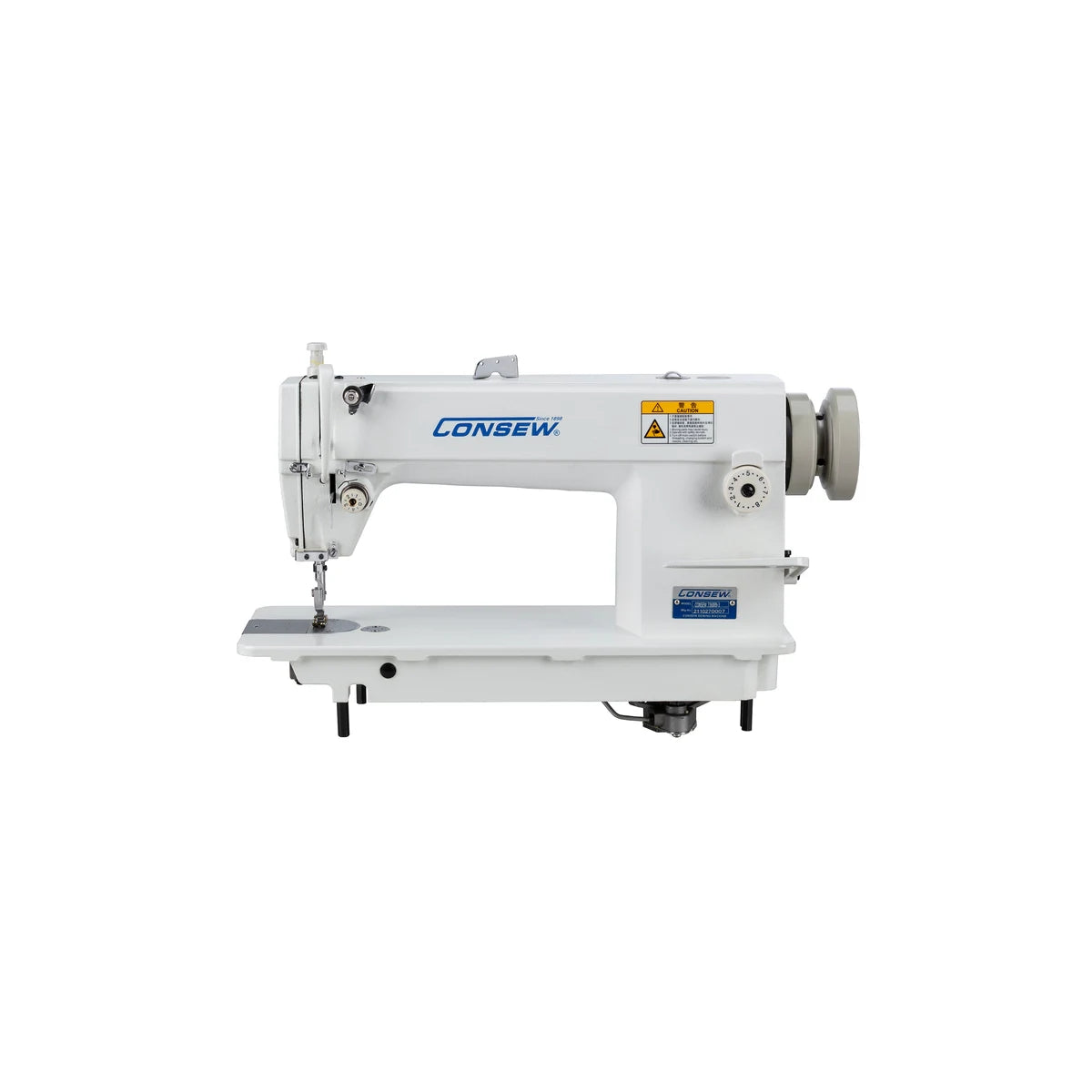

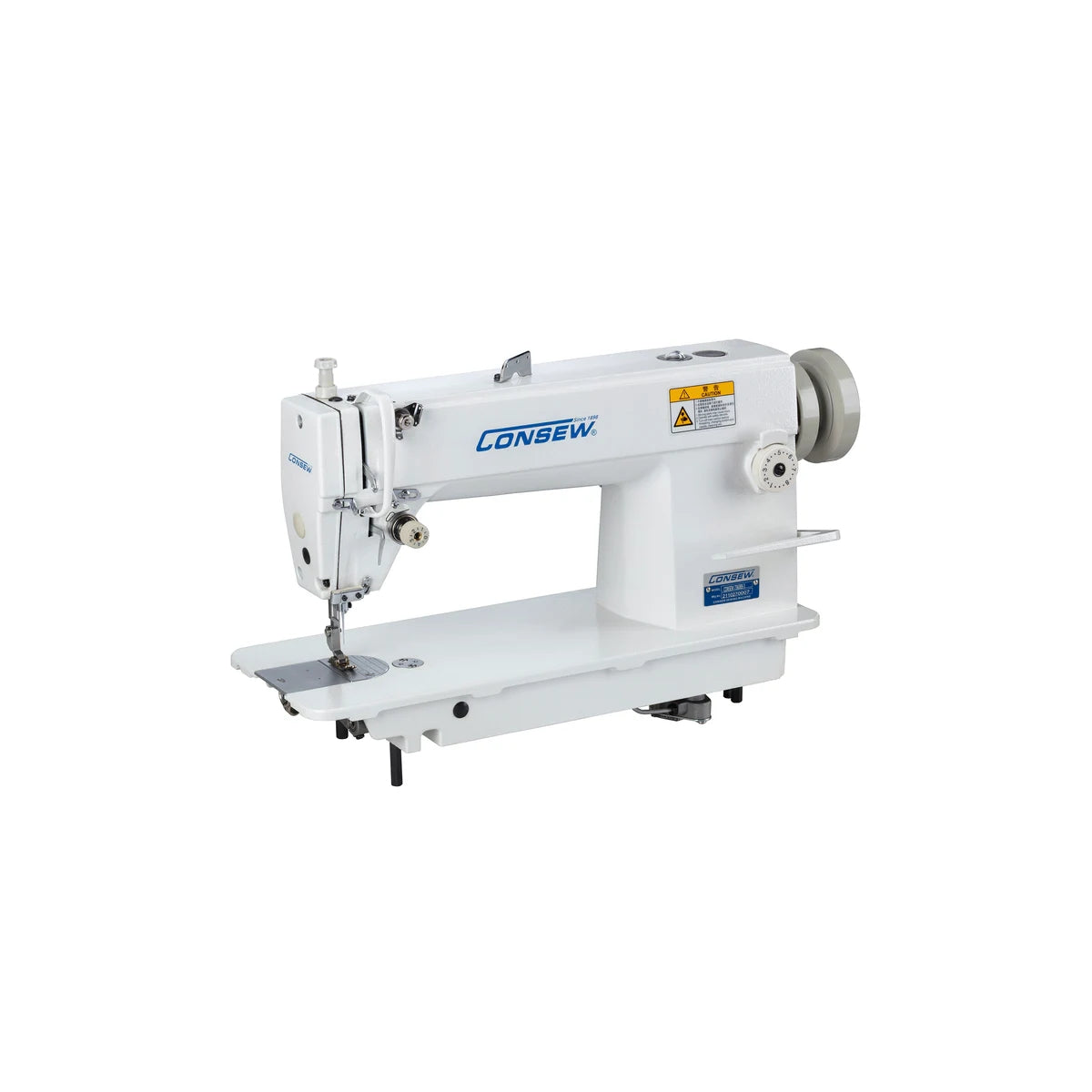

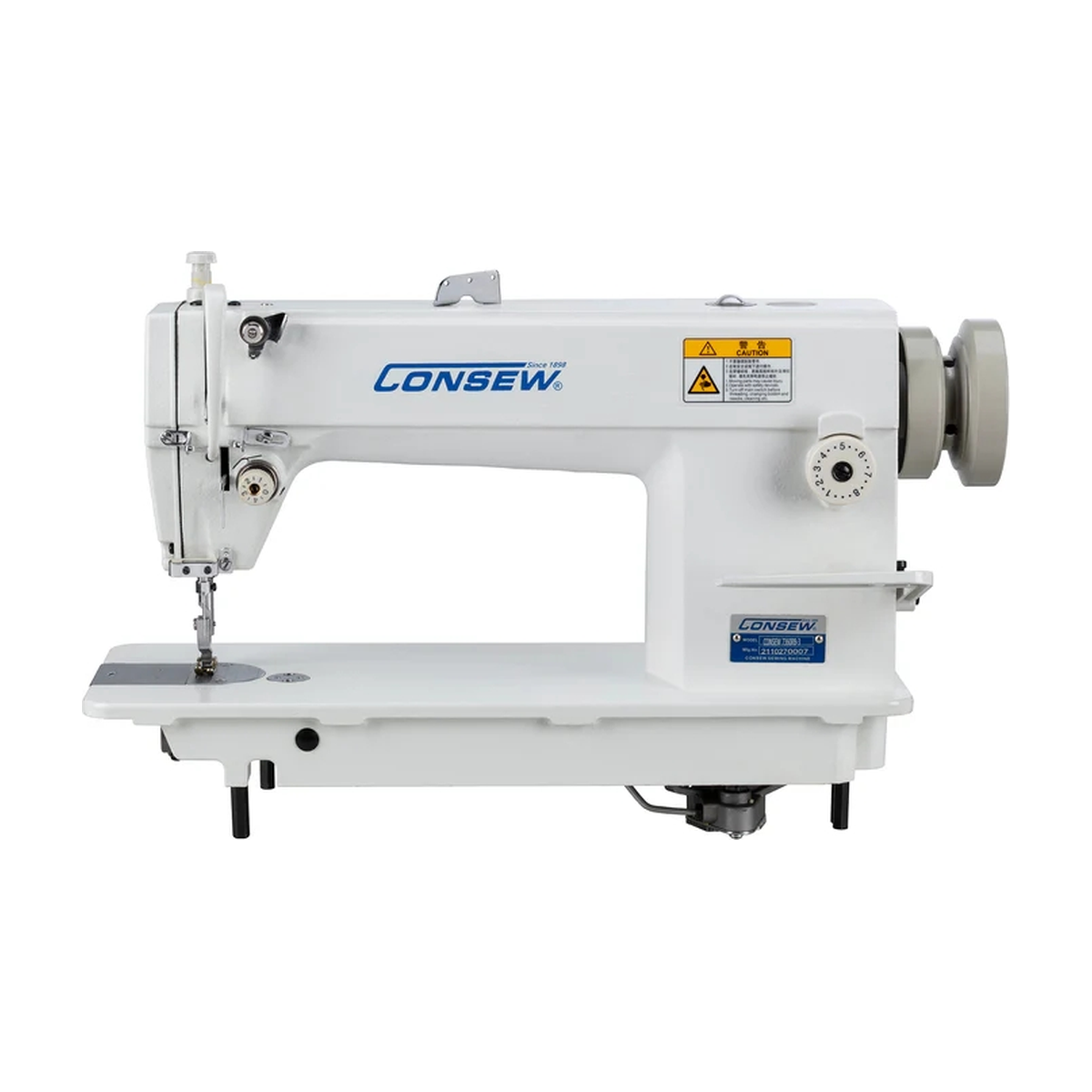

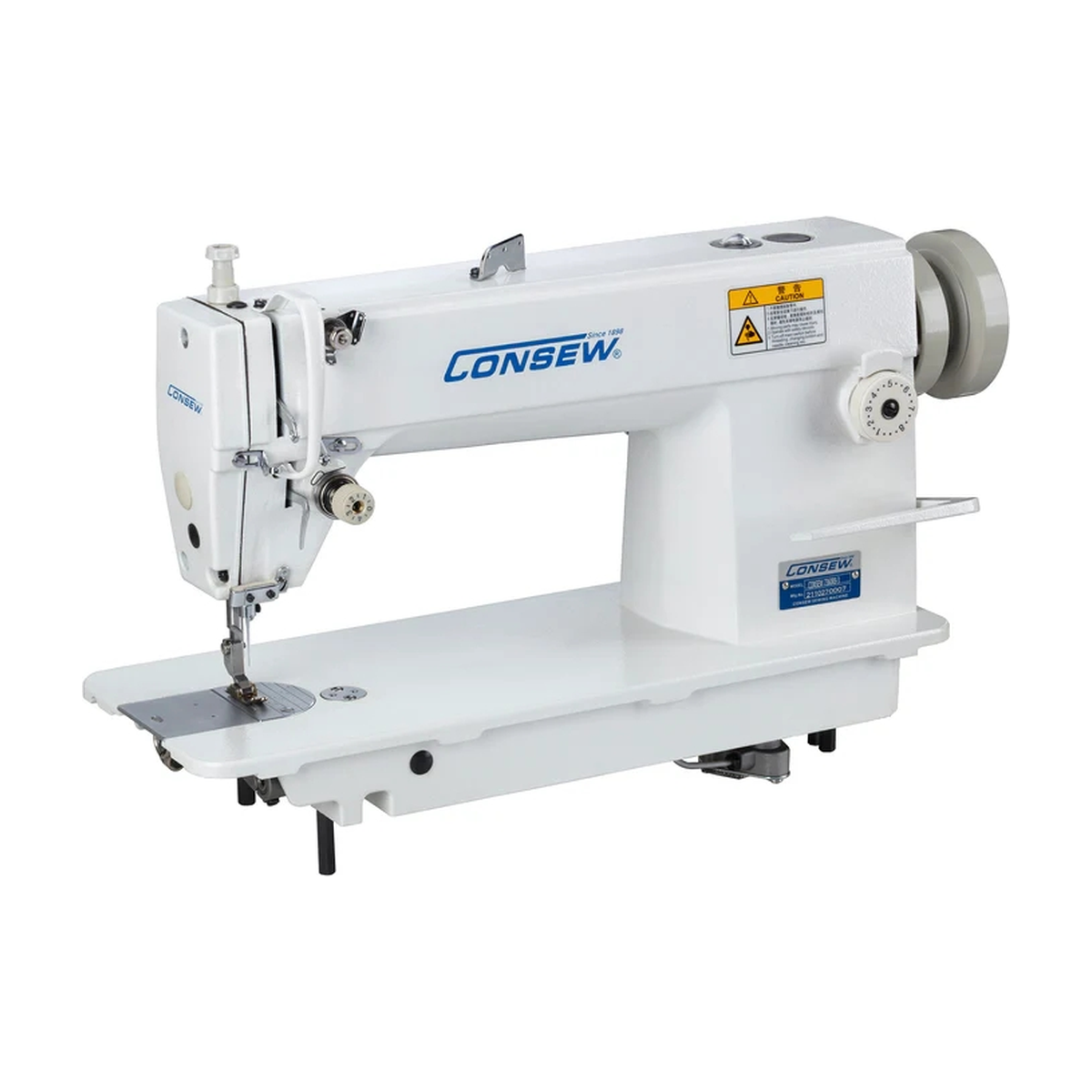

The CONSEW® 7360RB-3 is an industrial single-needle lockstitch sewing machine designed for garment construction, fabric assembly, and professional straight-stitch operations.
Its large-bobbin configuration provides additional lower-thread capacity, helping operators reduce interruptions associated with frequent bobbin replacement.
The machine uses a conventional drop-feed system with adjustable stitch length and reverse sewing for seam reinforcement.
An automatic oil circulation system supplies lubrication to designated internal components during operation.

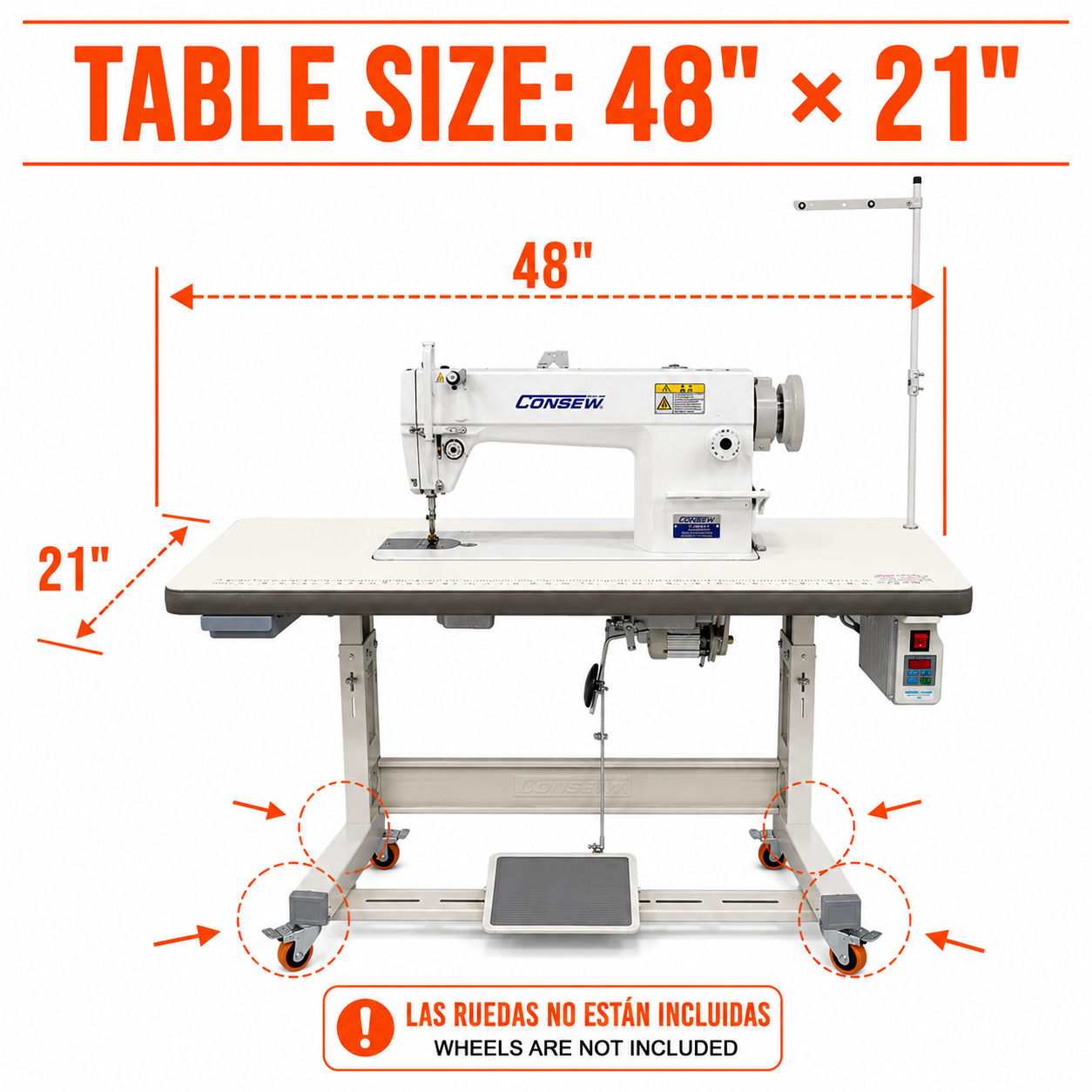

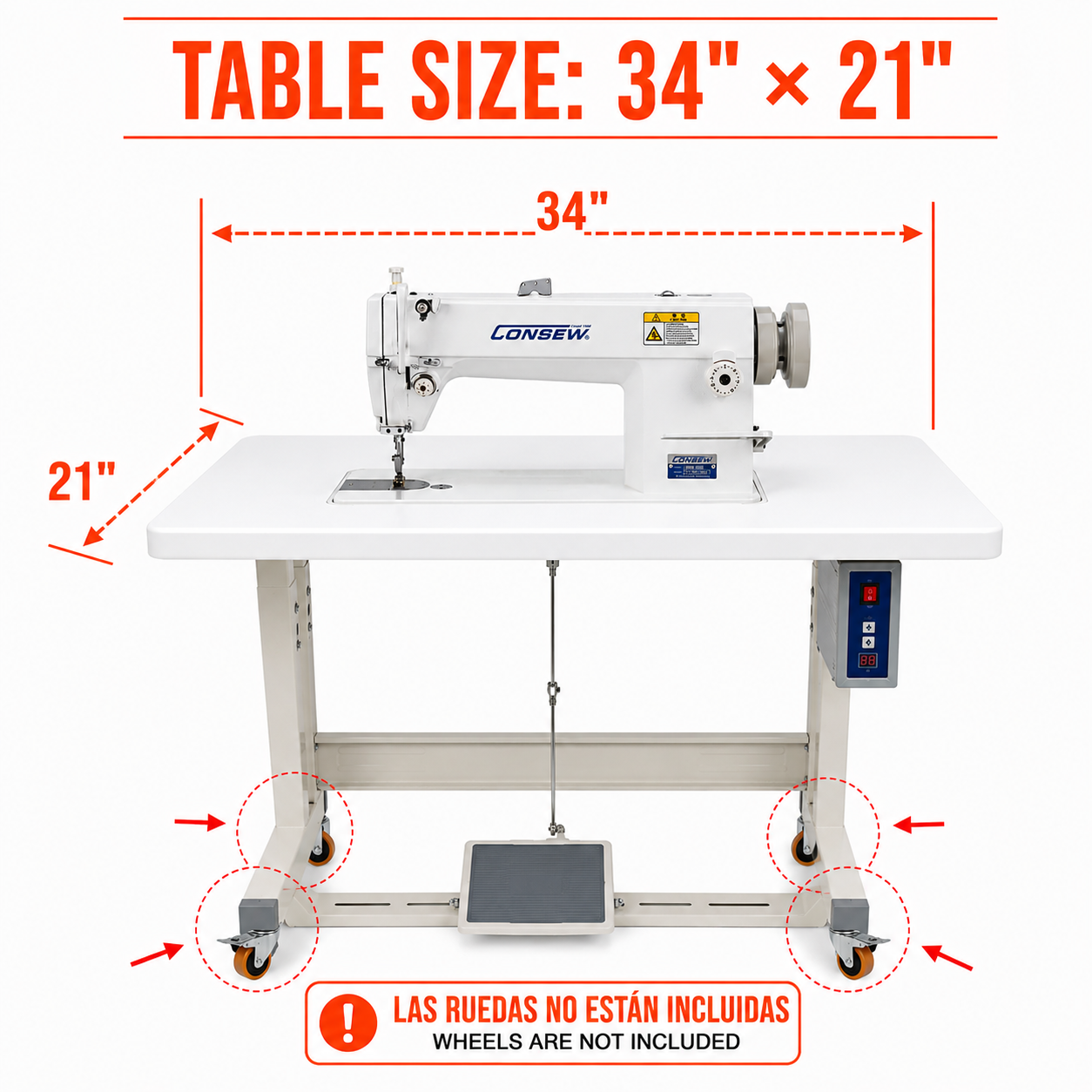

JMJ Sewing Machines supplies this model as a complete industrial sewing workstation, including the machine head, motor, industrial table, and metal stand.
Key Features
- Single-Needle Lockstitch: Produces straight lockstitch seams for compatible industrial sewing applications.
- Large Bobbin System: Provides increased bobbin-thread capacity for extended sewing operations.

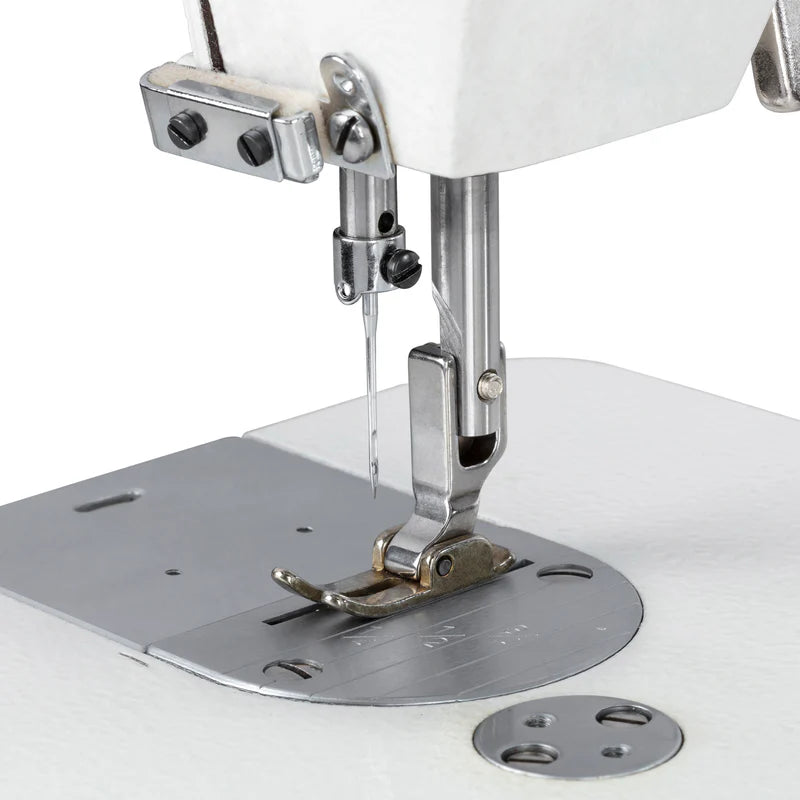

- Drop-Feed Mechanism: Moves material through the sewing area using the machine's lower feeding system.
- Reverse Feed: Allows reinforcement of seam ends when required.
- Automatic Lubrication: Uses a recirculating oil system to lubricate designated machine components.

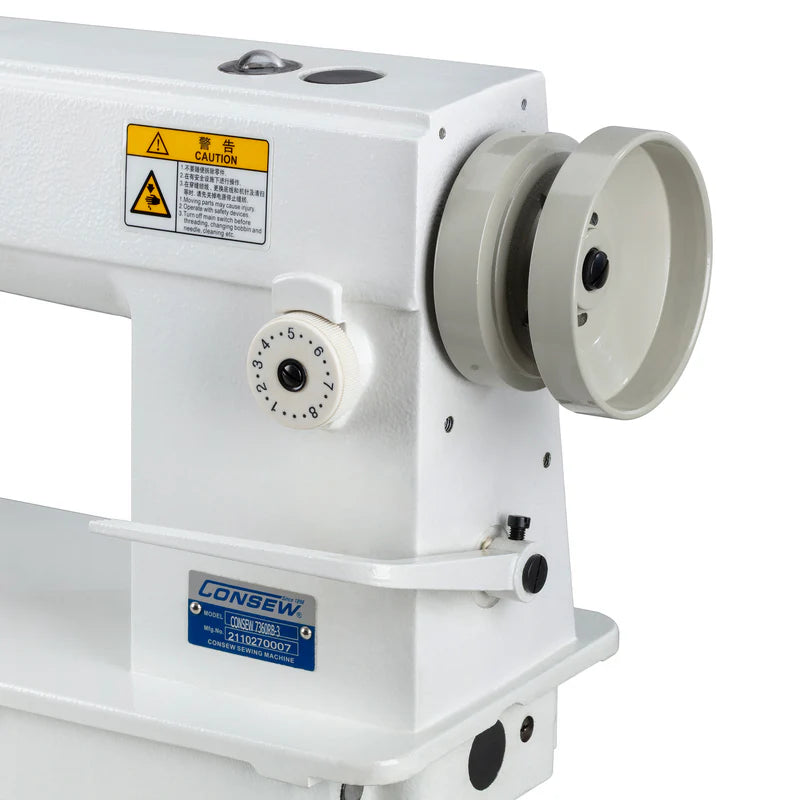

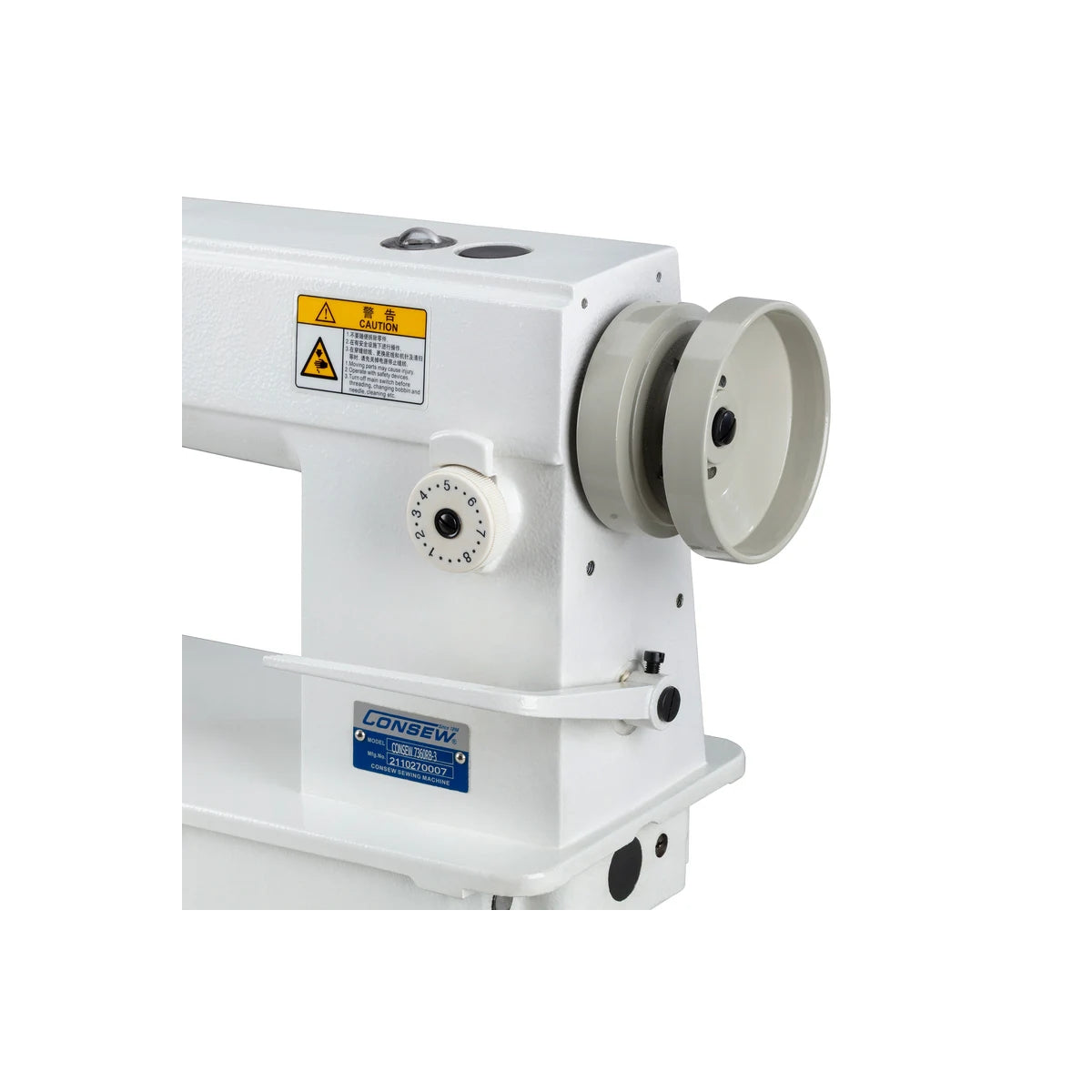

- Adjustable Stitch Length: Supports stitch adjustments up to the manufacturer's specified limit.
- Industrial Sewing Speed: Maximum rated speed of 3,000 stitches per minute.

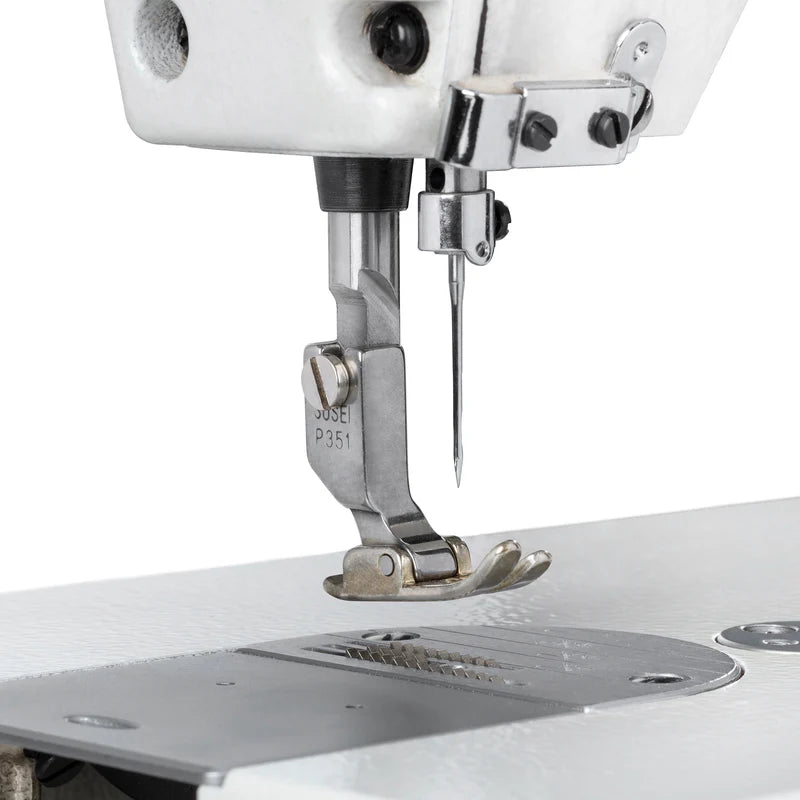

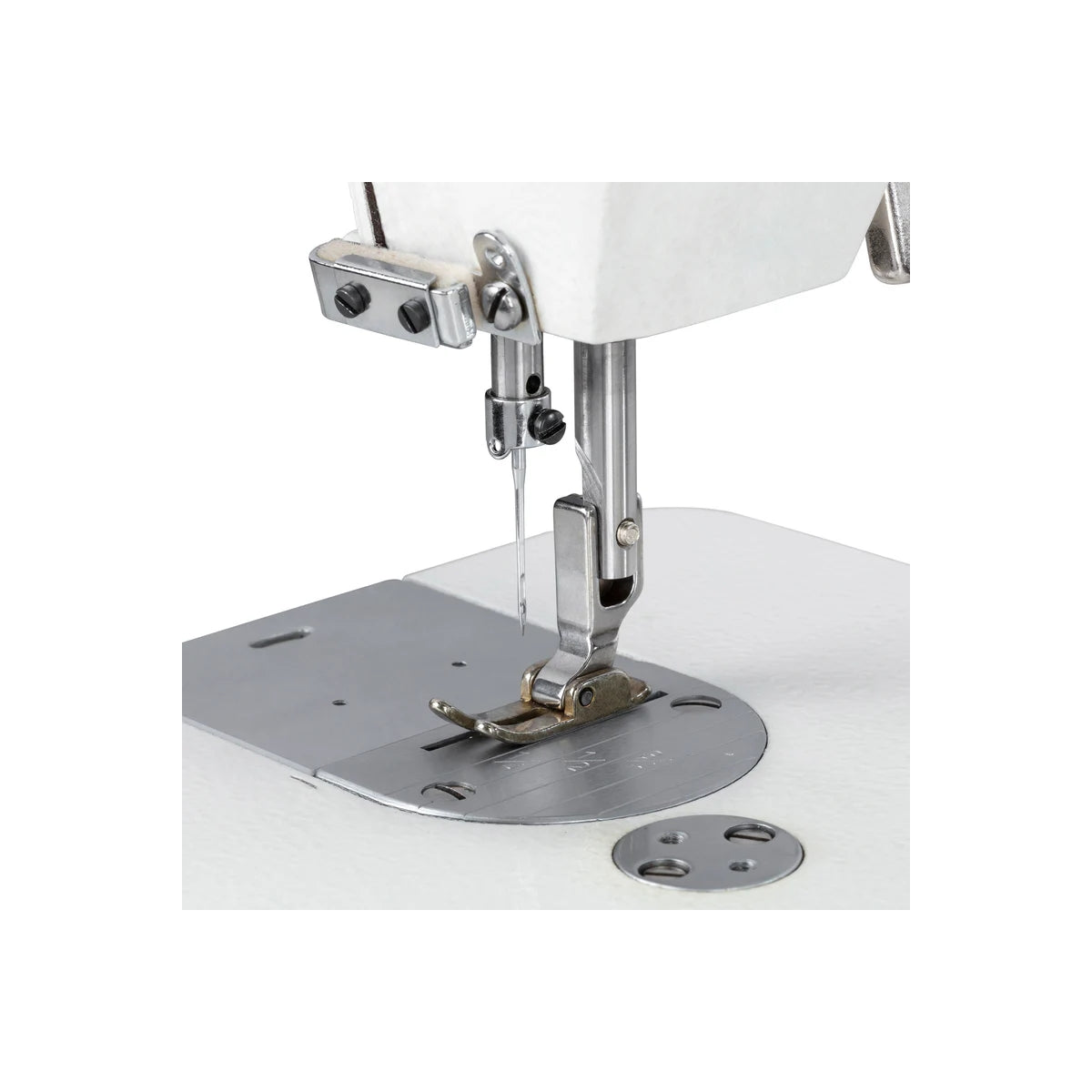

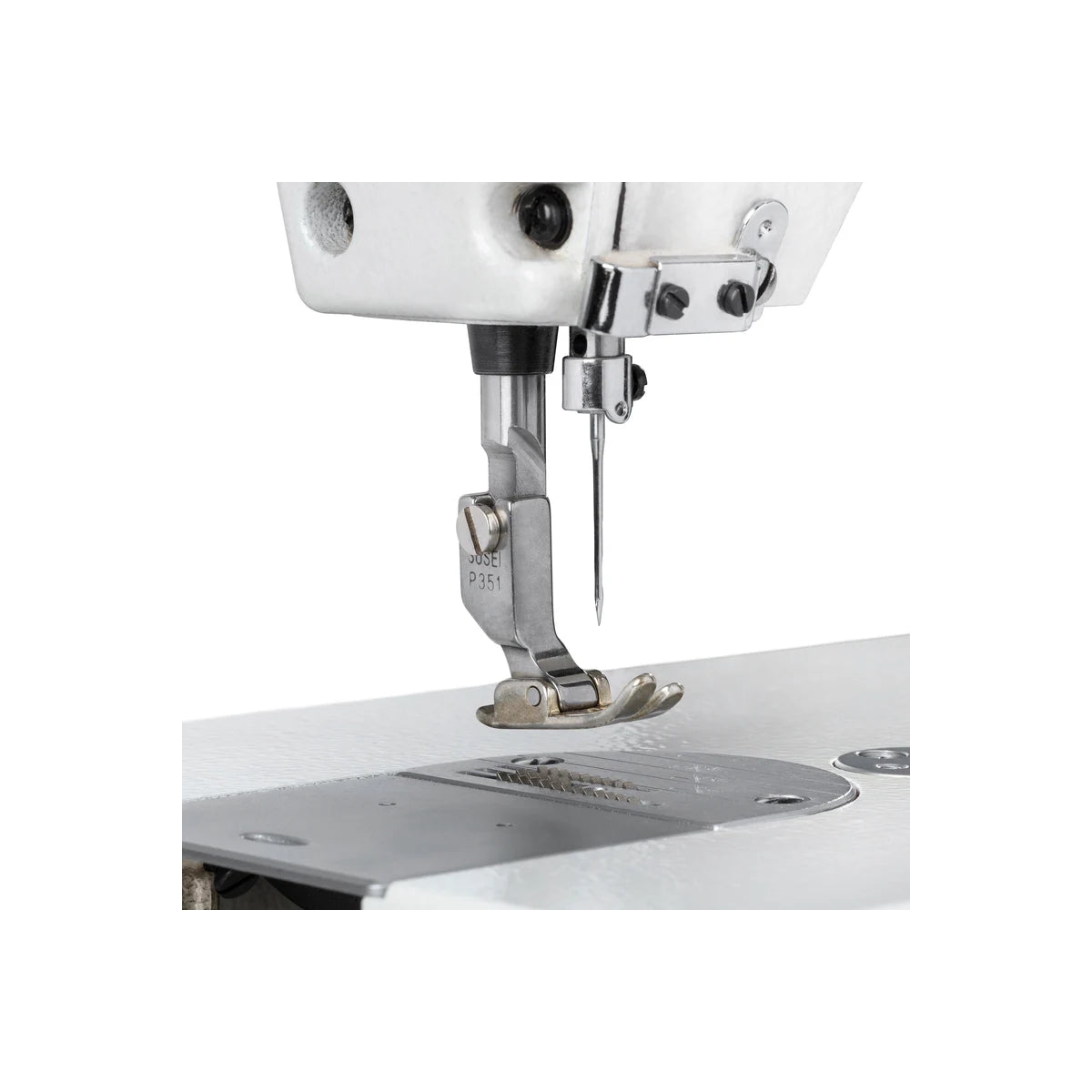

- Presser Foot Lifting: Provides convenient access for positioning and removing fabric.
- Complete Workstation: Includes industrial table, motor, and stand.
Applications
- Commercial garment construction.
- Clothing alterations and tailoring.
- Uniform and workwear production.
- Shirts, dresses, and casual apparel.
- Compatible cotton and polyester fabrics.
- Selected knit and woven materials.
- Lightweight denim applications.
- Professional straight-stitch production.
Technical Specifications
| Brand | CONSEW® |
| Model | 7360RB-3 |
| Machine Type | Industrial Single-Needle Lockstitch |
| Number of Needles | 1 |
| Stitch Type | 301 Lockstitch |
| Feed Mechanism | Drop Feed |
| Maximum Sewing Speed | 3,000 SPM |
| Maximum Stitch Length | 7 mm (3.5 Stitches Per Inch) |
| Presser Foot Clearance | 6 mm (1/4") |
| Needle System | 135 × 5 |
| Bobbin | Metal 78T4-005 / Pre-Wound M |
| Hook | 78T4-002 |
| Needle Bar Stroke | 31.8–33 mm |
| Work Space | 10" (258 mm) |
| Bed Dimensions | 7" × 18-7/8" (177 × 477 mm) |
| Lubrication | Fully Automatic |
| Reverse Sewing | Yes |
| Motor | Included — JMJ Configuration |
| Industrial Table | Included |
| Industrial Stand | Included |
| Assembly | Fully Assembled by JMJ Sewing Machines |
Included with the Machine
- CONSEW® 7360RB-3 Industrial Sewing Machine Head.
- Industrial Sewing Table.
- Heavy-Duty Metal Stand.
- Industrial Sewing Machine Motor.
- Standard Accessories Supplied with the JMJ Configuration.
JMJ Quality Inspection
Before delivery, JMJ Sewing Machines performs a preparation and inspection process appropriate for the equipment.
Our technicians inspect the machine for visible defects, check basic mechanical operation, verify applicable adjustments, and perform a sewing test.
This process helps ensure that the industrial workstation is properly prepared before shipment or local delivery.
JMJ Sewing Machines Recommends
For garment manufacturing and general straight-stitch applications, the CONSEW 7360RB-3 offers a large-bobbin configuration with traditional industrial controls.
Before sewing, select the appropriate needle and thread according to the fabric being processed.
For thicker or specialized materials, additional machine adjustments or compatible components may be required. Contact JMJ Sewing Machines for assistance selecting the appropriate equipment.
Warranty & Technical Support
JMJ Sewing Machines provides direct warranty assistance for eligible industrial sewing machines purchased through our store.
For qualifying manufacturing defects covered by JMJ's limited warranty, applicable replacement parts and repair labor are included.
Electrical and electronic components are subject to the exclusions stated in the applicable warranty policy, to the extent permitted by law.
Preliminary troubleshooting may be available through video calls. In-person inspection or repair may still be necessary.
Manufacturer warranties and applicable legal rights remain unaffected.
Spare Parts & Accessories
JMJ Sewing Machines can assist customers with identifying compatible needles, bobbins, hooks, presser feet, and other replacement components.
Replacement parts are subject to compatibility and availability.
Important Before Ordering
VERIFY YOUR SEWING APPLICATION
The CONSEW 7360RB-3 uses a single-needle drop-feed mechanism. It is not a walking-foot machine.
For heavy materials or specialized industrial sewing applications, verify that the feeding mechanism, needle system, and machine capacity are suitable for your production needs.
JMJ Sewing Machines recommends confirming the intended sewing application before purchasing.
JMJ Sewing Machines Support
Customers purchasing machines at our physical store receive a brief in-person explanation of basic machine controls at the time of delivery.
Shipped orders do not include in-person training.
Our team can provide preliminary technical assistance remotely when appropriate.
