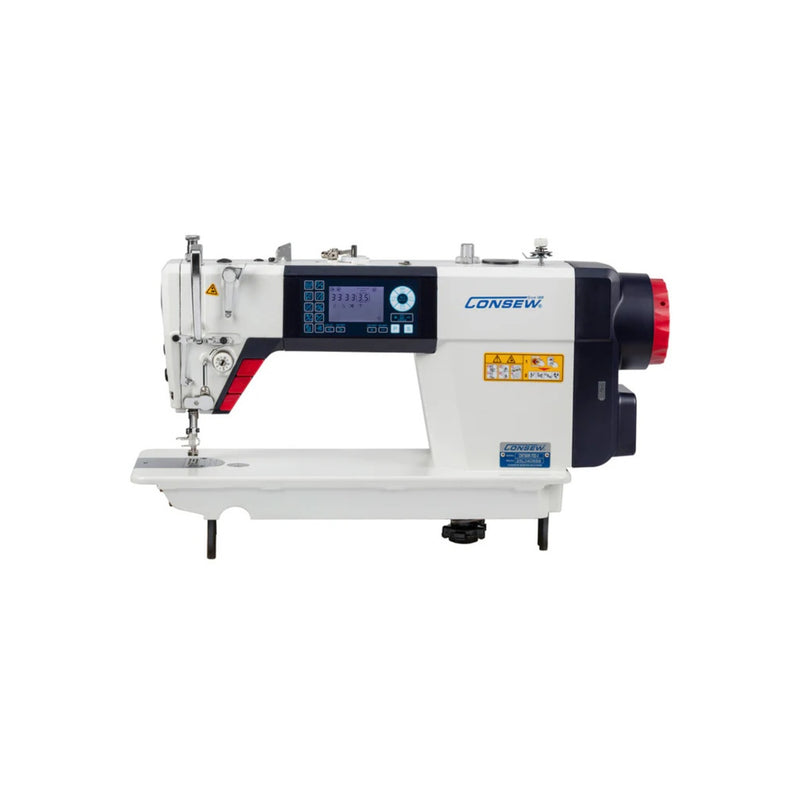

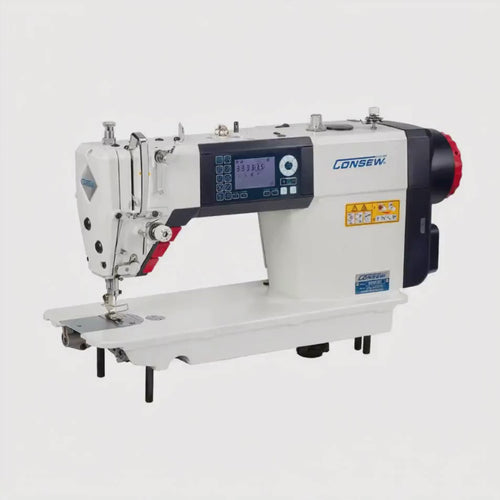

CONSEW® 7360R-7DD-3 — High-Speed Single Needle Direct Drive Lockstitch Machine

5,000 SPM • Direct Drive • Full Automatic Functions

The CONSEW® 7360R-7DD-3 is the next-generation version of the 7360R-7DD-2, featuring an updated front control panel and advanced automatic functions for high-efficiency sewing. This high-speed, single needle, drop feed lockstitch machine is built for professional garment production and delivers smooth, precise performance on light to heavy-weight materials.

Equipped with a built-in 3/4 HP, 550 watt direct drive motor, automatic reverse, under-bed thread trimmer, needle positioning, electric foot lift, stitch counter, built-in bobbin winder, and electric thread clamp, the 7360R-7DD-3 is designed to maximize productivity while reducing operator effort. Its fully automatic lubrication system and vibration-absorbing table mounting ensure reliable long-term performance in demanding sewing environments.

Key Features

• High-speed lockstitch sewing up to 5,000 stitches per minute.
• Built-in 3/4 HP, 550 watt direct drive motor.
• Automatic reverse (backtacking).
• Fully automatic lubrication with recirculating high-pressure pump and oil glass indicator.

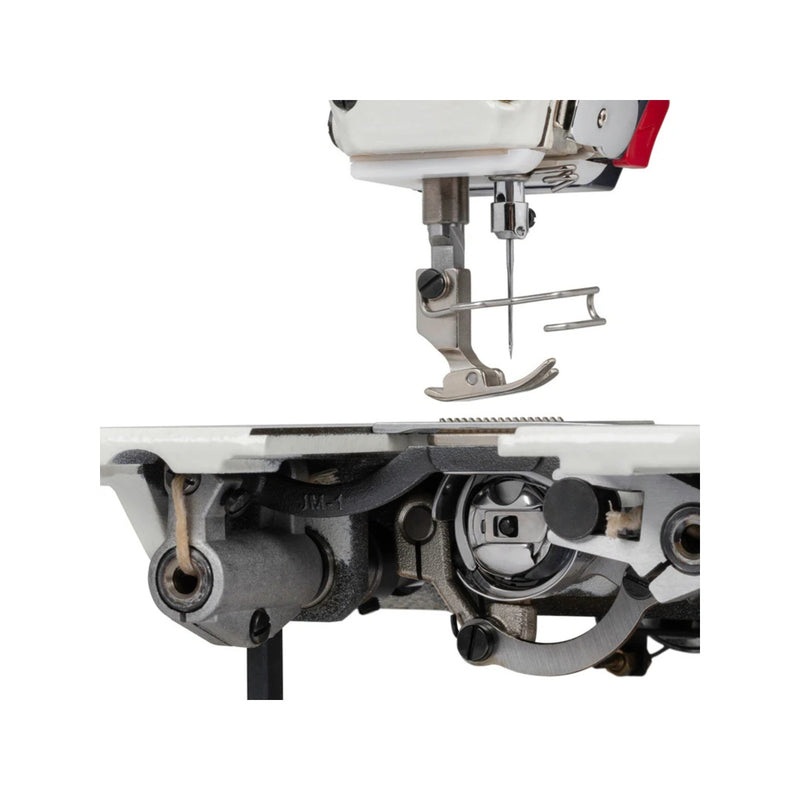

• Auto-lubricated rotary hook.
• Under-bed thread trimmer for clean finishing.
• Electric thread clamp holds thread after trimming.
• Needle positioning for improved accuracy and workflow.
• Electric and manual presser foot lift.
• Built-in stitch counter.
• Built-in bobbin winder.
• Built-in LED light with level settings and on/off switch.
• Locking stitch regulator for consistent stitch control.
• Noise and vibration-absorbing table mounting.

Applications

• Blouses, shirts, and general apparel manufacturing.
• Men’s, women’s, and children’s garments.
• Uniforms, overalls, and lingerie.
• Cotton, knits, polyester, nylon, and sheer fabrics.
• Denim and lightweight leather applications.
• Heavy fabrics such as jeans with the appropriate part configuration.

Technical Specifications

The CONSEW® 7360R-7DD-3 is a full-function industrial sewing machine built for speed, automation, and professional consistency. With its advanced direct drive system, automatic trimming and backtacking, and operator-friendly controls, it is an excellent choice for high-volume garment manufacturing and demanding sewing operations.
