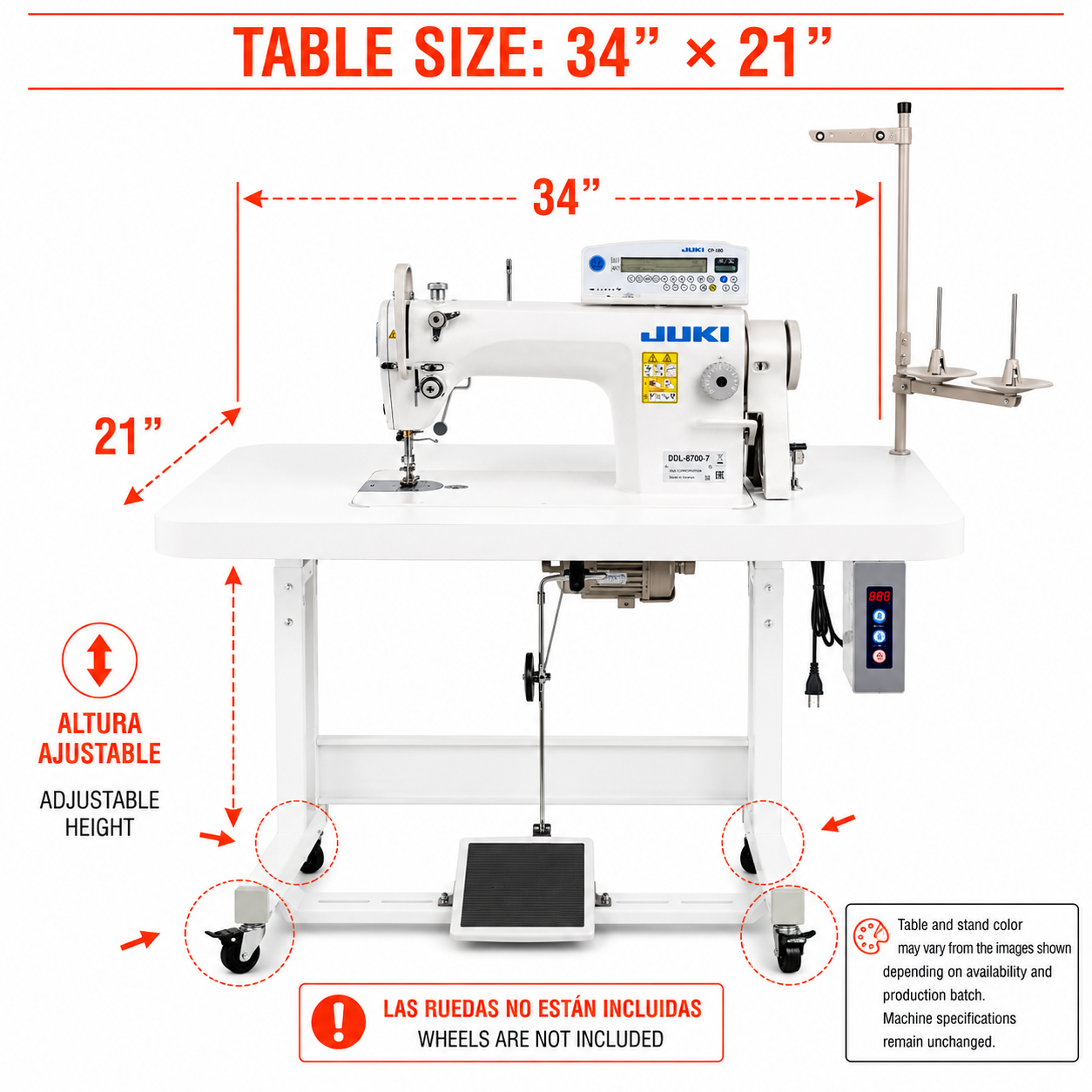

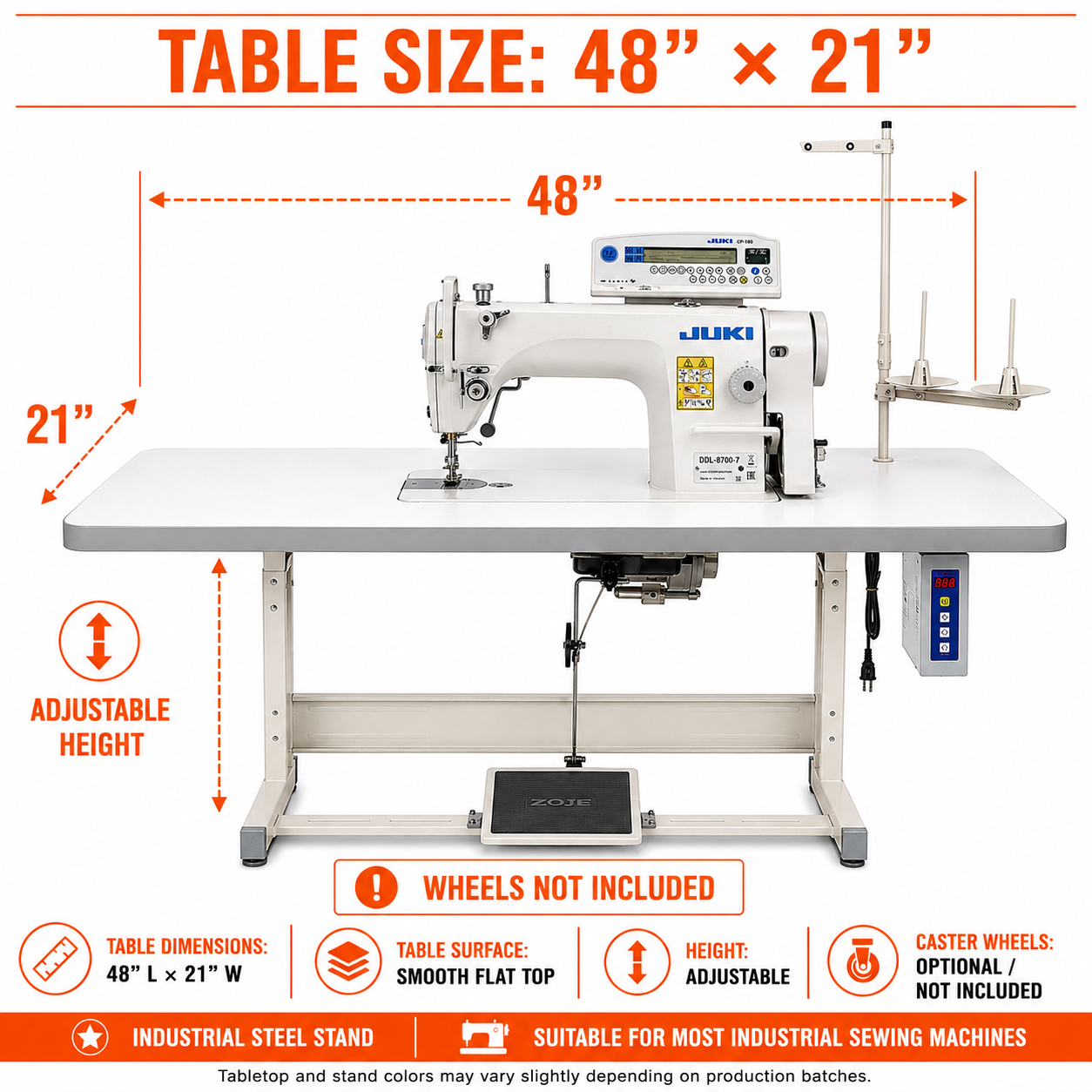

JUKI® DDL-8700-7HWB - High-Speed Fully Automatic Lockstitch Machine
✔ COMPLETE ASSEMBLED WITH TABLE AND STAND INCLUDED
Ready to sew. No setup needed. Professional installation included.
Automatic Thread Trimming • Automatic Foot Lift • Direct Drive
The JUKI® DDL-8700-7 is a high-speed, fully automatic single needle lockstitch machine equipped with automatic thread trimming, automatic presser foot lifting, and a direct drive servo motor system. Designed for professional garment production, it delivers outstanding sewing quality, energy efficiency, and productivity.
The machine is equipped with the latest SC-920C control box and M92 compact servo motor, reducing energy consumption while providing smooth, quiet, and reliable performance. Its automatic thread trimmer and foot lift significantly increase production efficiency.
Key Features
- Automatic thread trimming system.
- Automatic presser foot lift.
- Direct drive servo motor.
- SC-920C energy-saving control box.
- Reduced standby power consumption.
- Automatic lubrication system.
- Automatic lubricating full rotary hook.
- High-speed industrial performance.
- Integrated electronic control system.
- Improved productivity and sewing consistency.
Available Models
| Model | Application | Max Speed |
| DDL-8700A-7 | Light Weight Materials | 4,000 SPM |
| DDL-8700-7 | Medium Weight Materials | 5,000 SPM |
| DDL-8700H-7 | Heavy Weight Materials | 4,000 SPM |
Applications
- Garment manufacturing.
- Uniforms and workwear.
- Fashion apparel production.
- Light, medium, and heavy materials depending on model.
- Industrial sewing operations.
Technical Specifications
| Series | DDL-8700-7 |
| Machine Type | Single Needle Lockstitch |
| Thread Trimming | Automatic |
| Motor Type | Direct Drive Servo Motor |
| Maximum Speed | 5,000 SPM |
| Maximum Stitch Length | 4 mm |
| Presser Foot Lift | Hand: 5.5 mm / Knee: 13 mm |
| Feed Dog | 4-Row |
| Hook Type | Automatic Lubricating Full Rotary Hook |
| Lubrication | Automatic |
| Control Box | SC-920C |
| Motor | M92 Compact Servo Motor |
| Machine Oil | JUKI Machine Oil 7 (ISO VG7 Equivalent) |
The JUKI® DDL-8700-7 combines advanced automation, energy-saving technology, and proven industrial reliability. It remains one of the most popular automatic lockstitch machines for professional garment production worldwide.
