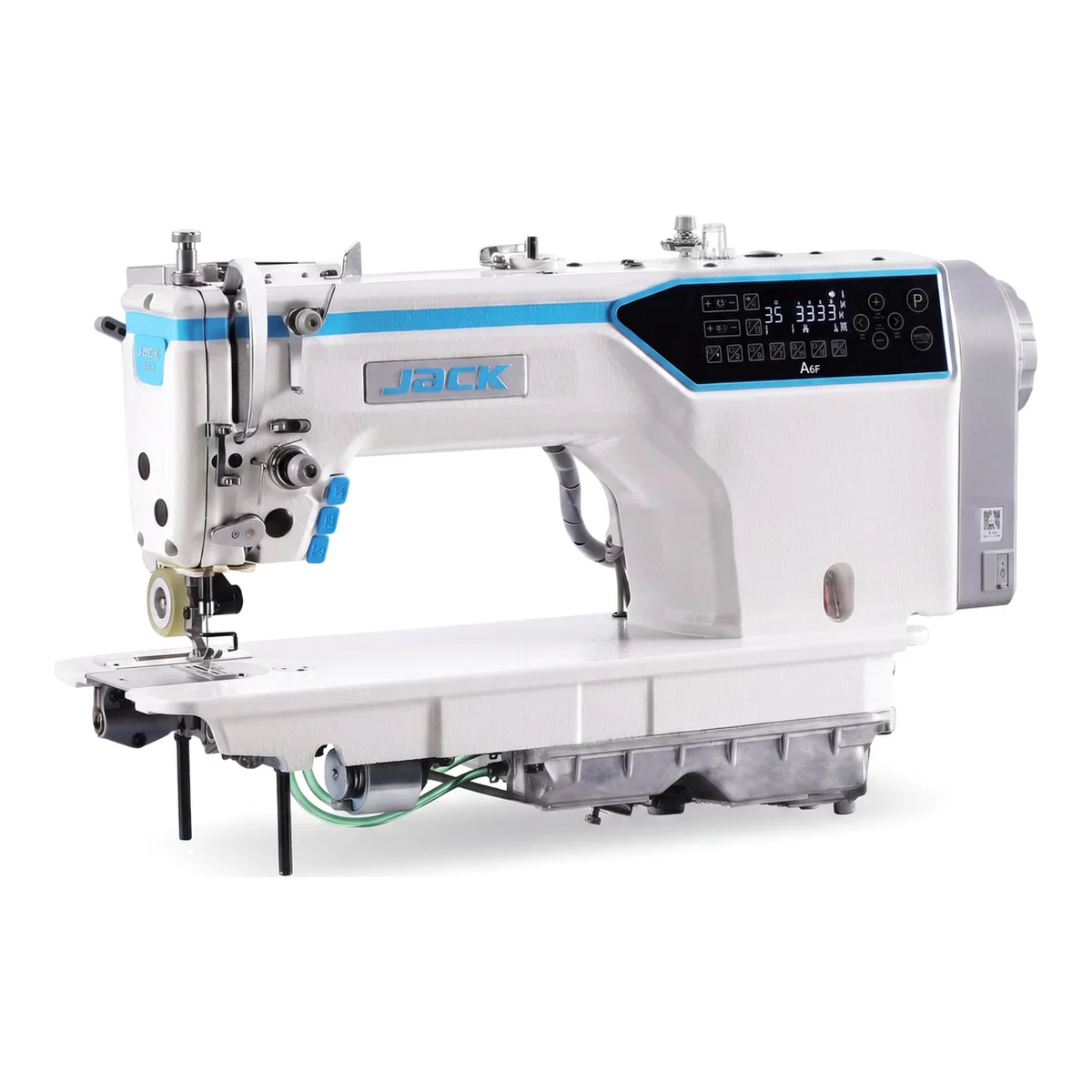

JACK® A6F-E-Q-PK Single Needle Needle Feed Lockstitch Sewing Machine with Integrated Puller – Complete with Table & Stand

JACK® A6F-E-Q-PK -Single Needle Needle Feed Lockstitch with Integrated Puller

Needle Feed • Integrated Puller • Digital Stitch Control • 300mm Workspace • Direct Drive

The JACK® A6F-E-Q-PK is a fully computerized industrial single-needle needle-feed lockstitch sewing machine equipped with an integrated puller system for enhanced material control. Designed to handle a wide range of fabrics from light to heavy, it provides precise and consistent feeding on layered, slippery, structured, and difficult-to-feed materials.

The synchronized needle-feed system and integrated puller work together to maintain uniform stitch length and smooth material transport throughout the sewing operation. This makes the A6F-E-Q-PK especially effective for applications where conventional drop-feed machines may experience material shifting or inconsistent feeding.

With an extended 300 mm operating arm, digital stitch length adjustment with 0.1 mm precision, voice guidance, silent electronic bartacking, semi-dry head construction, and a 550W Direct Drive servo motor, the A6F-E-Q-PK is engineered for precision, productivity, and operator convenience in professional production environments.

Key Features

• Needle Feed System: Synchronizes needle and feed movement to maintain uniform stitch length and improve material control.

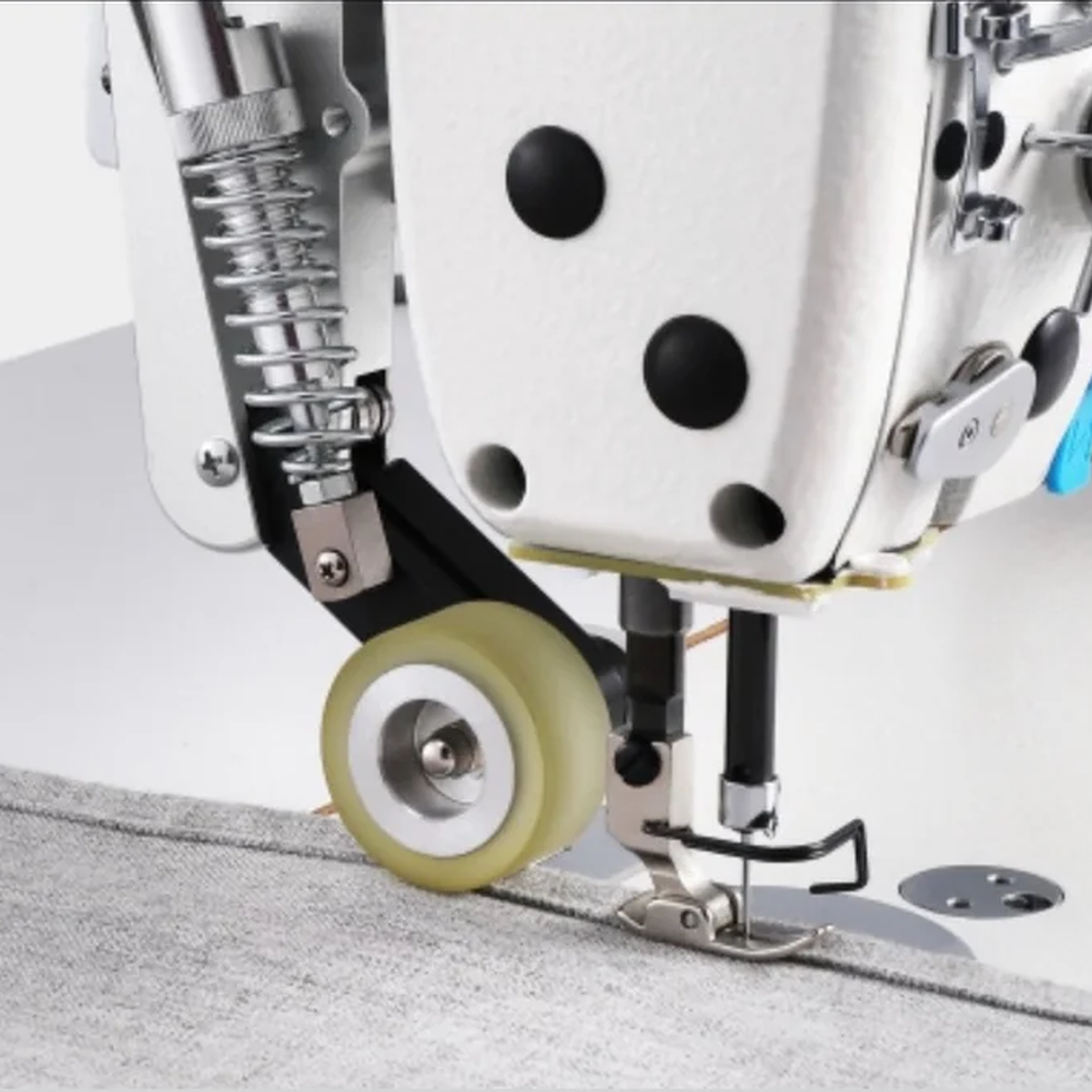

• Integrated Puller: Provides additional pulling force to help transport layered, slippery, and difficult materials consistently.

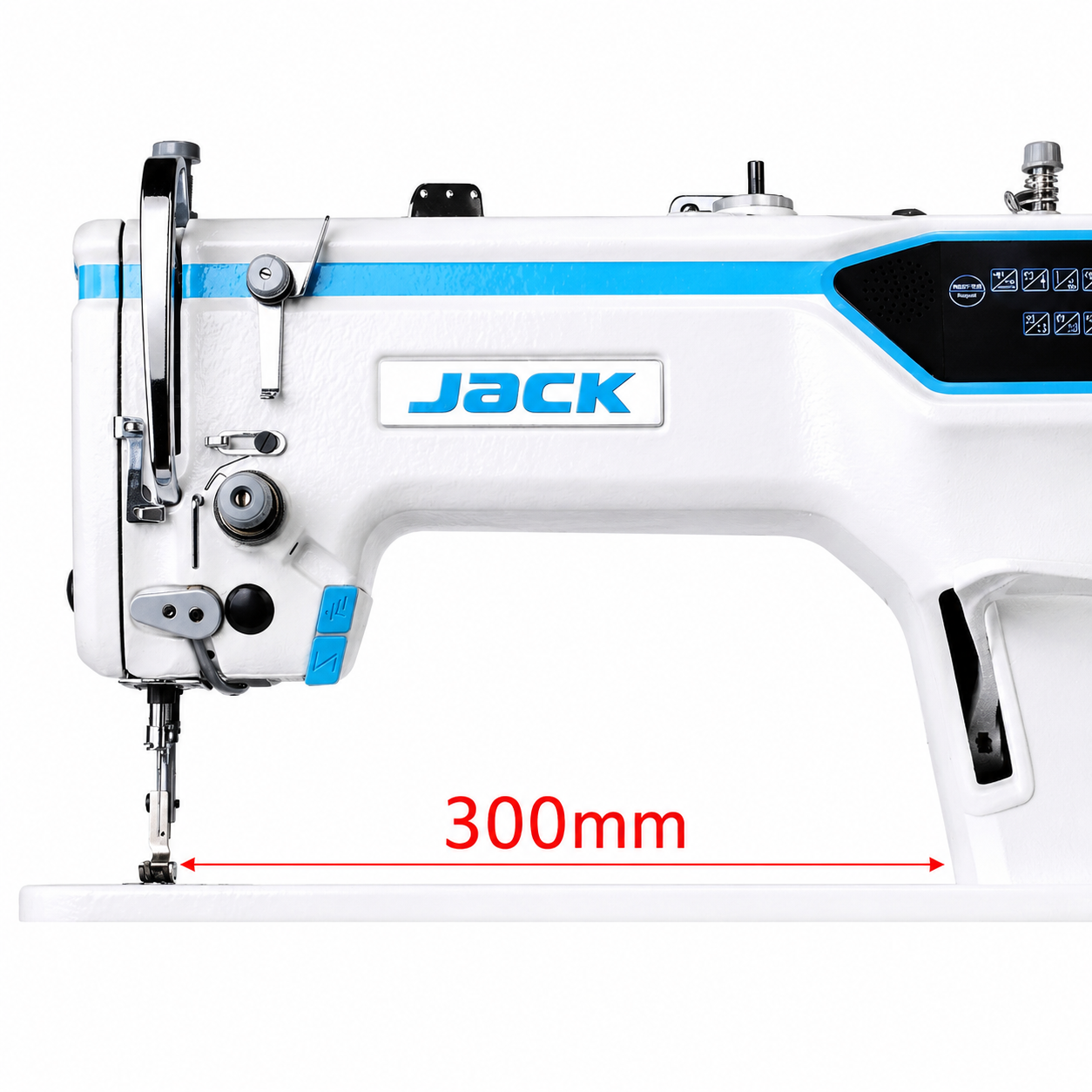

• 300 mm Operating Arm: Extended workspace provides additional room for bulky, folded, or wide sewing projects.
• Digital Stitch Length Control: Allows precise stitch length adjustment in 0.1 mm increments.
• Voice Guide: Provides audio prompts for machine operation, setup, and status information.
• Silent Electronic Bartack: Electronic start and end reinforcement reduces mechanical noise while providing consistent bartacking.
• Semi-Dry Head: Helps reduce the possibility of oil contamination on sensitive and finished materials.
• Direct Drive Servo Motor: Integrated belt-free motor provides quiet operation, precise speed control, and improved energy efficiency.
• Maximum Speed of 4,000 SPM: Designed for efficient industrial production.
• LED Work Light: Provides clear illumination around the needle and sewing area.

Needle Feed + Integrated Puller

The combination of needle feed and an integrated puller provides enhanced material transport compared with conventional drop-feed sewing machines. The needle assists in moving the material during stitch formation while the puller provides additional traction behind the presser foot, helping maintain smooth and consistent feeding across multiple layers and changing material thicknesses.

Ideal For

• Layered materials.
• Heavy fabrics.
• Structured garments.
• Leather.
• Canvas.
• Denim.
• Coated fabrics.
• Technical textiles.
• Outerwear.
• Workwear.
• Long seams requiring consistent material feeding.
• Applications where conventional drop feed may allow material slippage.

Technical Specifications

What's Included

• JACK® A6F-E-Q-PK Machine Head.
• Integrated Puller Assembly.
• 550W Direct Drive Servo Motor.
• Heavy-Duty Industrial Sewing Table.
• Industrial Stand.
• LED Work Light.
• Standard Needle Set.
• Bobbins.
• Standard Tools and Accessories.
• Instruction Manual.

The JACK® A6F-E-Q-PK combines needle-feed technology, an integrated puller, digital precision controls, and an extended 300 mm workspace to provide exceptional material handling and consistent stitch quality. It is an advanced solution for professional manufacturers working with layered, structured, slippery, and difficult-to-feed materials where precise and reliable fabric transport is essential.
