JACK® JK-F5 Single Needle Direct Drive Industrial Lockstitch Sewing Machine – Complete with Table & Stand

JACK® JK-F5 - Single Needle Direct Drive Lockstitch Industrial Sewing Machine

Single Needle • Straight Stitch • Drop Feed • Direct Drive • Digital Speed Control • Needle Positioning • Automatic Lubrication • Up to 5,000 SPM

The JACK® F5 is a high-speed single needle, drop-feed industrial lockstitch sewing machine designed for professional garment production and general industrial straight-stitch sewing. Its integrated 550W Direct Drive motor eliminates the traditional external clutch motor and drive-belt configuration, providing a compact, quiet, and energy-efficient sewing system.

Designed for versatility, the F5 can sew a broad range of materials from light to heavier garment fabrics, including cotton, knits, polyester, nylon, sheer fabrics, and denim when properly configured for the material and application.

With digital speed adjustment, selectable needle positioning, integrated LED lighting, automatic lubrication, a built-in bobbin winder, and maximum sewing speed up to 5,000 stitches per minute, the JACK® F5 provides a practical combination of speed, simplicity, and professional industrial performance.

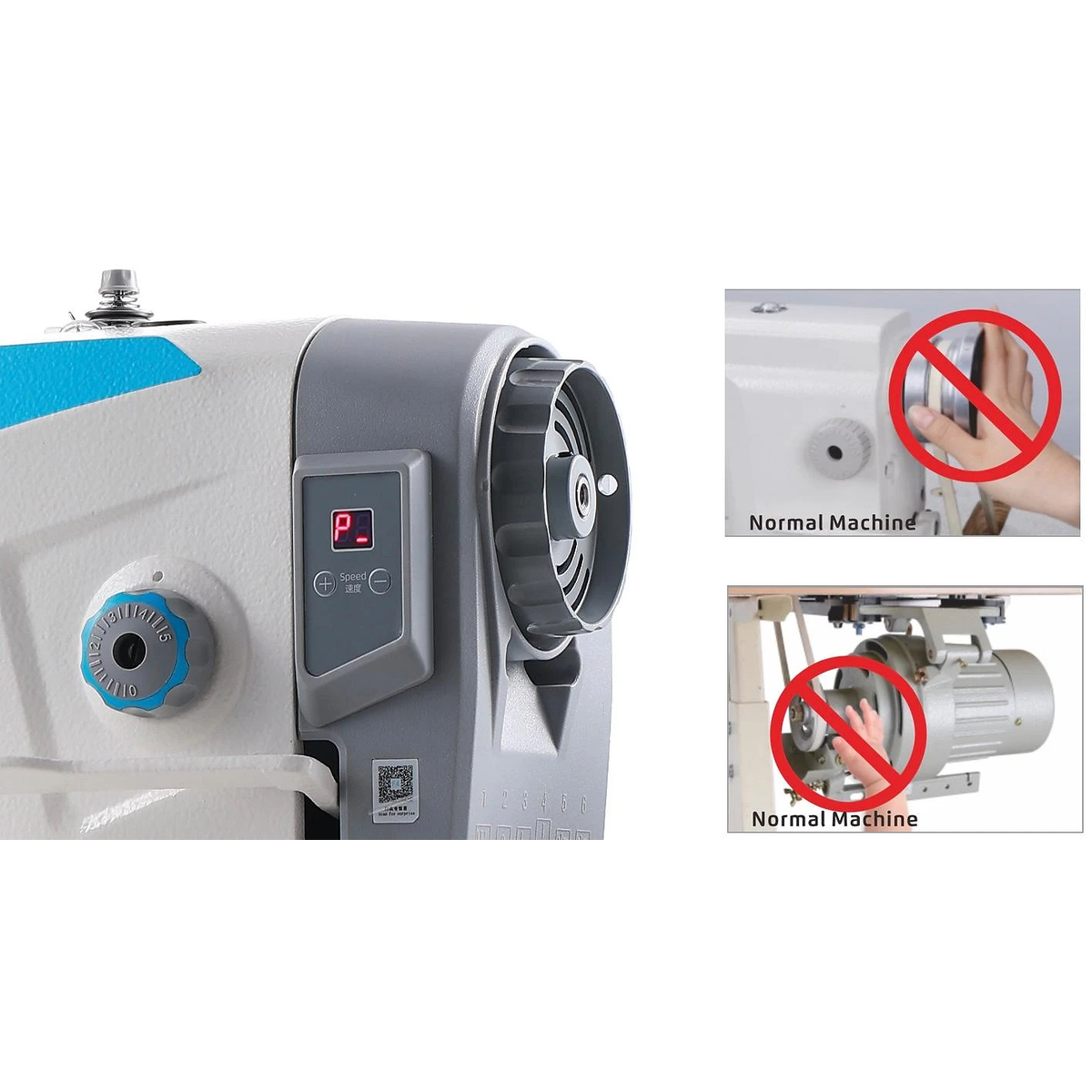

Integrated Direct Drive Motor

The F5 uses a compact Direct Drive motor integrated directly into the machine. This configuration eliminates the traditional external motor belt and clutch system, reducing unnecessary mechanical components while providing responsive speed control and quieter operation.

The integrated motor is mounted on a single shaft, helping reduce vibration and providing smooth power transmission directly to the sewing mechanism.

Energy-Efficient Operation

The Direct Drive system is designed to reduce energy consumption compared with traditional continuously running clutch motor systems. During periods when the machine is not sewing, standby operation further reduces unnecessary power consumption.

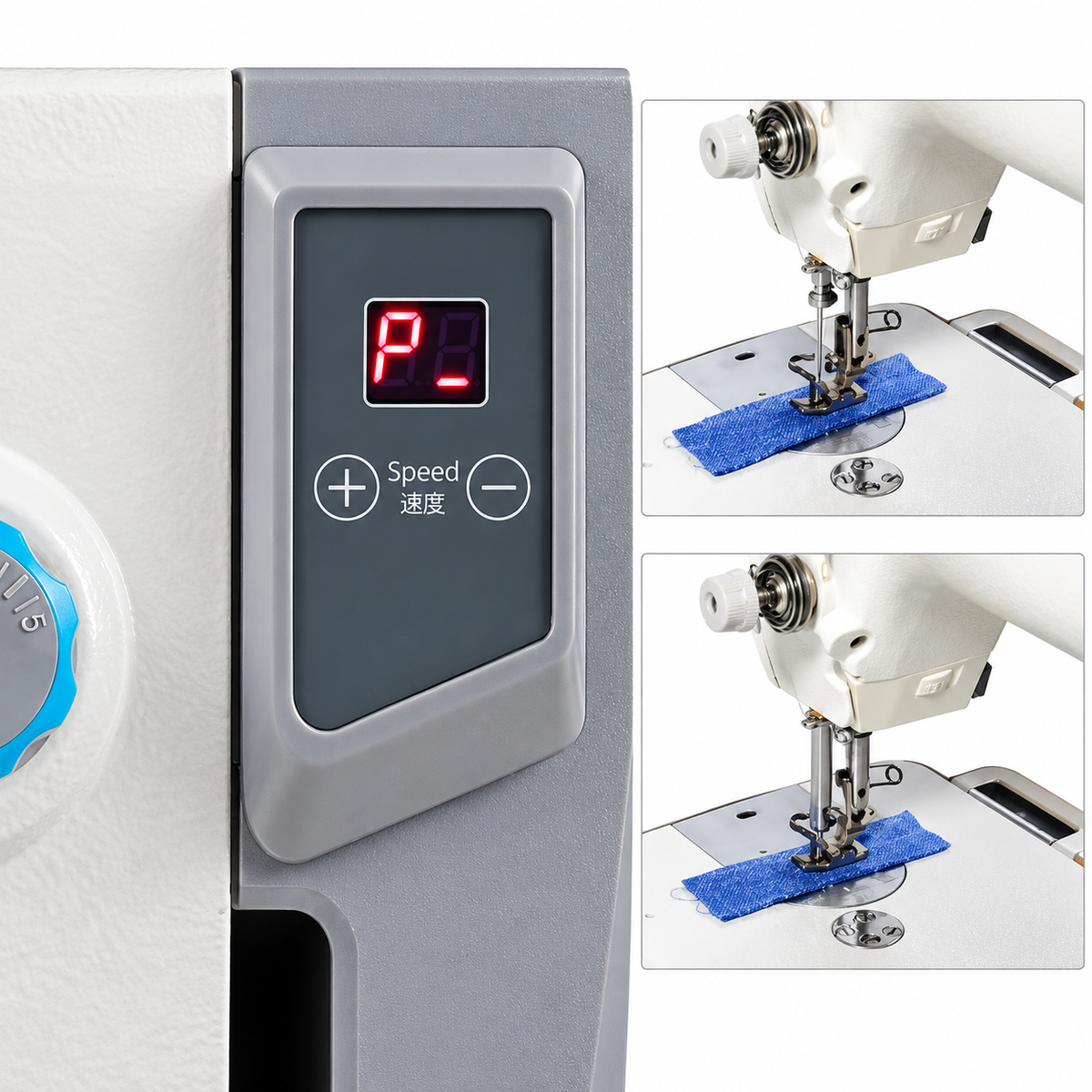

Digital Adjustable Speed

The operator can adjust the maximum sewing speed digitally using the + and − controls. The selected operating speed is displayed in real time, allowing the machine to be configured for different materials, operator experience levels, and production requirements.

This provides greater control for precision work at lower speeds while still allowing production speeds up to 5,000 stitches per minute when required.

Needle Positioning

The electronic needle-positioning function allows the operator to select whether the needle stops in the up or down position when sewing stops.

Needle-down positioning is particularly useful when turning corners, repositioning material, or performing controlled sewing operations because the needle can remain in the fabric while the material is repositioned.

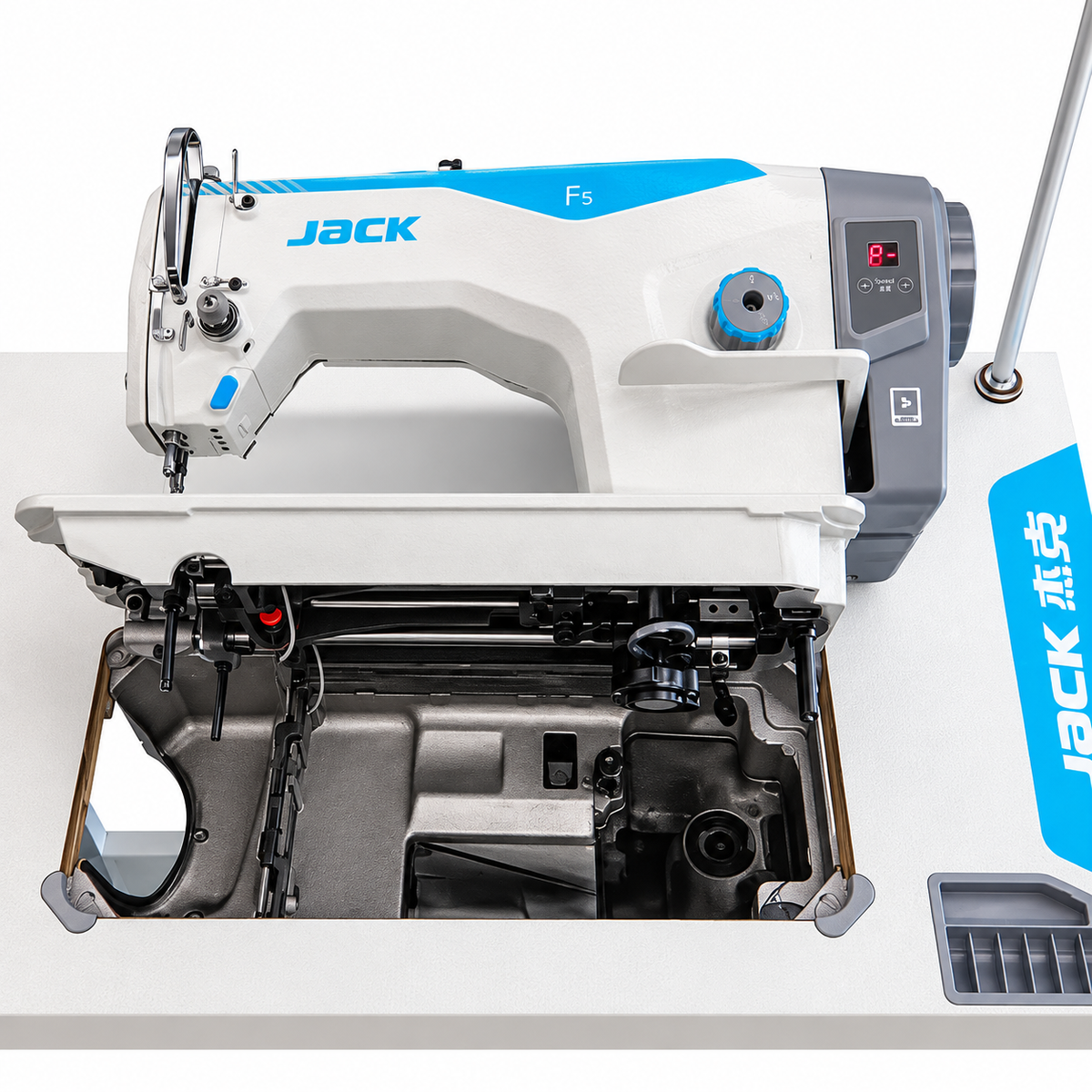

Automatic Lubrication

The JACK® F5 features an automatic lubrication system with an oil pan, helping continuously lubricate the machine's internal mechanisms during operation.

The lubrication system supports smooth high-speed operation while reducing the need for frequent manual lubrication of internal components.

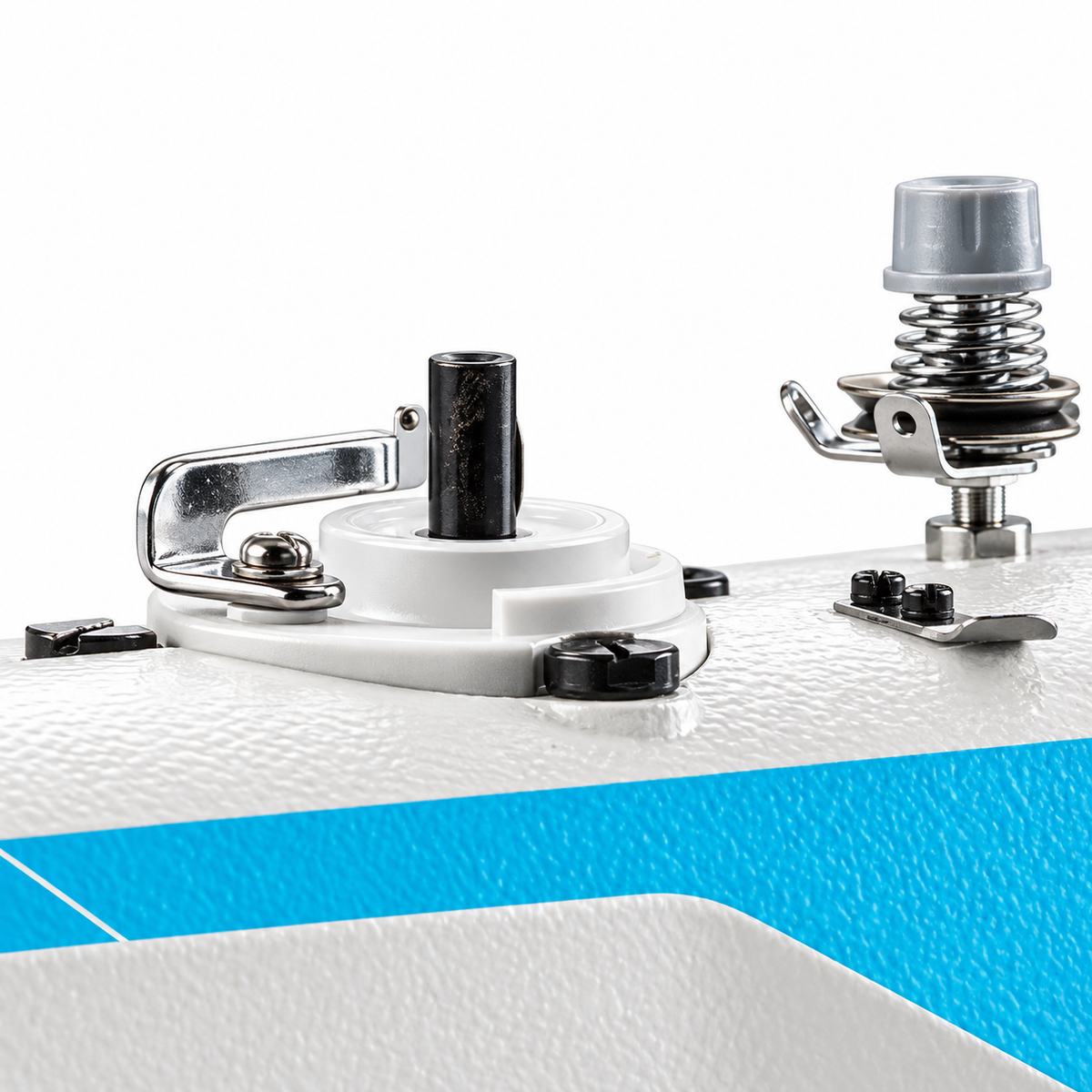

Built-In Bobbin Winder

The integrated bobbin winder allows the operator to prepare the next bobbin while working, helping reduce interruptions between bobbin changes during production.

Integrated LED Work Light

An integrated 3-level adjustable LED light illuminates the needle and sewing area, improving visibility for detailed sewing operations and extended production work.

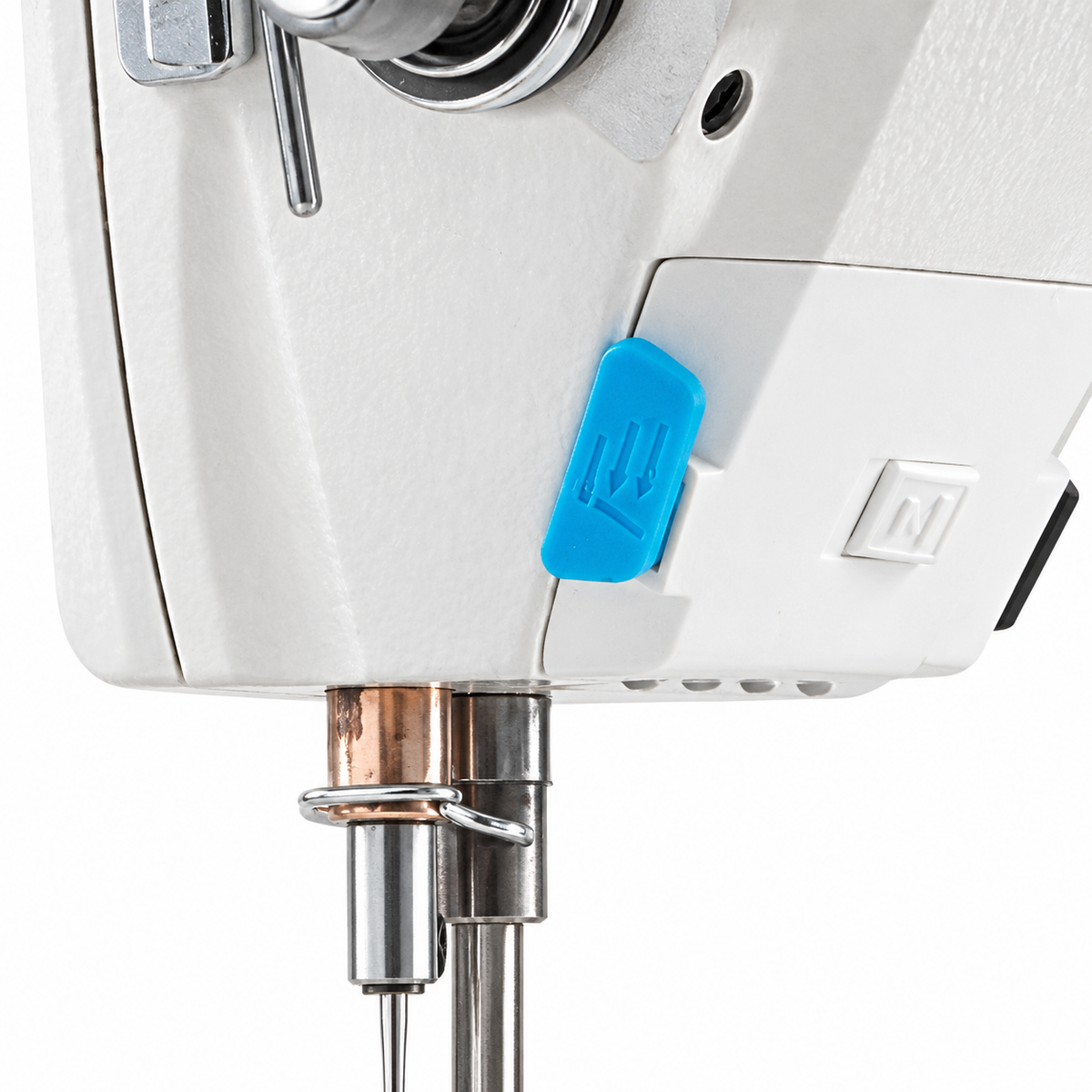

Stitch-to-Stitch Precision Control

The integrated stitch-to-stitch control allows the operator to advance the machine precisely for detailed sewing operations where individual stitch placement is important.

Manual Thread Cutter

The machine includes an integrated manual thread-cutting knife that allows the operator to conveniently cut the thread at the completion of a seam.

Voltage Protection

The integrated voltage protection system monitors incoming electrical current and helps protect the machine's electronic components when the electrical supply moves outside the supported operating range.

Light to Heavy Material Capability

The JACK® F5 is designed for a wide range of garment materials, including light, elastic, medium, and heavier fabrics. Applications can include cotton, polyester, knits, nylon, lightweight fabrics, uniforms, workwear, and denim.

For specialized heavy-material applications, the machine may require the appropriate needle plate, feed dog, presser foot, hook, needle bar, needle, and other configuration components according to the material being sewn.

Key Features

• Single Needle Lockstitch: Professional industrial straight-stitch machine for garment construction and general sewing.
• Drop Feed: Provides consistent material feeding for a broad range of garment fabrics.
• Built-In 550W Direct Drive Motor: Compact integrated motor eliminates the traditional external clutch motor configuration.
• High-Speed Operation: Maximum sewing speed up to 5,000 stitches per minute.
• Digital Speed Adjustment: Maximum speed can be adjusted using the integrated + and − controls.
• Needle Positioning: Selectable needle-up or needle-down stopping position.
• Automatic Lubrication: Oil-pan lubrication system supports continuous professional operation.
• Built-In Bobbin Winder: Allows preparation of the next bobbin during production.
• 3-Level LED Light: Adjustable integrated lighting improves visibility around the needle area.
• Stitch-to-Stitch Control: Provides precise individual stitch positioning for detailed work.
• Manual Thread Cutter: Integrated knife provides convenient manual thread cutting.
• Voltage Protection: Helps protect electronic components from unsupported voltage fluctuations.
• Low Noise & Vibration: Direct Drive construction provides smoother and quieter operation than conventional clutch motor systems.
• Light to Heavy Applications: Suitable for a broad range of garment fabrics when correctly configured for the material.

Ideal For

• Shirts and blouses.
• Men's, women's, and children's apparel.
• Uniforms.
• Workwear.
• Overalls.
• Lingerie.
• Knitted garments.
• Cotton garments.
• Polyester and nylon fabrics.
• Denim when properly configured.
• Alteration shops.
• Professional sewing workshops.
• Garment manufacturing.
• Small production runs and quick reorders.

Technical Specifications

What's Included

• JACK® F5 Single Needle Industrial Sewing Machine Head.
• Built-In Direct Drive Motor.
• Industrial Sewing Table.
• Heavy-Duty Industrial Stand.
• Thread Stand.
• Bobbin Winder.
• Utility Drawer.
• Tool Kit.
• Instruction / Parts Manual.
• Standard Machine Accessories.

The JACK® F5 Single Needle Direct Drive Lockstitch Industrial Sewing Machine combines high-speed straight stitching, digital speed control, needle positioning, automatic lubrication, integrated LED lighting, built-in bobbin winding, and energy-efficient Direct Drive technology in a complete professional sewing setup. Supplied with table and stand included, it is an excellent solution for garment manufacturing, alterations, tailoring, uniforms, workwear, and general industrial straight-stitch production.
