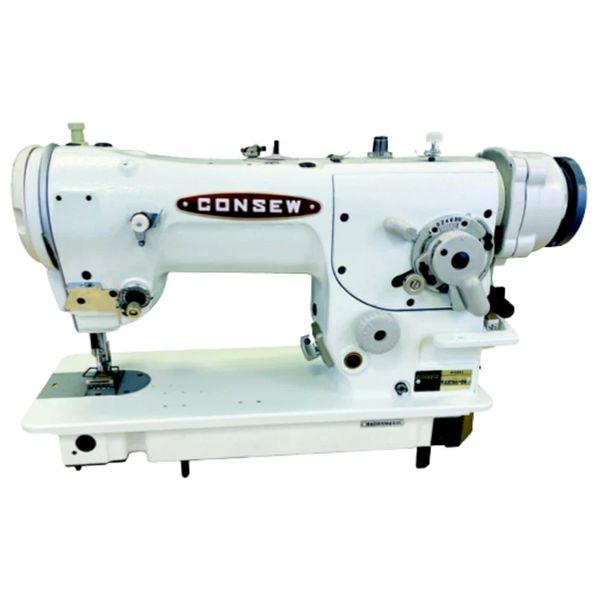

CONSEW® CN2053R-DD Single Needle Direct Drive Industrial Zigzag & Straight Stitch Sewing Machine
FULLY ASSEMBLED | TABLE, MOTOR & STAND INCLUDED
Wheels are not included and are sold separately.
ZIGZAG STITCHING • DIRECT DRIVE • DIGITAL SPEED CONTROL
The CONSEW CN2053R-DD is a single-needle industrial sewing machine designed for professional zigzag and straight-stitch applications.
Its integrated direct-drive servo motor provides adjustable sewing-speed control, while the drop-feed mechanism moves material through the sewing area during stitch formation.
The machine is intended for selected garment manufacturing, decorative sewing, appliqué, elastic attachment, and other industrial textile operations requiring adjustable zigzag stitching.
Key Features
- Single-Needle Zigzag Stitching: Provides adjustable zigzag lockstitch sewing for garment and industrial textile applications.
- Straight Stitch Capability: Supports straight lockstitch sewing when the zigzag width is set to the appropriate position.
- Integrated Direct Drive Servo Motor: Built-in motor technology eliminates the conventional external clutch-motor arrangement.
- Adjustable Sewing Speed: Allows operators to select working speeds according to their materials and sewing requirements.
- Drop Feed Mechanism: Uses lower feed dogs to move material through the sewing area.
- Horizontal-Axis Rotary Hook: Designed for industrial lockstitch operation.
- Reverse Stitching: Allows seam reinforcement through reverse sewing.
- Adjustable Zigzag Width: Provides stitch-width adjustments for different seam constructions.
- Digital Operating Controls: Provides access to supported speed and machine settings.
- Needle Position Adjustment: The supplied description lists left, center, and right needle positions. Confirm the exact operating arrangement on the supplied machine.
Applications
- Garment manufacturing and alterations.
- Decorative zigzag stitching.
- Lace and elastic attachment.
- Appliqué and decorative textile work.
- Selected footwear and leather accessories.
- Bags and textile accessories.
- Hemming and edge-related sewing operations.
- Light-to-medium industrial textile applications.
Important: Actual sewing capability depends on material thickness, needle selection, thread, stitch settings, and operating conditions.
Technical Specifications
| Brand | CONSEW |
| Model | CN2053R-DD |
| Machine Type | Industrial Single Needle Zigzag |
| Stitch Types | 301 Straight Lockstitch / 304 Zigzag Lockstitch |
| Number of Needles | 1 |
| Feed Mechanism | Drop Feed |
| Maximum Sewing Speed | 1,800 Stitches Per Minute |
| Maximum Stitch Length | 5 mm / Approximately 5 SPI |
| Maximum Zigzag Width | 9 mm / Approximately 11/32" |
| Presser Foot Lift — Hand | 6 mm |
| Presser Foot Lift — Foot | 10 mm |
| Needle System | 135 × 5 |
| Working Space | 8-5/16" / Approximately 211 mm |
| Needle Bar Stroke | 31.5 mm |
| Bed Dimensions | 7" × 15-11/16" / 178 × 398.5 mm |
| Hook Type | Horizontal-Axis Rotary Hook |
| Motor | Integrated Direct Drive Servo Motor |
| Control Interface | Digital Speed & Function Control |
| Reverse Stitching | Yes |
| Automatic Presser Foot Lift | Verify Exact Configuration |
| Monogramming Lever | Verify Exact Configuration |
| Needle Stop Position | Verify Exact Configuration |
| Motor Voltage & Power | Confirm With Supplied Machine |
| Included Equipment | Machine Head, Motor, Table & Stand |
| Assembly | Fully Assembled by JMJ Sewing Machines |
| Wheels | Not Included — Sold Separately |
Advantages of Direct Drive Technology
- Electronic Speed Control: Allows operators to adjust sewing speed according to their materials and experience.
- Integrated Motor Design: Eliminates the conventional external clutch-motor arrangement.
- Controlled Operation: Supports responsive starts, stops, and speed adjustments.
- Stitching Versatility: Combines straight and zigzag sewing capabilities in one machine.
- Industrial Workstation: Provides a dedicated sewing setup for professional textile operations.
Fully Assembled & Ready for Operation
Every CONSEW CN2053R-DD purchased as a complete industrial package from JMJ Sewing Machines includes the machine head, integrated motor, table, and stand.
Our team prepares the machine through assembly, lubrication, calibration, and sewing-performance inspection before delivery or shipment.
Please Note: Caster wheels are not included in the standard machine package. They are available for separate purchase.
JMJ Sewing Machines Recommends
The CONSEW CN2053R-DD is recommended for professional sewing workshops requiring adjustable zigzag stitching and straight lockstitch capability.
Its direct-drive motor and drop-feed system provide a practical configuration for selected garment, decorative sewing, and textile applications.
Our Recommendation: Choose the appropriate needle, thread, zigzag width, stitch length, and machine adjustments according to your materials and production requirements. JMJ Sewing Machines can assist with determining whether this model is suitable for your specific sewing application.
